Digital Force Gauge Gelenkkopf - SAUTER FL 10K

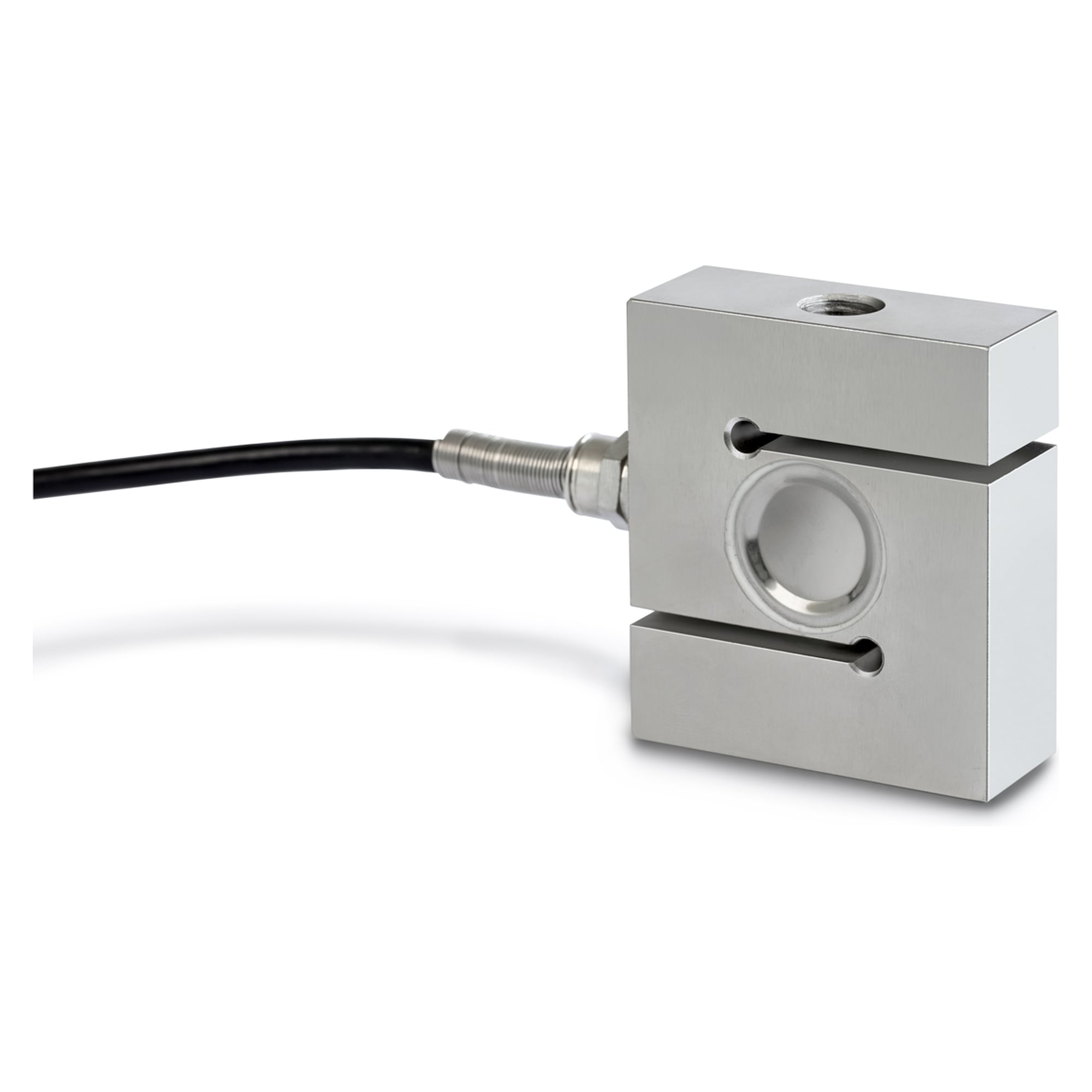

The SAUTER FL 10K digital force gauge measures tension and compression up to 10 kN at 5 N readability using an external load cell. Peak-hold, a limit function and a reversible graphic display make it ready to use in the lab or on the line. Readings transfer to a PC or controller over USB or the analogue output.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

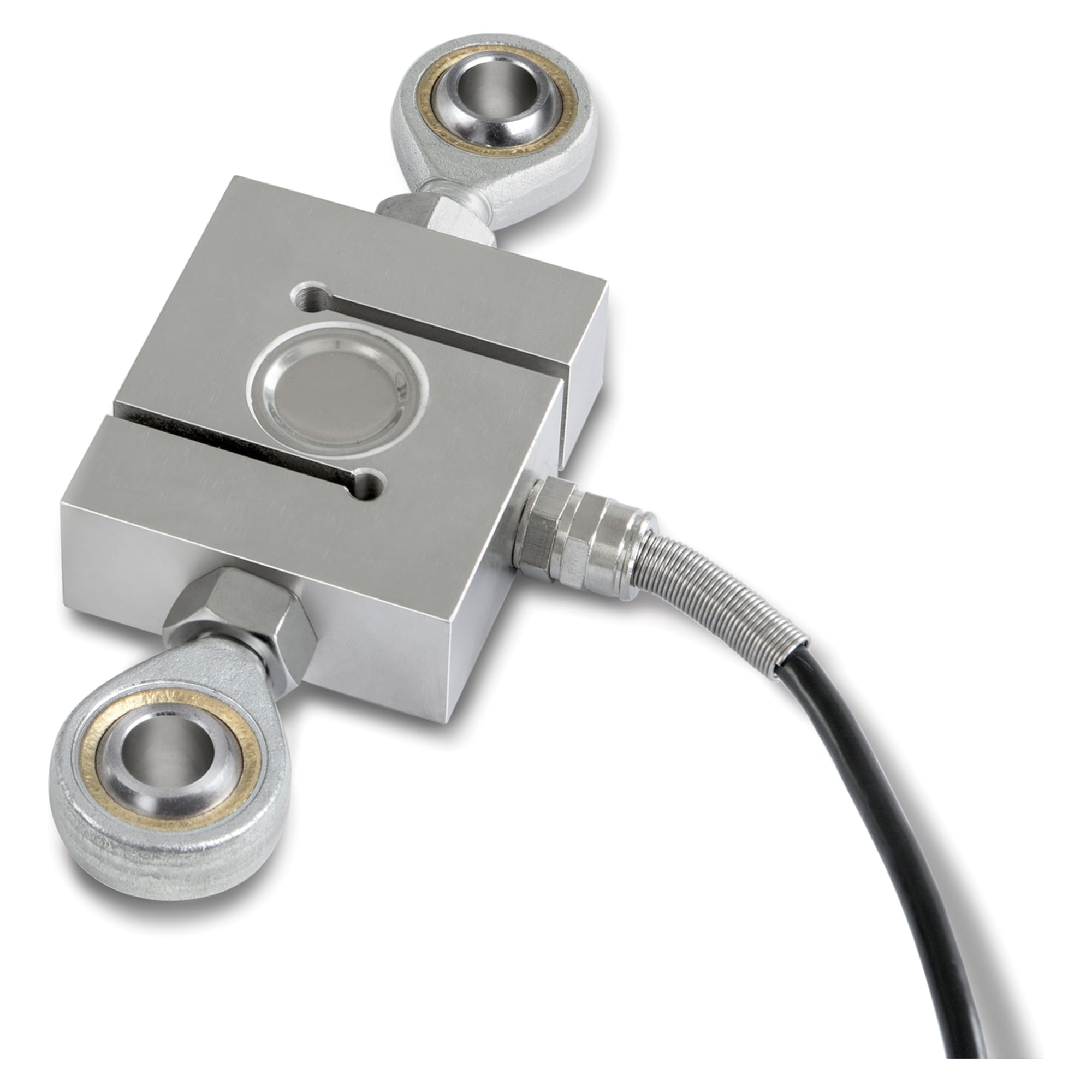

The SAUTER FL 10K measures high tensile and compressive forces up to 10 kN through an external load cell, with 5 N readability. Tension eyelets are included, the readout stays compact and mounts to SAUTER test stands from 1 kN.
Benefits
- Peak-hold and track: lock the peak value or follow the force curve continuously
- Readability 5 N: fine resolution across the full range up to 10 kN
- Limit function: upper and lower limits in tension and compression, with an optical signal when exceeded
- Capacity indicator: a rising light bar shows the remaining range and helps prevent overload
- Data output: up to 500 stored readings, transfer to a PC or controller over USB and the analogue output (-2 to +2 V)
- Rugged metal housing: coated metal built for lasting use, supplied in a carry case
Applications
Test laboratories, research and development, the automotive industry and maintenance teams use it for repeatable tension and compression tests, as does plastics processing.
Compliance and origin
Selectable units N, kN, kgf, ozf and lbf. EAN 4045761215993, customs tariff code 90248000, country of origin Thailand.
Technical data
| Measuring range (Max) | 10 kN |
|---|---|
| Readability (d) | 5 N |
| Accuracy | 0,2 % of full scale |
| Overload protection | 120 % of full scale |
| Sampling rate | 1000 Hz |
| Force directions | tension and compression |
| Force application | rod end with external load cell (tensile) |
| Display | LCD, 8,5 mm digit height |
| Interfaces | RS-232 (standard), USB and analogue output (0 +/-2 V) |
| Internal memory | up to 500 readings |
| Power supply | NiMH battery and mains adapter (100 - 240 V) |
| Battery life | 8 h (backlight on), 10 h (backlight off), charging 8 h |
| Operating temperature | 15 - 35 °C |
| Housing | coated metal |
| Dimensions (W×D×H) | 175x75x30 mm |
| Weight | 1,6 kg |
| Manufacturer | Sauter |
| EAN | 4045761215993 |
| HS-Code | 90248000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Thailand |
| Display type | LCD |
| Interface | Analog, RS-232, USB device |
