Digital Coating Thickness Gauge - SAUTER TB 1000-0.1F
The SAUTER TB 1000-0.1F checks paint and lacquer coatings on steel non-destructively across two ranges up to 100 µm and up to 1000 µm. Its external sensor reaches awkward measuring points, and readability is 0,1 µm and 1 µm. It comes with Offset-Accur two-point calibration, a zero plate and calibration foils in a sturdy carrying case.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For daily control of paint and lacquer coatings, the SAUTER TB 1000-0.1F measures across two ranges up to 100 µm and up to 1000 µm. The external sensor reaches awkward spots, and the Offset-Accur function raises accuracy through a two-point calibration.
Benefits
- Two ranges: up to 100 µm and up to 1000 µm, readability 0,1 µm and 1 µm.
- External sensor: for hard-to-reach measuring points.
- Higher accuracy via Offset-Accur: two-point calibration to the actual range, down to 1 % of the reading.

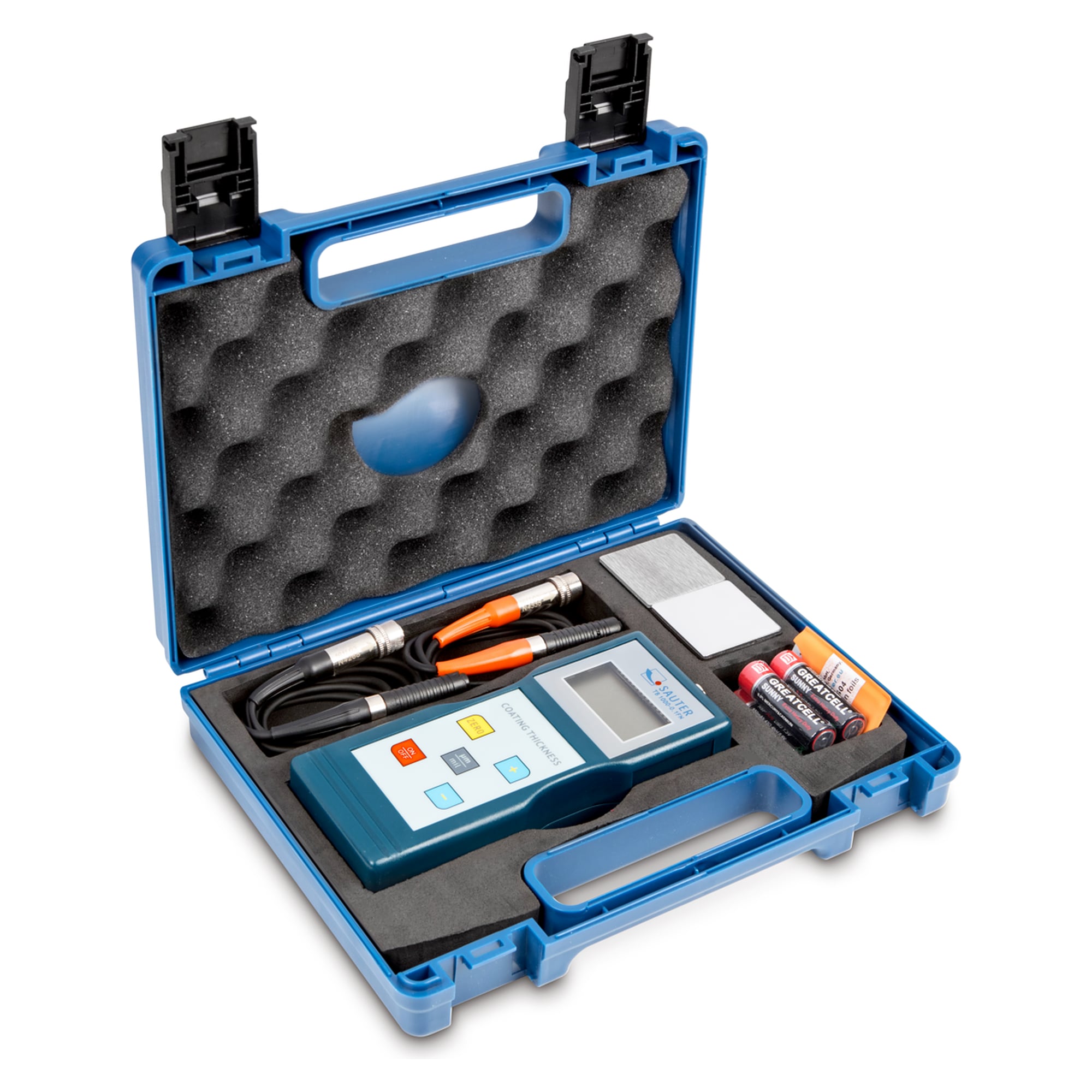

- Ready to use: zero plate and calibration foils included, delivered in a sturdy carrying case.
- Selectable units: µm and inch (mil), with auto power-off.
Applications
Typical fields are the automotive industry, electroplating and metal finishing, shipbuilding and aviation, laboratories and quality control, and construction and building sites.
Compliance and origin
EAN 4045761140004, customs tariff code 90318080, country of origin China.
Technical data
| Coating thickness range (max) | 100 µm and 1000 µm |
|---|---|
| Readability | 0,1 µm and 1 µm |
| Tolerance | 3 % of max |
| Test object | non-magnetic coatings on iron and steel (type F) |
| Display | LCD |
| Units | µm, inch (mil) |
| Sensor cable length | 1 m |
| Power supply | 4 × 1,5 V AAA (Alkali-Mangan) |
| Ambient temperature | 0 to 50 °C |
| Dimensions (W×D×H) | 161 × 69 × 32 mm |
| Housing | plastic |
| Net weight | 0,75 kg |
| Weight | 0.9 kg |
| Manufacturer | Sauter |
| EAN | 4045761140004 |
| HS-Code | 90318080 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Material | Plastic |
| Display type | LCD |
