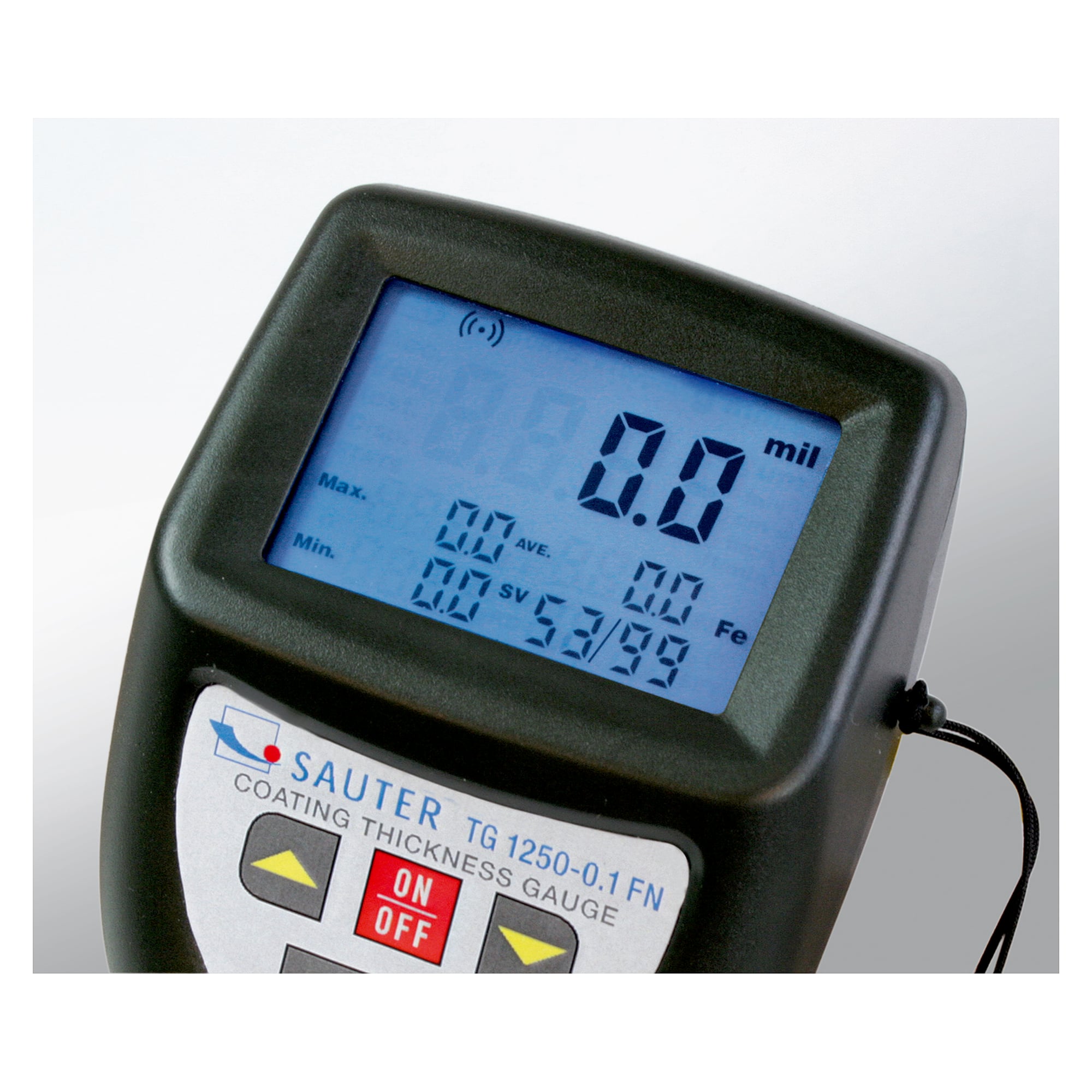

Digital Coating Thickness Gauge - SAUTER TG 1250-0.1FN
The SAUTER TG 1250-0.1FN is a premium coating thickness gauge for paint and lacquer on ferrous and non-ferrous metals, with two ranges up to 100 µm and up to 1250 µm. An external sensor, backlit graphic LCD, scan mode and internal memory for 99 readings make inspection convenient. The standard RS-232 interface transfers data to a PC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For documented coating inspection, the SAUTER TG 1250-0.1FN is a premium gauge with two ranges up to 100 µm and up to 1250 µm, a scan mode and internal memory for up to 99 readings. The external sensor reaches awkward spots.
Benefits
- Two ranges: up to 100 µm and up to 1250 µm, readability 0,1 µm and 1 µm.
- Two measuring modes: single measurement and scan mode for continuous measuring.
- Statistics and memory: mini statistics (reading, average, max, min) and internal memory for 99 readings.
- Higher accuracy via Offset-Accur: two-point calibration, down to 1 % of the reading.
- Data transfer: RS-232 interface fitted as standard.
- External sensor: with backlit graphic LCD for easy reading.
Applications
Typical fields are the automotive industry, electroplating and metal finishing, shipbuilding and aviation, laboratories and quality control, and construction and building sites.
Compliance and origin
EAN 4045761140110, customs tariff code 90318080, country of origin China.
Technical data
| Coating thickness range (max) | 100 µm and 1250 µm |
|---|---|
| Readability | 0,1 µm and 1 µm |
| Tolerance | 3 % of max |
| Test object | non-magnetic coatings on iron and steel (type F), coatings on non-magnetic metals (type N) |
| Display | graphic LCD, backlit |
| Interface | RS-232, standard |
| Units | µm, inch (mil) |
| Sensor cable length | 1 m |
| Power supply | 2 × 1,5 V AAA (alkaline) |
| Battery life | 50 h |
| Ambient temperature | 0 to 50 °C |
| Dimensions (W×D×H) | 130 × 64 × 32 mm |
| Housing | plastic |
| Net weight | 0,10 kg |
| Weight | 0.75 kg |
| Manufacturer | Sauter |
| EAN | 4045761140110 |
| HS-Code | 90318080 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| Material | Plastic |
| Display type | Graphic LCD |
