Digital Coating Thickness Gauge - SAUTER TE 1250-0.1F

For daily control of paint and lacquer coatings, the SAUTER TE 1250-0.1F measures across two ranges up to 100 µm and up to 1250 µm. The external sensor reaches awkward spots, and the Offset-Accur function raises accuracy through a two-point calibration.

Benefits

• Two ranges: up to 100 µm and up to 1250 µm, readability 0,1 µm and 1 µm.
• External sensor: for hard-to-reach measuring points.
• Higher accuracy via Offset-Accur: two-point calibration to the actual range, down to 1 % of the reading.
• Data transfer: RS-232 interface fitted as standard.

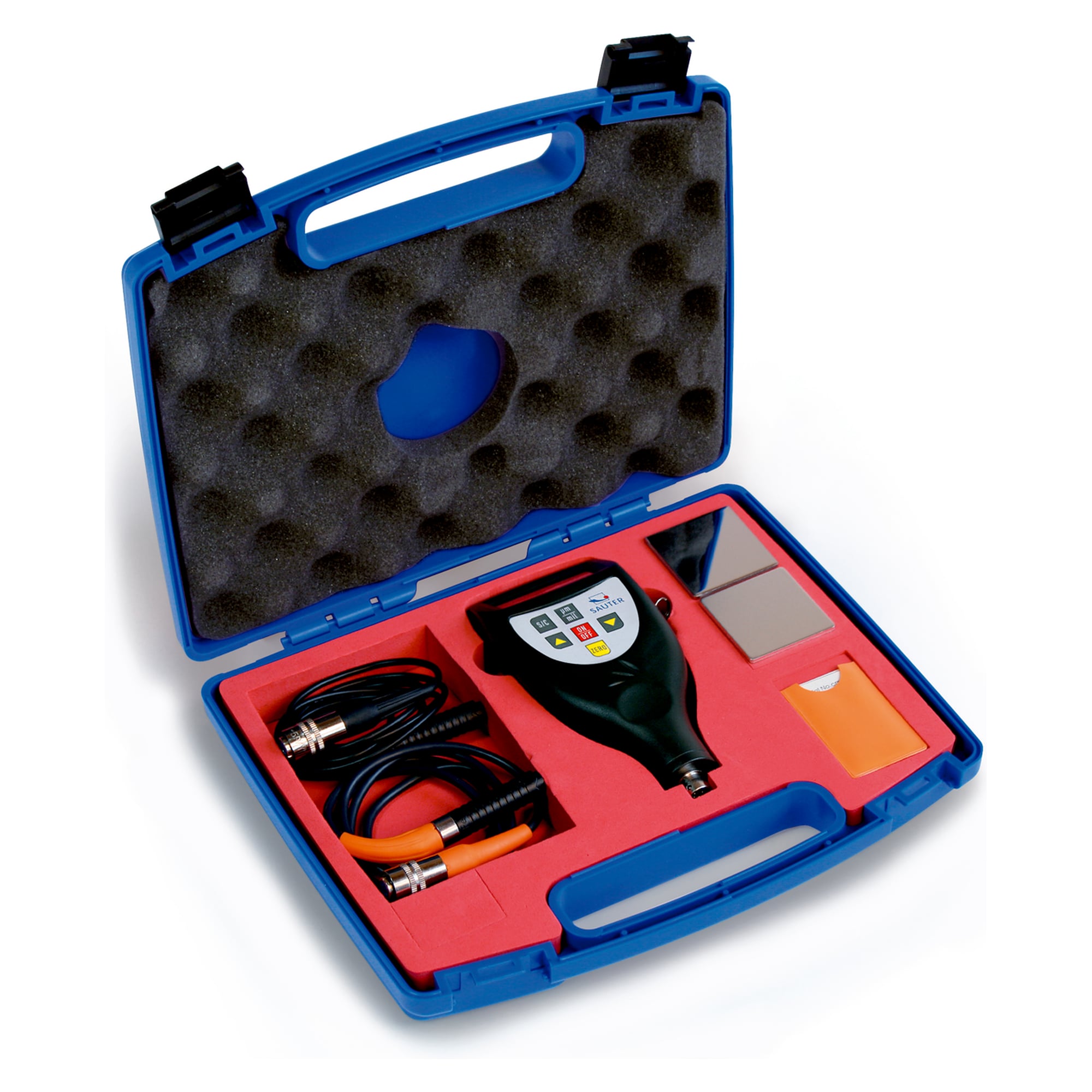

• Ready to use: zero plate and calibration foils included, delivered in a sturdy carrying case.
• Selectable units: µm and inch (mil), with auto power-off.

Technical data

• Coating thickness range (max): 100 µm and 1250 µm
• Readability: 0,1 µm and 1 µm
• Tolerance: 3 % of max
• Test object: non-magnetic coatings on iron and steel (type F)
• Display: LCD
• Units: µm, inch (mil)
• Interface: RS-232, standard
• Power supply: 4 × 1,5 V AAA (Alkali-Mangan)
• Battery life: 50 h
• Ambient temperature: 0 to 50 °C
• Dimensions (W×D×H): 131 × 65 × 28 mm
• Housing: plastic
• Net weight: 0,10 kg

Applications

Typical fields are the automotive industry, electroplating and metal finishing, shipbuilding and aviation, laboratories and quality control, and construction and building sites.

Compliance and origin

EAN 4045761140141, customs tariff code 90318080, country of origin China.
