Ultrasonic Thickness Gauge - SAUTER TU 80-0.01US

To check pipes, vessels or components for wall thickness and corrosion without cutting them open, the SAUTER TU 80-0.01US measures from one side: pulse-echo from 0.75 mm to 80 mm at 0.01 mm readability.

Benefits

• Wide range: 0.75 mm to 80 mm wall thickness by pulse-echo, readability 0.01 mm

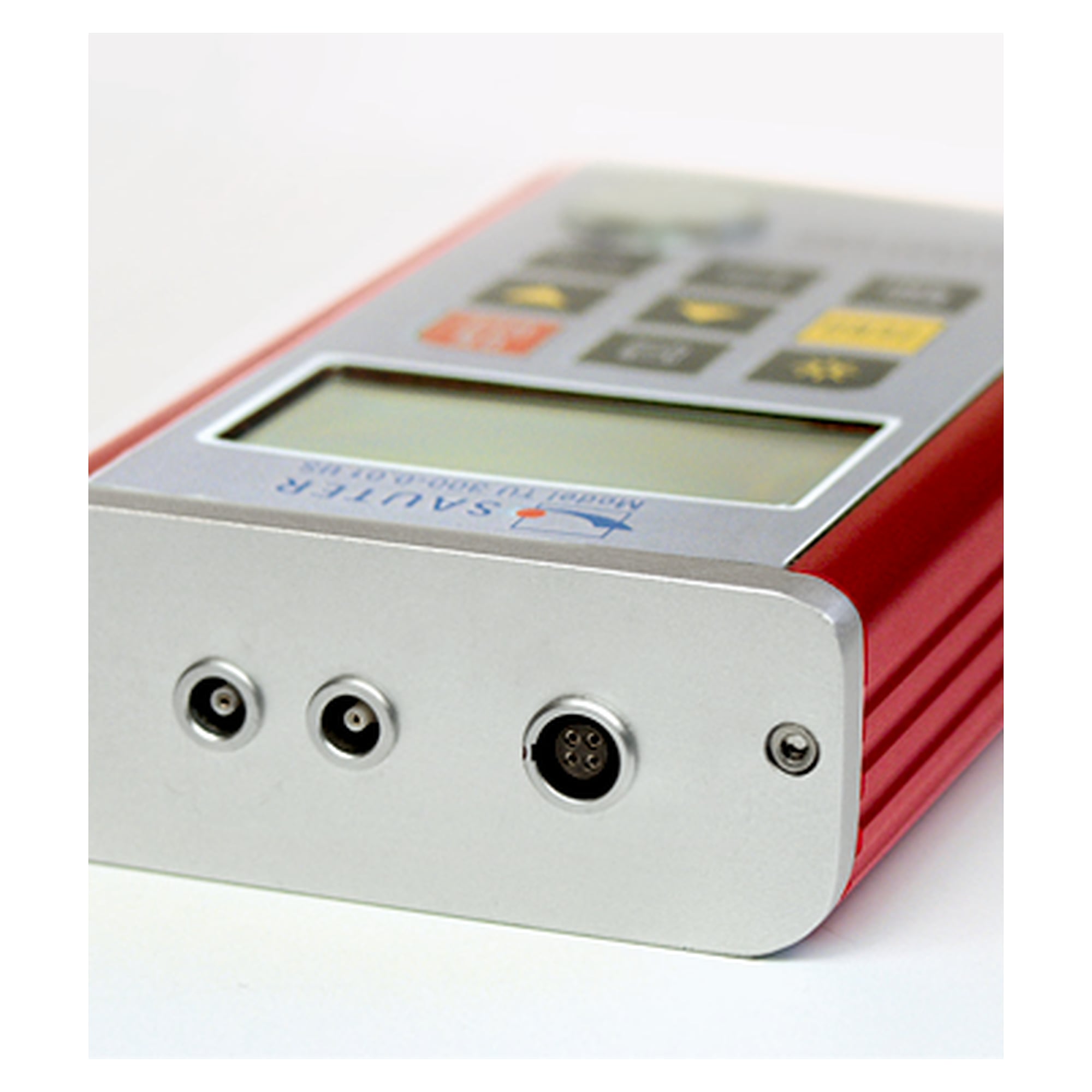

• External probe: 7 MHz, 6 mm diameter, 0.9 m cable - reaches hard-to-access measuring points
• Material matching: sound velocity freely adjustable from 1000 to 9999 m/s
• Two modes: scan mode at 10 readings per second or targeted single measurement
• Limit function: upper and lower tolerance programmable, with audible and visual feedback
• Data logging: internal memory for up to 20 files of 100 values each, USB interface as standard

Technical data

• Pulse-echo thickness: 0.75 mm to 80 mm
• Readability: 0.01 mm
• Accuracy: 0,5 % of Max
• Probe frequency: 7 MHz
• Probe diameter: 6 mm
• Probe cable length: 0,9 m
• Sound velocity: 1000 to 9999 m/s
• Units: mm, inch

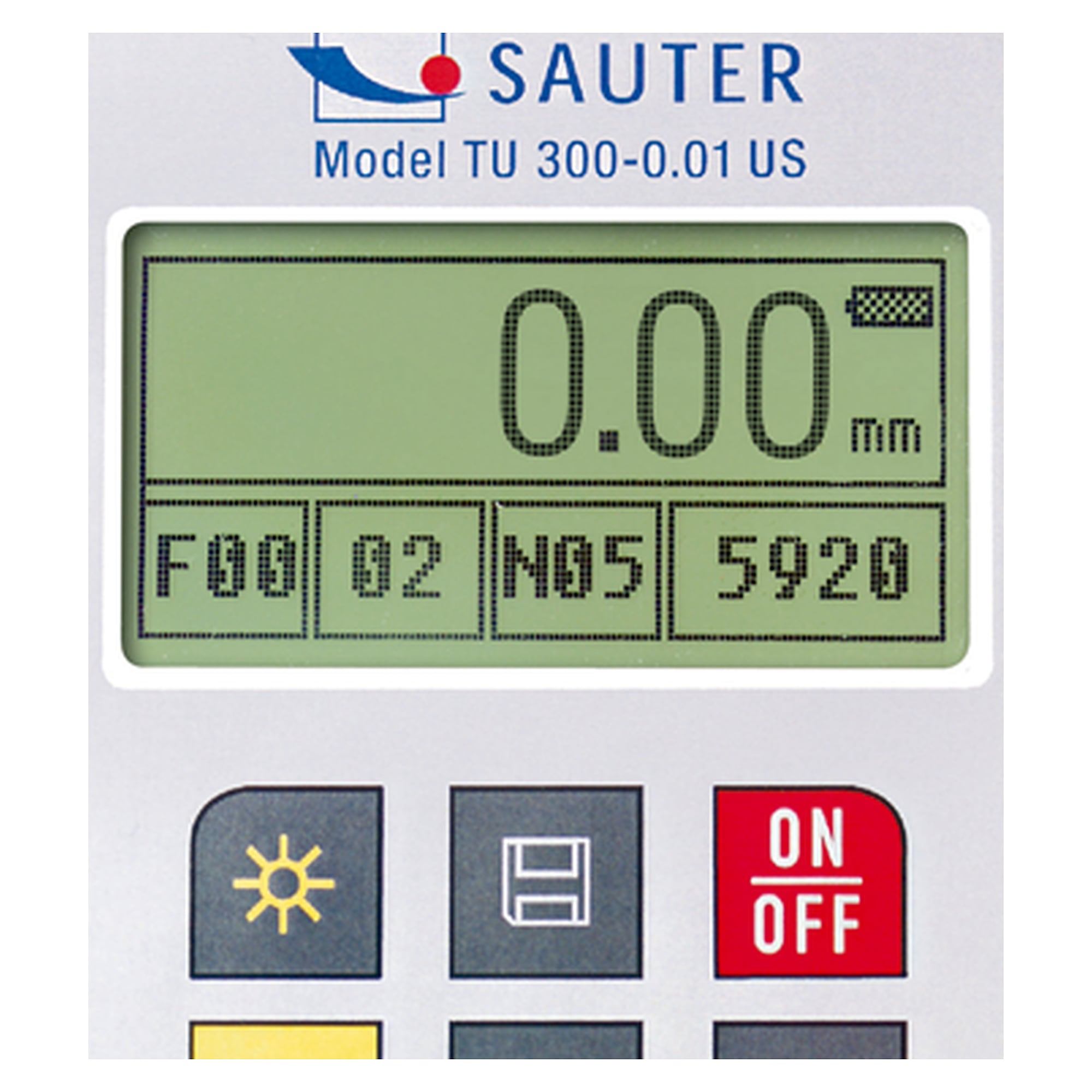

• Display: LCD
• Housing: cast aluminium, 132 x 76 x 32 mm
• Power supply: 2 x 1.5 V AA, operating time approx. 100 h
• Interface: USB device
• Ambient temperature: -10 to 60 deg C
• Net weight: 0,50 kg

Applications

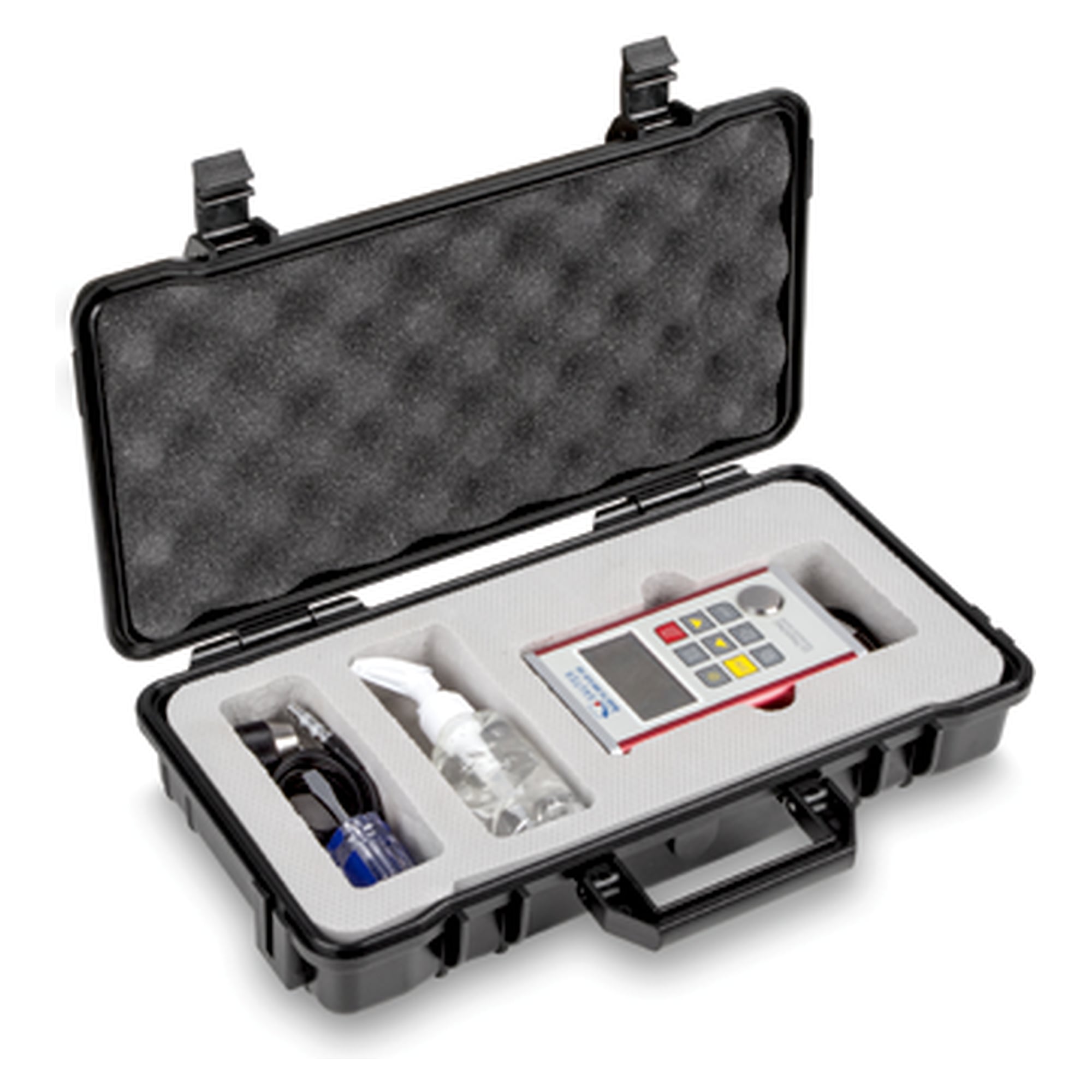

Used in metalworking and mechanical engineering, the oil and gas industry, aerospace, plastics technology and the marine sector. Supplied in a carry case with calibration plate, coupling gel and batteries.

Compliance and origin

EAN 4045761139824, customs tariff number 90318080, country of origin China.
