Tipper
Trolley
Fetra tippers divide into two main groups: skip tippers (Muldenkipper) in the 4701-4704 series with container dimensions from 1,200x652x413 mm to 1,321x1,044x735 mm, and self-tippers (Selbstkipper) 6030-6120, which empty automatically when pushed over a tipping rail. Skip tippers are optionally available with a drain tap for liquid emptying and in special colour RAL 7016 (suffix /7016). Polyamide castor sets rated to 1,500 kg (for 6030/6060) and 2,500 kg (for 6090/6120) are offered for the self-tipper range.
| Model | Container / outer dimensions | Options |
|---|---|---|

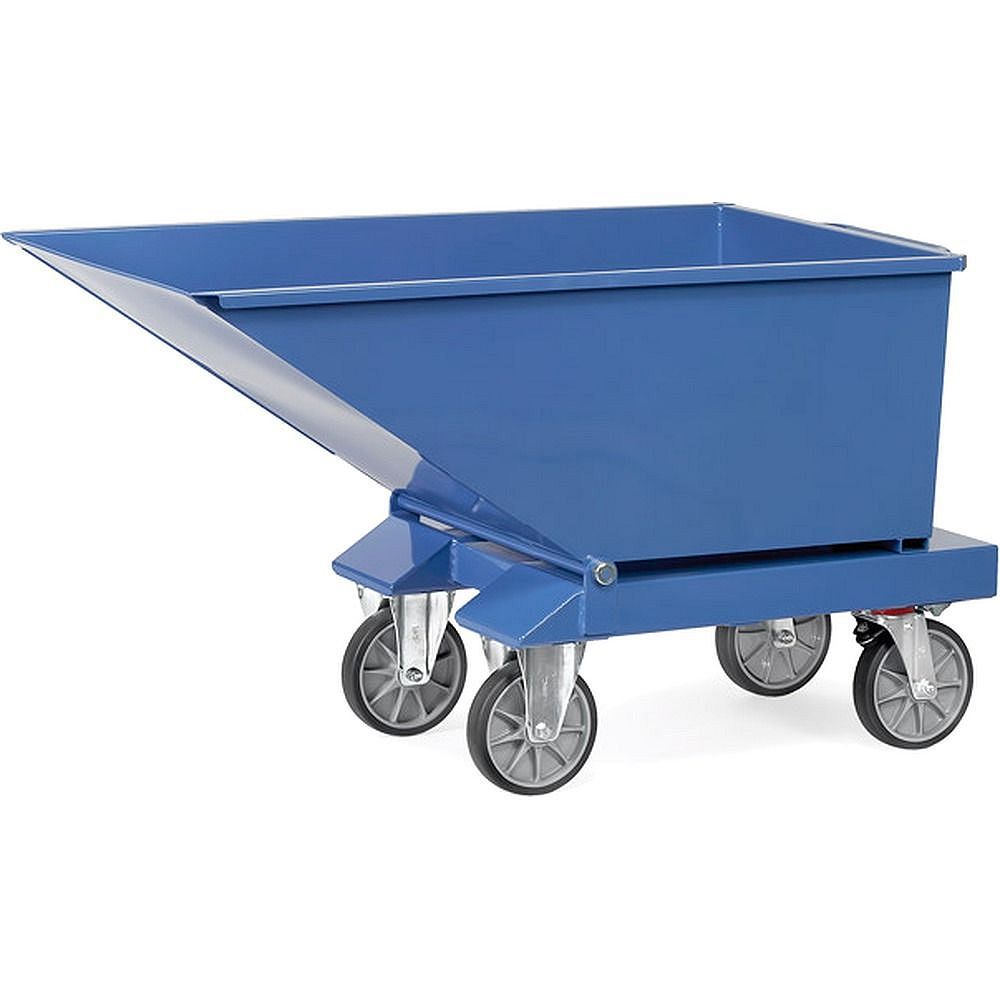

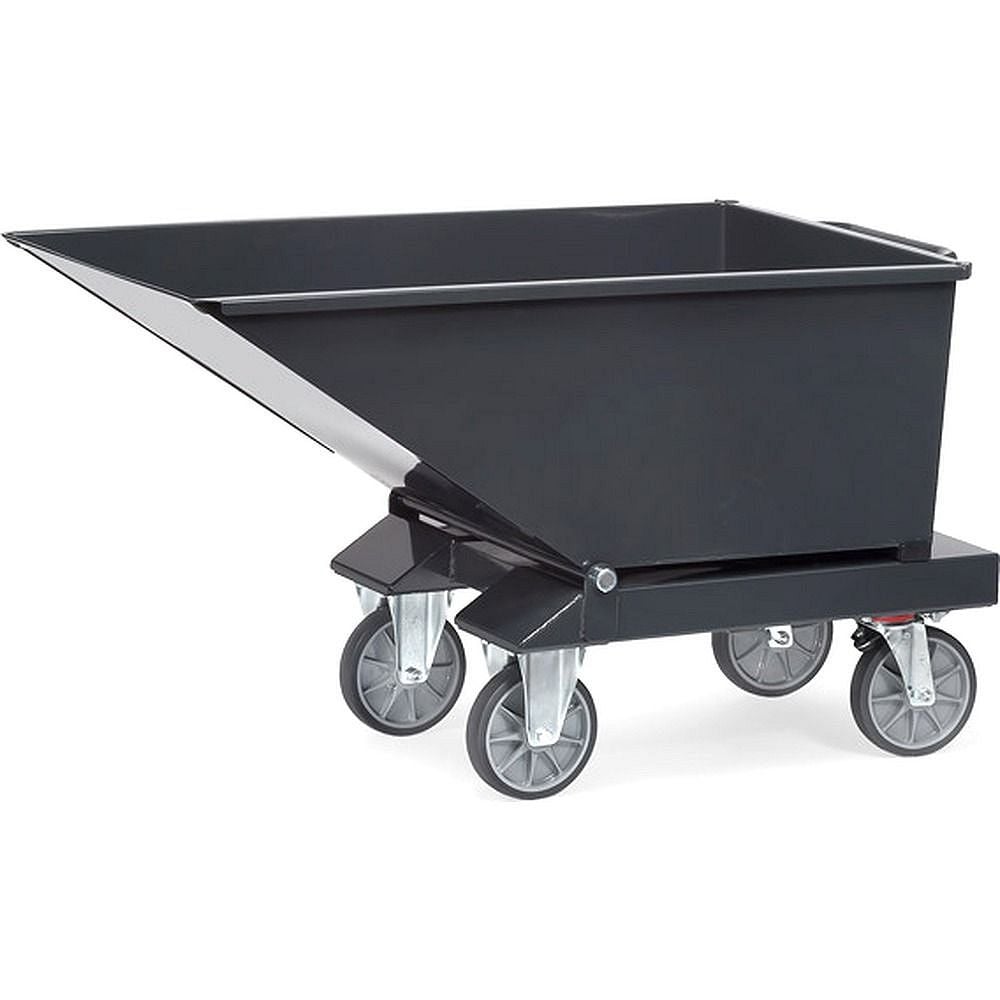

| Skip tipper 4701 | 1,200x652x413 mm | Optional drain tap, RAL 7016 |

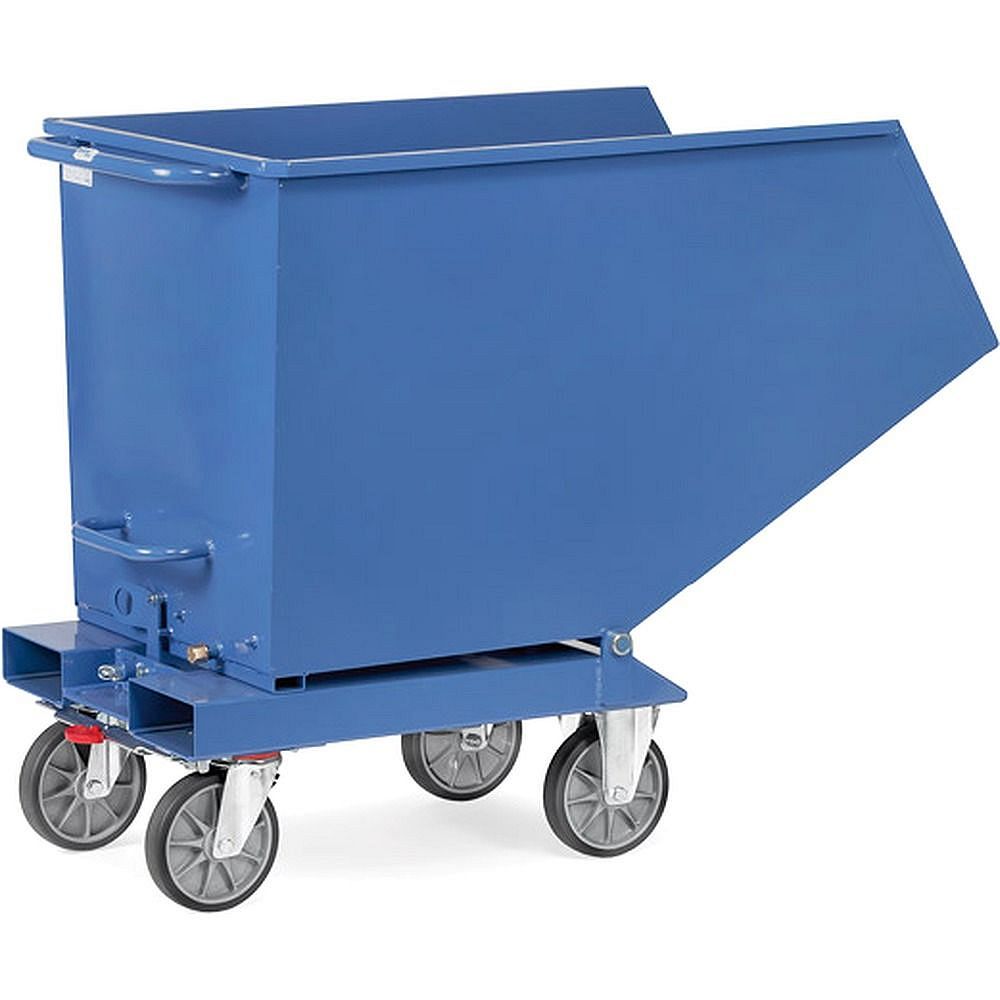

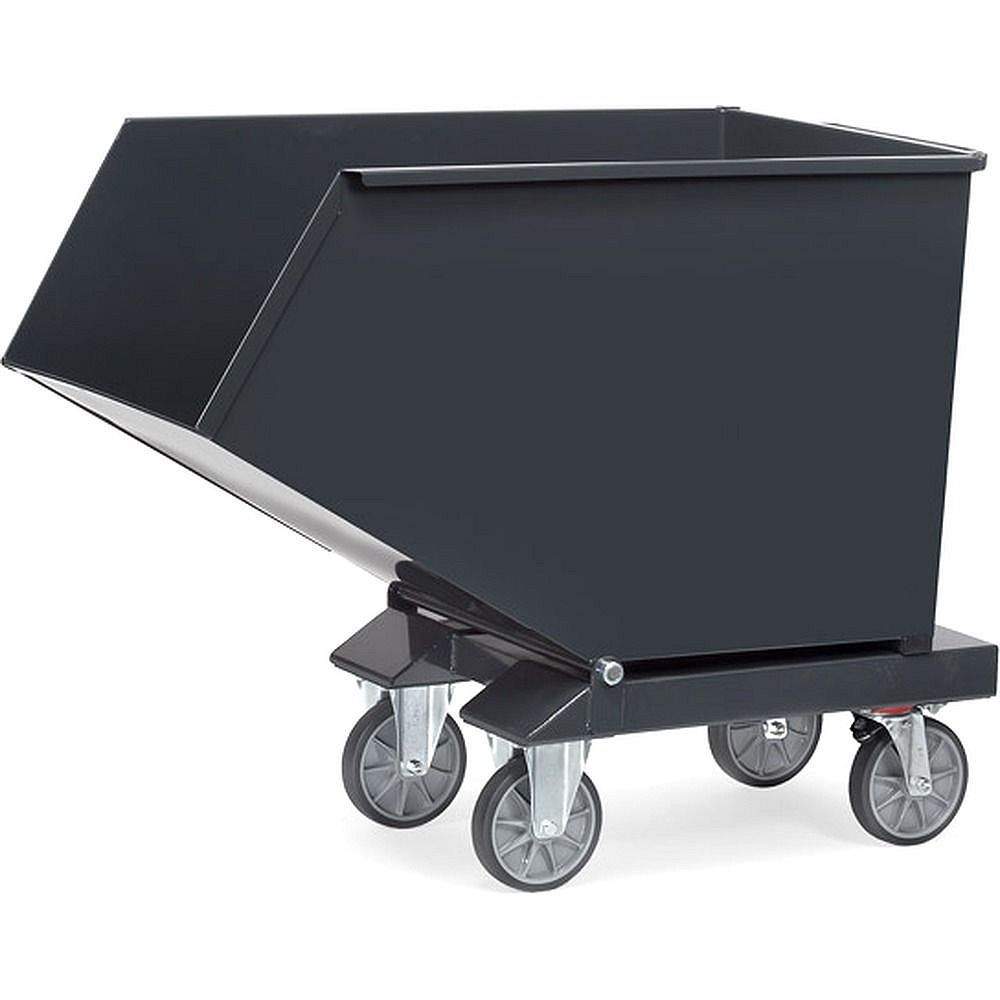

| Skip tipper 4702 | 1,214x669x708 mm | Optional drain tap, RAL 7016 |
| Skip tipper 4703 | 1,321x794x735 mm | Optional drain tap, RAL 7016 |
| Skip tipper 4704 | 1,321x1,044x735 mm | Optional drain tap, RAL 7016 |
| Self-tipper 6030 | 1,294x731x837 mm | Castor set up to 1,500 kg |
| Self-tipper 6060 | 1,294x1,141x837 mm | Castor set up to 1,500 kg |
| Self-tipper 6090 | 1,294x1,661x837 mm | Castor set up to 2,500 kg |
| Self-tipper 6120 | 1,751x1,222x1,127 mm | Castor set up to 2,500 kg |
Typical applications: Disposal of production waste, swarf, and bulk material; warehouse and logistics areas with a dedicated tipping station for self-tippers; recycling and sorting operations; internal transport of bulky loads with skip tippers.
