Upright Tube Pair ESD, Height 997 mm, with Flange 70x100 mm, 80 kg, for TED/PowerX TED - Treston TTP990-49
Pair of upright tubes, 997 mm high with a 70x100 mm flange, for the Treston TED and PowerX TED electric height-adjustable desks. The tubes are screwed onto the worktop and carry up to 80 kg per pair.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
This upright tube pair adds an accessory superstructure to the TED or PowerX TED electric desk. The tubes are screwed to the worktop through their flange, so they move with the desk at every height change. Load capacity is up to 80 kg per pair.
Key features
- Supplied as a pair, 2 upright tubes
- Height 997 mm, flange WxD 70x100 mm
- Load capacity up to 80 kg per pair
- Fixed to the worktop with screws
- ESD-safe, epoxy powder-coated steel in light grey RAL 7035
- 10-year manufacturer warranty
Technical data
| Product code | TTP990-49 |
|---|---|
| Dimensions (WxDxH) | 70 x 100 x 997 mm |
| Contents | 2 upright tubes (1 pair) |
| Max. load | 80 kg per pair |
| Material | Steel, epoxy powder-coated |
| Colour | Light grey, RAL 7035 |
| ESD | Yes |
| Mounting | Screwed to the worktop |
| Fits | Treston TED, Treston PowerX TED |
| Warranty | 10 years |
| Weight | 6.5 kg |
| Manufacturer | Treston |
| Manufacturer Nr. | TTP990-49 |
| EAN | 6416763090815 |
| HS-Code | 94032080 |
| GPSR manufacturer information | Treston Deutschland GmbH, Friedrich-Ebert-Damm 143, DE-22047 Hamburg |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Finland |
| Sales unit | 1 |
| Height | 997 |
| Width | 70 |
| Depth | 100 |
| ESD version | ESD (antistatic) |
| Load capacity (kg) | 80 |
Typical use: assembly and test stations built on a TED desk where lights, shelves or monitor arms should sit within reach above the work surface.
Downloads
Accessories

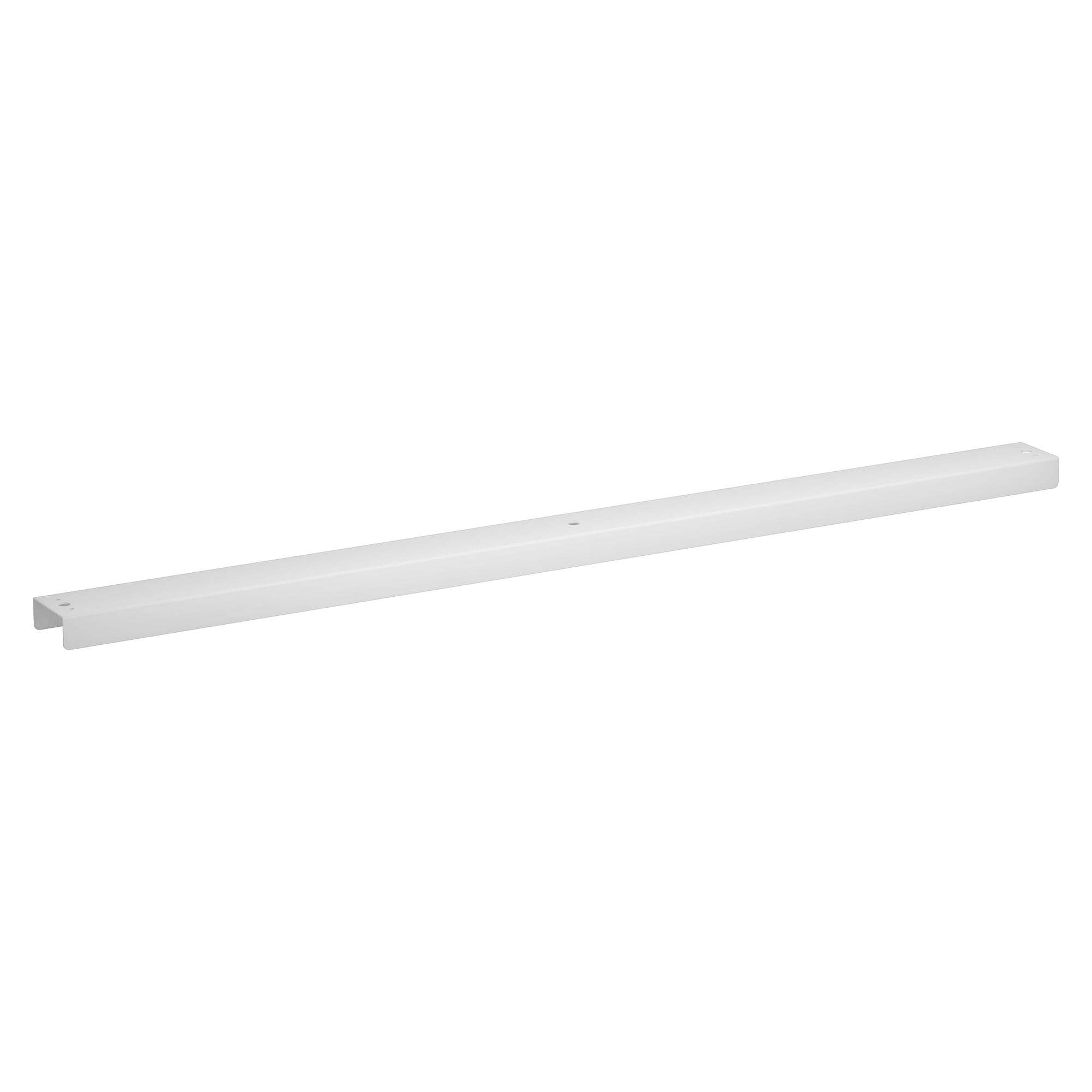

Horizontal Profile M1500 ESD, Light Grey RAL 7035, for Concept Ergo/QuatreX/TP - Treston HPM1500-49
