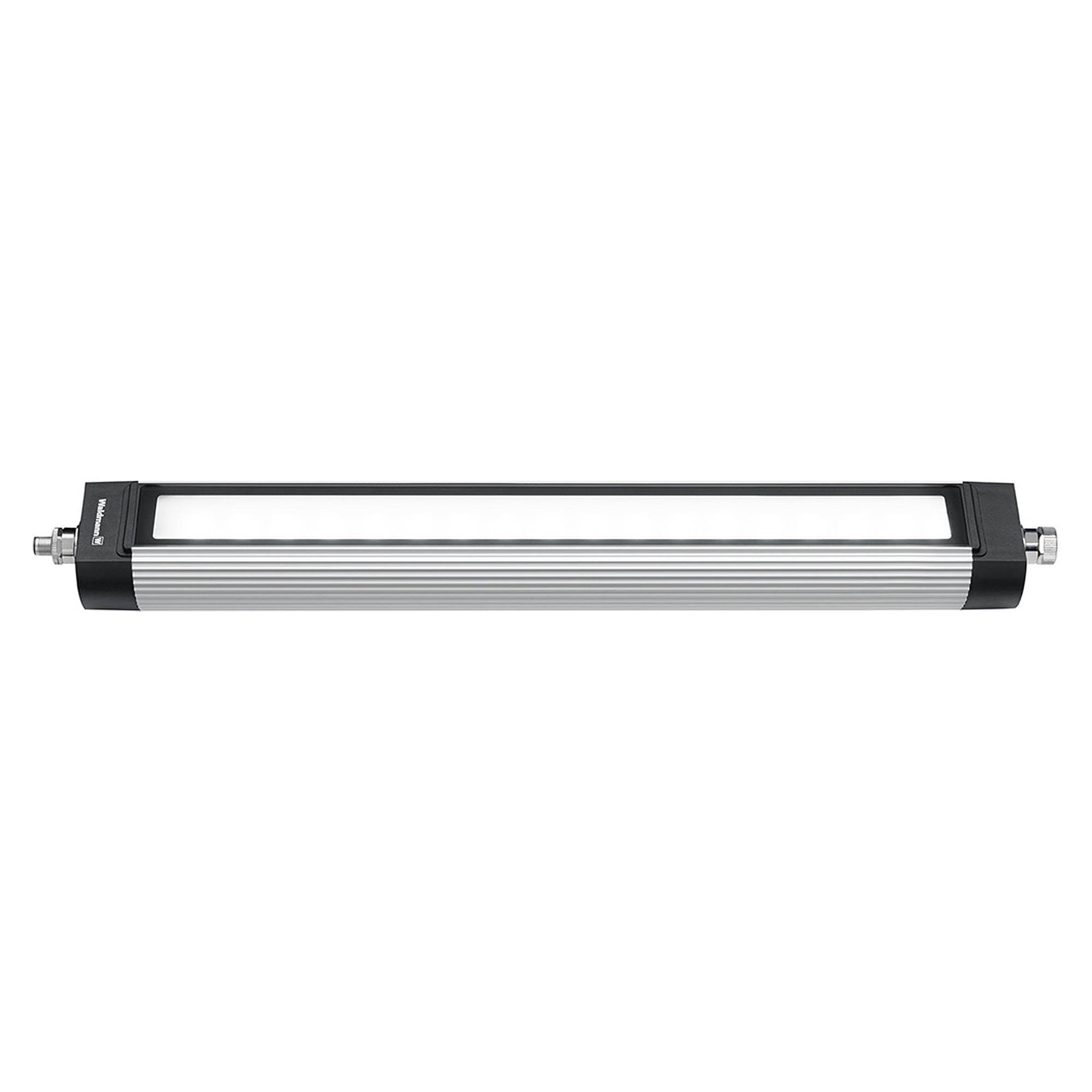

LED machine luminaire MACH LED PLUS.seventy MQAL 18 SD, 24 V DC, 750 lm, 510 mm, through-wired - Waldmann 113054000-00580591

Compact machines, test stations and small machining areas are lit by the MACH LED PLUS.seventy MQAL 18 SD with 510 mm length and around 750 lm at 7.5 W. The Eco fitting keeps consumption low and reaches 100 lm/W, which is frequently enough when converting existing machines. It connects to the machine control voltage of 18-30 V DC and needs no control gear (protection class III). Being through-wired with a connection box, several luminaires can be daisy-chained electrically.

Benefits

• Efficient: 100 lm/W, around 750 lm at only 7.5 W power consumption
• Suitable for ambient temperatures from -10 to 60 °C
• IP67 protection with Viton seal, chemically resistant to many oils and cooling lubricants
• Neutral white light at 5000 K, CRI ≥ 80, colour tolerance < 4 SDCM
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Small machine interiors, test stations and assembly stations
• Conversion of conventional tube luminaires to LED
• Continuous light lines along production and assembly lines

Installation and accessories

• Mounting with L-angle, clamp or luminaire bracket (adjustable +/-30°, as a set +/-65°, with rubber profile) from the accessories
• Mains connection via built-in plug series 763, M12, 4-pin, A-coded, plus connection box for the next luminaire
• Matching accessories: connection sockets, connecting plugs, connection cables 3 m or 7 m (5 x 0.5 mm²) and protective cap set
