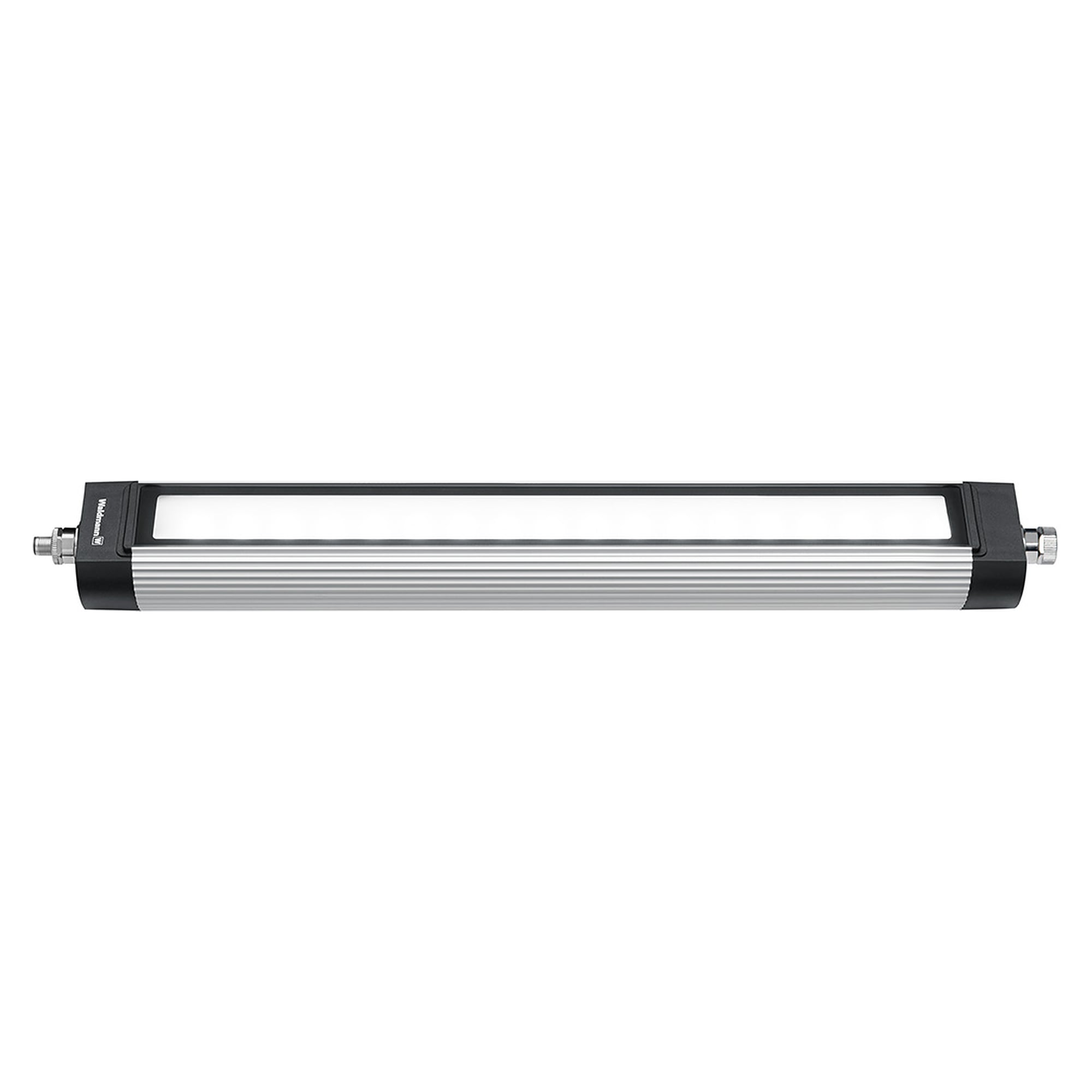

LED machine luminaire MACH LED PLUS.seventy MQAL 18 ND, 9.5 W, 750 lm, 510 mm, 100/120/220-240 V AC, through-wired - Waldmann 113058000-00580603

Low running costs and a bright work area: in Eco fitting the MQAL 18 ND reaches approx. 78 lm/W and delivers 750 lm at 9.5 W. The electronic ballast accepts 100 V, 120 V and 220-240 V at 50 or 60 Hz, so one luminaire fits machines built for different grids.

Benefits

• Eco fitting at approx. 78 lm/W: 750 lm from 9.5 W, often sufficient to replace a conventional tube luminaire
• IP67 with Viton seal, resistant to many oils and cooling lubricants according to the manufacturer
• One item for 100 V, 120 V and 220-240 V at 50/60 Hz: fewer variants to keep as spare parts
• Through-wired with built-in plug and connection box: chain several luminaires on one supply line
• Glare control via optical film, UGR ≤ 25 and luminance L65 ≤ 13,000 cd/m²
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Compact work areas of lathes and milling machines
• Integrated manufacturing and test systems
• Machines exported to 100 V or 120 V grids
• Light lines of several luminaires within one machine

Installation and accessories

• Mounting with L-angle or clamp from the accessory range
• Luminaire brackets adjustable ±30° or ±65° as accessories
• Mains connection via built-in plug (series 814) and connection box for onward wiring
• M12 connection sockets, plugs and 3 m or 7 m connection cables as accessories
