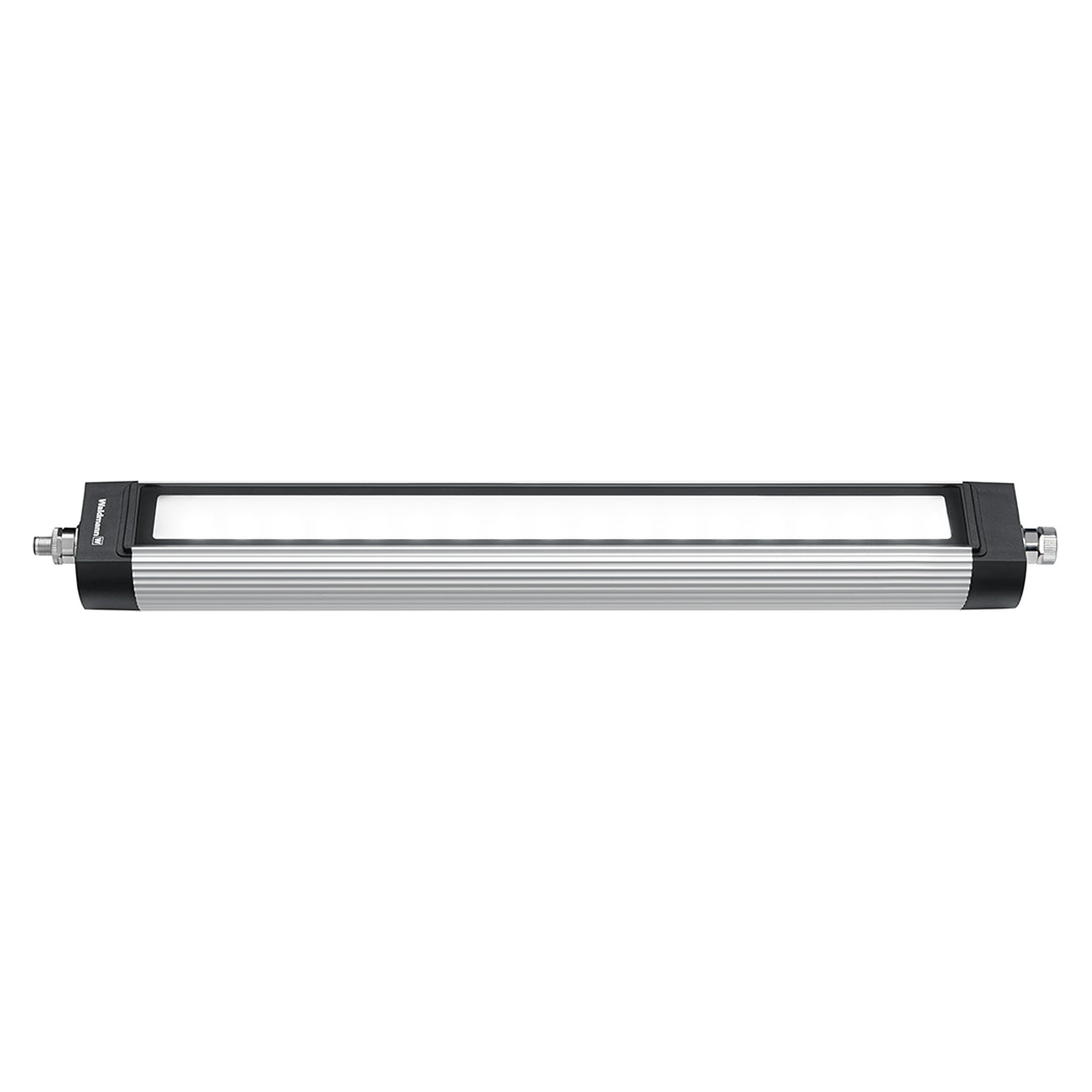

LED machine luminaire MACH LED PLUS.seventy MQAL 36 SD, 16.7 W, 1650 lm, 510 mm, 18-30 V DC, through-wired - Waldmann 113056000-00580597

With approx. 1650 lm from 16.7 W and 91 lm/W, the MQAL 36 SD suits initial equipment of machines whose work area needs bright, even illumination. It runs without a ballast directly on an 18-30 V DC control voltage and meets protection class III.

Benefits

• Power fitting with twice the number of LEDs: approx. 1650 lm for machines with higher lighting demands
• IP67 with Viton seal, resistant to many oils and cooling lubricants according to the manufacturer
• Connects to 18-30 V DC machine voltage without a ballast, protection class III, A-coded M12 plug
• Through-wired with built-in plug and connection box: chain several luminaires on one supply line
• Glare control via optical film, UGR ≤ 25 and luminance L65 ≤ 27,000 cd/m²
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Compact work areas of lathes and milling machines
• Integrated manufacturing and test systems
• Machines with 24 V control voltage
• Light lines of several luminaires within one machine

Installation and accessories

• Mounting with L-angle or clamp from the accessory range
• Luminaire brackets adjustable ±30° or ±65° as accessories
• Mains connection via built-in plug (series 763, A-coded M12) and connection box for onward wiring
• M12 connection sockets, plugs and 3 m or 7 m connection cables as accessories
