TUBELED_70 EVO LED machine light 790 mm, 37W, 100°, IP67/IP69K - LED2WORK 156310-01
The 790 mm TUBELED_70 EVO delivers a strong 5697 lm at 37 W for large-area machine illumination. Its IP67/IP69K rating and aluminium housing with safety glass shrug off dust, washdown and temperatures from -30 °C to +70 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For larger work areas on machines and production lines, the 790 mm TUBELED_70 EVO provides bright, even illumination with 5697 lm at 37 W. At 155 lm/W, energy demand stays low.
Your benefits
- High light output: 5697 lm from 37 W, 155 lm/W efficacy.
- Fully sealed: IP67/IP69K rating, dust-tight and washdown-proof.
- Wide temperature range: operation from -30 °C to +70 °C.
- Long service life: over 100,000 h (L80/B10), low maintenance.
- Good colour rendering: Ra > 85 at 5700K for flicker-free light.
- Impact-proof: aluminium housing with safety glass, shock-resistant up to 50 g.
Applications

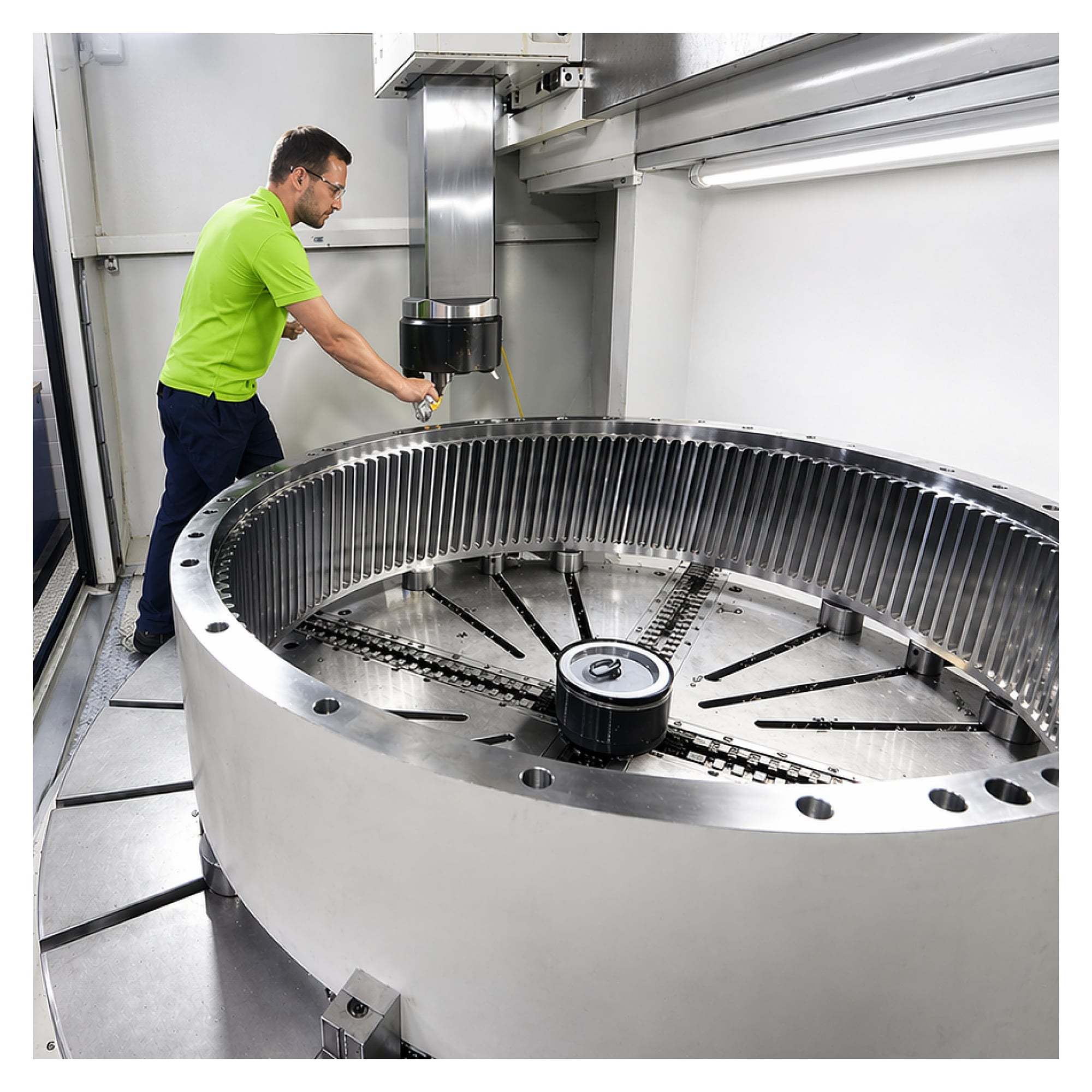

Suited to large-area interior lighting of machine tools, machining centres and production lines in harsh, wet or thermally demanding environments. Optionally dimmable, fixing hardware optional.
Technical data
| Model | TUBELED_70 EVO DC |
|---|---|
| Light source | SMD LED |
| Power | 37 W |
| Luminous flux | 5697 lm |
| Luminous efficacy | 155 lm/W |
| Light colour | 5700K 3-step MacAdam |
| Colour rendering (Ra) | > 85 |
| Supply voltage | 24V DC ± 10% |
| Connection | M12 A-coded, 3-pin |
| Protection rating (IP) | IP67/IP69K |
| Protection class | III |
| Beam angle | 100° |
| Operating temperature | -30 °C to +70 °C |
| Service life | > 100,000 h (L80/B10) |
| Material | aluminium, glass |

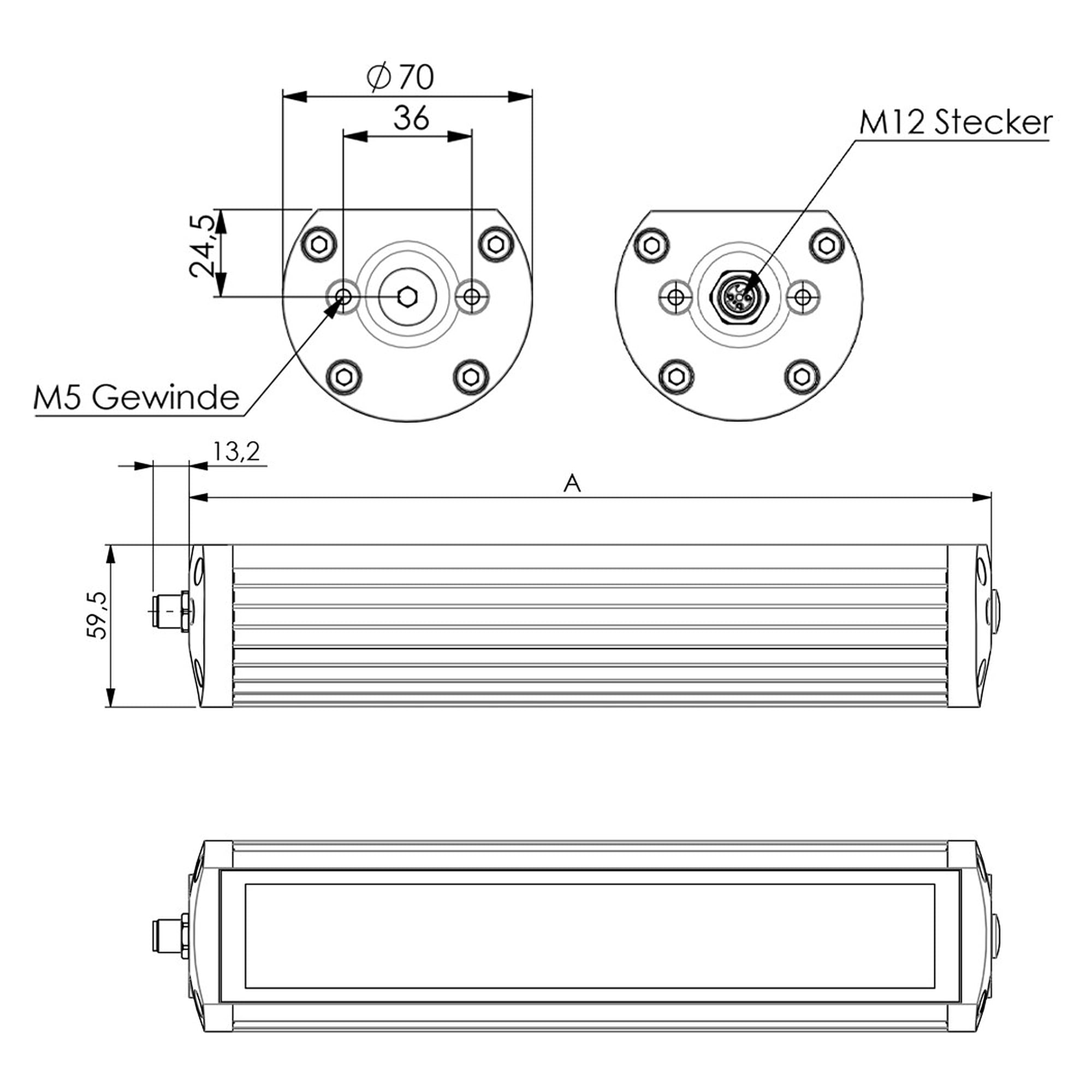

| Dimensions | 790 mm x 70 mm x 59.5 mm |
| Weight | 2200 g |
| Risk group (DIN EN 62471) | exempt group |
| Certifications | CE, UKCA, ETL Listed (5003529) |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Manufacturer Nr. | 156310-01 |
| HS-Code | 94054254 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN EN 62471 |
| Control and dimming | Dimmable |
| Luminous flux (lumen) | 5697 lm |
| Power (W) | 37 W |
| Colour temperature | 5700K |
| Operating voltage | 24 V |
| Protection class (IP) | IP69K |
