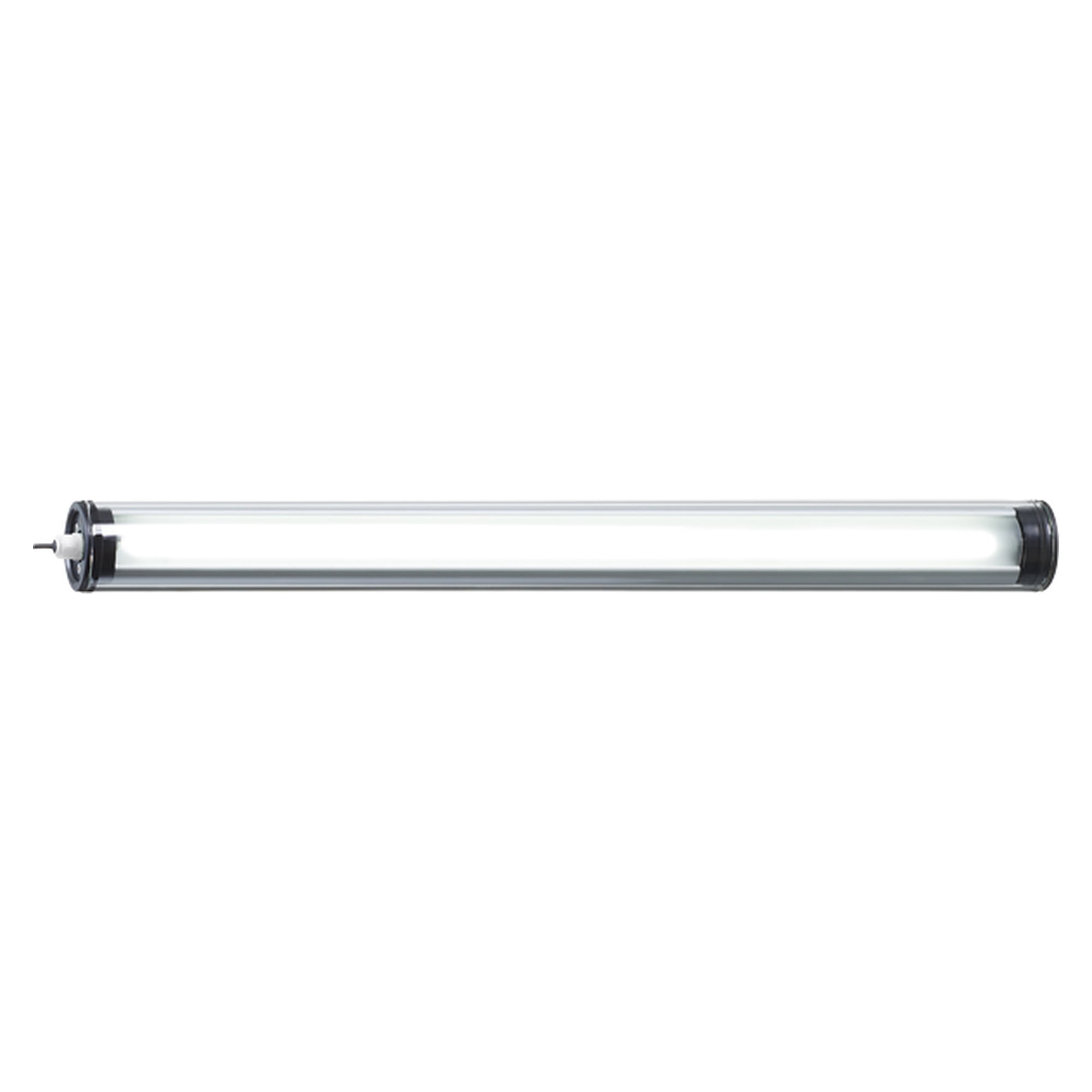

LED tube luminaire RL70LE-24 DN, 22-26 V DC, 950 lm, 370 mm, acrylic, through-wired - Waldmann 113513000-00722105

If you need to light wet environments exposed to powerful water jets, the RL70LE-24 DN gives you an LED tube luminaire in a clear acrylic (PMMA) tube with an overall length of 370 mm, delivering around 950 lm at 12.5 W. It runs directly on the 22-26 V DC machine voltage, with no operating device inside the luminaire.

Benefits

• Clear acrylic (PMMA) tube with IP67 protection for wet environments exposed to powerful water jets
• Through-wired: several luminaires can be connected in series on one supply line
• 950 lm at 12.5 W power consumption, luminous efficiency 73 lm/W, 5000 K neutral white, CRI ≥ 80
• Light Forming technology with diffuser spreads the light across 316 mm of light output at a 100° beam angle, luminance L65 ≤ 12,000 cd/m²

Applications

• Machine tools with water jets in the working area
• Woodworking machines
• Integrated manufacturing and inspection systems

Installation and accessories

• Mounting with pipe clamp (accessory)
• Mains connection via built-in plug and ST16/2 BS connector, screwed cable gland on side part A
• Matching luminaire brackets, also with rubber profile or in stainless steel
• For mains operation: operating device 100-240 V / 24 V DC 30 W or constant voltage operating device 220-240 V / 24 V DC
