LED tube luminaire RL70LE-24 N, 22-26 V DC, 950 lm, 370 mm, borosilicate glass - Waldmann 113279000-00641386

For tight installation spaces and compact machines, the RL70LE-24 N delivers 950 lm at 73 lm/W over an overall length of 370 mm. The borosilicate glass tube is intended for wet and oily environments on machine tools. It runs directly on the 22-26 V DC machine voltage, with no operating device inside the luminaire.

Benefits

• Light Forming technology with diffuser spreads the light across 316 mm of light output at a 100° beam angle, luminance L65 ≤ 12,000 cd/m²
• Borosilicate glass tube with IP67 protection for wet and oily environments on machine tools
• 950 lm at 12.5 W power consumption, luminous efficiency 73 lm/W, 5000 K neutral white, CRI ≥ 80
• Operates on 22-26 V DC machine voltage in protection class III, connected via ST16/2 BS connector

Applications

• Machine tools in wet and oily environments
• Machining centres and lathes
• Woodworking machines

Installation and accessories

• Mounting with pipe clamp (accessory)
• Mains connection via ST16/2 BS connector, screwed cable gland on side part A

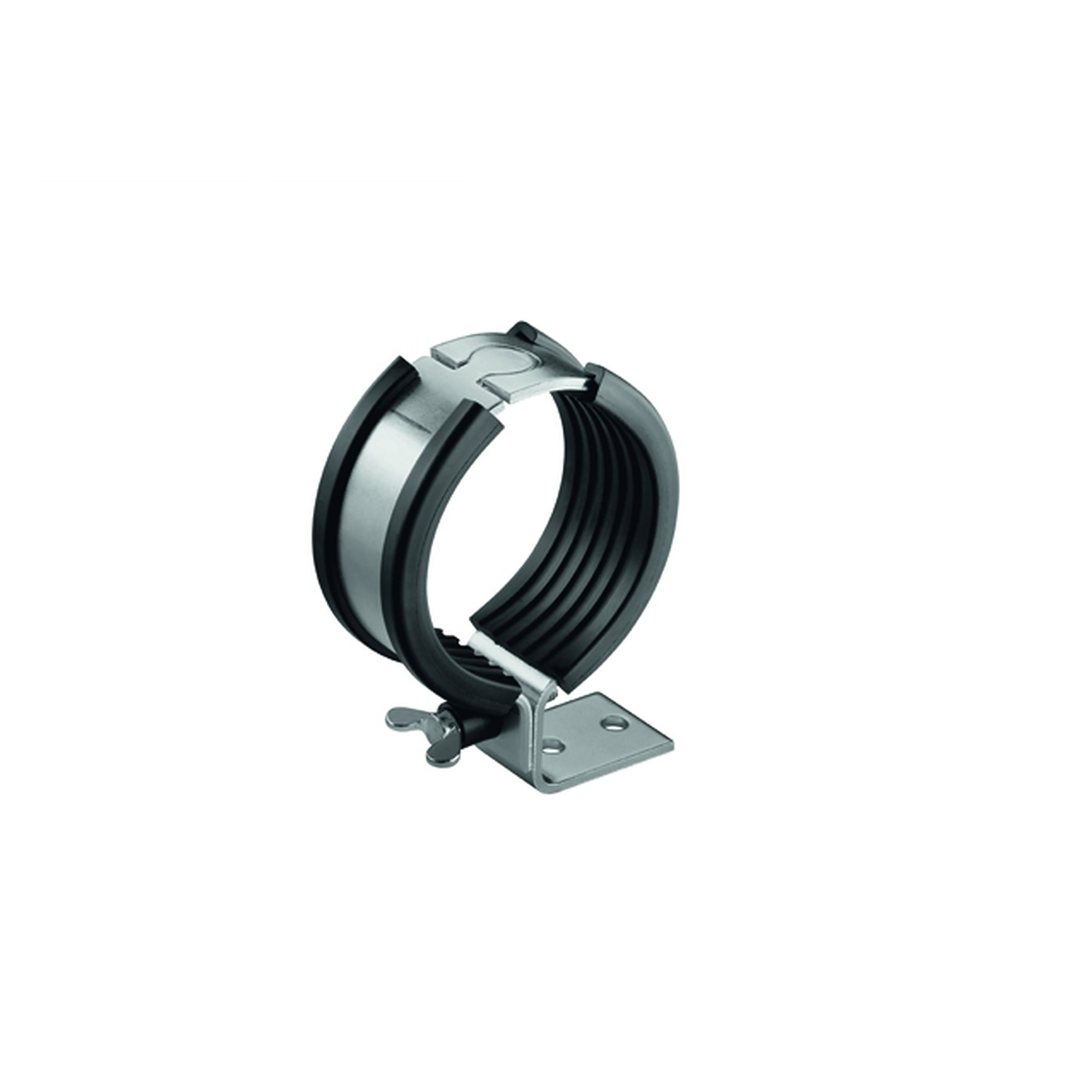

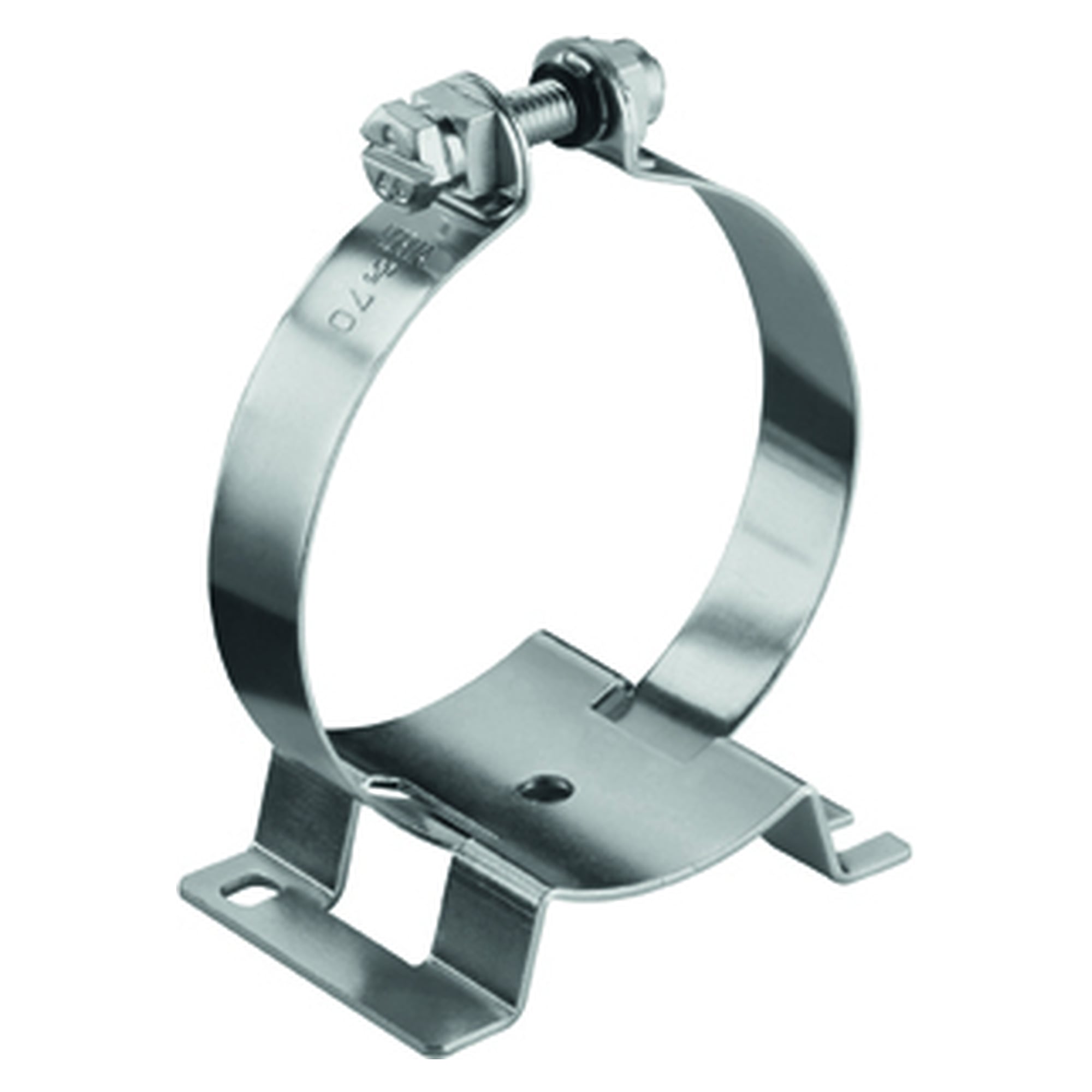

• Matching luminaire brackets, also with rubber profile or in stainless steel
• For mains operation: operating device 100-240 V / 24 V DC 30 W or constant voltage operating device 220-240 V / 24 V DC
