TUBELED_70 EVO machine light 510 mm, 21W, 3164 lm, 100°, 24V DC, IP69K - LED2WORK 156110-01

Images are examples, some edited with AI. The technical data are authoritative. AI notice

TUBELED_70 EVO machine light 510 mm, 21W, 3164 lm, 100°, 24V DC, IP69K - LED2WORK 156110-01

Name: TUBELED_70 EVO machine light 510 mm, 21W, 3164 lm, 100°, 24V DC, IP69K - LED2WORK 156110-01
Brand: LED2WORK
SKU: L2W-156110-01
Price: 157.70 EUR
Availability: InStock

LED2WORK ✓ Original product Brand new Made in Germany

A powerful LED machine light for demanding industrial environments: 3164 lm at 21 W, efficacy 155 lm/W. IP67/IP69K against dust and high-pressure cleaning, operation from -30 °C to +70 °C.

Net

€157.70

excl. VAT

Item L2W-156110-01

Manufacturer no. 156110-01

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The 510 mm TUBELED_70 EVO is a powerful LED machine light for demanding industrial applications. With IP67/IP69K protection it is dust-tight and protected against high-pressure cleaning, delivering 3164 lm at 21 W, an efficiency of 155 lm/W.

Key benefits

3164 lm at 21 W, high efficiency of 155 lm/W
Daylight white 5700K with colour rendering Ra >85 for even, flicker-free light
IP67/IP69K, dust-tight and resistant to high-pressure cleaning
Operating temperature -30 °C to +70 °C for thermally demanding environments
Aluminium housing with shatter-resistant single-pane safety glass
Service life over 100,000 h (L80/B10), low maintenance, optionally dimmable

Applications

For lighting large work areas in machine tools and plants under harsh conditions with coolants, dust and high-pressure cleaning. Optional with matching mounting and dimming accessories.

Technical data

Model	TUBELED_70 EVO DC
Light source	SMD LED
Power	21 W
Luminous flux	3164 lm
Luminous efficacy	155 lm/W
Light colour	5700K 3-step MacAdam
Colour rendering (Ra)	>85
Beam angle	100°
Supply voltage	24 V DC ±10 %, external driver
Connection	M12 A-coded, 3-pin
Protection rating	IP67/IP69K
Protection class	III
Shock/vibration resistance	up to 50 g, 10 to 55 Hz (amplitude 0.35 mm)
Operating temperature	-30 °C to +70 °C
Service life	> 100,000 h (L80/B10)
Housing material	aluminium, glass

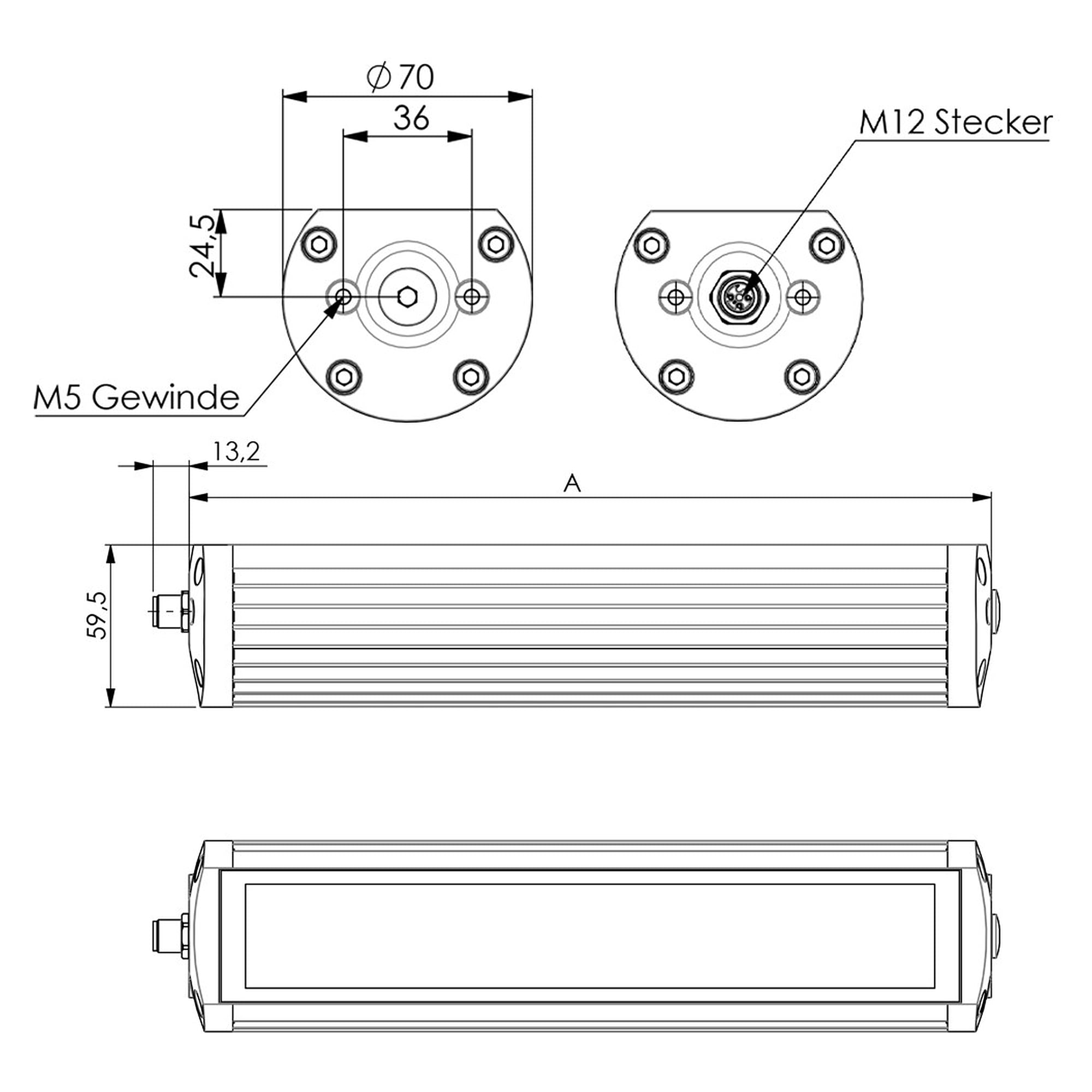

Dimensions	510 mm x 70 mm x 59.5 mm
Weight	1450 g
Dimmable	optional via accessory
Risk group (DIN EN 62471)	exempt group
Certifications	CE, UKCA, ETL Listed (5003529)
Made in	Germany
Manufacturer	LED2WORK
Manufacturer Nr.	156110-01
HS-Code	94054244
GPSR manufacturer information	LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Norm	DIN EN 62471
Control and dimming	Dimmable
Luminous flux (lumen)	3164 lm
Power (W)	21 W
Colour temperature	5700K
Operating voltage	24 V
Protection class (IP)	IP69K
