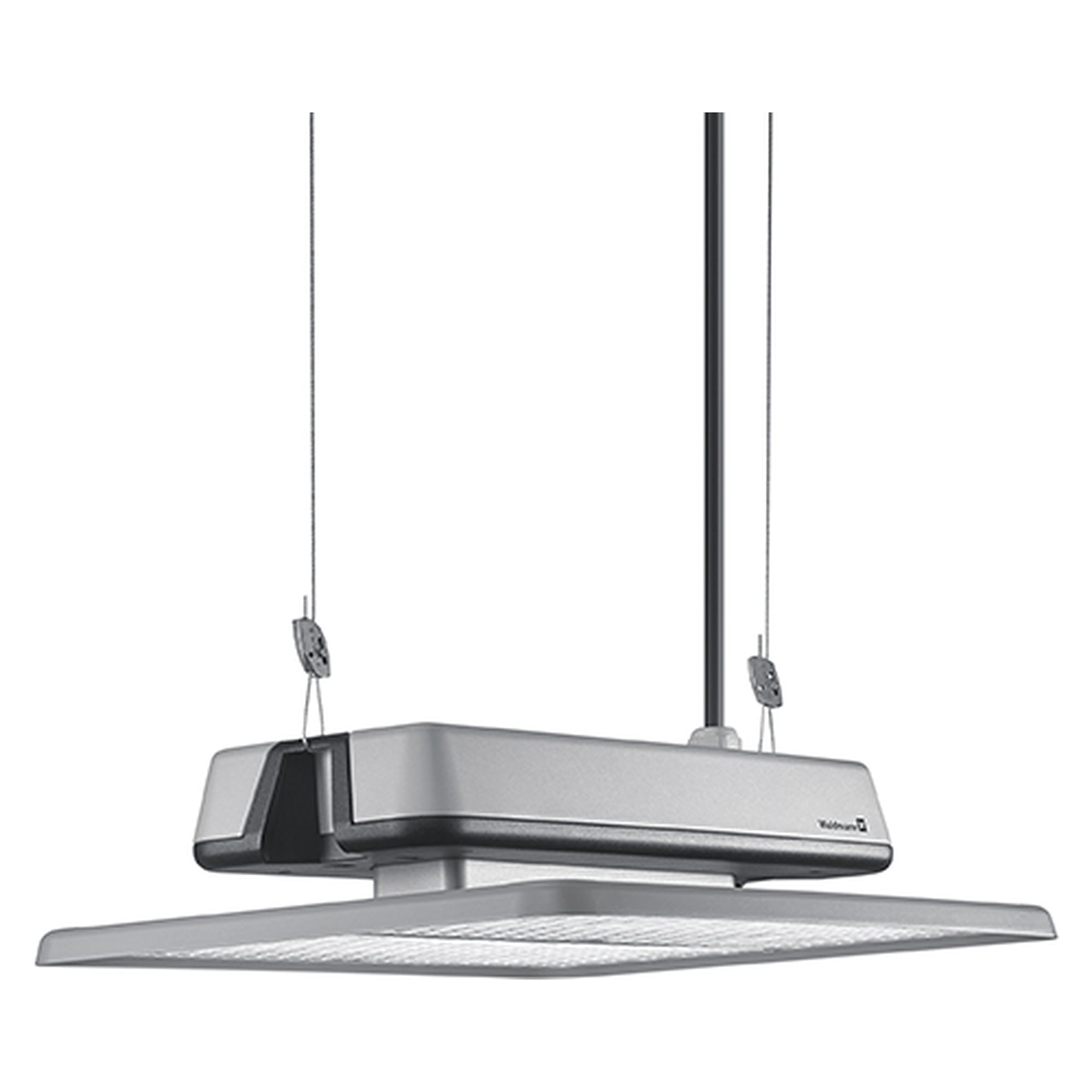

LED high bay luminaire ACANEO HIAL 14000/840/N/EA, 90 W, 15,000 lm, 48° narrow beam, DC control signal - Waldmann 113549000-00737242

For workshops, assembly areas and halls of medium height, the ACANEO HIAL 14000/840/N/EA delivers approx. 15,000 lm from only approx. 90 W. At approx. 166 lm/W this output level gets the most light out of every watt, which cuts running costs over long operating hours. The 48° optic concentrates the light precisely on floors, work areas and rack aisles. It is switched externally and additionally accepts a DC control signal.

Benefits

• 48° narrow beam optic: directs light from great heights onto work areas and into narrow aisles
• Externally switchable, with an additional input for a DC control signal
• 4000 K neutral white light, CRI ≥ 80 and chromaticity tolerance < 3 SDCM for consistent light throughout the hall
• IP65, protection class I and operation at ambient temperatures from -30 °C to 50 °C, also for unheated halls and cold areas

Applications

• High-bay warehouses and logistics halls with narrow aisles
• Production halls with great mounting heights
• Workshops and maintenance areas

Installation and accessories

• Fastening available separately: ceiling bracket, 1-point suspension, trapezoidal hanger or wire rope with wire rope holder
• Mains connection via built-in plug RST 25i3, junction box RST 25i3 and safety glass available as accessories
