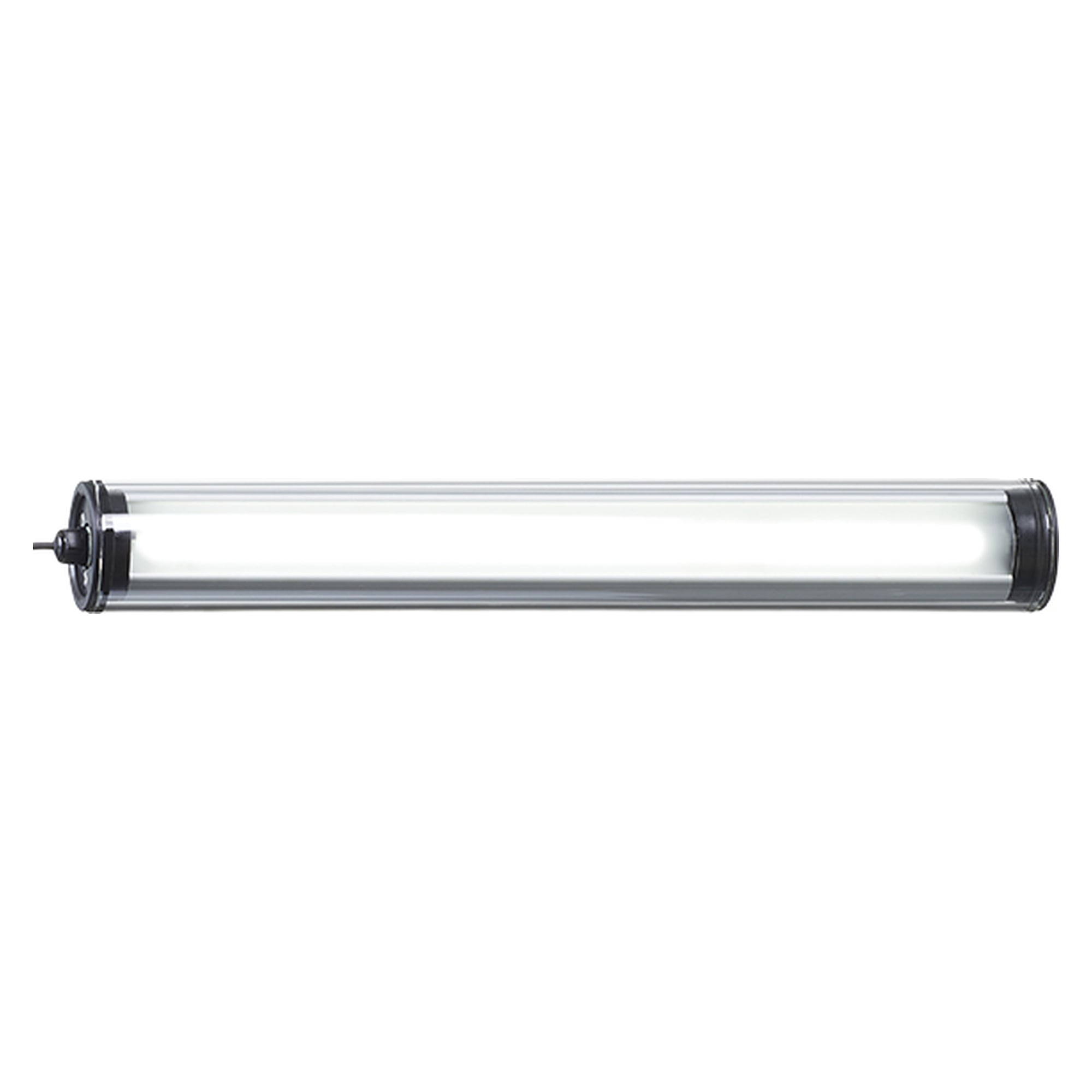

LED tube luminaire RL70LE-60 N, 230 V AC, 2550 lm, 650 mm, borosilicate glass - Waldmann 113622000-00746145

If you need to light wet and oily environments on machine tools, the RL70LE-60 N gives you an LED tube luminaire in a borosilicate glass tube with an overall length of 650 mm, delivering around 2550 lm at 32 W. It connects directly to 230 V AC without a separate operating device, so it also suits systems that have no 24 V supply.

Benefits

• Borosilicate glass tube with IP67 protection for wet and oily environments on machine tools
• 2550 lm at 32 W power consumption, luminous efficiency 79 lm/W, 5000 K neutral white, CRI ≥ 80
• Light Forming technology with diffuser spreads the light across 596 mm of light output at a 100° beam angle, luminance L65 ≤ 17,000 cd/m²
• Direct mains connection to 230 V AC, 50/60 Hz via series 272 connector, protection class I

Applications

• Machine tools in wet and oily environments
• Machining centres and lathes
• Woodworking machines

Installation and accessories

• Mounting with pipe clamp (accessory)
• Mains connection via series 272 connector, screwed cable gland on side part A
• Matching luminaire brackets, also with rubber profile or in stainless steel
• No additional operating device required
