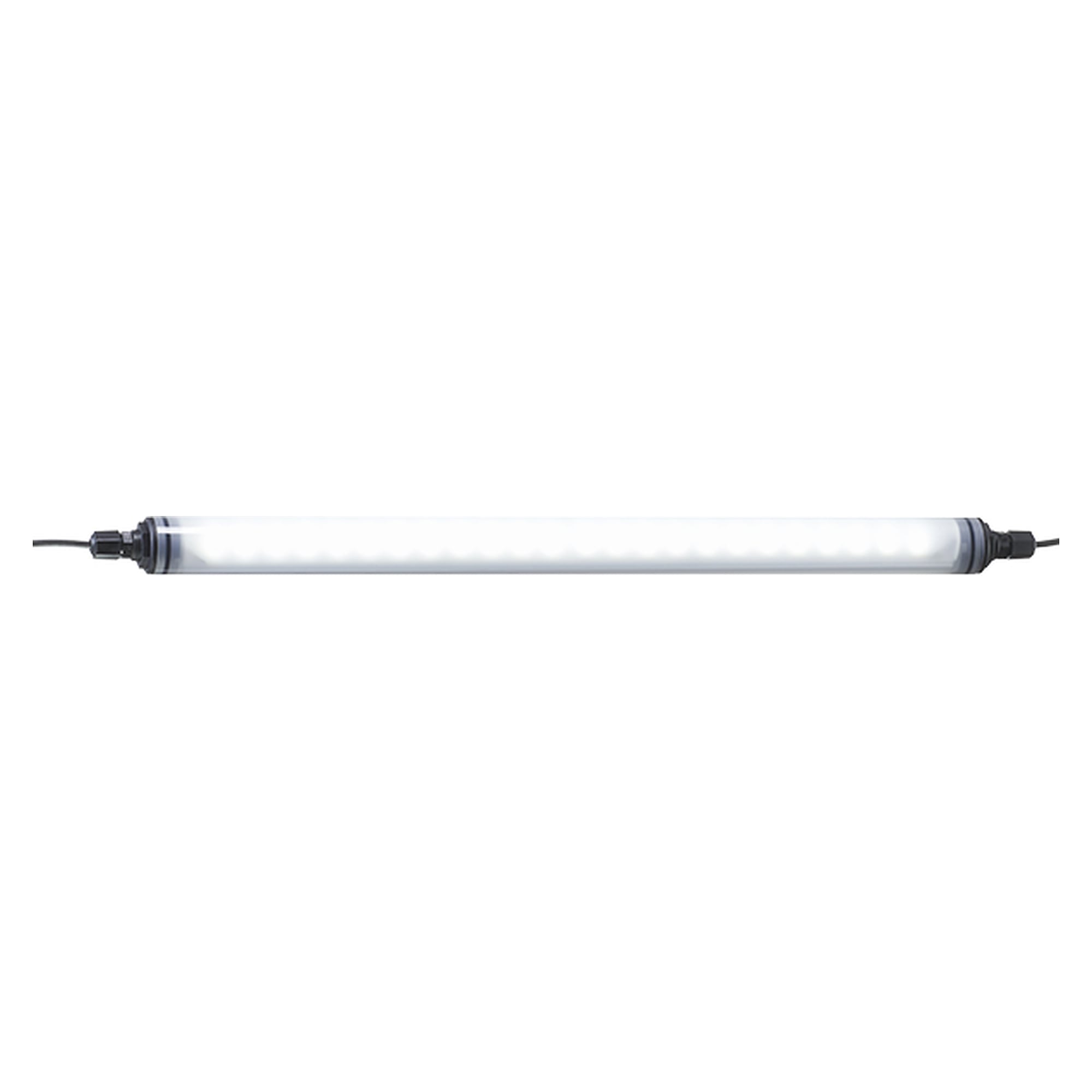

LED tube luminaire RL40LE-24 D, 10 W, 950 lm, opal, through-wired, 652 mm - Waldmann 113019000-00694183

Conveyor lines, linked systems and long machines can be lit continuously with the through-wired RL40LE-24 D: the luminaires are plugged in series via QUICKON 3. Each 652 mm module with opal white tube provides 950 lm with low glare over 140°.

Benefits

• Through-wired: several luminaires can be daisy-chained on one supply line
• Opal white tube with 140° beam angle, approx. 82 % direct component, for even, low-glare light
• IP67 protection and class III: dust-tight and protected against water jets for use inside machines
• Operation at ambient temperatures from -25 °C to 40 °C
• Direct connection to 16-32 V DC machine voltage, no ballast in the luminaire
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Interiors of larger machines
• Conveyor lines and plant peripherals
• Woodworking machines and integrated production and test systems
• Continuous light lines from several daisy-chained luminaires

Installation and accessories

• Fastening via luminaire brackets from the accessory range (luminaire bracket, luminaire bracket set)
• Connection via QUICKON 3 built-in plug, side part with plug for onward wiring
• For mains voltage: operating device 100-240 V / 24 V DC with 30 W or 100 W, alternatively operating device 220-240 V / 24 V DC constant voltage IP67
