TUBELED_25 machine light 705 mm, 17.2W, 2666 lm, 5700K, IP67 - LED2WORK 154410-01
Power-optimised LED surface-mounted light for CNC machines and plants, delivering 2666 lm at just 23 mm mounting height for tight spaces. Shatterproof tempered glass and aluminium housing reach IP67 for OEM fitting and retrofit.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For bright illumination of work areas on CNC machines and automated plants, the TUBELED_25 in 705 mm length delivers 2666 lm at a mounting height of just 23 mm. The slim, low-profile light fits even tight installation spaces, whether for original equipment or retrofit.
Key benefits
- 2666 lm output at 155 lm/W for brightly lit work areas.
- Very slim, low profile of only about 23 mm for tight installation spaces.
- Light Forming Technology for an even, low-glare light distribution.
- IP67 rating, dust- and liquid-tight for harsh machine environments.
- Shock- and vibration-resistant, up to 50 g shock, with over 100,000 h service life.
Applications

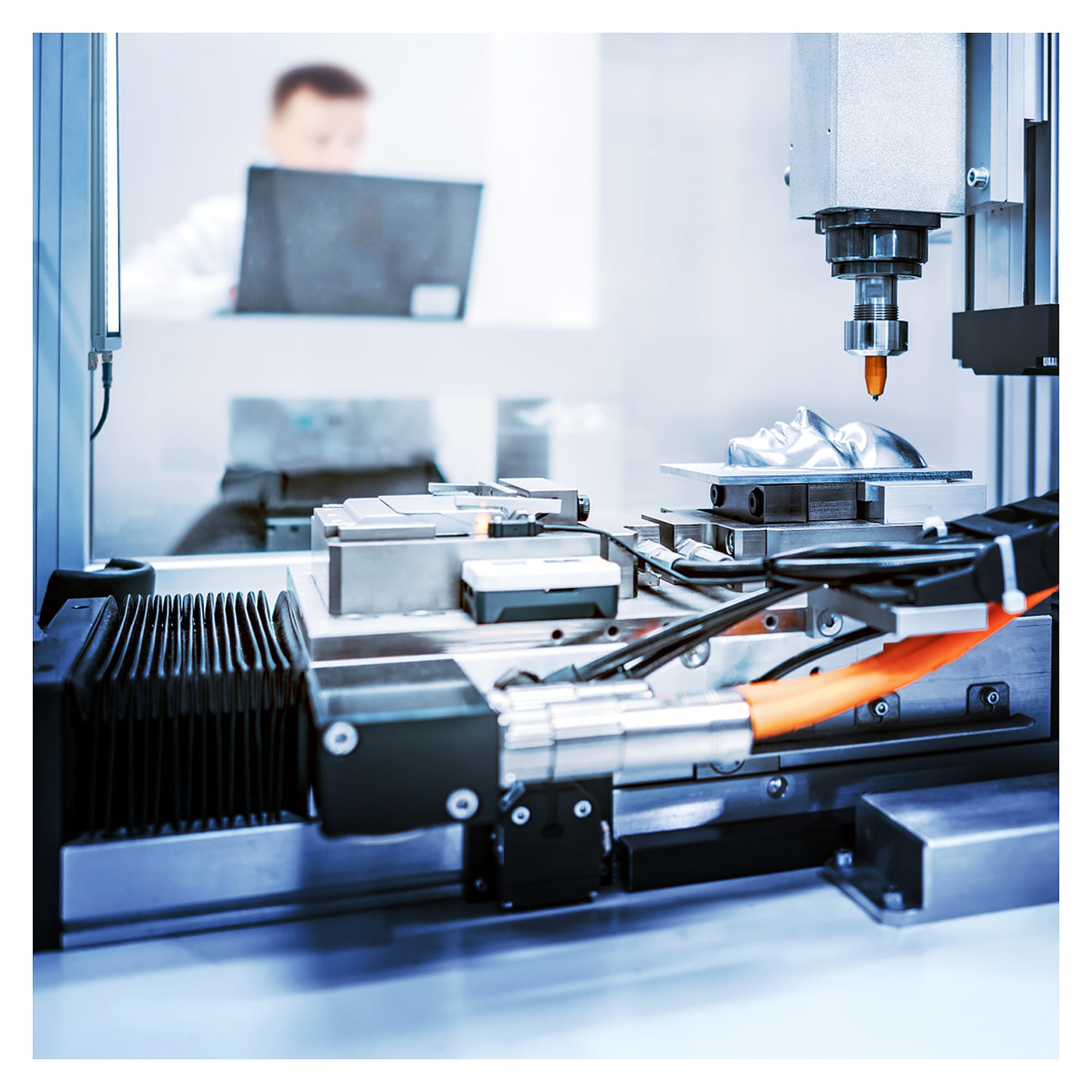

A universal standard for lighting work areas on CNC machines and automated plants, in original equipment or as a retrofit.
Technical data
| Model | TUBELED_25 |
|---|---|
| Type | LED surface-mounted light for machines and plants |
| Light source | SMD LED |
| Power | ~17.2 W |
| Luminous flux | 2666 lm |
| Luminous efficacy | 155 lm/W |
| Light colour | 5700K 3-step MacAdam |
| Colour rendering (Ra) | >85 |
| Light distribution | Light Forming Technology |
| Supply voltage | 24 V DC ± 10% |
| Connection | M8 A-coded |
| Protection rating | IP67 |
| Protection class | III |

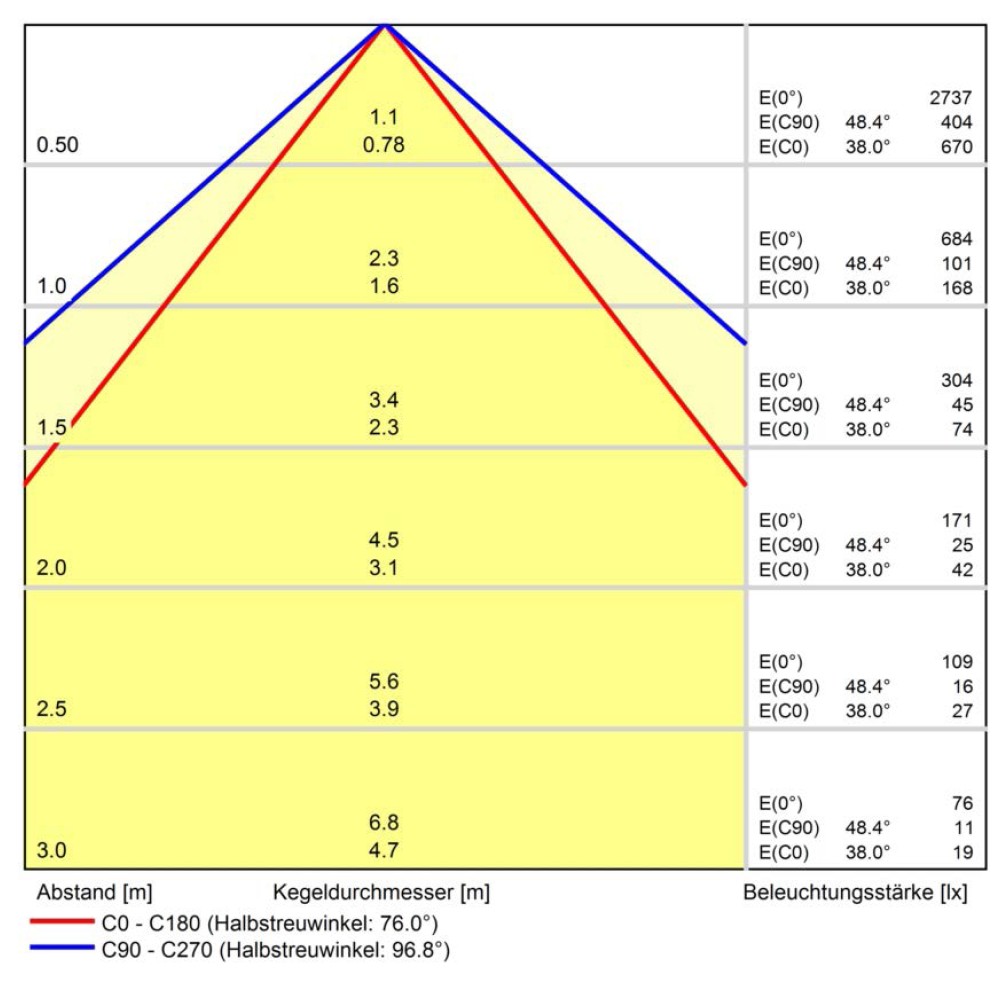

| Beam angle | 100° |
| Operating temperature | -30 °C to +55 °C |
| Service life | > 100,000 h (L80/B10) |
| Vibration resistance | 10 to 55 Hz (amplitude 0.35 mm) |
| Shock resistance | up to 50 g |
| Housing material | aluminium |
| Cover material | safety glass, 4 mm |

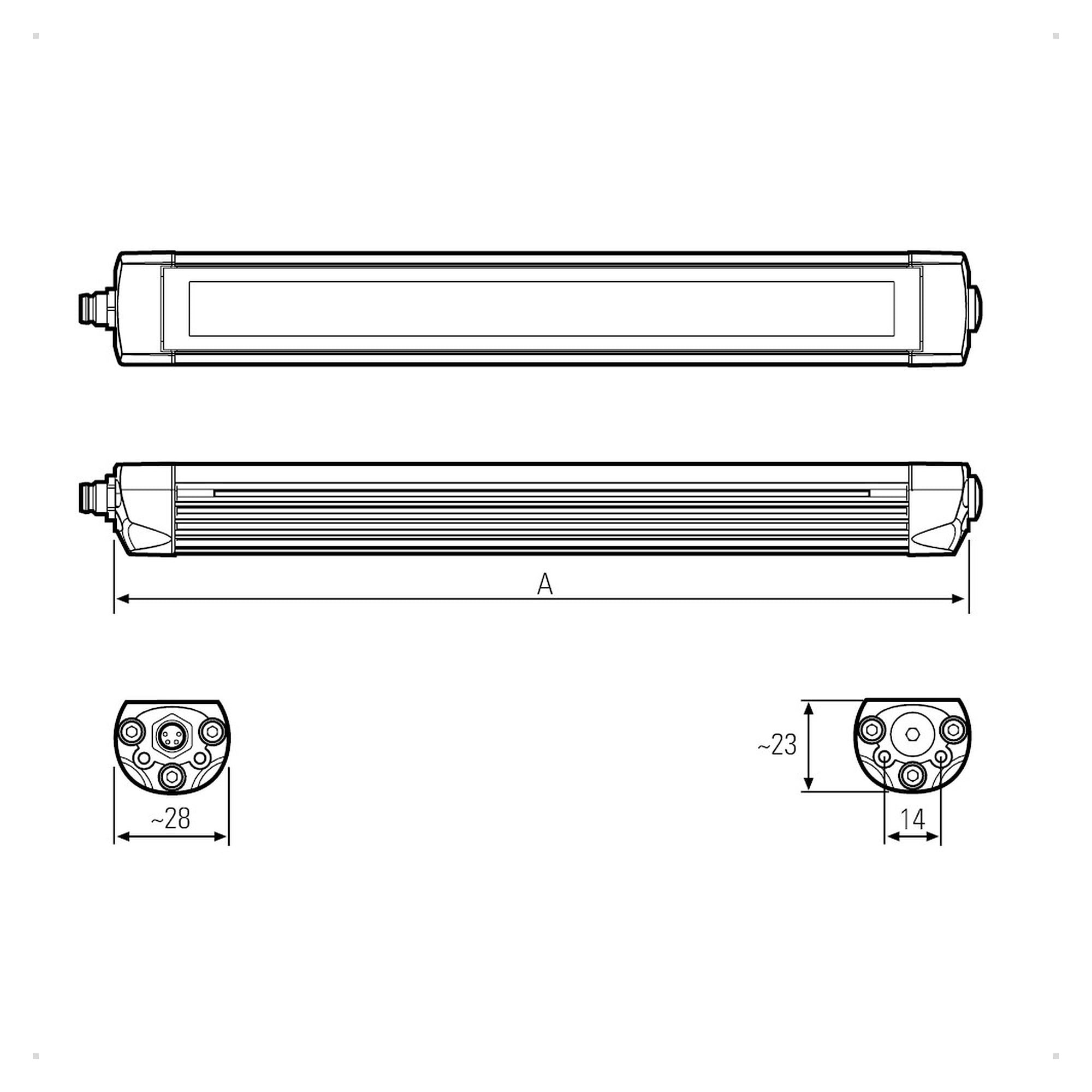

| Dimensions (H x W) | ~23 mm x ~28 mm, length 705 mm |
| Weight | 150 g |
| Dimmable | optional via accessory |
| Risk group (DIN EN 62471) | exempt group |
| Certifications | CE, UKCA, ETL Listed (5003529) |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Manufacturer Nr. | 154410-01 |
| HS-Code | 94054239 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN EN 62471 |
| Control and dimming | Dimmable |
| Luminous flux (lumen) | 2666 lm |
| Power (W) | 17.2 W |
| Colour temperature | 5700K |
| Mounting type | Surface-mounted |
| Operating voltage | 24 V |
| Protection class (IP) | IP67 |
