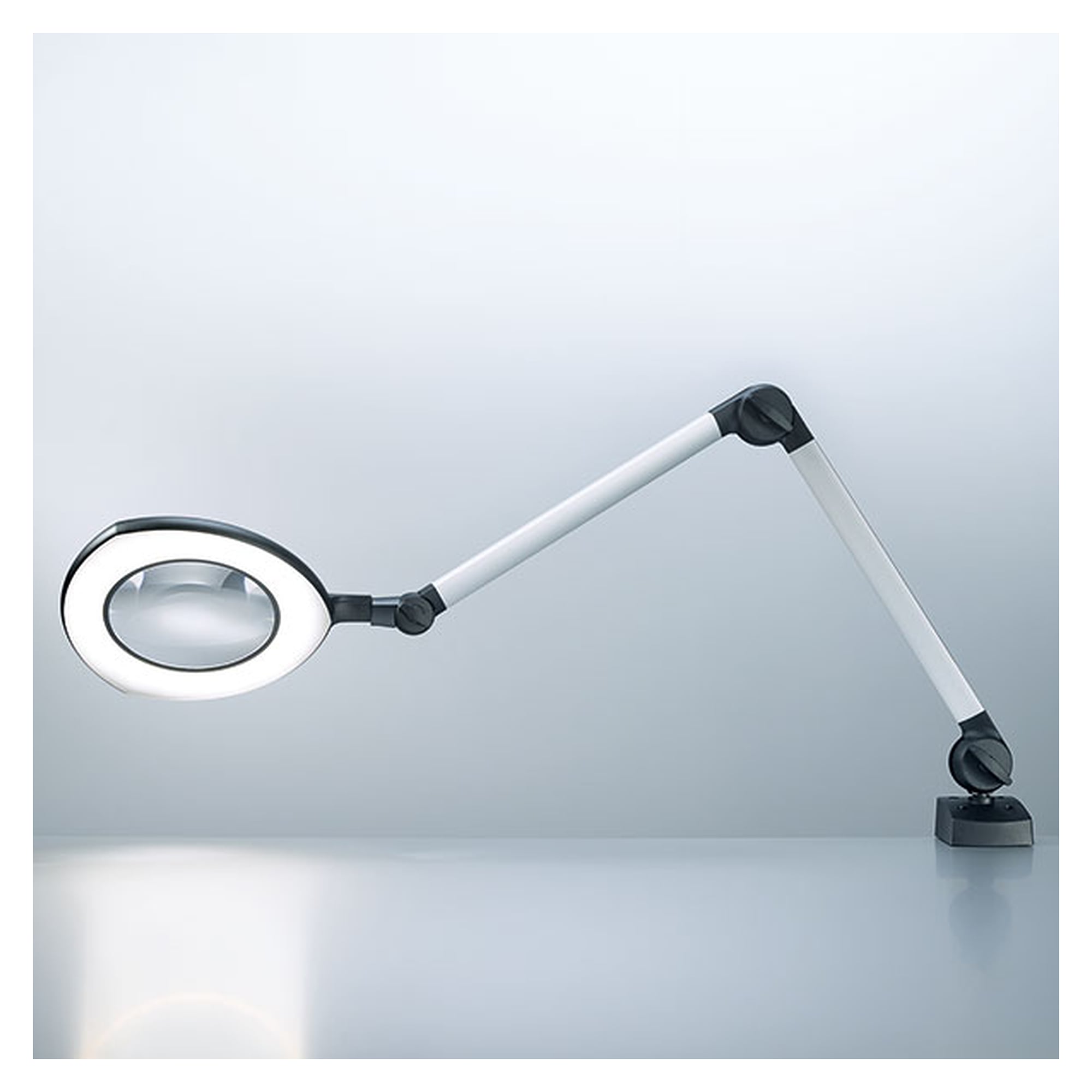

LED magnifier luminaire TEVISIO TVD 750/940/DM, plastic lens 3.5 dpt, 2D head joint, 4000 K - Waldmann 113712000-00800638

At assembly and inspection stations where the magnifier is moved often, the PMMA lens keeps the head weight low. The TEVISIO TVD 750/940/DM magnifies approx. 1.88x with 3.5 dioptres and lights the workpiece with approx. 750 lm of neutral white light, colour rendering CRI ≥ 90 and R9 ≥ 50.

Benefits

• PMMA plastic lens Ø 160 mm, 3.5 dioptres, lens exchangeable without tools
• 2D head joint, spring-balanced arm with 384 mm reach
• Approx. 750 lm, homogeneous illumination of the field of view, chromaticity tolerance < 3 SDCM
• Touch DIM, multi-stage switchable, visualizer function via 3-way switch
• Protection class II with plug-in power supply, 24 V secondary voltage
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Assembly workstations in electronics and precision engineering
• Incoming goods and visual inspection
• Laboratory and dental workstations
• Repair and service workshops

Installation and accessories

• Supplied with screw-down base, mains lead approx. 3.6 m
• 6 dioptre plastic lens (Ø 160 mm, 2.5x magnification) and further fastenings available as accessories
