Torque screwdriver iTorque with digital scale 1.0-5.0 Nm - Wiha 36888

The Wiha iTorque in the 1.0-5.0 Nm variant covers the upper range of typical hand tool torques, such as those required for larger machine screws and indexable insert changes. The large digital display shows the set value in Nm or in.lbs; units can be switched at the press of a button. The ergonomic plastic/metal compound handle with soft zones and a 40 mm grip diameter transfers higher torques without fatigue. Release accuracy is ±6 % per DIN EN ISO 6789.

Benefits

• Large digital display: fast, reliable reading of the set Nm value
• Unit switching Nm/in.lbs: flexible use in international environments
• Click Control: integrated counter documents every application
• Calibration alarm after 5,000 applications: timely reminder for calibration cycle
• Release accuracy ±6 % (DIN EN ISO 6789): process-safe torque control
• Handle diameter 40 mm: sufficient volume for higher torques up to 5.0 Nm

Technical data

• Torque range: 1.0 - 5.0 Nm (9 - 44 in.lbs)
• Tolerance: ±6 %
• Hexagon head: 4.0 mm
• Handle diameter: 40 mm, handle length: 134 mm
• Product dimensions: 195 x 80 x 60 mm (L x W x D)
• Power supply: 1 x button cell 3.0 V (35 mAh, not included)
• Standard: DIN EN ISO 6789
• Note: battery replacement only possible via complete overhaul
• ESD: No

Applications

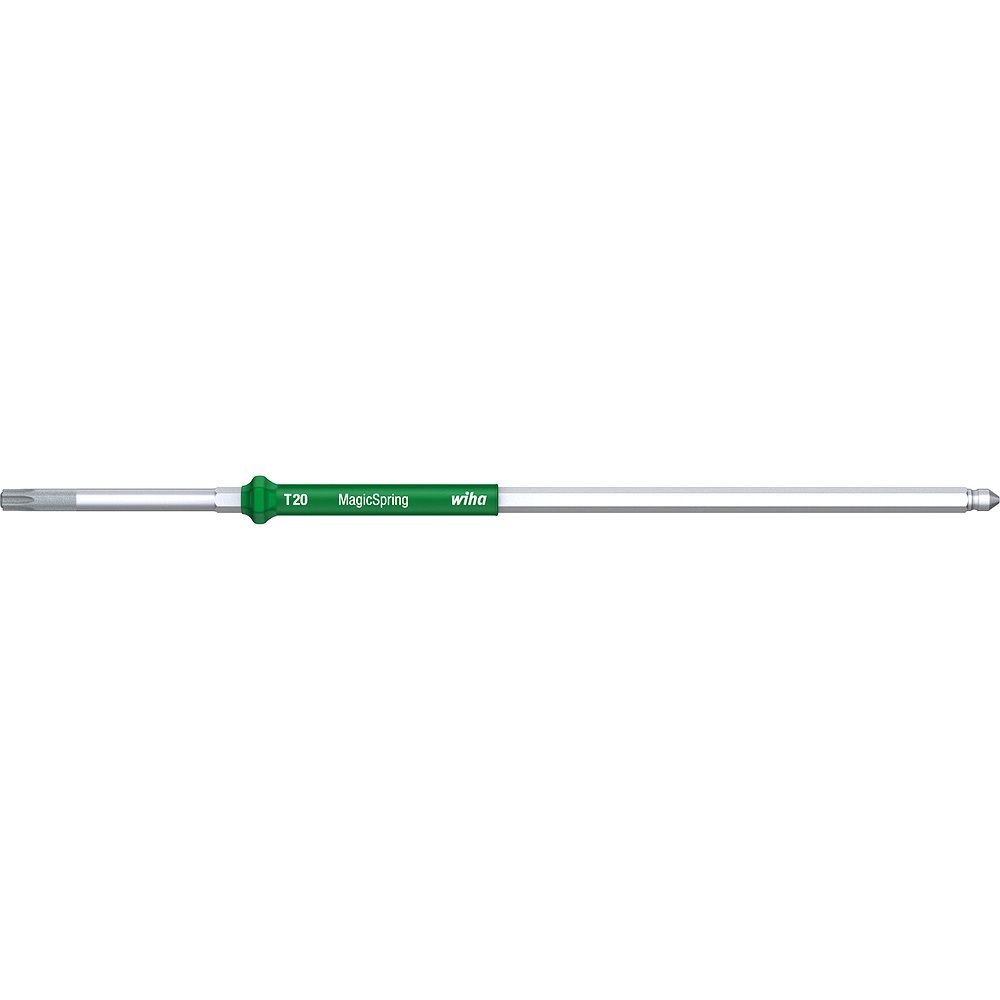

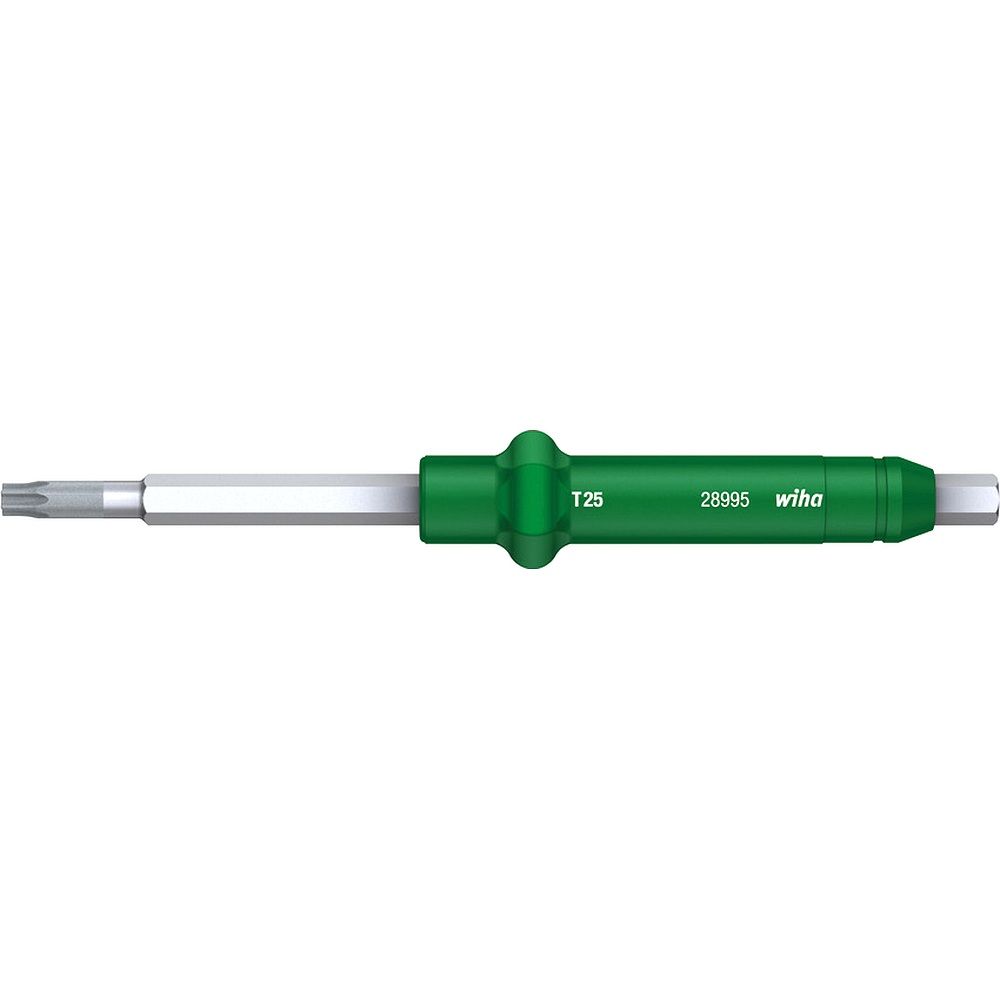

For controlled fastening in precision manufacturing, indexable insert changes and wherever calibration cycles must be monitored. Compatible with Wiha Torque 4 mm interchangeable blades (Series 2859). Made in Germany.
