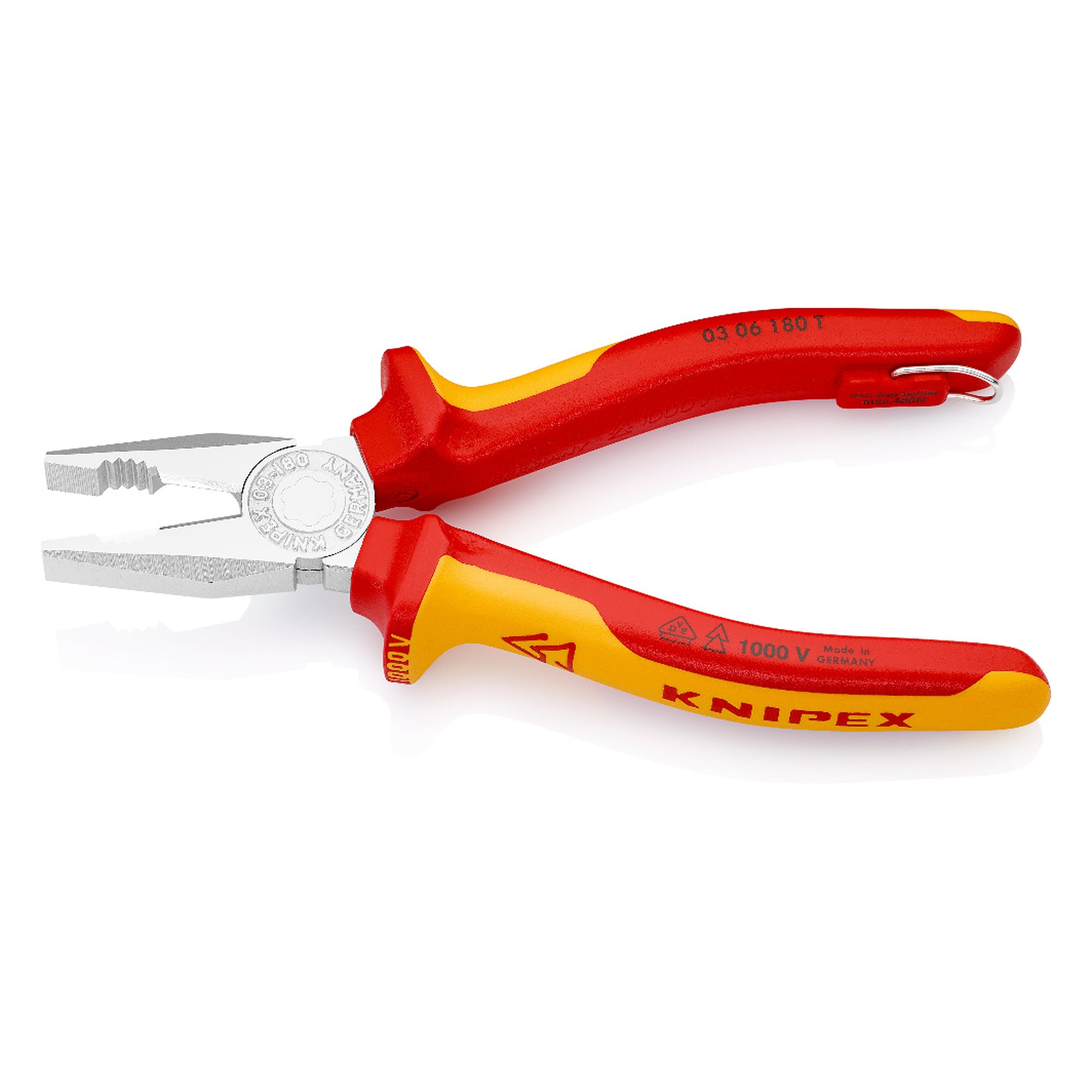

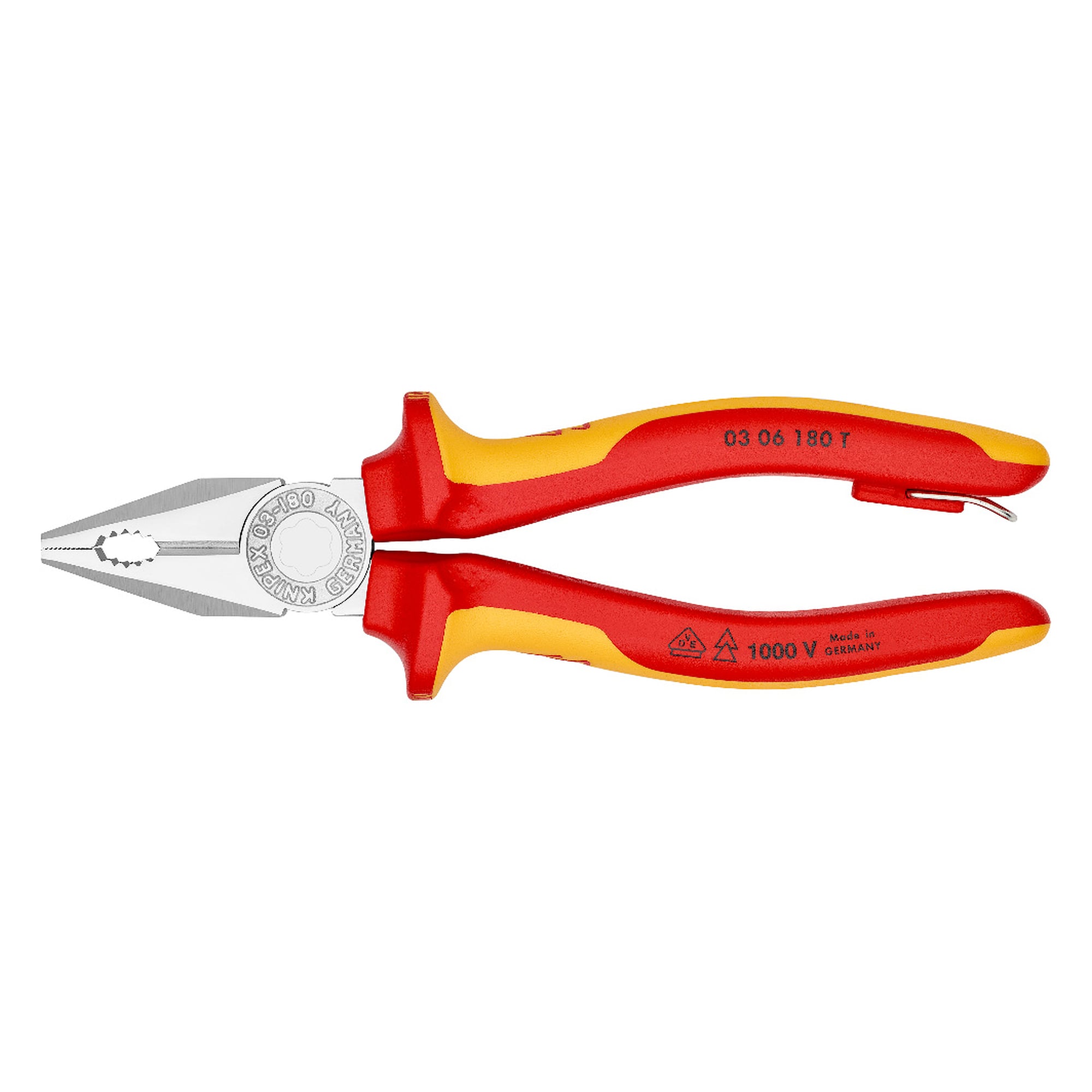

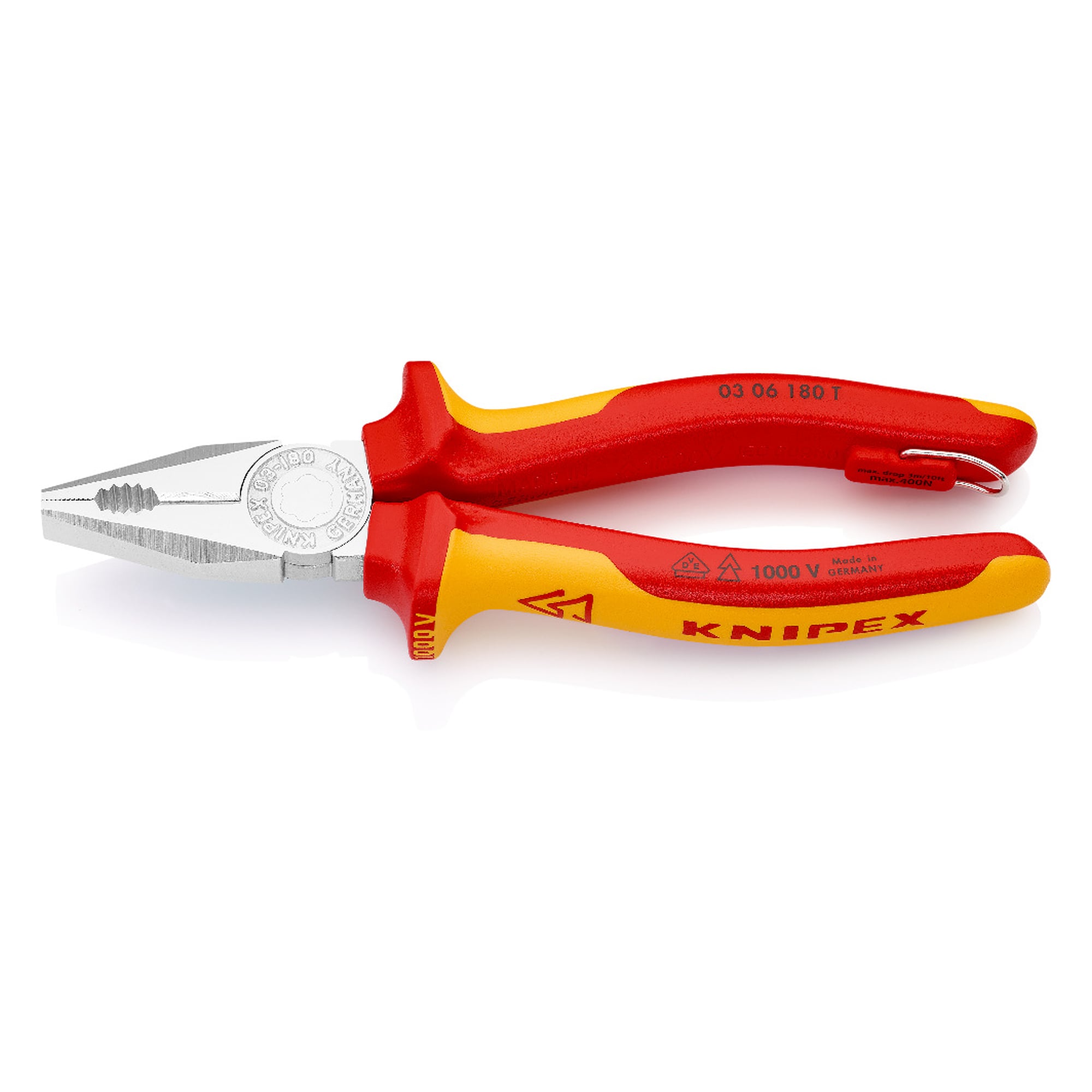

Combination pliers, chrome-plated, insulated, fixing eye, 180 mm
Knipex 03 06 180 T. Combination pliers, chrome-plated, insulated, fixing eye, 180 mm
KNIPEX
Original product
Net price (excl. VAT)
€31.67
Item
WL61292
Manufacturer no.
03 06 180 T
1000 V · IEC 60900
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.03 06 180 T
ConditionNew
Article
WL61292
Frequently Bought Together
Other versions
| item number | tether attachment point | tool length |
| WL33535 | nein | 180 mm |
| WL61291 | nein | 160 mm |
| WL61292 | ja | 180 mm |
| WL61293 | nein | 200 mm |

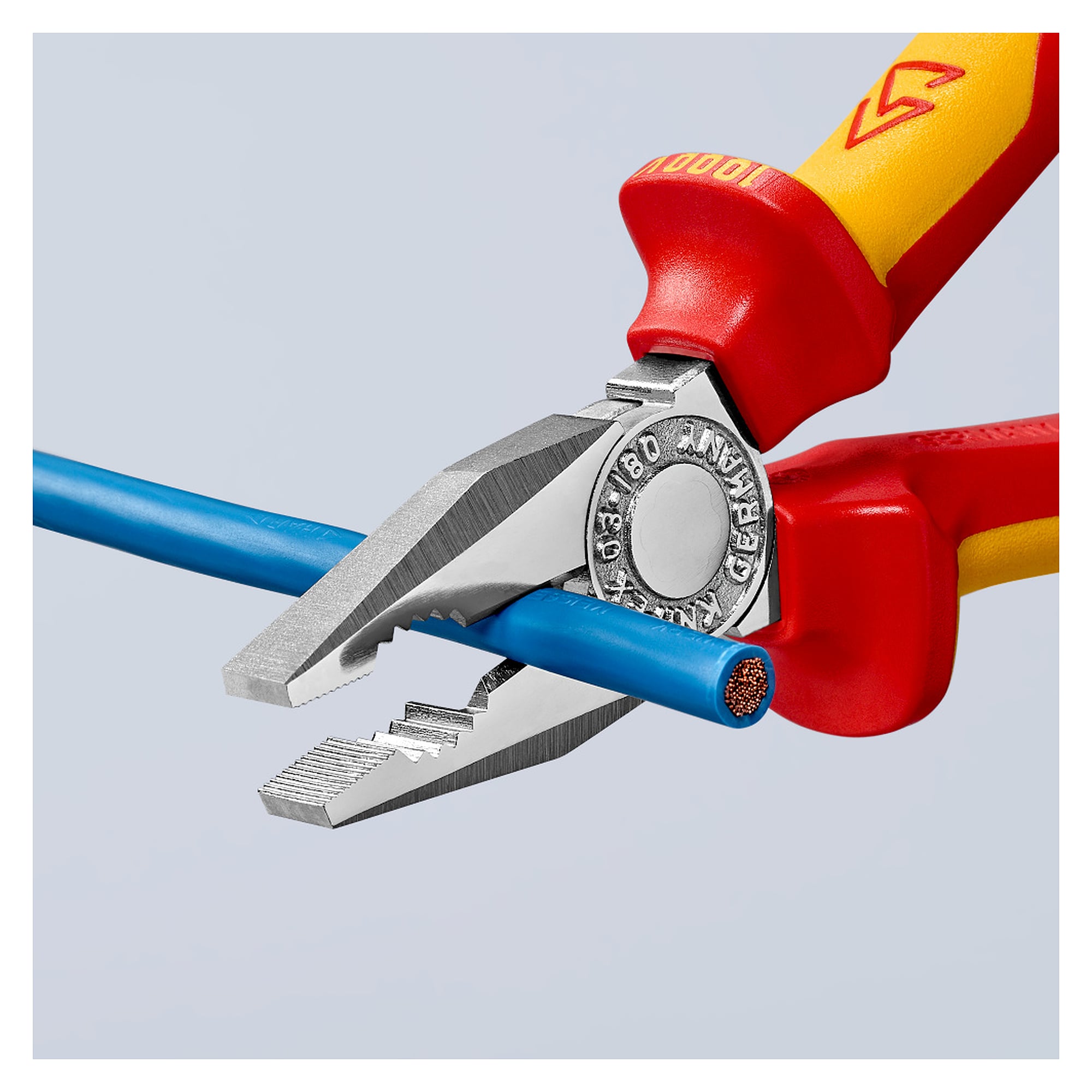

With gripping zones for flat and round material for versatile use. With cutting edges for soft and hard wire. Long cutting edges for thicker wire. Cutting edges additionally induction hardened, cutting edge hardness approx. 60 HRC. Pliers with integrated insulated fastening eye for attaching a fall protection device. - Cutting values medium hard wire (diameter): Ø 3.4mm - Cutting values hard wire (diameter): Ø 2.2mm - Cutting value Cu-cable, stranded: Ø 12.0mm - Cutting value Cu-cable, stranded: 16.0mm² - Fall protection: Yes - VDE-tested: Yes
- With gripping zones for flat and round material for versatile use
- With cutting edges for soft and hard wire
- Long cutting edges for thicker cables
- Cutting edges additionally induction hardened, cutting edge hardness approx. 60 HRC
Product details
| item number | WL61292 |
| model | 03 06 180 T |
| manufacturer | KNIPEX |
| manufacturer item number | 03 06 180 T |
| dimensions (LxWxH) | 187 mm x 57 mm x 27 mm |
| dimensions with packaging (LxWxH) | 191 mm x 65 mm x 30 mm |
| Packaging volume | 0.36 dm³ |
| order unit | piece |
| type of packaging | single pack |
| standards | DIN EN 60900, DIN ISO 5746 | IEC 60900 |
| RoHS conform | no |
| surface | chrome-plated |
| VDE | yes |
| ESD safe | no |
| tether attachment point | ja |
| tool length | 180 mm |
| description head | Chrome-plated |
| type of handle | VDE, Tethered Tools | insulated with multi-component sleeves, VDE-tested; with integrated insulated fastening eye for attaching a fall protection device |
| Cutting value copper cable, multistranded | 16 mm² |
| Cutting value copper cable, multistranded (diameter) | 12 mm |
| cutting value wire diameter hard | 2.2 mm |
| cutting value wire diameter medium | 3.4 mm |
| type of pliers | combination pliers |
| Norm | DIN ISO 5746 |
|---|---|
| Certification | IEC 60900 |
| Manufacturer Nr. | 03 06 180 T |
| Manufacturer | Knipex |
| Weight | 0.100000 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
