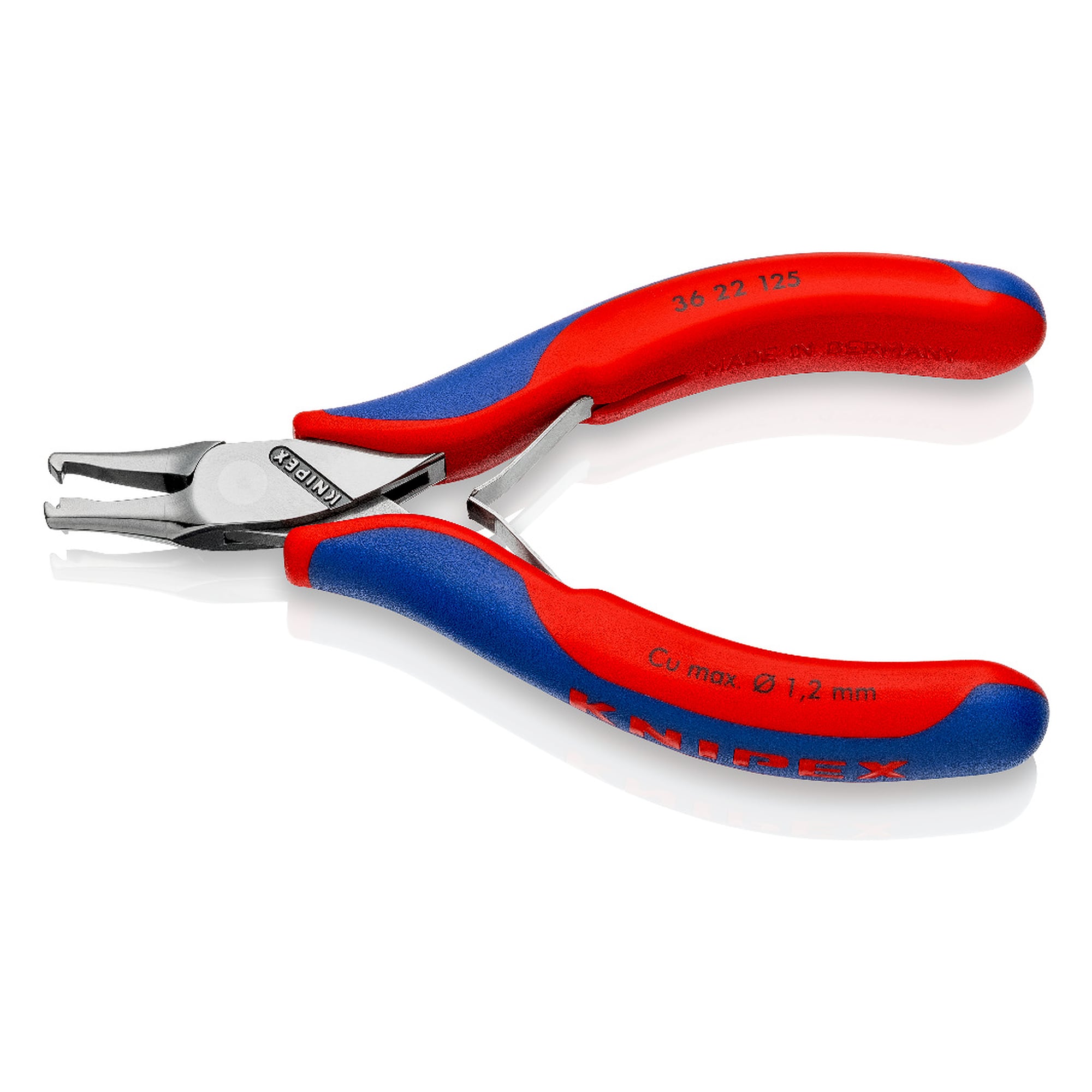

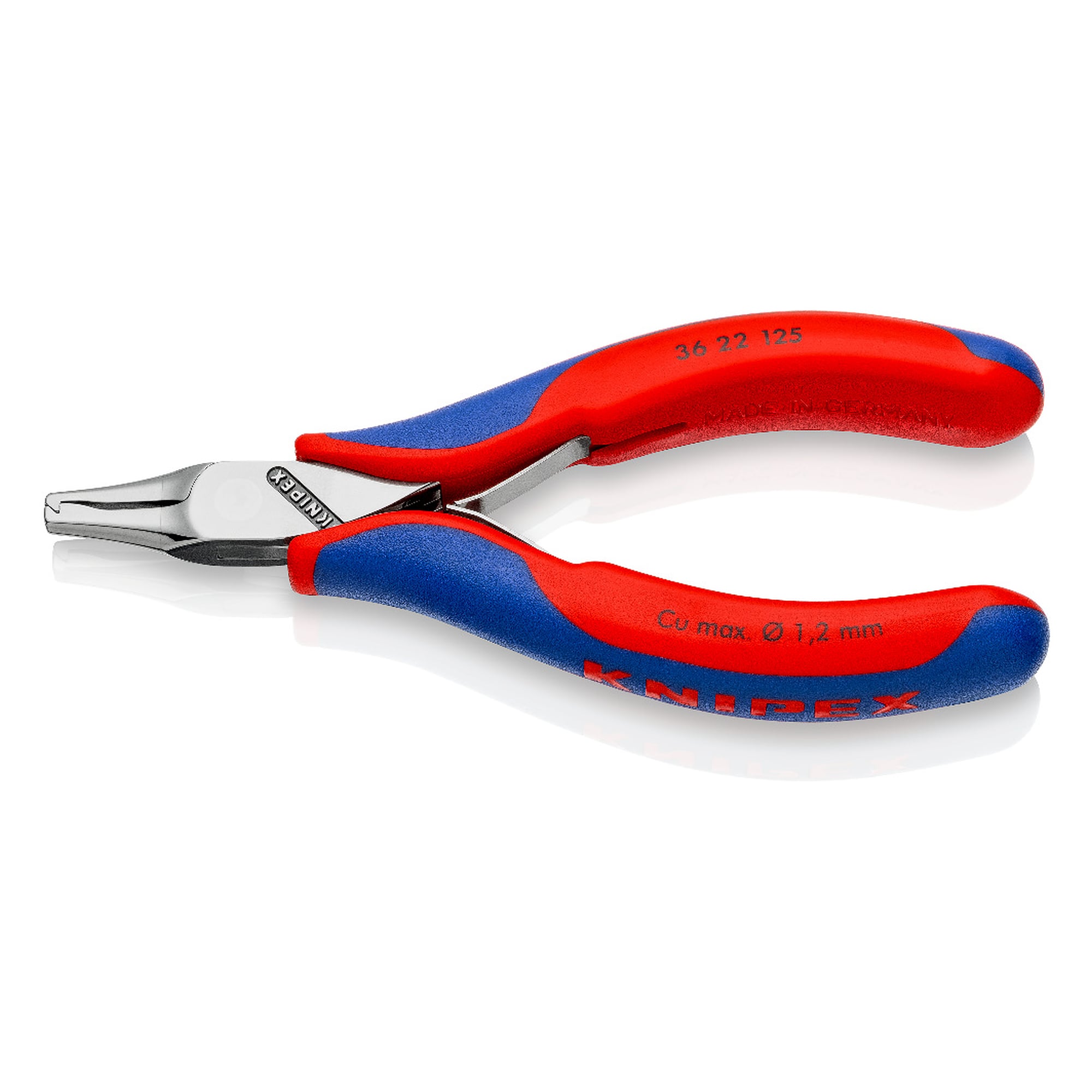

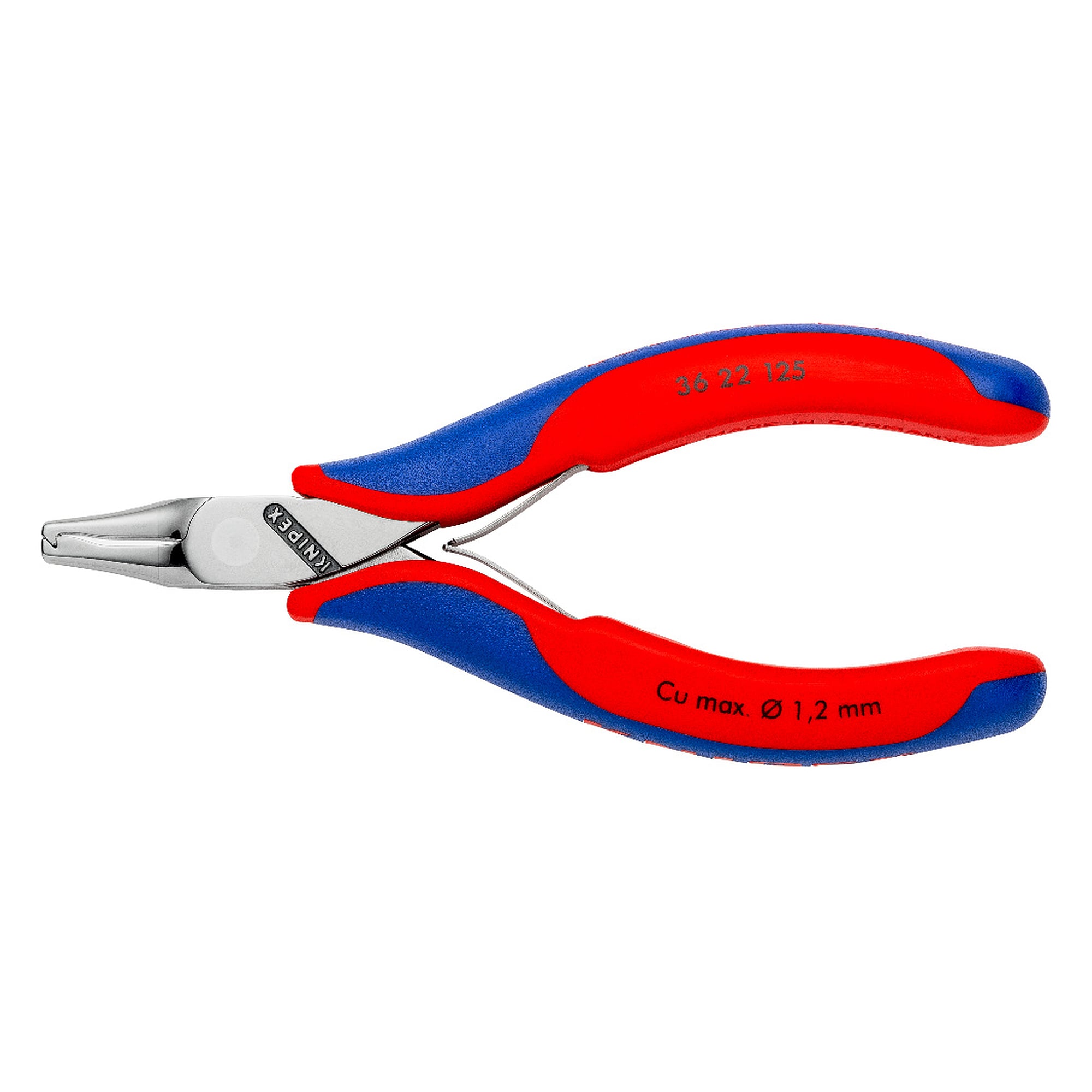

Electronics mounting pliers for bending and shortening to 1.6 mm, 125 mm - Knipex 36 22 125

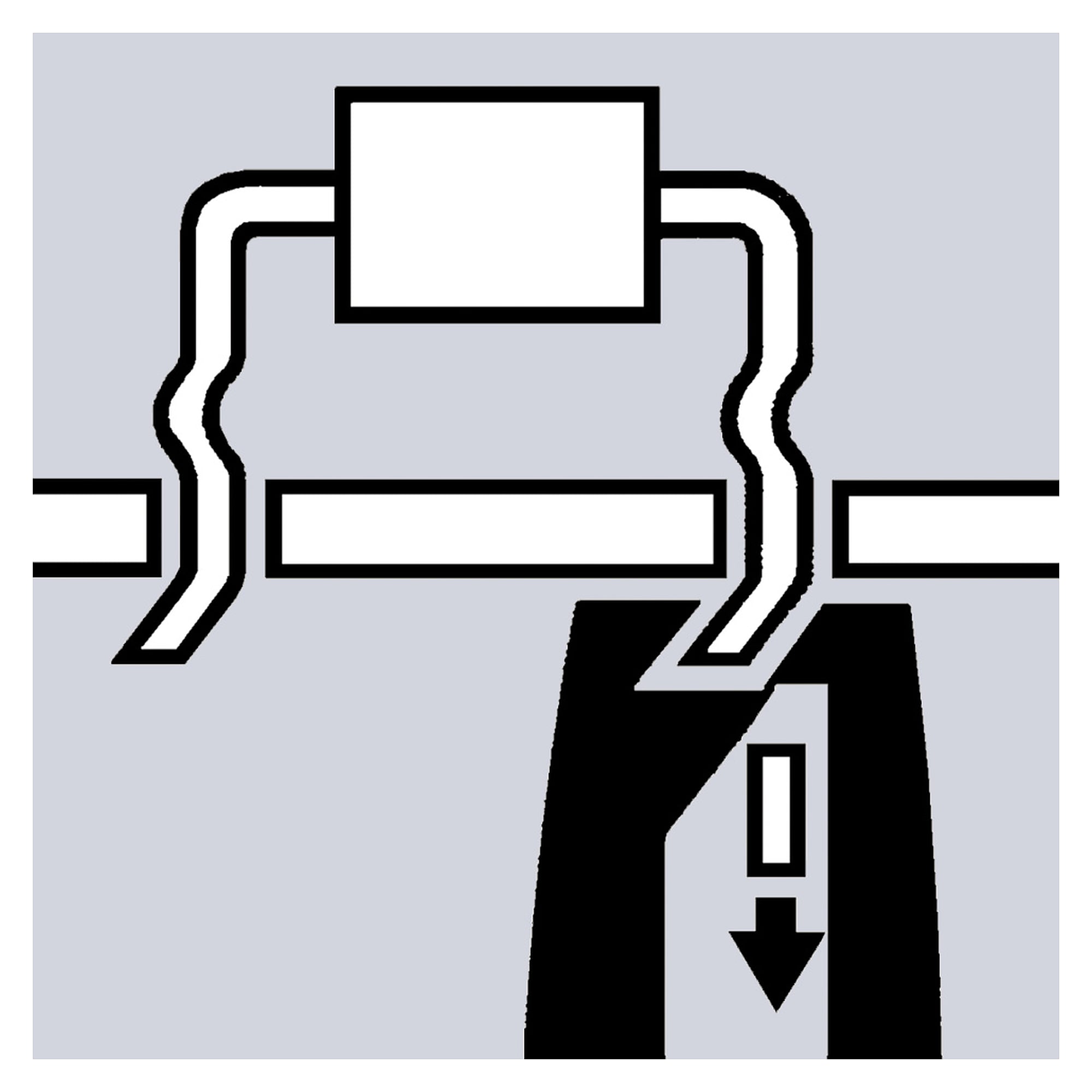

When populating printed circuit boards the leads have to be bent evenly and then cut close to the component. The 36 22 125 electronics mounting pliers do both with a single tool and shorten the wire below the board to 1.6 mm, cutting soft wire up to 1.2 mm dia. cleanly.

Benefits

• For bending and cutting off wire ends on components, shortening below the board to 1.6 mm.
• Robust, load-optimised construction with a through-pinned, backlash-free precision joint and uniform bending behaviour.
• Side angles carefully rounded, no sharp edges that could damage the material.
• Slim sleeves drawn up towards the head allow fine and comfortable gripping between thumb and index finger.
• Smooth ground gripping surfaces with deburred edges, plus a low-friction double spring for smooth and even opening.
• Mirror polished head with a fine oil film protects against rust. No chrome flakes come loose that could cause faults in the circuit.

Technical data

Areas of use

Board assembly and rework, precision mechanics, laboratory work and prototyping. The pliers suit every job where component leads have to be bent and shortened to a constant length.

Standards and conformity

According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
