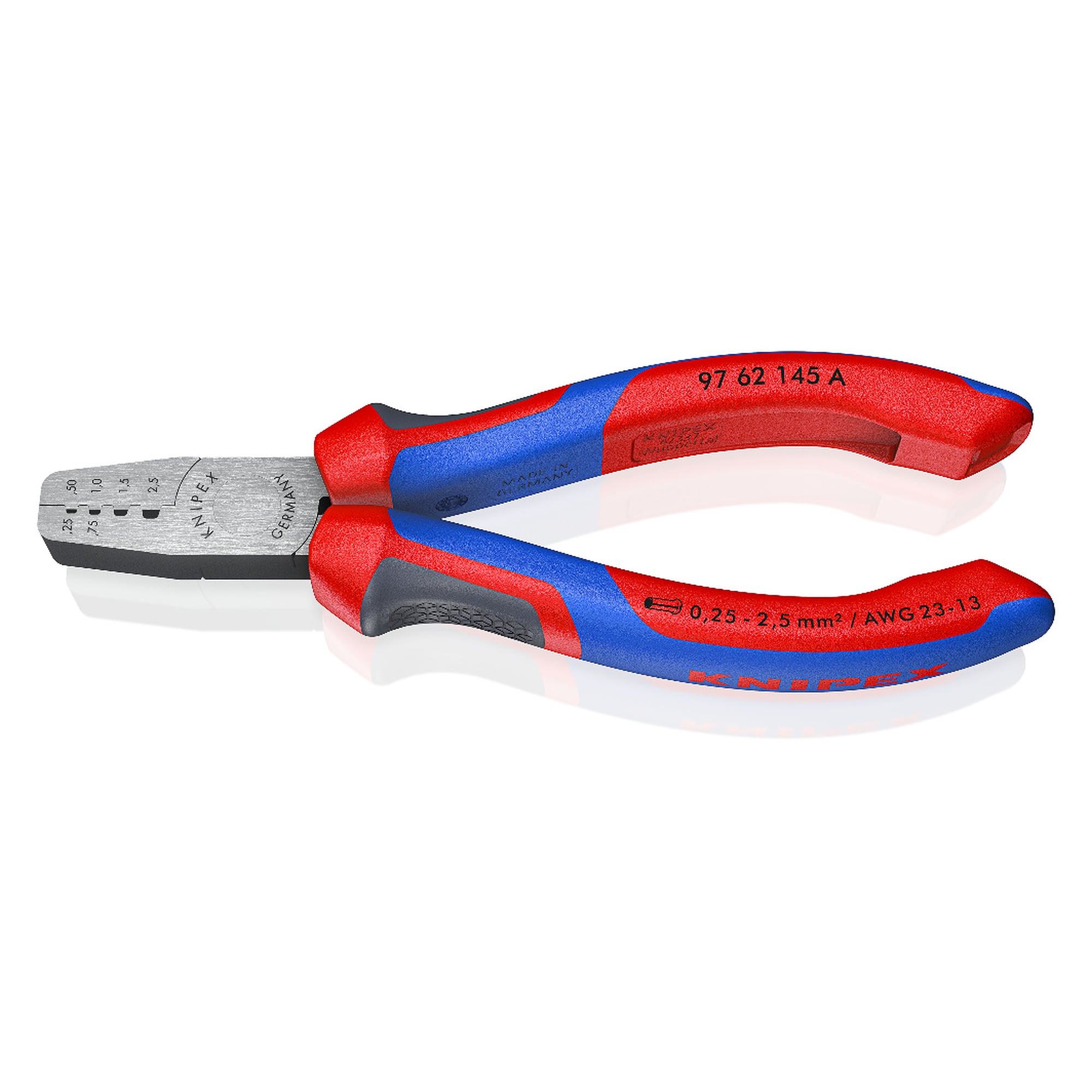

Crimping pliers for wire end ferrules 0.25 to 2.5 mm² with trapezoid crimp, 145 mm - Knipex 97 62 145 A

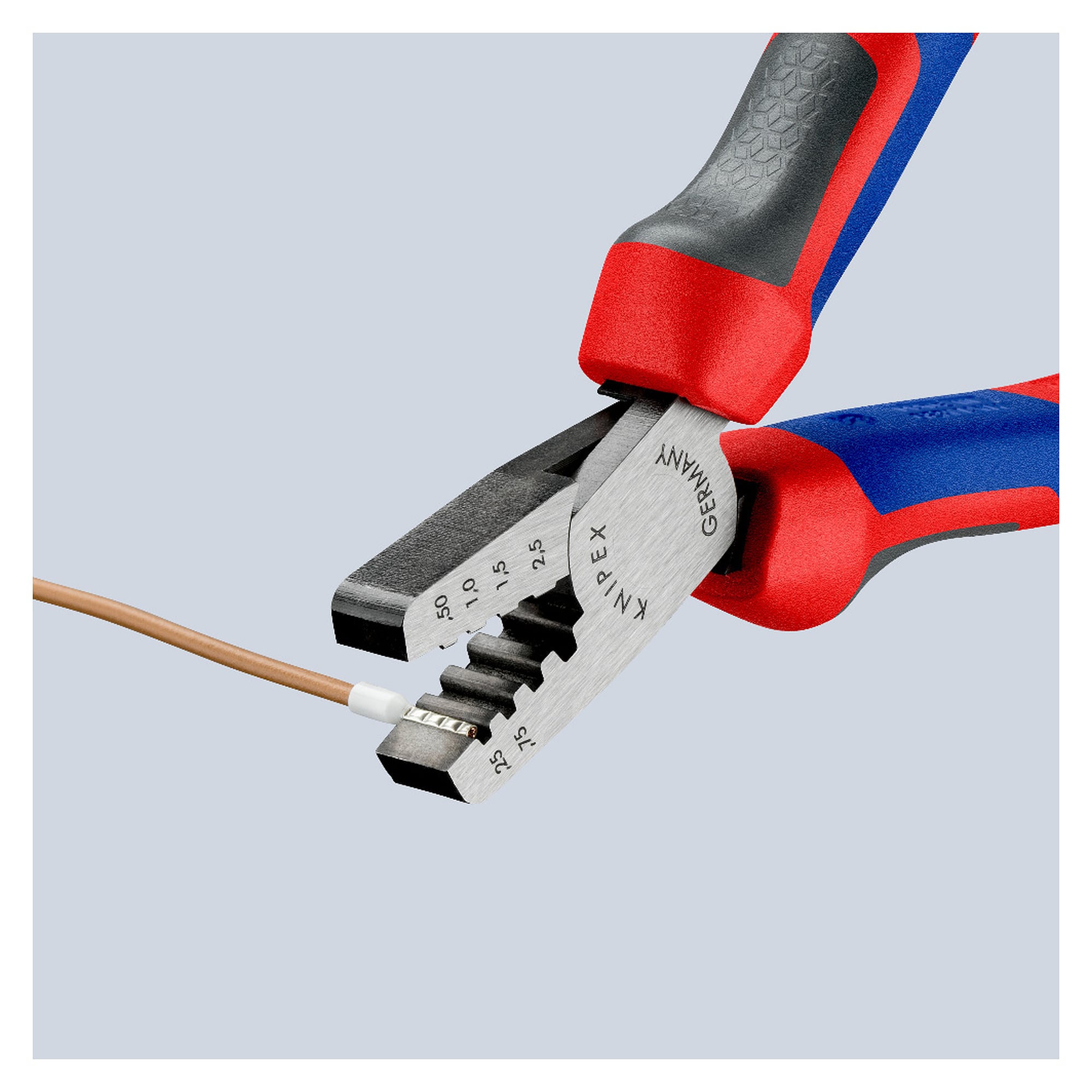

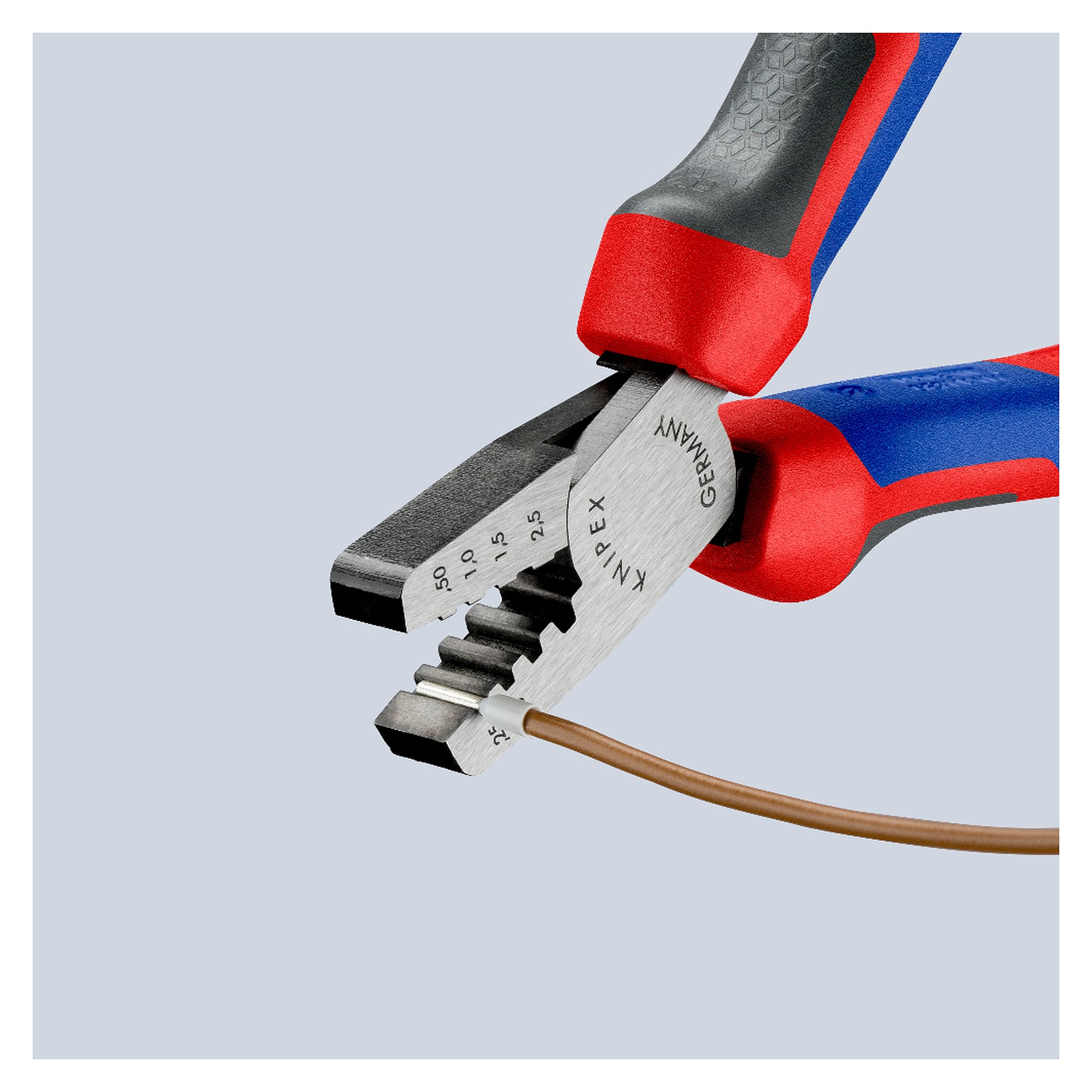

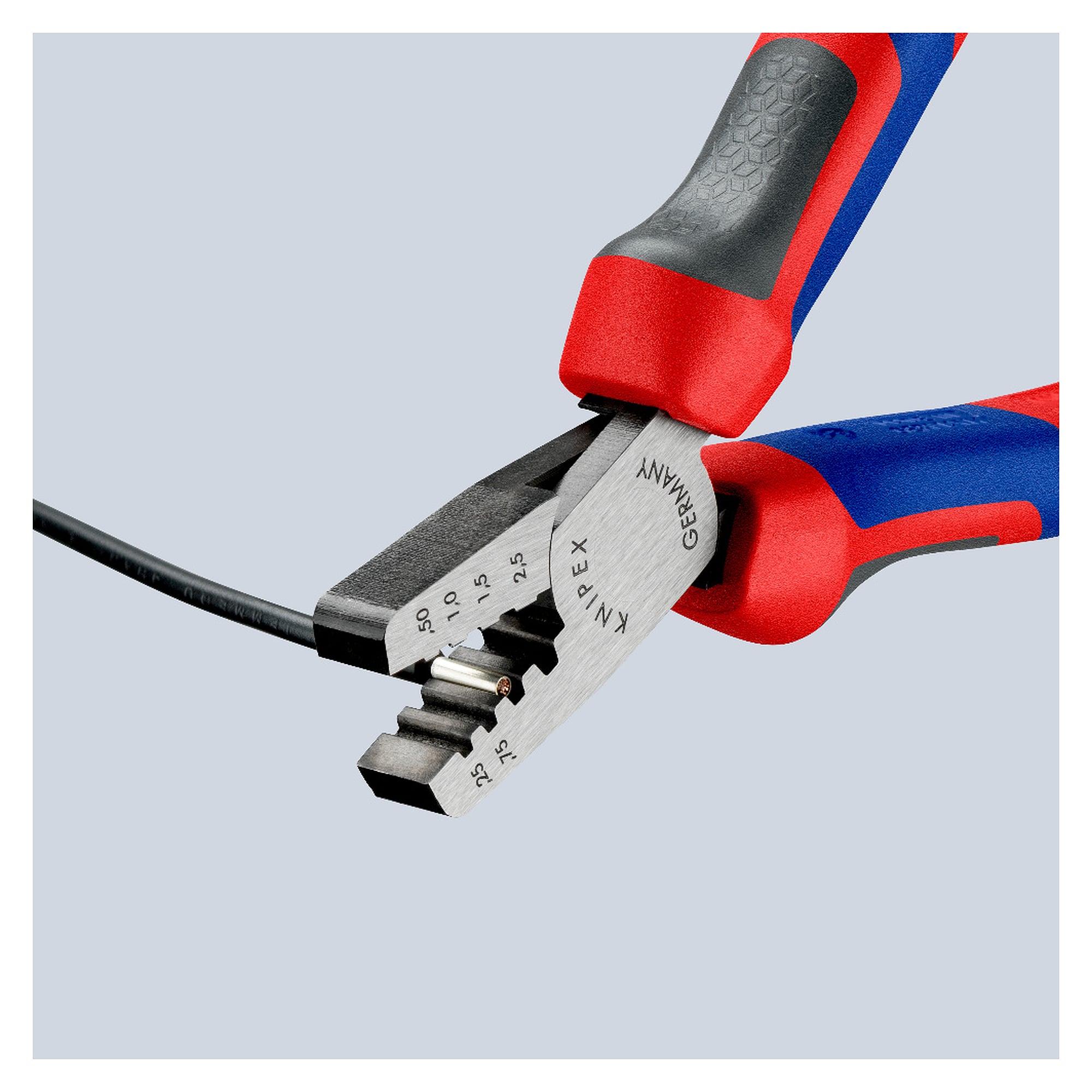

A wire end ferrule has to sit form-fit on the strand, otherwise contact resistance rises inside the terminal. The 97 62 145 A crimping pliers press ferrules to DIN 46228 part 1 and part 4 from 0.25 to 2.5 mm² in four marked trapezoidal dies.

Benefits

• Four marked dies cover the range from 0.25 to 2.5 mm², which corresponds to AWG 24 to 14.
• The trapezoidal crimp joins ferrule and conductor reliably and permanently.
• For wire end ferrules to DIN 46228 part 1 and part 4, so for bare and insulated versions.
• Marked dies make it easy to pick the right cross-section and avoid faulty crimps.
• Comfort handles made of three ergonomic components with two KNIPEXtend interfaces for extensions.
• Compact length of 145 mm at 170 g, easy to handle inside a crowded control cabinet.

Technical data

Areas of use

Control cabinet and control system building, electrical installation, machine and plant wiring as well as service and repair work on terminal strips.

Standards and conformity

The manufacturer states no tool standard for the pliers themselves. They process wire end ferrules to DIN 46228 part 1 and part 4. According to the manufacturer the pliers contain no substances of very high concern under REACH, the RoHS directive does not apply.
