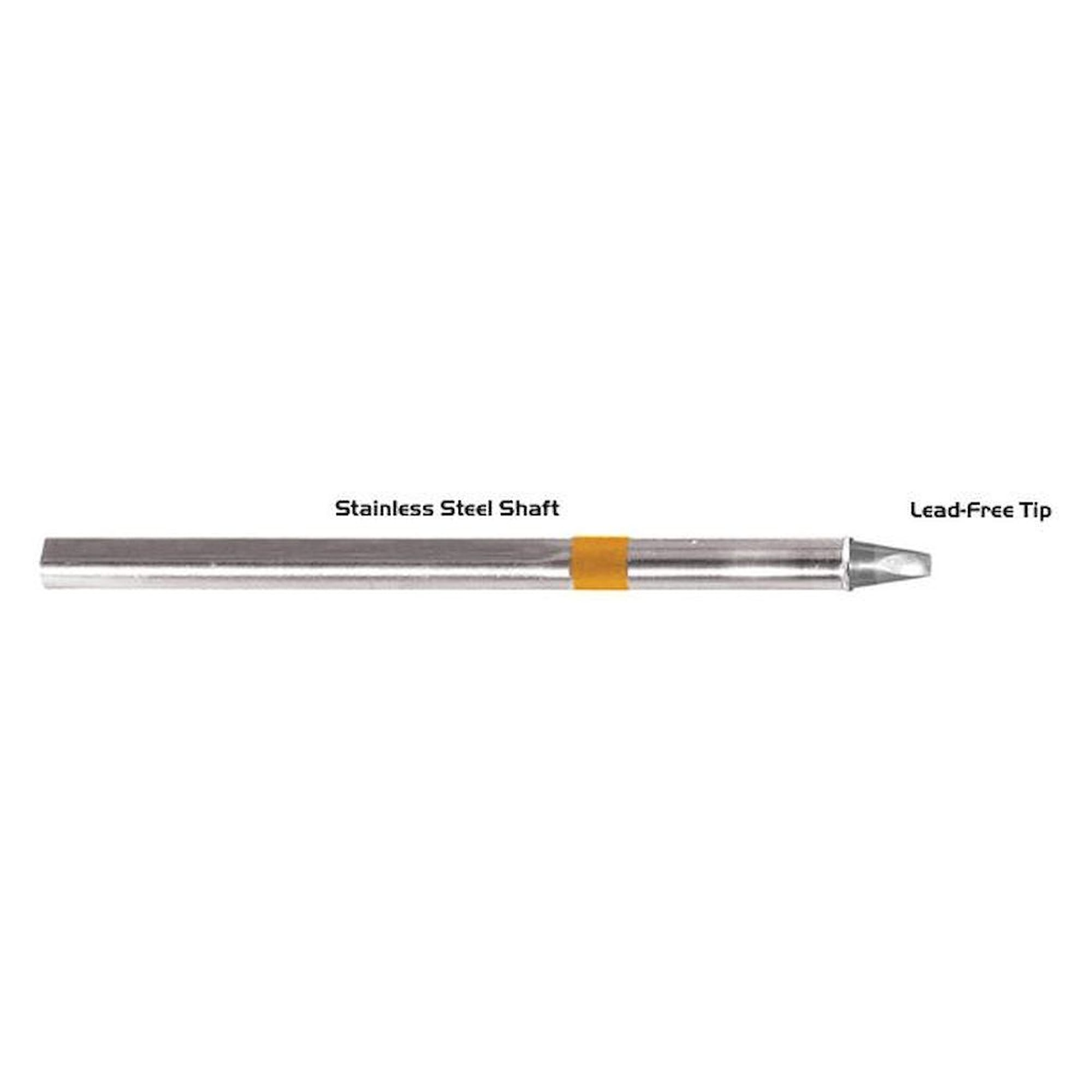

Conical soldering tip 0.40 mm (0.016") - Thermaltronics S60C004

Name: Conical soldering tip 0.40 mm (0.016") - Thermaltronics S60C004
Brand: Thermaltronics
SKU: WL38194
Price: 16.01 EUR
Availability: InStock

Thermaltronics ✓ Original product Brand new Made in United States

Conical soldering tip 0.40 mm (0.016") from the Thermaltronics S series for precise lead-free soldering in the 325 to 358 °C range. Fits the SHP-SM handpiece of the TMT-2000S station.

Net

€16.01

excl. VAT

Item WL38194

Manufacturer no. S60C004

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The Thermaltronics S60C004 solders cleanly and lead-free across a 325 to 358 °C working range. This S series conical tip is 0.40 mm (0.016") wide and fits the SHP-SM handpiece.

Benefits

Tip width 0.40 mm (0.016") for defined heat transfer to joint and pad
Tip length 13 mm in conical shape
Lead-free and RoHS compliant for modern soldering processes
Tool-free replacement on the SHP-SM handpiece

Applications

Fine-pitch SMD soldering, jumper wires, closely spaced pads and rework under the microscope.

Compatibility and scope of delivery

Suitable for the Thermaltronics SHP-SM handpiece (TMT-2000S station) and Metcal MFR-H6-SSC (MFR-1160, MFR-1161 and SP200). Matching supply units: TMT-2000PS, SP200, MFR-PS1100, MFR-PS2200 (SSC tips). Supplied as a single piece.

RoHS compliant, lead-free, ESD-safe.

Technical data

Property	Value
Manufacturer item no.	S60C004
Item no.	WL38194
Product series	S series
Tip shape	conical
Tip width	0.40 mm (0.016")
Tip length	13 mm
Temperature range	325 to 358 °C
Type	Soldering tip, lead-free, RoHS compliant
Weight	0.1 kg
Manufacturer	Thermaltronics
Manufacturer Nr.	S60C004
HS-Code	85159080900
GPSR manufacturer information	AMS Ltd, Unit 3 Norse Trade Park, Congleton CW12 1GW, www.ams-electronics.co.uk
Condition of article	New
Article authenticity	Original product
Country of Manufacture	United States
ESD version	ESD (antistatic)
Tip diameter/width [mm]	0.400000
Soldering tip shape	konisch
Series	S

Downloads

Datasheet (PDF) PDF
