The product may differ from the illustration
Lead-free series S soldering tip for Thermaltronics SHP-SM and Metcal MFR-H6-SSC handpieces, bevelled geometry 45° with 5.00mm width. Working temperature range 350 to 398 °C, RoHS compliant and lead-free.
Lead-free soldering tip bevelled 45° 5.00mm (0.20") series S - Thermaltronics S75BV050
THERMALTRONICS
Original product
Net price (excl. VAT)
€13.81
Excl. 19% VAT ,
excl. Shipping Cost
Available
Fast shipping
Item
WL38228
Manufacturer no.
S75BV050
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.S75BV050
Country of originUnited States
Customs tariff number85159080900
ConditionNew
Article
WL38228
Frequently Bought Together
-
This Item:
€13.81Excl. 19% VAT , excl. Shipping Cost
-

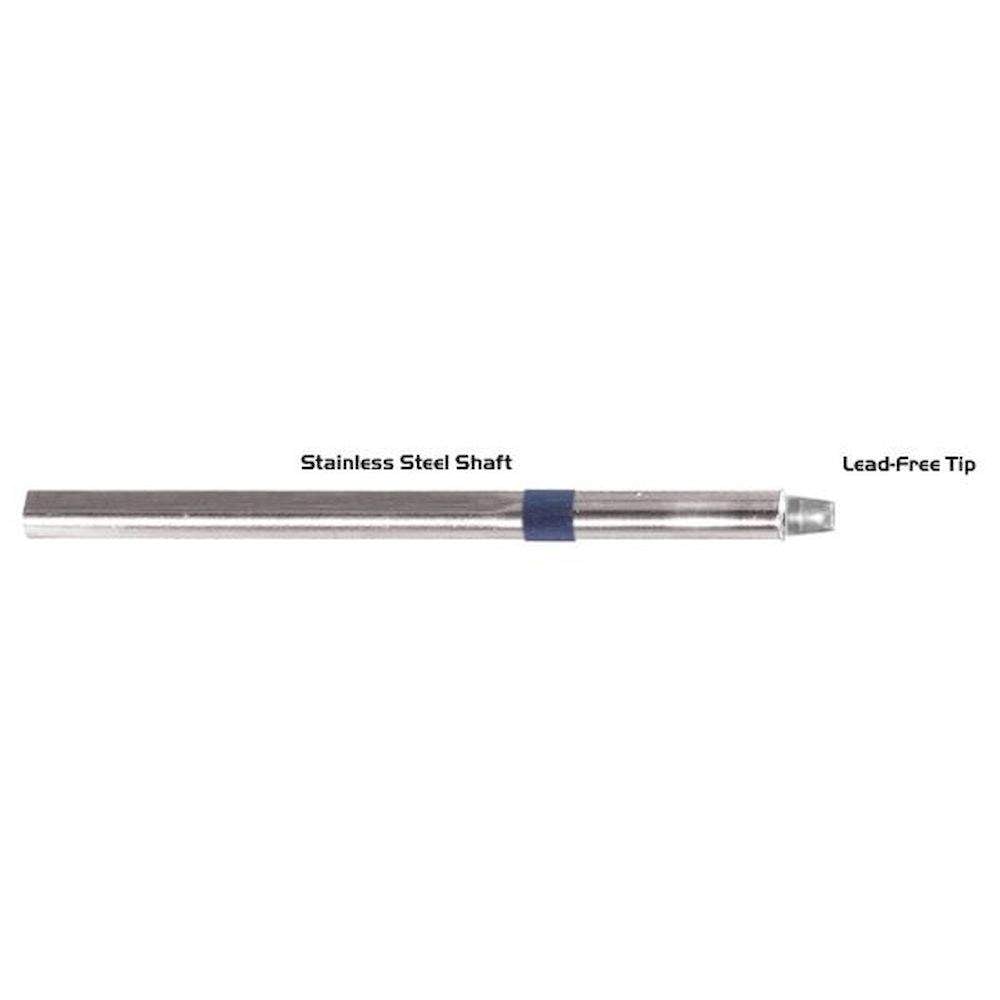

Chisel soldering tip 90° 3.2 mm (0.13 in) - Thermaltronics S60CH032
€13.81Excl. 19% VAT , excl. Shipping Cost
-
Soldering tip bevelled 45° 0.7mm (0.028"), Micro Fine - Thermaltronics S60BV007
€16.25Excl. 19% VAT , excl. Shipping Cost
Total price
The S75BV050 soldering tip from the Thermaltronics series S provides a bevelled tip geometry with a 45° angle and 5.00mm tip width for precise lead-free soldering on electronic assemblies. It operates across a 350 to 398 °C temperature range.
Benefits
- Bevelled geometry 45° with 5.00mm width for efficient heat transfer
- Working temperature range 350 to 398 °C for repeatable lead-free joints
- RoHS compliant and lead-free
Technical data
| Item no. | WL38228 |
| Model | S75BV050 |
| Manufacturer item no. | S75BV050 |
| Product series | S, 350 - 398 °C |
| Temperature range | 350 - 398 °C |
| Tip length | 15 mm mm |
| Tip width | 5,00mm (0,20") |
| Tip geometry | bevelled 45° |
| Compatible handpiece | SHP-SM |
| Compatible control unit | TMT-2000PS, SP200, MFR-PS1100, MFR-PS2200 |
| Dimensions with packaging (LxWxH) | 174 mm x 35 mm x 12 mm |
Applications
- Lead-free hand soldering and touch-up in electronics manufacturing
- Repair and rework of printed circuit boards and components
Compatibility and scope of delivery
Suitable for the Thermaltronics SHP-SM handpiece (TMT-2000S station) and the Metcal MFR-H6-SSC (MFR-1160, MFR-1161 and SP200 station). Compatible power units: TMT-2000PS, SP200, MFR-PS1100 and MFR-PS2200 (SSC tips). Supplied as a single piece.
RoHS compliant, lead-free, suitable for ESD-safe work. Country of origin USA.
| Execution | ESD (antistatic) |
|---|---|
| Manufacturer Nr. | S75BV050 |
| Manufacturer | Thermaltronics |
| Country of Manufacture | United States |
| Weight | 0.100000 |
| HS-Code | 85159080900 |
| GPSR manufacturer information | AMS Ltd, Unit 3 Norse Trade Park, Congleton CW12 1GW, www.ams-electronics.co.uk |
| Article authenticity | Original product |
| Condition of article | New |
