Fine dust extraction kit 190 m³/h for 2 workstations, Easy-Click - Weller FT91015699N

An extraction position should be ready to use without assembling single components. The Zero Smog TL kit supplies the portable extraction unit together with a separately exchangeable F7 fine dust pre-filter and the compact filter, rated for up to two workstations and up to 190 m³/h.

Benefits

• Portable unit for flexible placement directly under or next to the workstation, for up to 2 workstations
• Extra large filter area of 2.4 m² for longer service life
• Separately exchangeable F7 fine dust pre-filter and a compact gas filter with 50 % activated carbon and 50 % chemisorb
• Variable power control up to 190 m³/h and 3000 Pa, electronic filter monitoring with filter alarm
• Powerful EC gas blower and quick installation through the Easy-Click system

Technical data

Applications

Hand soldering, rework and repair in electronics manufacturing as well as bonding and dispensing tasks that release fine dust and gases. The portable design allows the unit to be moved between positions or run space-saving under the workbench.

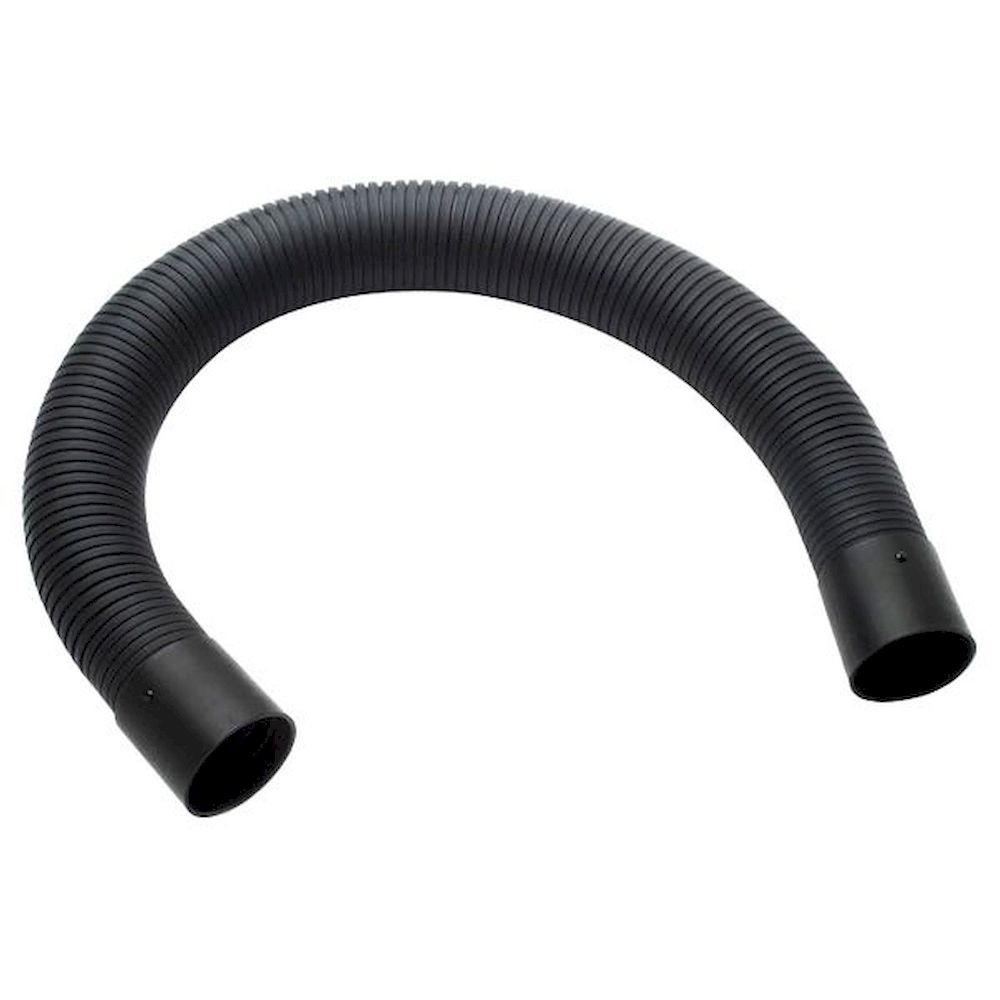

Compatibility and scope of delivery

The set contains the Zero Smog TL extraction unit with EC gas blower, the F7 fine dust pre-filter and the compact filter. Extraction arms and funnel nozzles with Easy-Click connection are available separately, and a WT Hub is required to link the unit to a WX or WT station. Consumables are the F7 pre-filter and the compact filter of the Zero Smog TL series.
