Large assemblies can only be repaired without warping if heat is applied evenly under the whole board. The TMT-PH600-2 supplies 1500 W across an infrared area of 310 x 310 mm and controls from 50 to 400 °C in three stages. Two external probes and microprocessor control keep the profile steady throughout the rework.
IR preheater 1500 W heating area 310 x 310 mm - Thermaltronics TMT-PH600-2
THERMALTRONICS
Original product
Net price (excl. VAT)
€962.57
Item
WL42270
Manufacturer no.
TMT-PH600-2
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TMT-PH600-2
ConditionNew
Article
WL42270
Frequently Bought Together
-
This Item:
€962.57
-
Industrial hot-air soldering station 1300W ESD, 100-500°C, 6-70 L/min - Quick TR1300A
€323.53
-

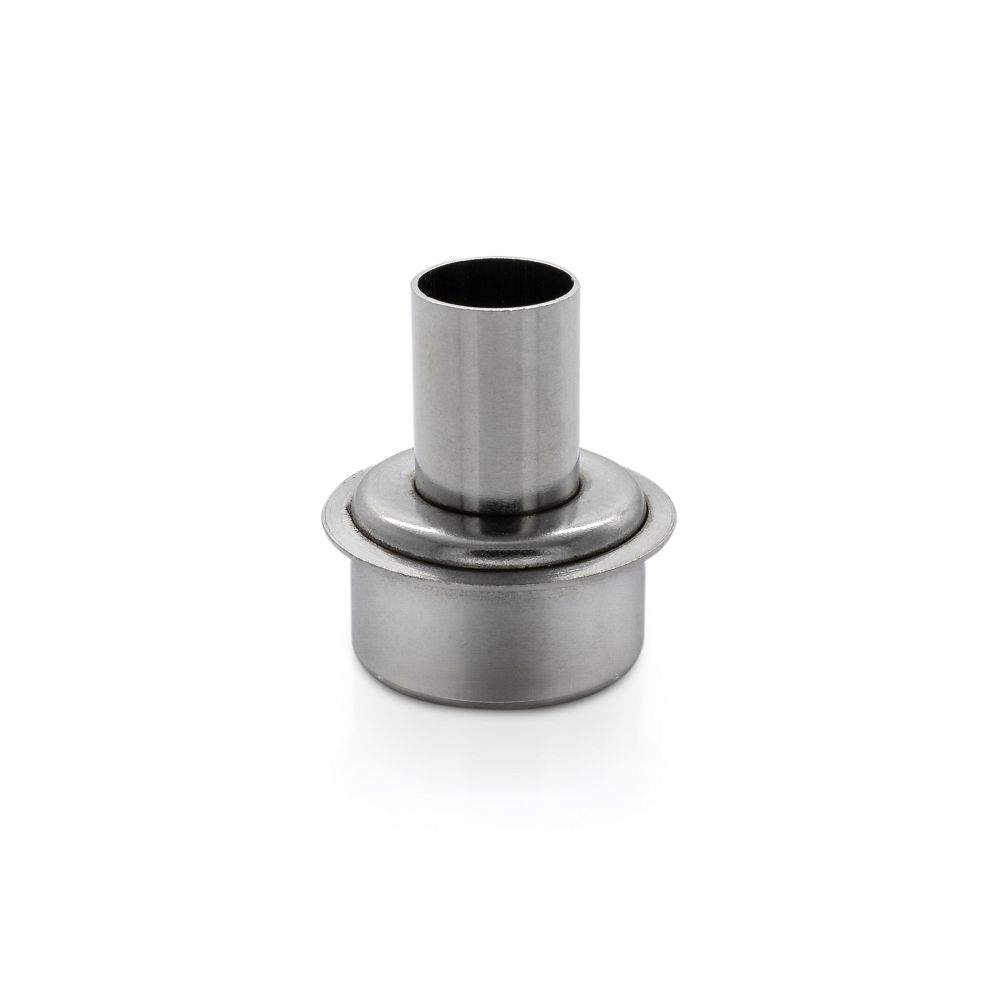

Hot-air nozzle round 12.7 mm straight for 861DW/TR1300A - Quick NK2127
€7.52
Total price
On boards larger than a hand, a small preheater no longer does the job, the edges stay cold and the laminate warps. The Thermaltronics TMT-PH600-2 covers an infrared heating area of 310 x 310 mm with 1500 W and warms large assemblies through evenly.
Benefits
- Heating area of 310 x 310 mm, suited to large and heavily coppered boards
- Rated 1500 W for short heat-up times despite the large area
- Three heating stages across a 50-400 °C range under microprocessor control
- Two external temperature probes for monitoring directly at the assembly
- Professional board holder with three-dimensional adjustment, mains 220-240 V AC with a 250 V 10 A fuse
Technical data
| Item number | WL42270 |
| Manufacturer | Thermaltronics |
| Model | TMT-PH600-2 |
| Manufacturer item number | TMT-PH600-2 |
| Type | infrared preheater |
| Power | 1500 W |
| Temperature range | 50-400 °C |
| Heating stages | 3 |
| Heating area | 310 mm x 310 mm, infrared |
| Temperature probes | 2 external sensors |
| Dimensions (LxWxH) | 520 mm x 380 mm x 100 mm |
| Mains voltage | 220-240 V AC |
| Fuse | 250 V, 10 A |
| Order unit | piece |
Applications
Rework on large multilayer assemblies, lifting BGA and power devices tied to heat spreading areas, repair of LED boards on metal core substrates and controlled cool-down after soldering.
Compatibility and scope of delivery
The preheater can be combined with any soldering or hot air station and, together with a hot air unit, forms a complete rework bench. Supplied as the TMT-PH600-2 IR preheater with board holder.
