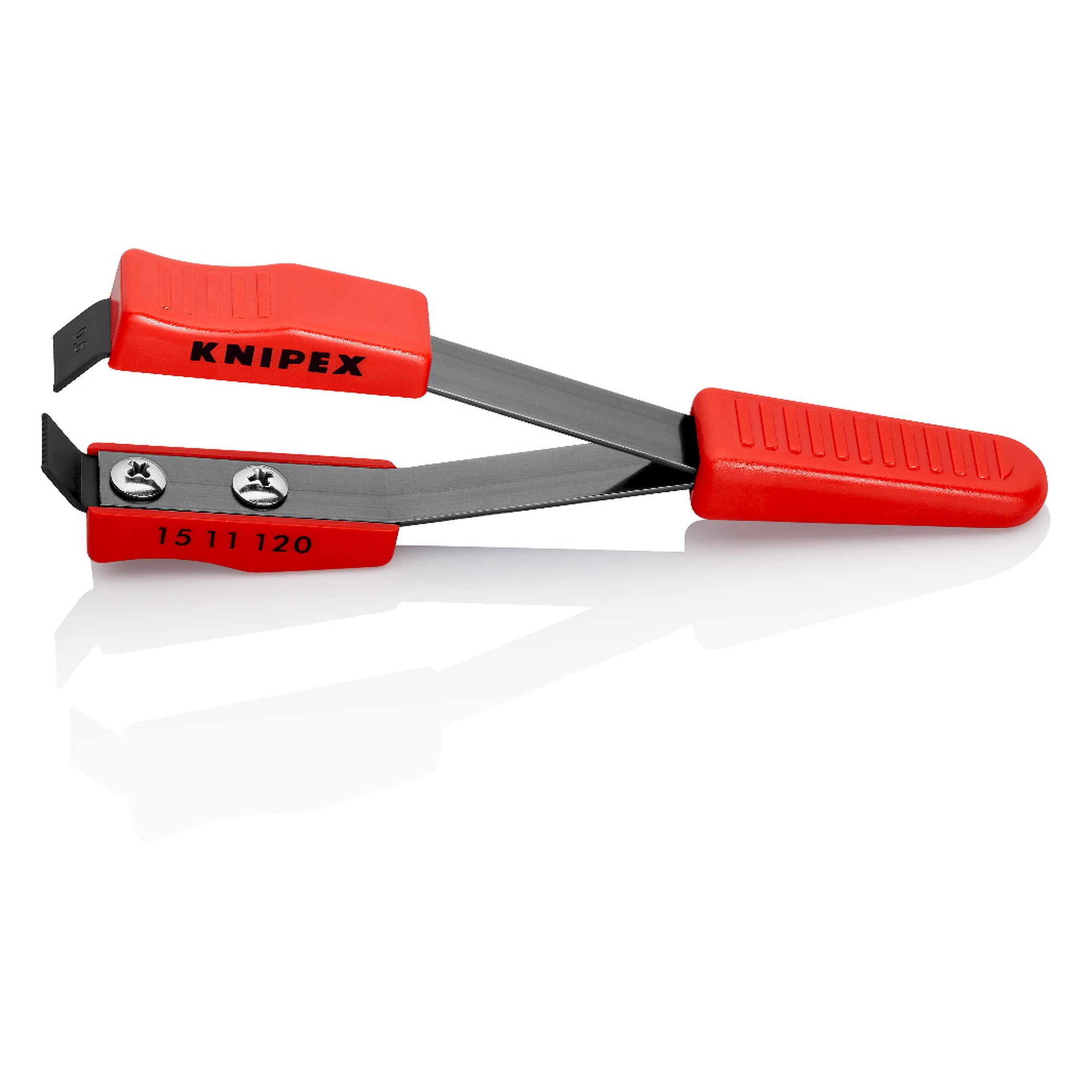

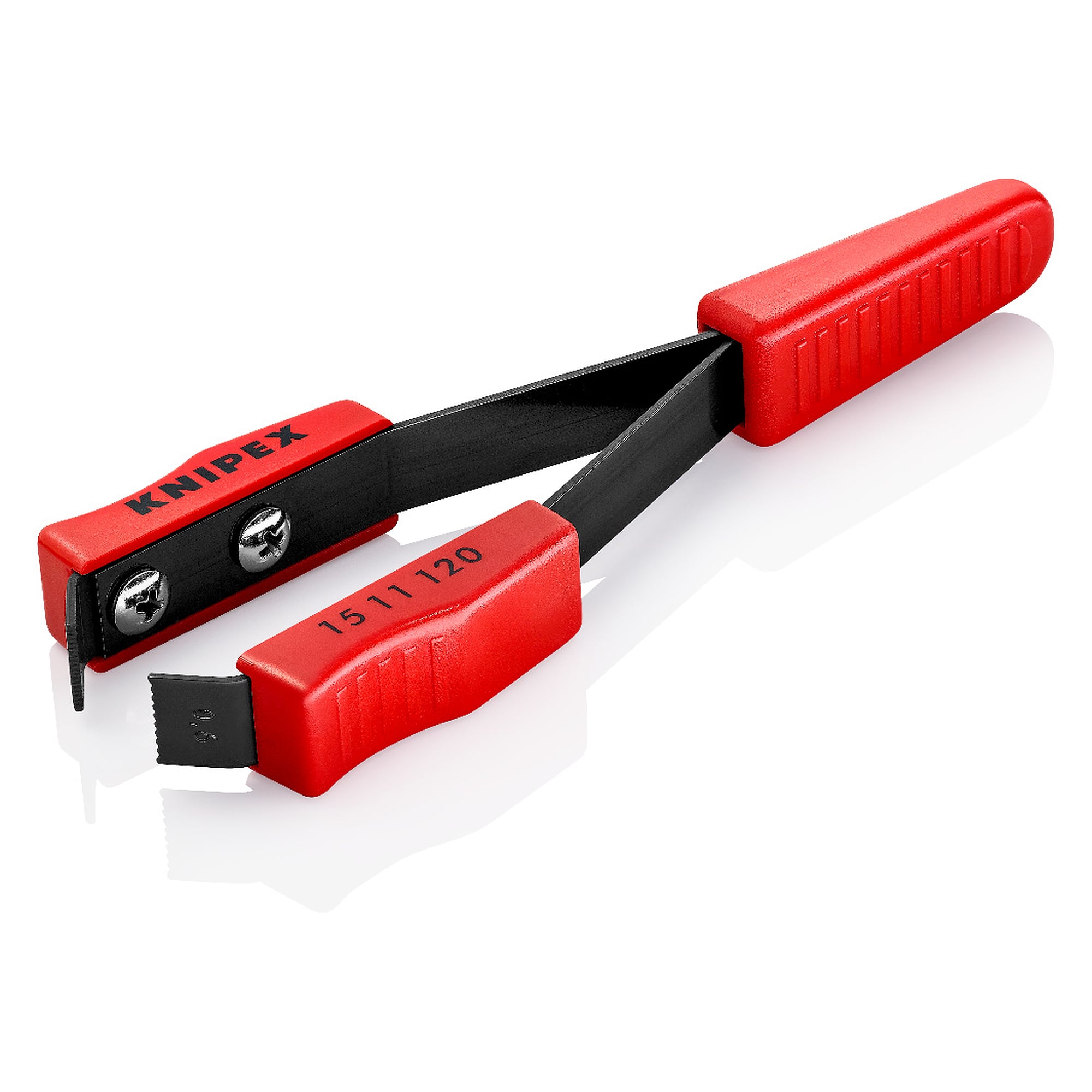

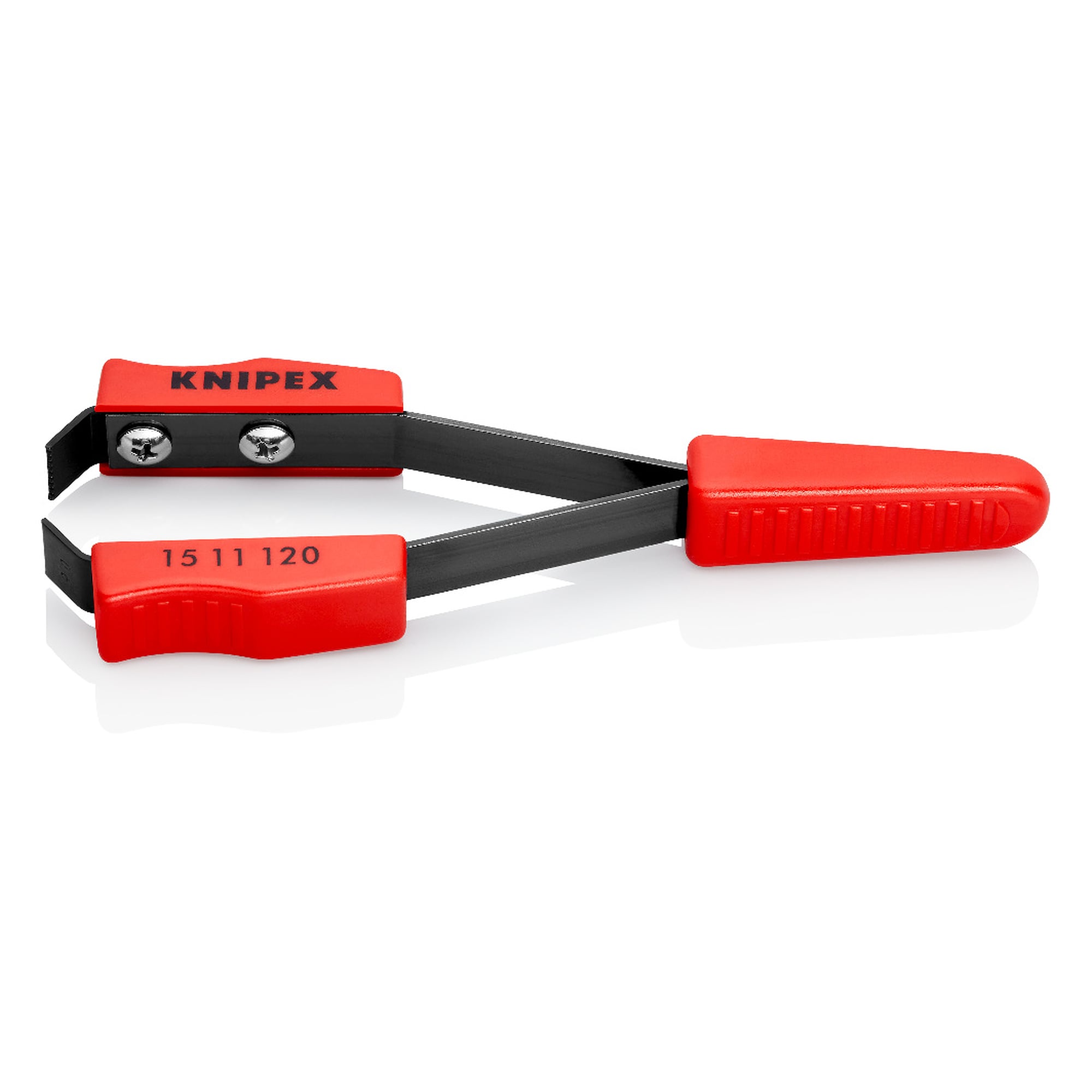

Stripping tweezers for coated wire with replaceable blade for Ø 0.6 mm, 120 mm - Knipex 15 11 120

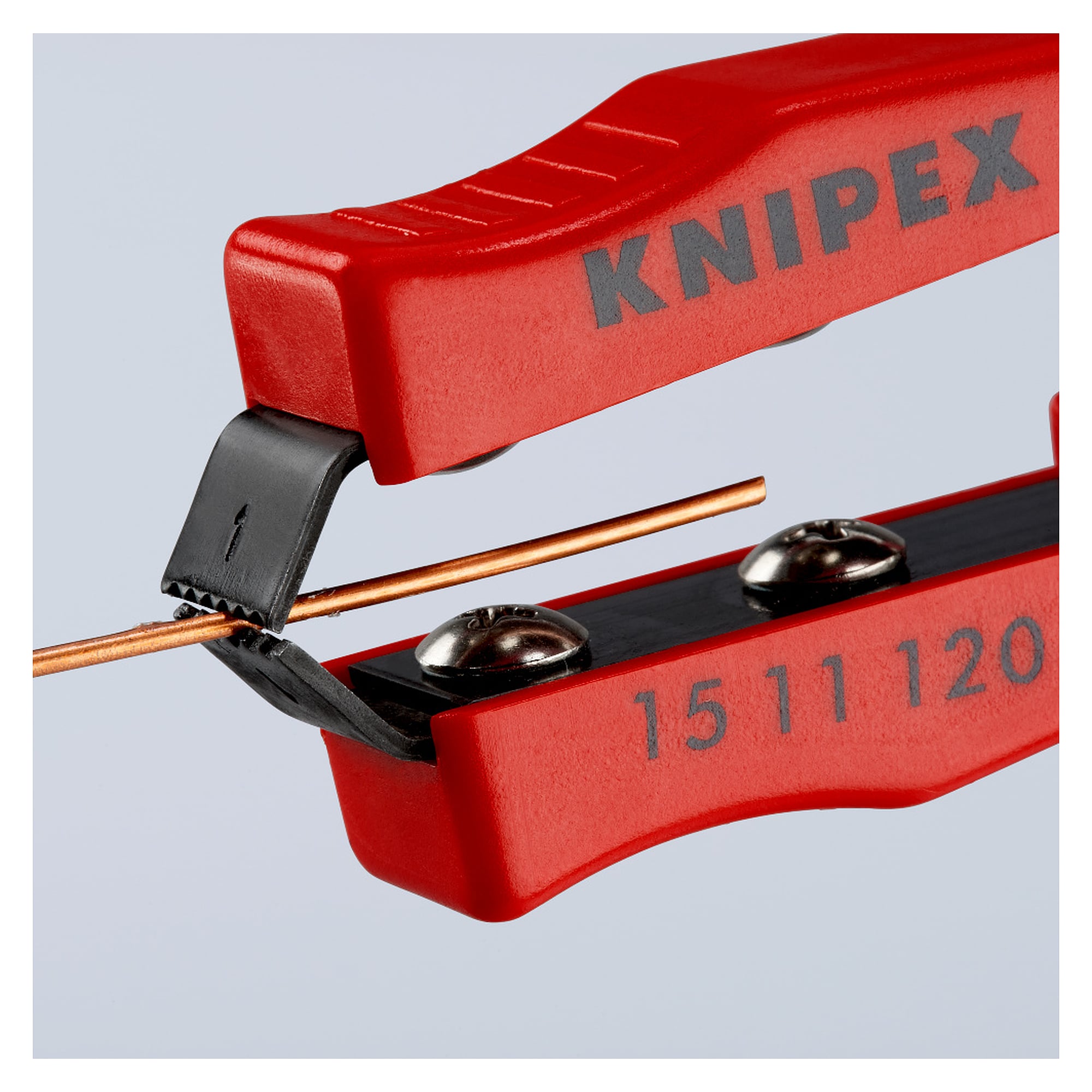

Insulating coating on winding and coil wire is hard to remove with a knife without nicking the thin conductor. The 15 11 120 stripping tweezers work with a blade matched to a wire diameter of 0.6 mm and expose the wire over the length required.

Benefits

• For removing insulating coatings from wires, designed above all for industrial use.
• Stripping capacity Ø 0.6 mm, the blade is matched exactly to this wire diameter.
• Four spare blades for different diameters are also available, so the tweezers stay usable once the edge is worn.
• Body of oil-hardened spring steel, very good acid resistance, black painted surface.
• Plastic grip shells and a tip width of 10 mm for steady guidance, overall length 120 mm at only 34 g.

Technical data

Areas of use

Electronics industry, repairs and handicrafts, coil and transformer winding as well as laboratory work. The tweezers are magnetic and electrically conductive, they are not tested for work at ESD workstations or on live parts.

Standards and conformity

The manufacturer does not state a tool standard for this product. ESD tested no, VDE tested no. According to the manufacturer the tweezers contain no substances of very high concern under REACH. The RoHS directive does not apply.
