Other versions
| item number | tip diameter | tool length |
| WL61598 | 0.9 mm | 130 mm |
| WL61599 | 1.3 mm | 130 mm |
| WL61600 | 1.8 mm | 165 mm |
| WL61601 | 2.3 mm | 210 mm |

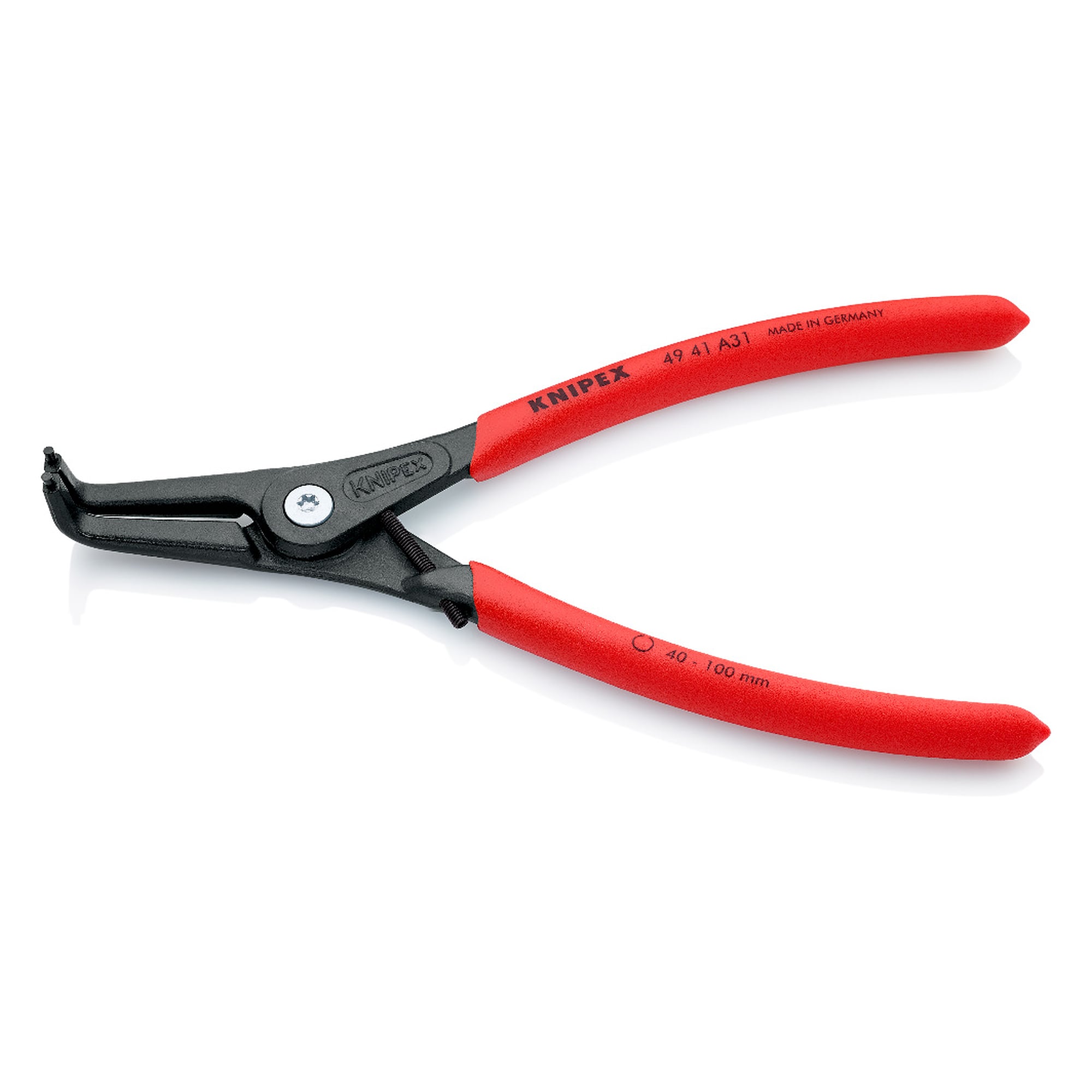

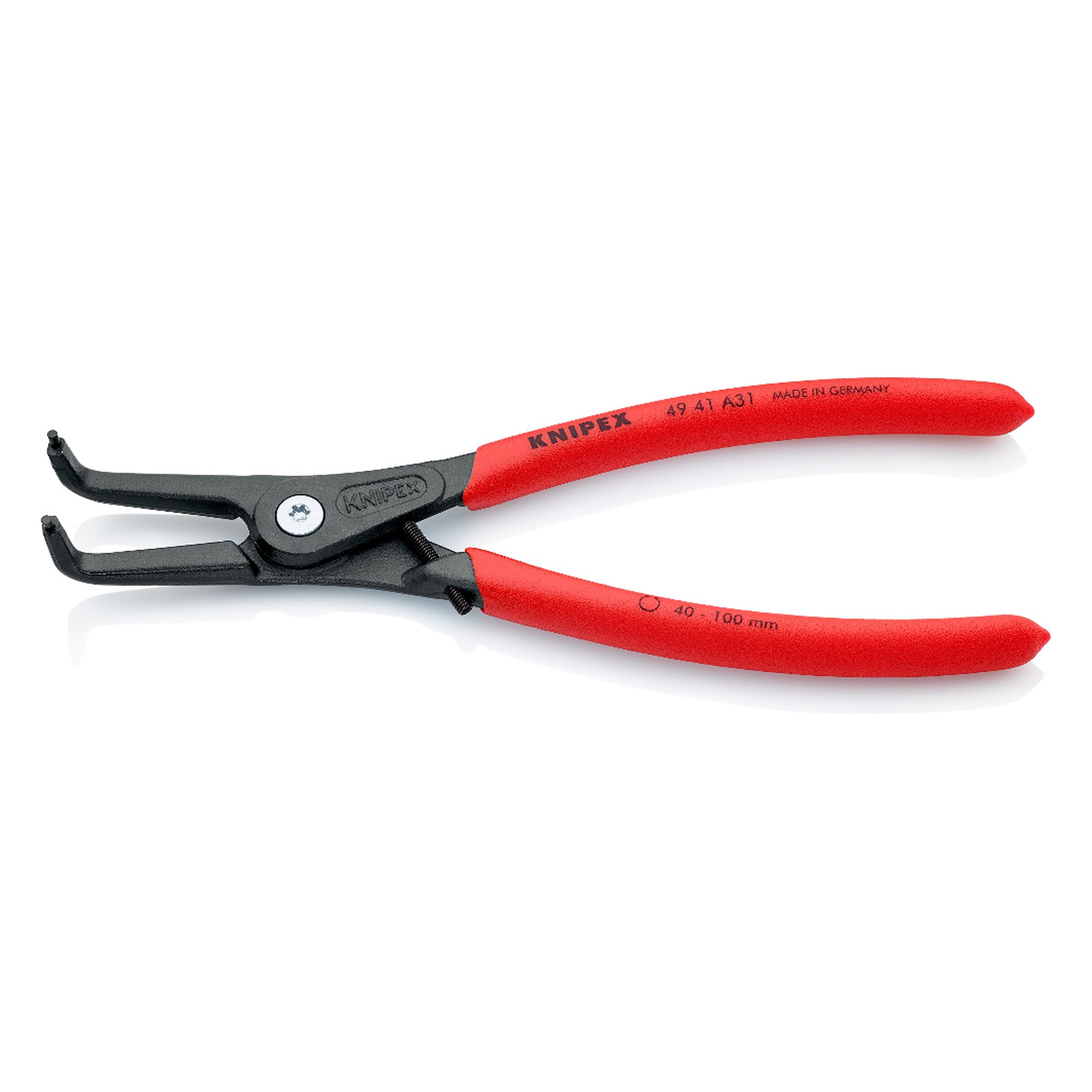

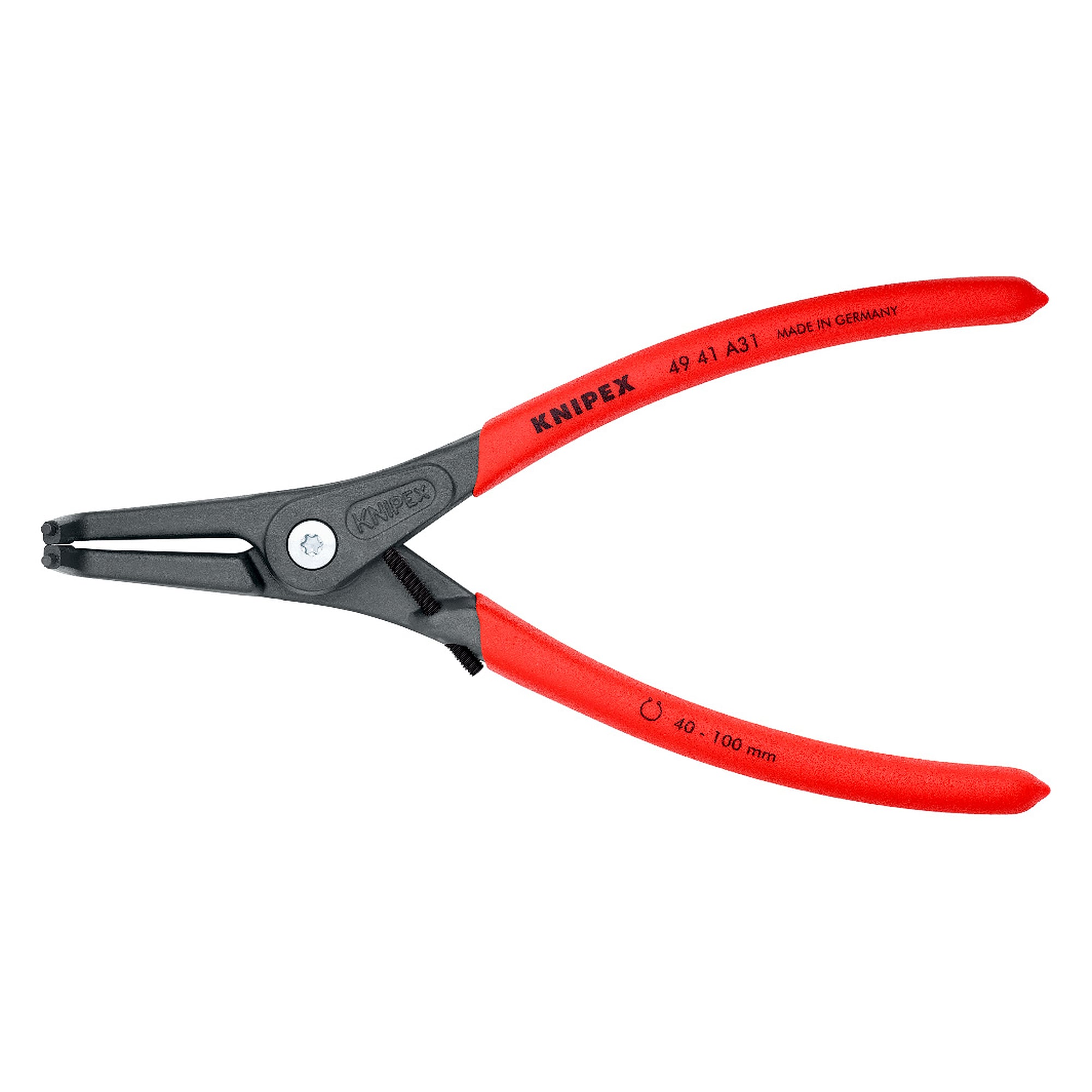

Precision circlip pliers with high load capacity for continuous use: up to 10 times longer service life compared to screwed-on tips. With inserted tips for safe working. Highly durable in continuous use, up to 10 times longer service life. Precise, smooth-running screw joint. Forged. Large contact surfaces on the tips: no torsion of the rings, easy assembly. Slim pliers head for optimum access to the workpiece. Opening spring located in the joint, protected and captive. Handles covered with non-slip plastic. DIN 5254 B; 90° angled tips. With expansion limiter for standard-compliant assembly in accordance with DIN 471. The adjustable stop screw prevents overstretching of the rings. - Capacity for shaft diameters: Ø 40 - 100mm - Shape: 4 - Points (diameter): 2,3mm
- Highly durable in continuous use, up to 10 times longer service life

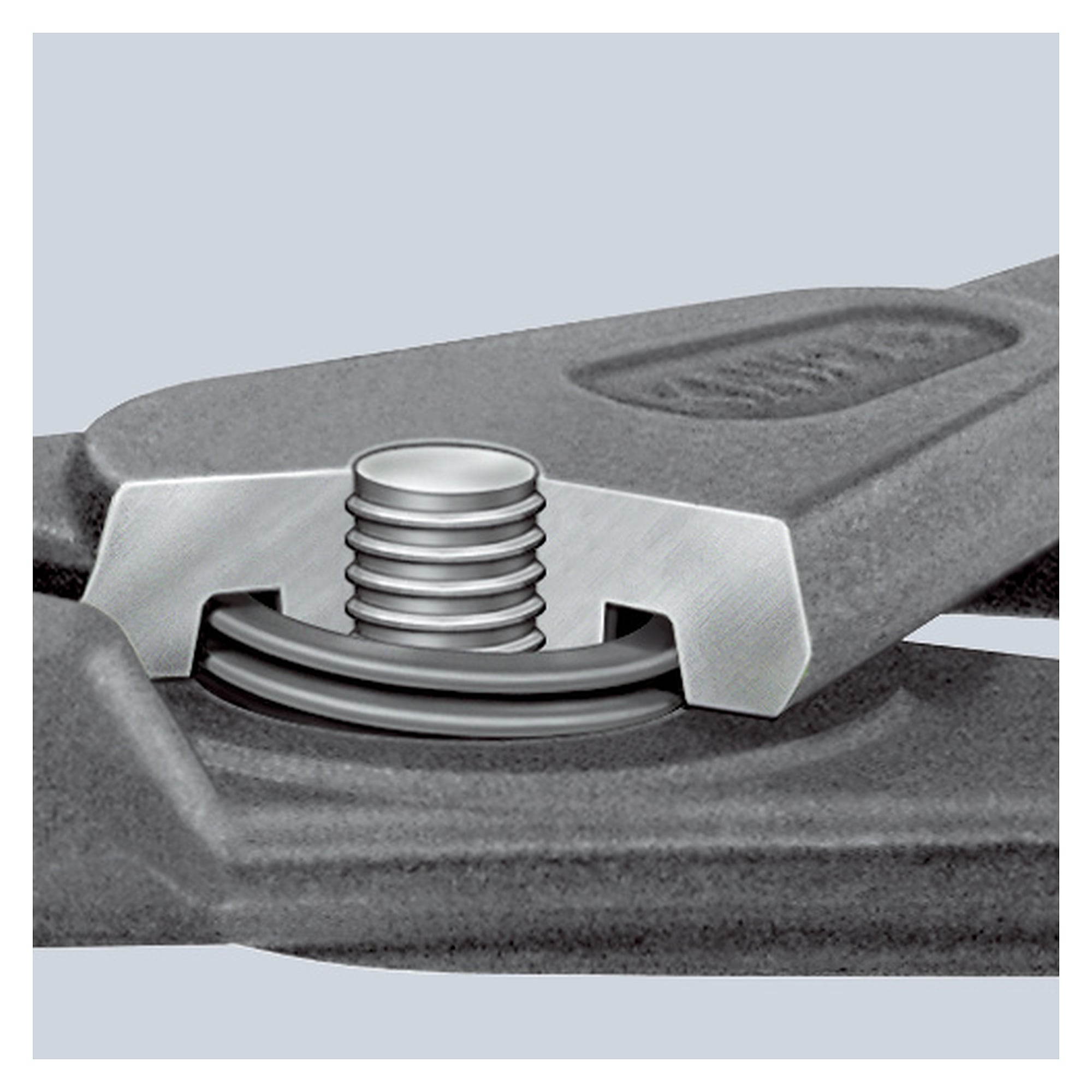

- Precise, smooth-running screw joint
- Forged
- Large contact surfaces at the tips: no torsion of the rings, easy assembly
- Slim pliers head for optimum access to the workpiece
- Opening spring located in the joint, protected and captive
- Handles coated with non-slip plastic
Product details
| item number | WL61601 |
| model | 49 41 A31 |
| manufacturer | KNIPEX |
| manufacturer item number | 49 41 A31 |
| dimensions (LxWxH) | 220 mm x 42 mm x 14 mm |
| dimensions with packaging (LxWxH) | 264 mm x 94 mm x 51 mm |
| Packaging volume | 1.205 dm³ |
| order unit | piece |
| type of packaging | single pack |
| standards | DIN 5254 B |
| RoHS conform | no |
| surface | grey atramentised |
| VDE | no |
| tip diameter | 2.3 mm |
| jaw angle | Jaws, angled, 90 |
| ESD safe | no |
| tool length | 210 mm |
| type of handle | Covered with non-slip plastic |
| type of pliers | snap ring pliers |
