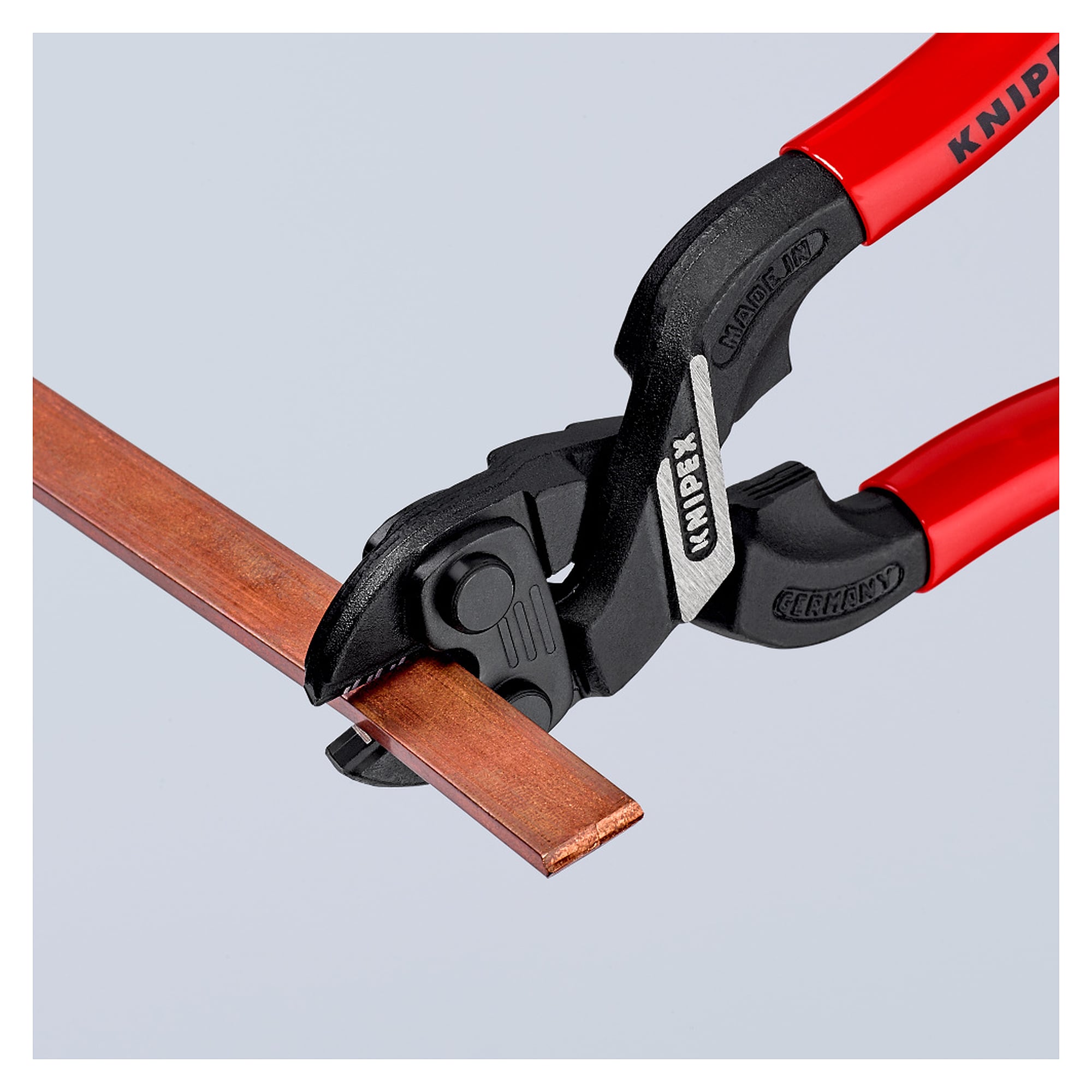

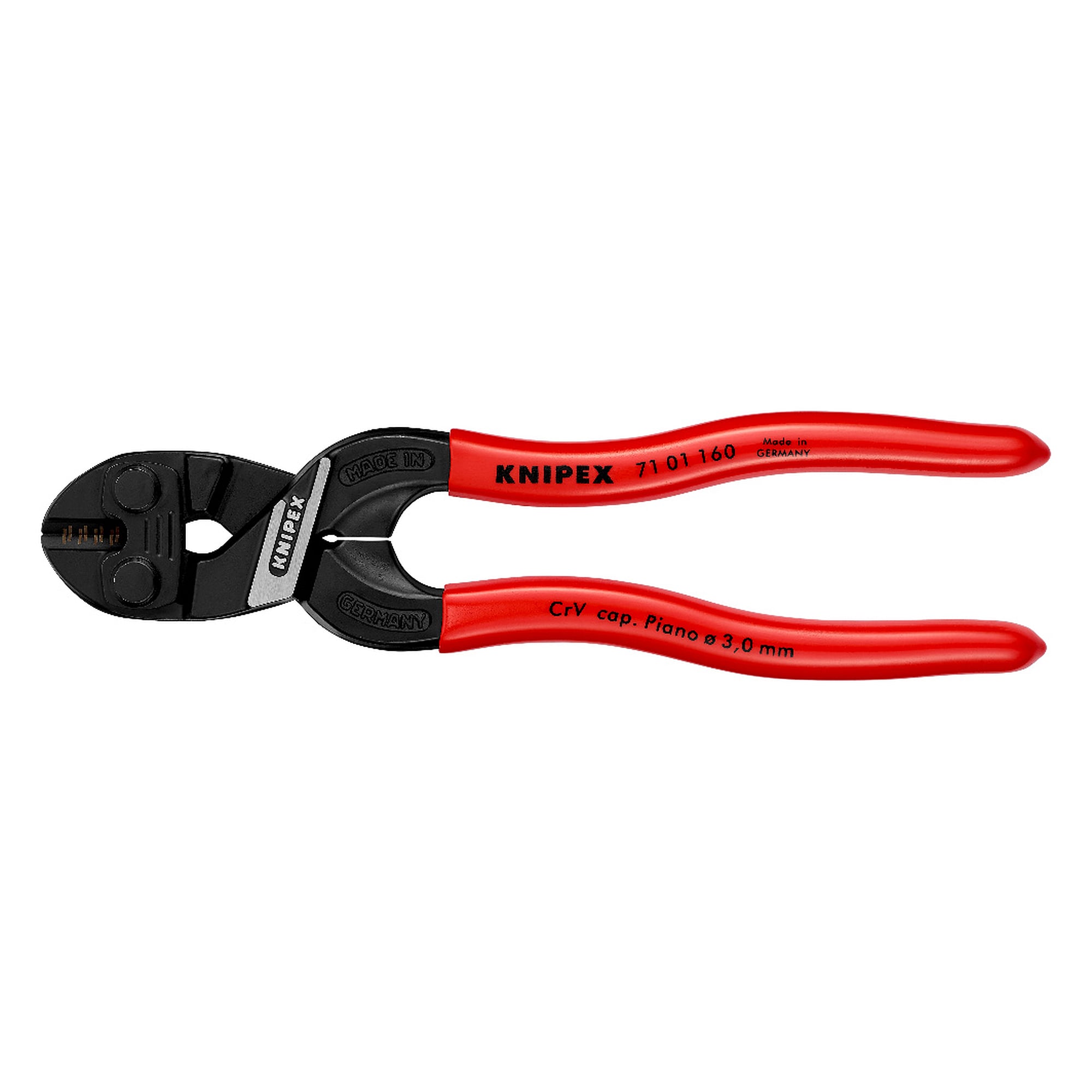

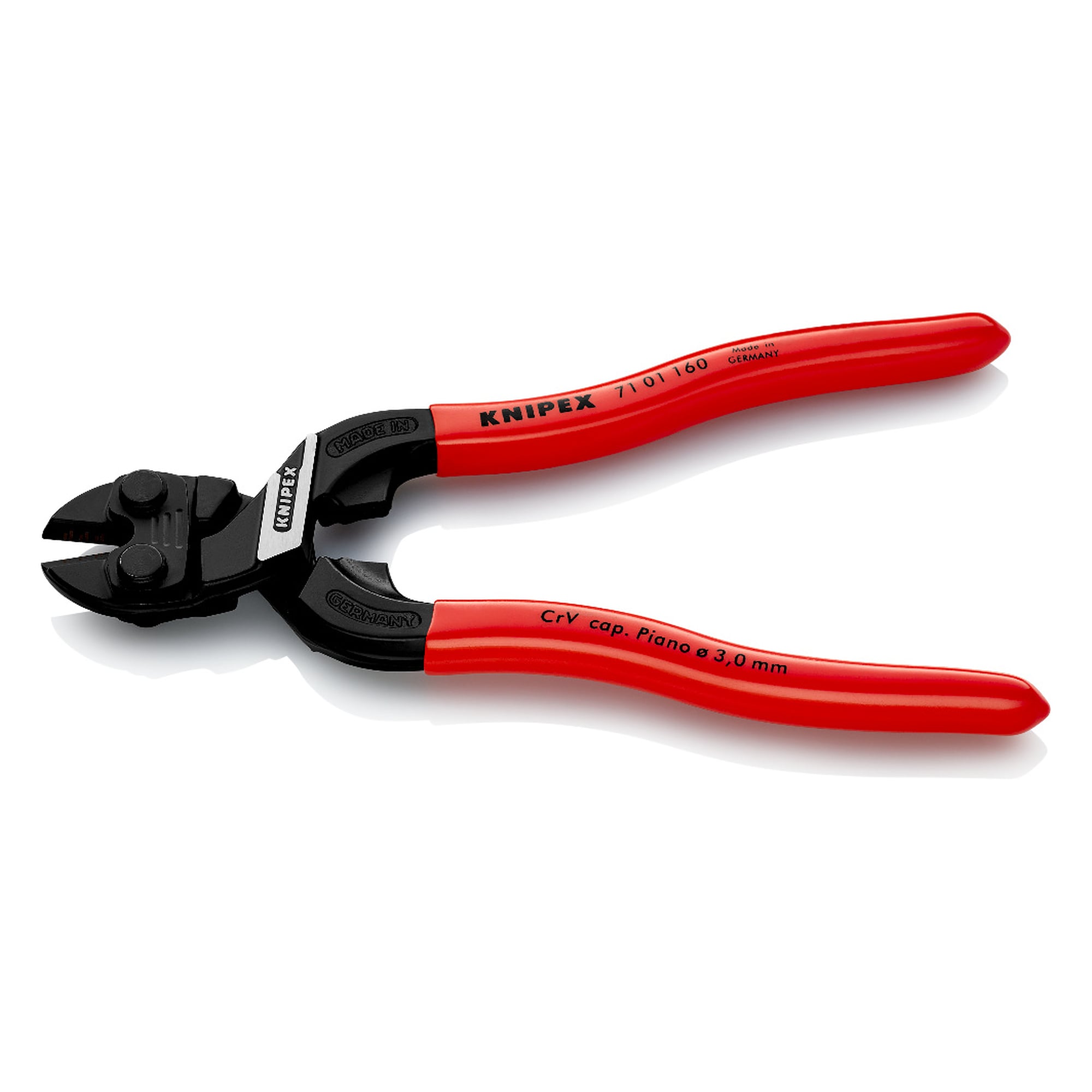

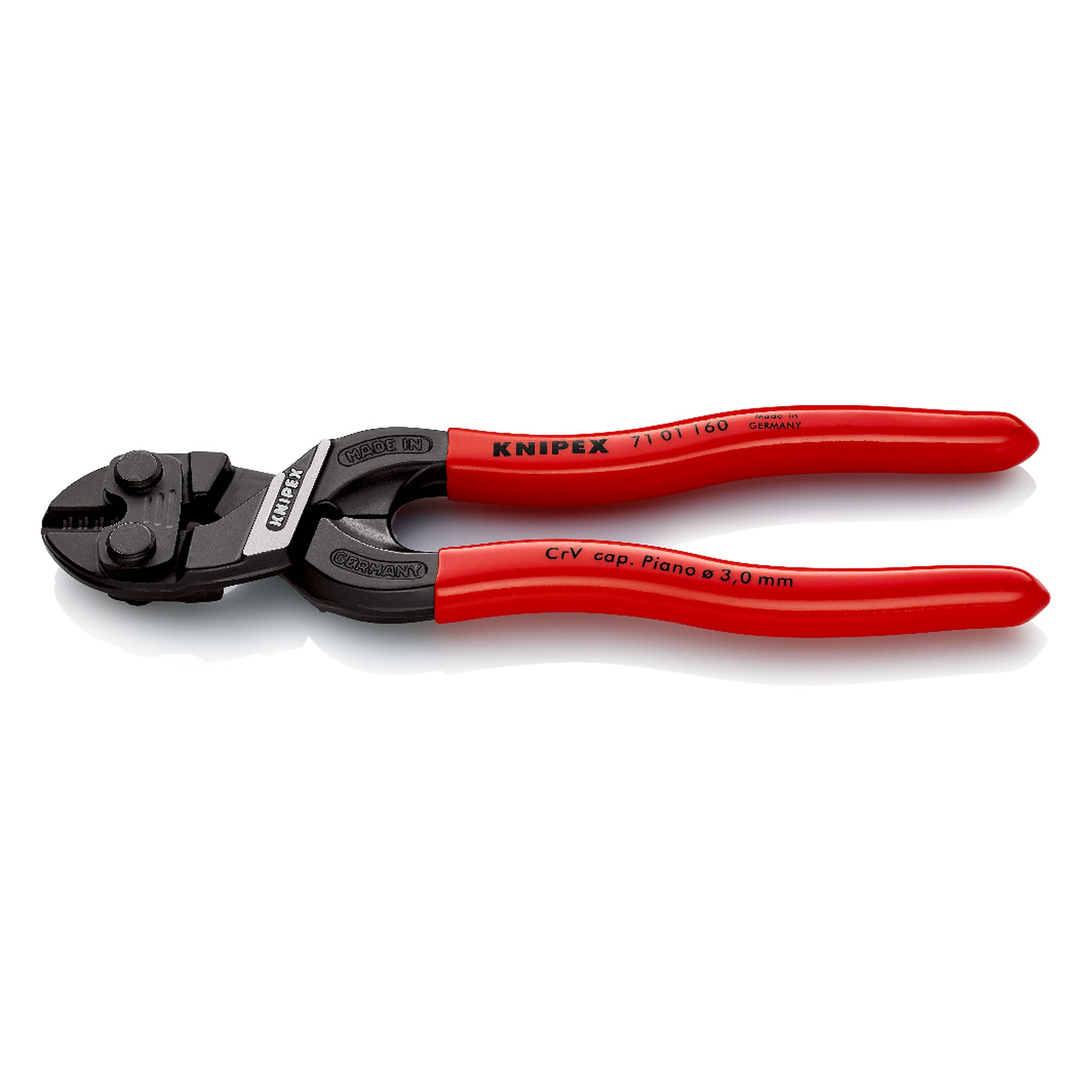

CoBolt S compact bolt cutter for hard wire up to 3.2 mm, 160 mm - Knipex 71 01 160
Compact bolt cutter with an overall length of 160 mm that severs bolts, nails and rivets. The induction-hardened cutting edge at approx. 64 HRC cuts hard wire up to Ø 3.2 mm and piano wire up to Ø 3.0 mm, the lever action mechanism reduces the effort needed. A gripping surface below the joint pulls wires from Ø 1.0 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
A bolt, a nail or a rivet shank often has to be cut where there is no room for a large bolt cutter. The CoBolt S 71 01 160 does that within an overall length of 160 mm and, with its induction-hardened cutting edge, severs hard wire up to Ø 3.2 mm and piano wire up to Ø 3.0 mm.
Benefits
- Compact overall length of 160 mm with high cutting performance, cuts bolts, nails and rivets.
- Small, slim head for excellent accessibility at the cutting point.
- Heavy duty, induction-hardened cutting edge for thin hard wire, screws and springs, cutting edge hardness approx. 64 HRC.
- Less physical effort thanks to the efficient lever action mechanism.
- Lasered cutting edge, so the material to be cut does not slip away when the tool is applied.
- Gripping surface below the joint for gripping and pulling wires from Ø 1.0 mm.
Areas of use
Assembly and maintenance, electrical and plumbing trades, metalwork and service jobs. The gripping surface below the joint helps to pull out cut wire ends straight away.
Standards and conformity
The manufacturer states no tool standard for this product. According to the manufacturer it contains substances of very high concern under REACH, the RoHS directive does not apply.
Technical data
| EAN | 4003773082668 |
|---|---|
| Pliers | black atramentized |
| Handles | plastic coated |
| Weight | 200 g |
| Dimensions | 160 x 45 x 14 mm |
| Cutting capacity soft wire (diameter) | Ø max. 5.3 mm |
| Cutting capacity medium-hard wire (diameter) | Ø 4.4 mm |
| Cutting capacity hard wire (diameter) | Ø 3.2 mm |
| Cutting capacity piano wire (diameter) | Ø 3.0 mm |
| REACH conformity | contains SVHC |
| RoHS conformity | not applicable |
| Manufacturer | Knipex |
| Manufacturer Nr. | 71 01 160 |
| HS-Code | 82034000 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Height | 14 mm |
| Width | 45 mm |
| Colour | Black |
| Farbe | schwarz |
| Overall length [mm] | 160 |
