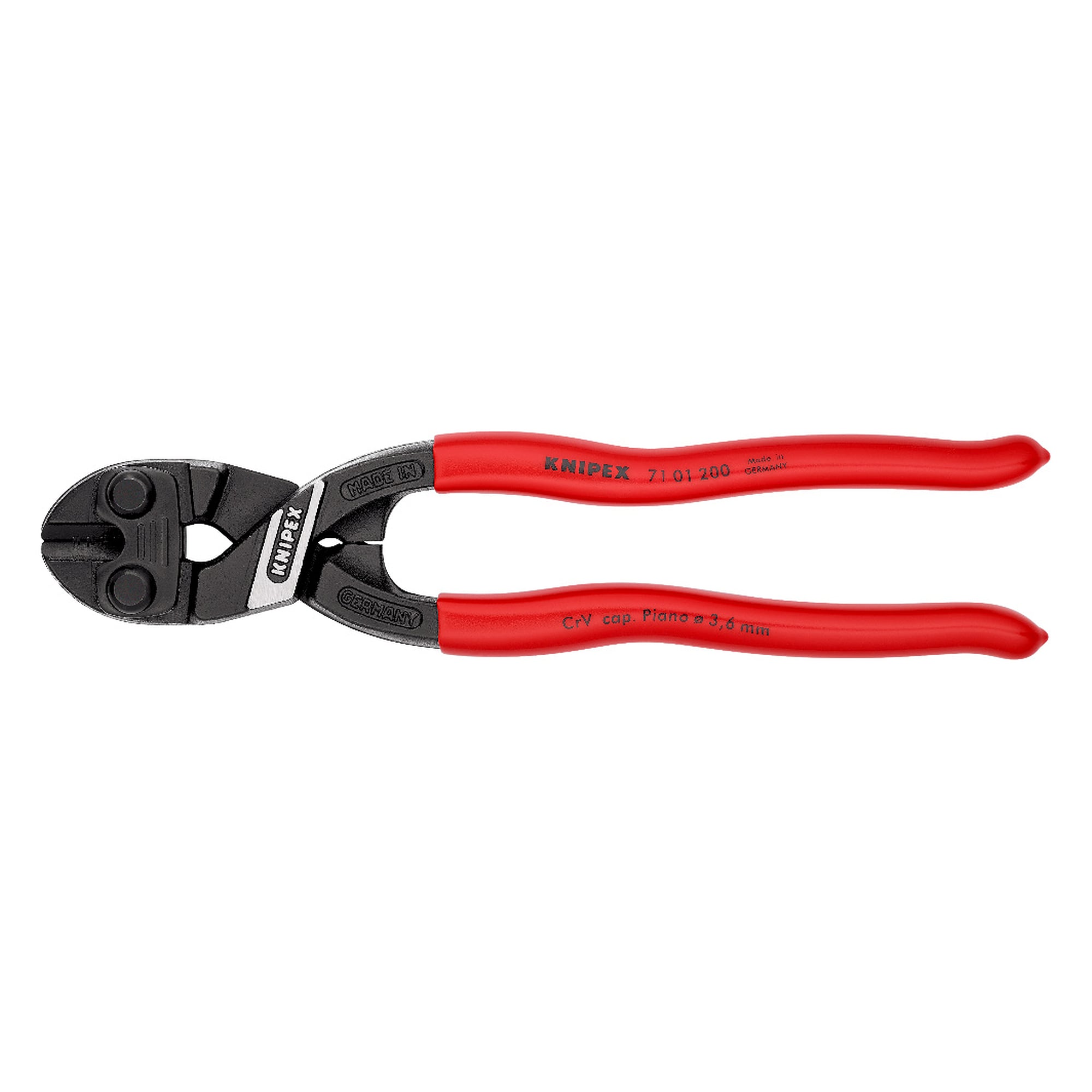

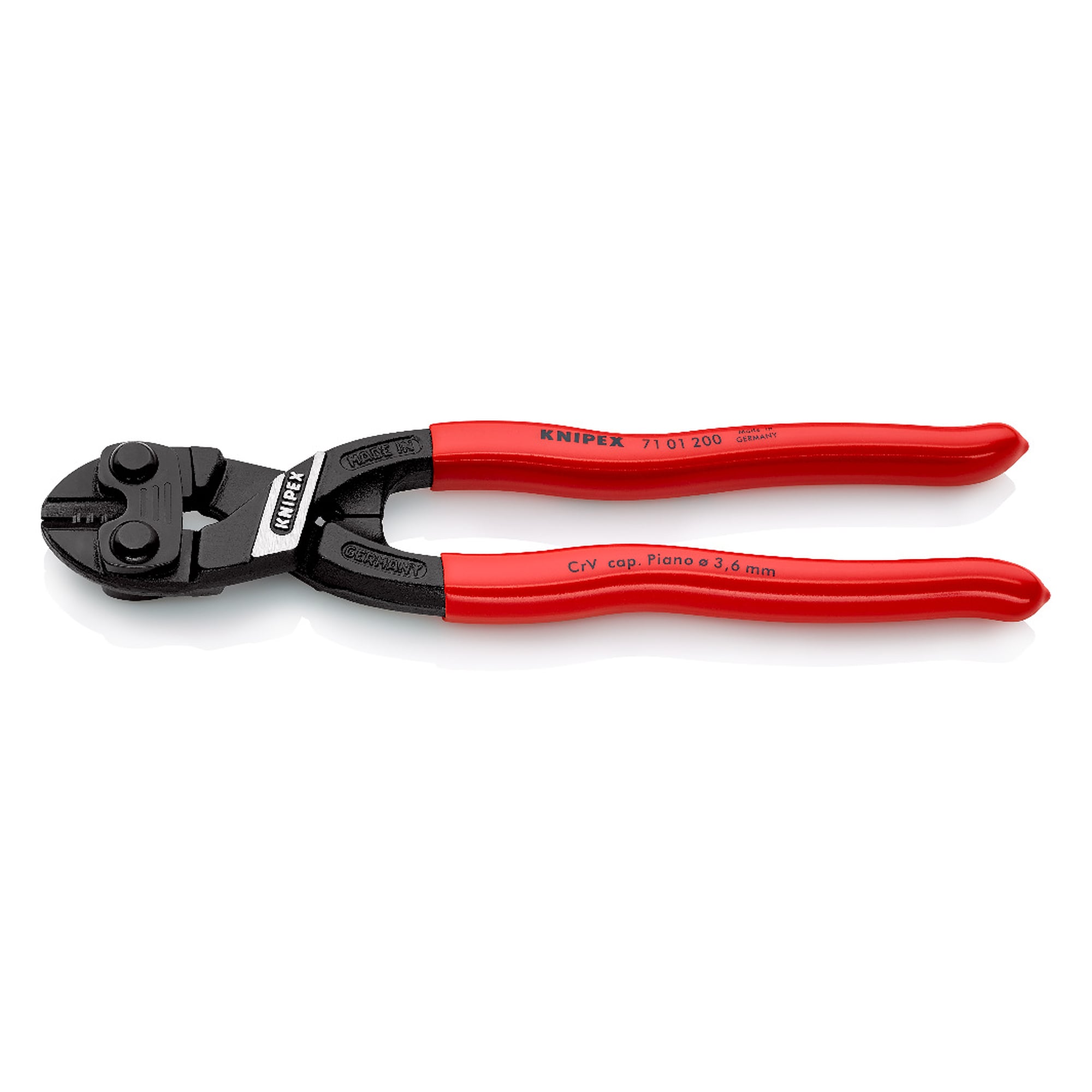

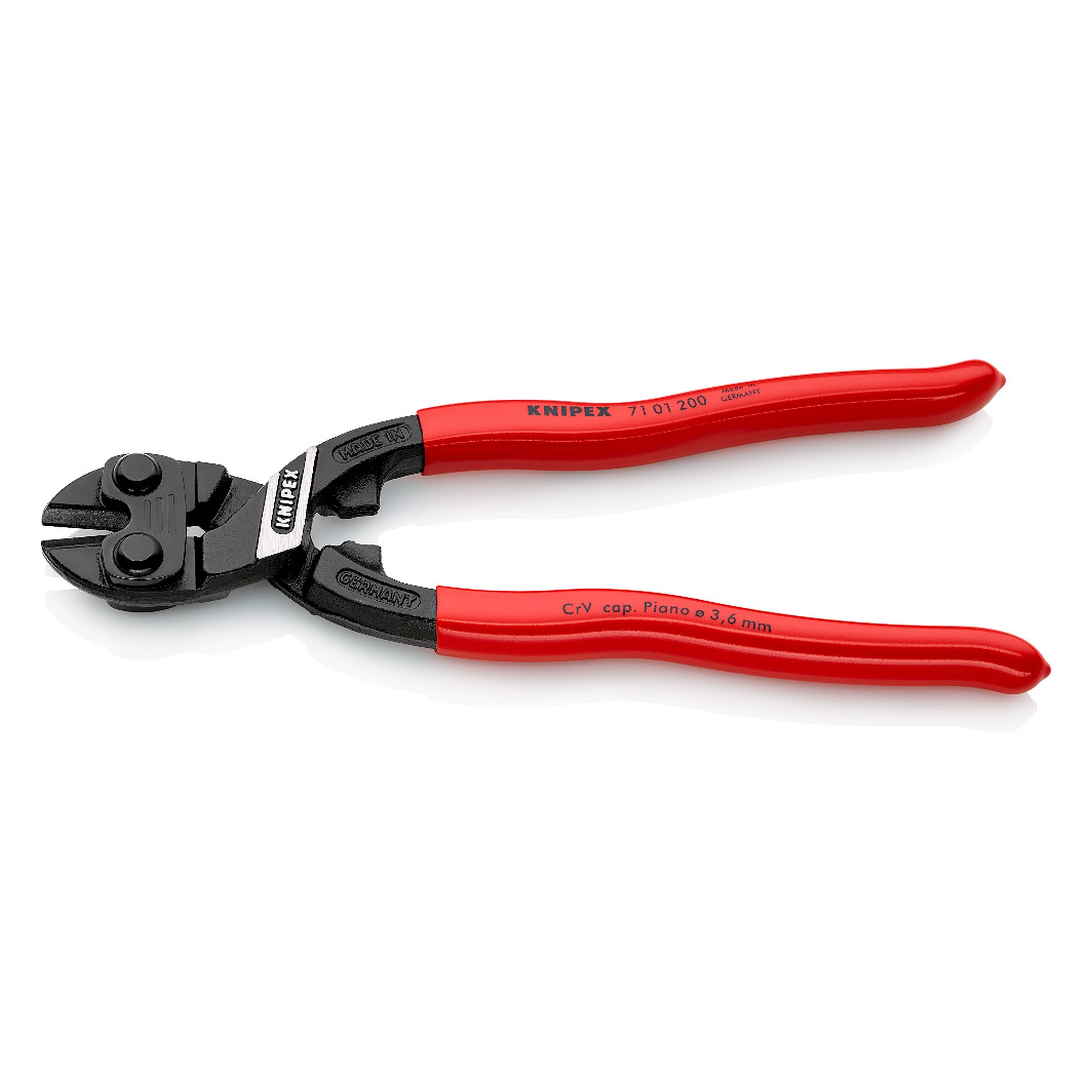

CoBolt compact bolt cutter, bolts up to 5.2 mm dia., cutting edges 64 HRC, 200 mm - Knipex 71 01 200
Compact bolt cutter just 200 mm long that cuts components such as bolts, nails and rivets up to 5.2 mm dia. The induction hardened precision cutting edges of approx. 64 HRC cut soft and hard wire as well as piano wire up to 3.6 mm dia. Gripping surface below the joint for pulling wires from 1.0 mm dia.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Bolts, nails and rivets in confined spaces are rarely within reach of a large bolt cutter. The CoBolt 71 01 200 cuts such components up to 5.2 mm dia. at a tool length of only 200 mm and, thanks to its highly efficient joint design, also cuts hard wire up to 4.0 mm dia. with little effort.
Benefits
- Precision cutting edges for soft and hard wire as well as piano wire up to 3.6 mm dia.
- Cuts components such as bolts, nails and rivets up to 5.2 mm dia.
- Exceptional cutting performance with reduced effort due to a highly efficient joint design.
- Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC.
- Micro-structured cutting edge reduces slipping of the material out of the jaws.
- Gripping surface below the joint for gripping and pulling wires from 1.0 mm dia., 200 mm long at 335 g.
Areas of use

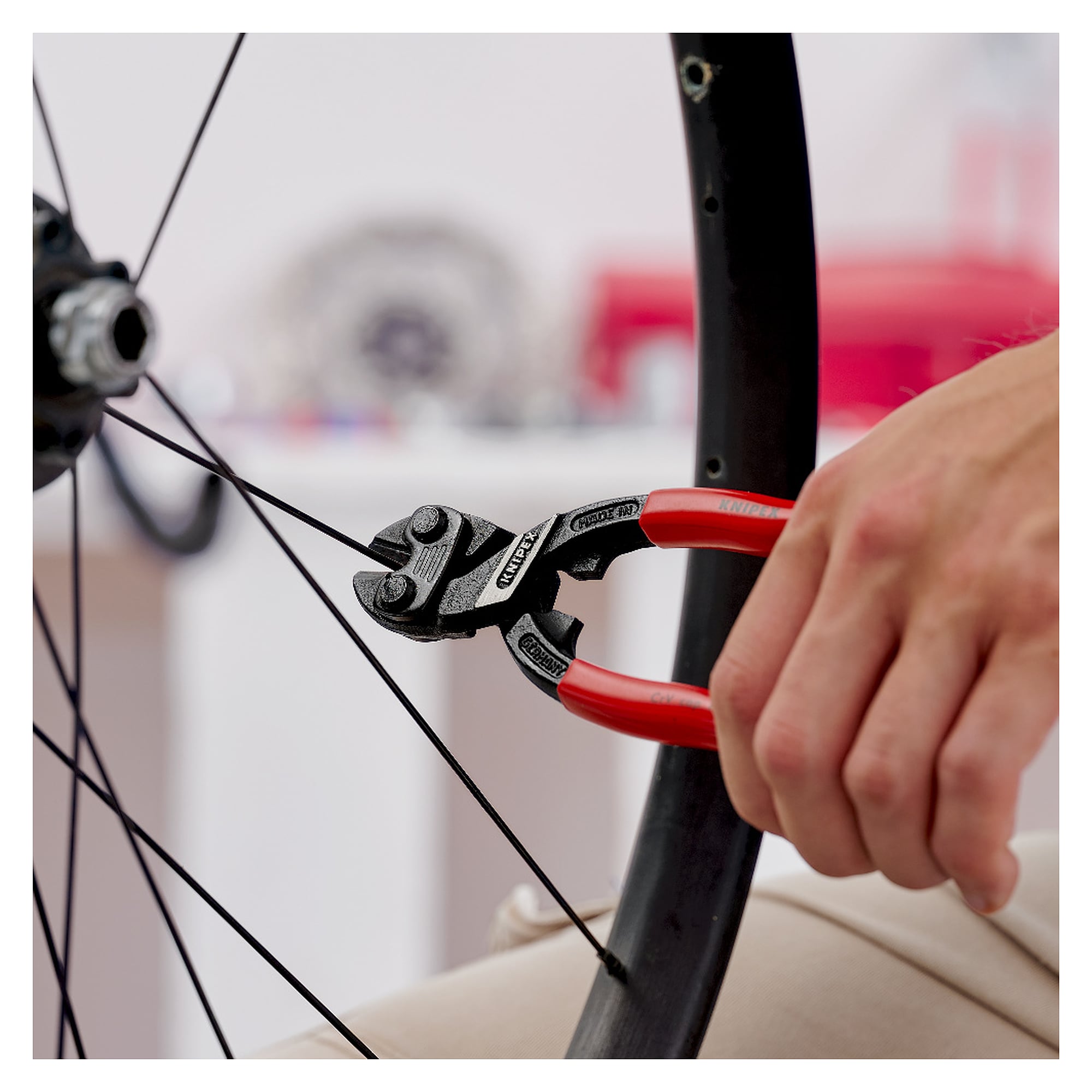

Assembly, maintenance, drywall construction and electrical installation, wherever bolts, nails, rivets, wire ropes or threaded rods have to be shortened in tight spaces. The short handle travel also makes the CoBolt suitable for the tool case and for overhead work.
Standards and conformity
The manufacturer declares the product as containing substances of very high concern under the REACH regulation. The RoHS directive does not apply to this product. No product standard is stated in the manufacturer data for this article.
Technical data
| EAN | 4003773033165 |
|---|---|
| Pliers | black atramentized |
| Handles | plastic coated |
| Weight | 335 g |
| Dimensions | 200 x 41 x 15 mm |
| Cutting capacity soft wire (diameter) | Ø max. 6 mm |
| Cutting capacity medium hard wire (diameter) | Ø 5.2 mm |
| Cutting capacity hard wire (diameter) | Ø 4.0 mm |
| Cutting capacity piano wire (diameter) | Ø 3.6 mm |
| REACH conformity | contains SVHC |
| RoHS conformity | not applicable |
| Manufacturer | Knipex |
| Manufacturer Nr. | 71 01 200 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 15 mm |
| Width | 41 mm |
| Colour | Black |
| Farbe | schwarz |
| Overall length [mm] | 200 |
