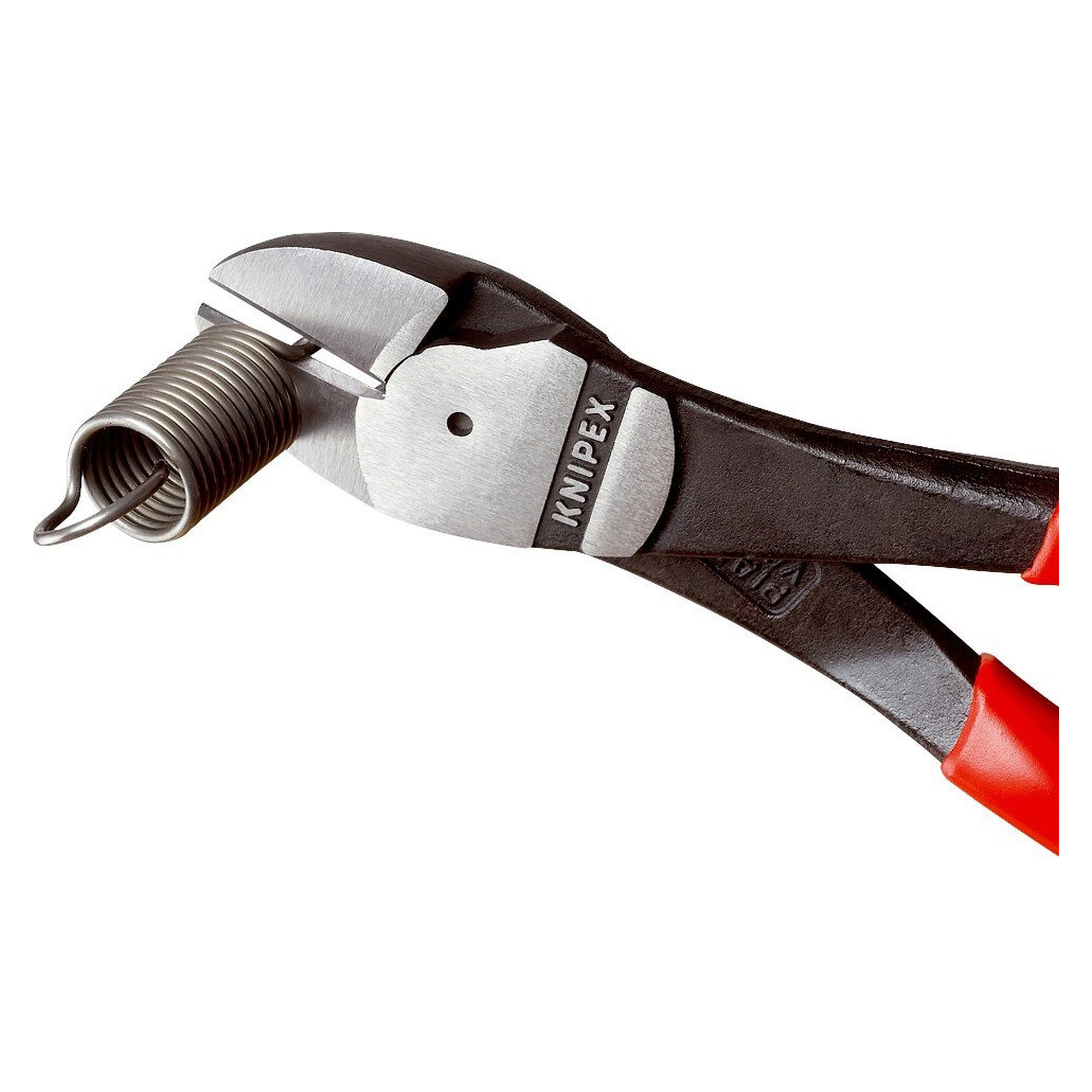

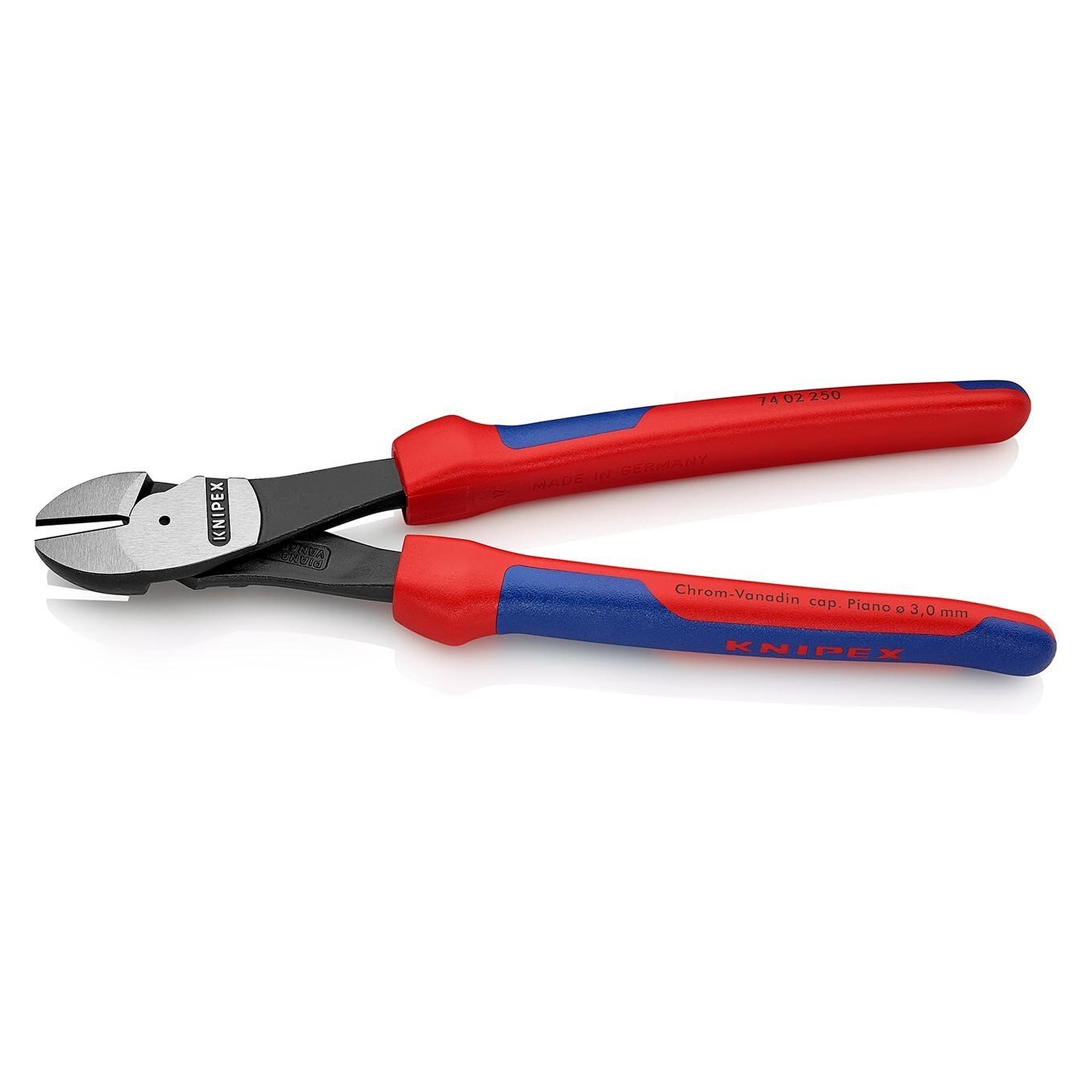

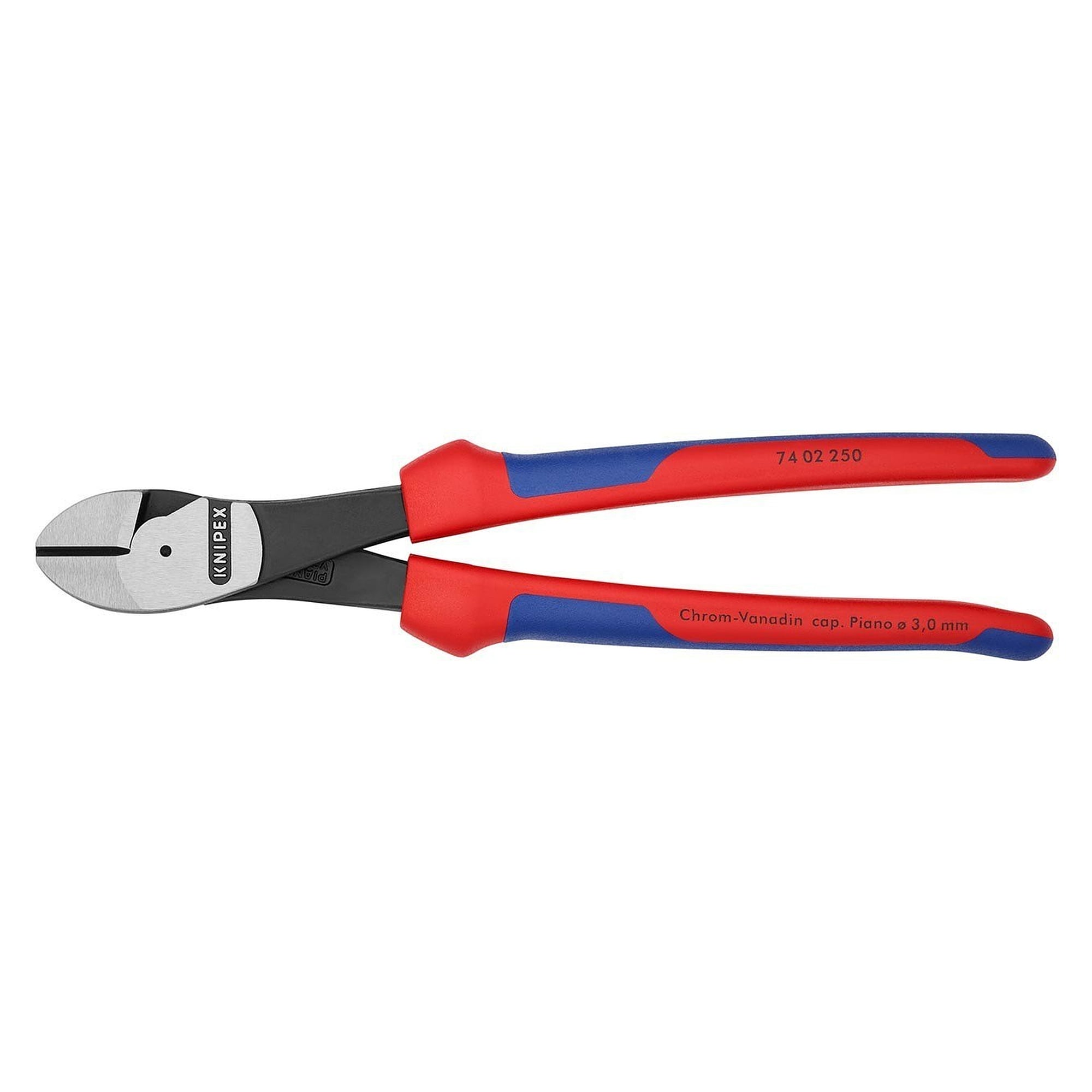

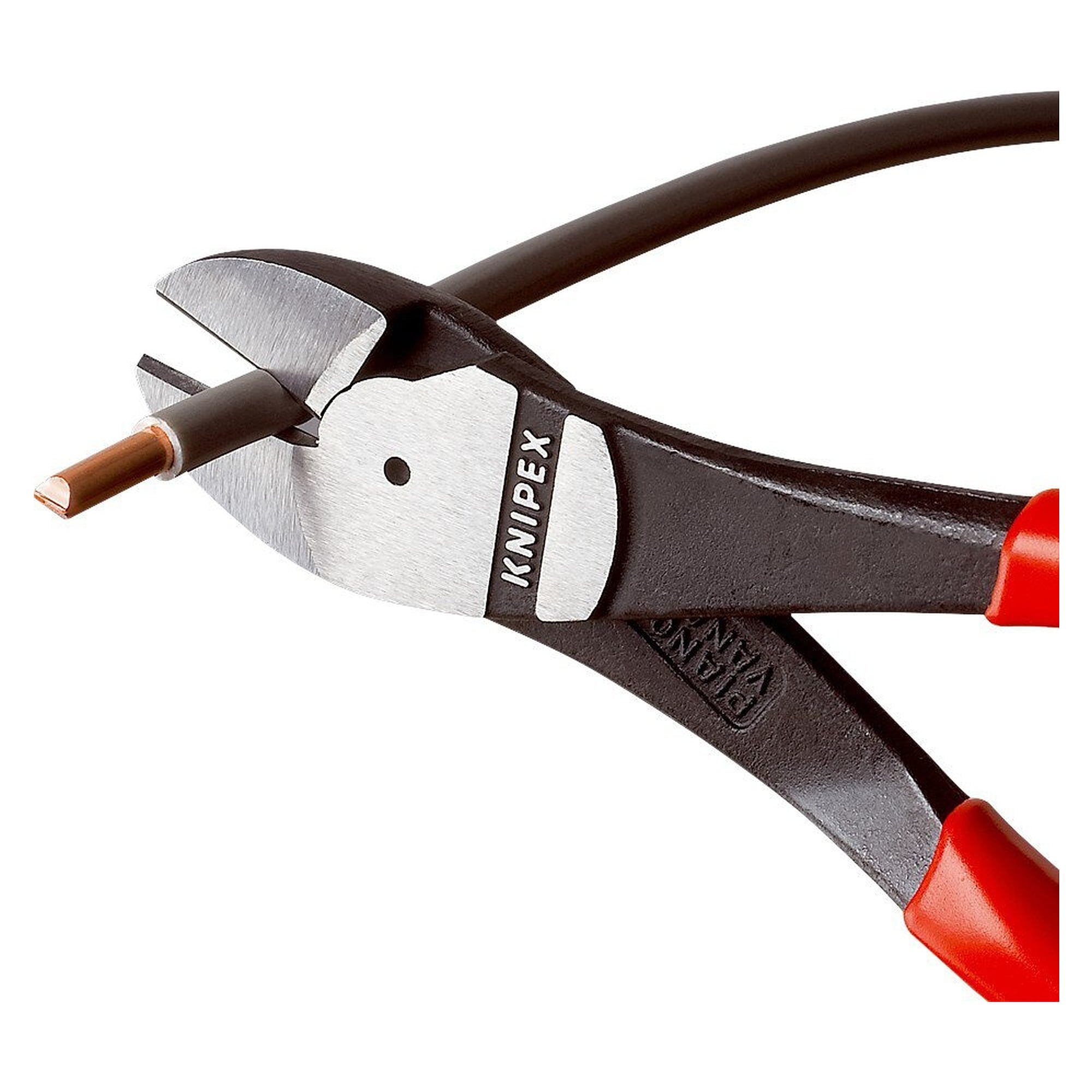

High leverage diagonal cutter with multi-component sleeves, piano wire up to 3.0 mm, 64 HRC, 250 mm - Knipex 74 02 250
High leverage diagonal cutter for continuous heavy cutting: induction hardened precision cutting edges of approx. 64 HRC cut hard wire up to 3.5 mm and piano wire up to 3.0 mm diameter. Cutting edge angle and leverage are matched so that little hand force is needed. Multi-component sleeves, 250 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Spring steel, piano wire and thick wire wear out ordinary side cutters quickly. The Knipex 74 02 250 cuts medium-hard wire up to 4.6 mm, hard wire up to 3.5 mm and piano wire up to 3.0 mm diameter, with induction hardened precision cutting edges of approx. 64 HRC.
Benefits
- High cutting performance with low effort thanks to matched cutting edge angle and transmission ratio.
- Precision cutting edges additionally induction hardened, approx. 64 HRC, for all wire types including piano wire.
- Cutting capacities: medium-hard wire 4.6 mm, hard wire 3.5 mm, piano wire 3.0 mm diameter.
- Multi-component sleeves for a secure grip, 250 mm tool length for strong leverage.
- Black atramentized finish, polished head.
Applications
Industry, control cabinet and plant engineering, maintenance, metal construction: cutting steel, spring and piano wire in continuous use.
Standards
Diagonal cutter to DIN ISO 5749. Not insulated, not ESD-safe.
Technical data
| Feature | Value |
|---|---|
| Model | 74 02 250 |
| Manufacturer | KNIPEX |
| Width | 55 mm |
| Height | 24 mm |
| Length incl. packaging | 324 mm |
| Width incl. packaging | 124 mm |
| Height incl. packaging | 51 mm |
| Volume incl. packaging | 2.049 dm³ |
| Sales unit | 1 Stück |
| Content unit | 1 Stück |
| Packaging | single pack |
| Standard | DIN ISO 5749 |
| RoHS compliant | no |
| Net weight | 437 g |
| Surface finish | black atramentized |
| VDE tested | no |
| ESD-safe | no |
| Tether attachment eyelet | no |
| Tool length | 250 mm |
| Cutter type | side cutter |
| Head | polished |
| Handles | multi-component sleeves |
| Cutting capacity hard wire | 3.5 mm |
| Cutting capacity medium-hard wire | 4.6 mm |
| Cutting capacity piano wire | 3.0 mm |
| Cutting edge hardness | approx. 64 HRC |
| Weight | 0.437 kg |
| Manufacturer Nr. | 74 02 250 |
| HS-Code | 82032000 |
| GPSR manufacturer information | KNIPEX-Werk, Oberkamper Strasse 13, DE-42349 Wuppertal-Cronenberg, www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
