Chrome-plated water pump pliers with dip-insulated handles, VDE tested to DIN EN 60900 and IEC 60900. At 250 mm they grip pipes up to Ø 50 mm and nuts up to 46 mm across flats and adjust in nine notched steps. Teeth of approx. 61 HRC, weight 420 g.

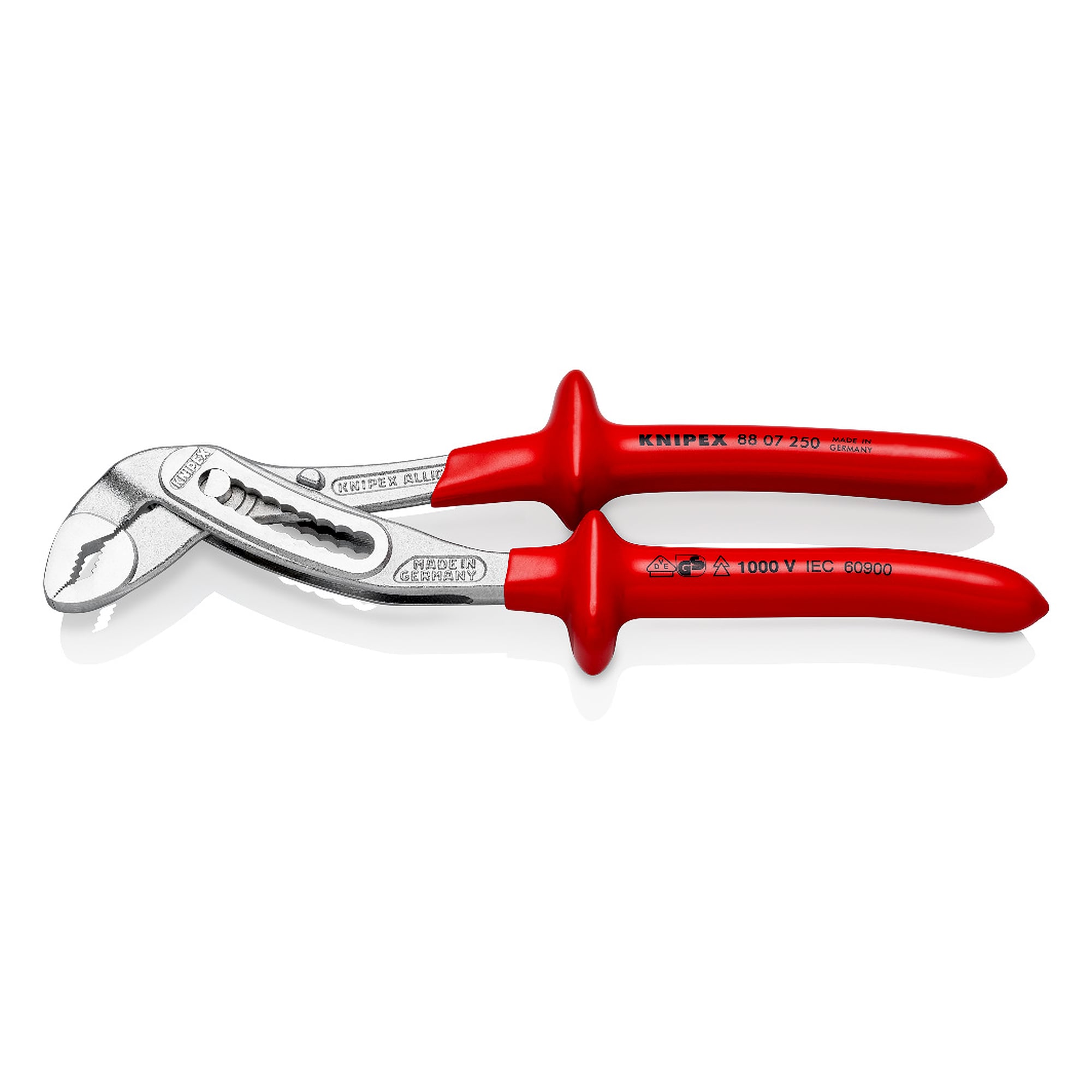

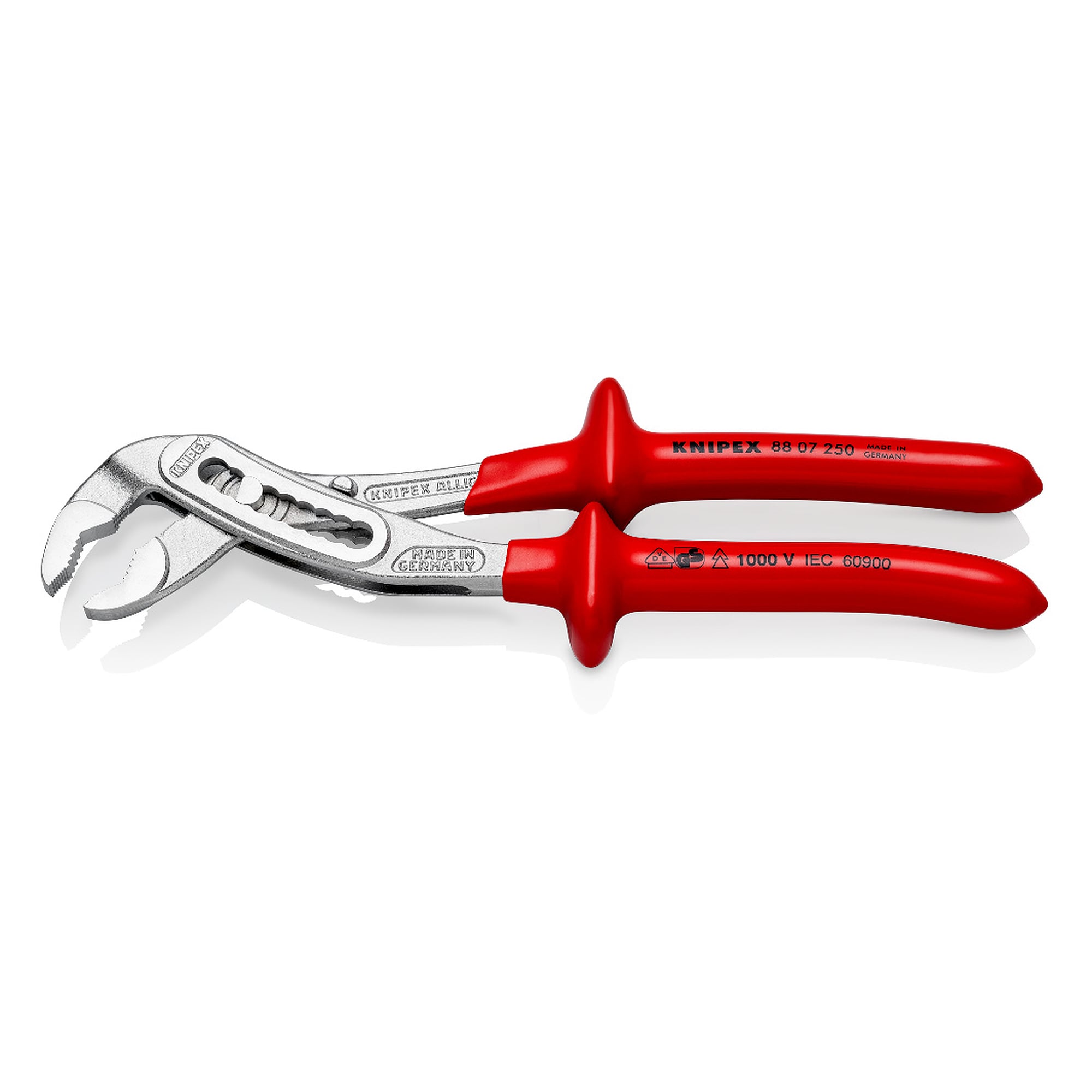

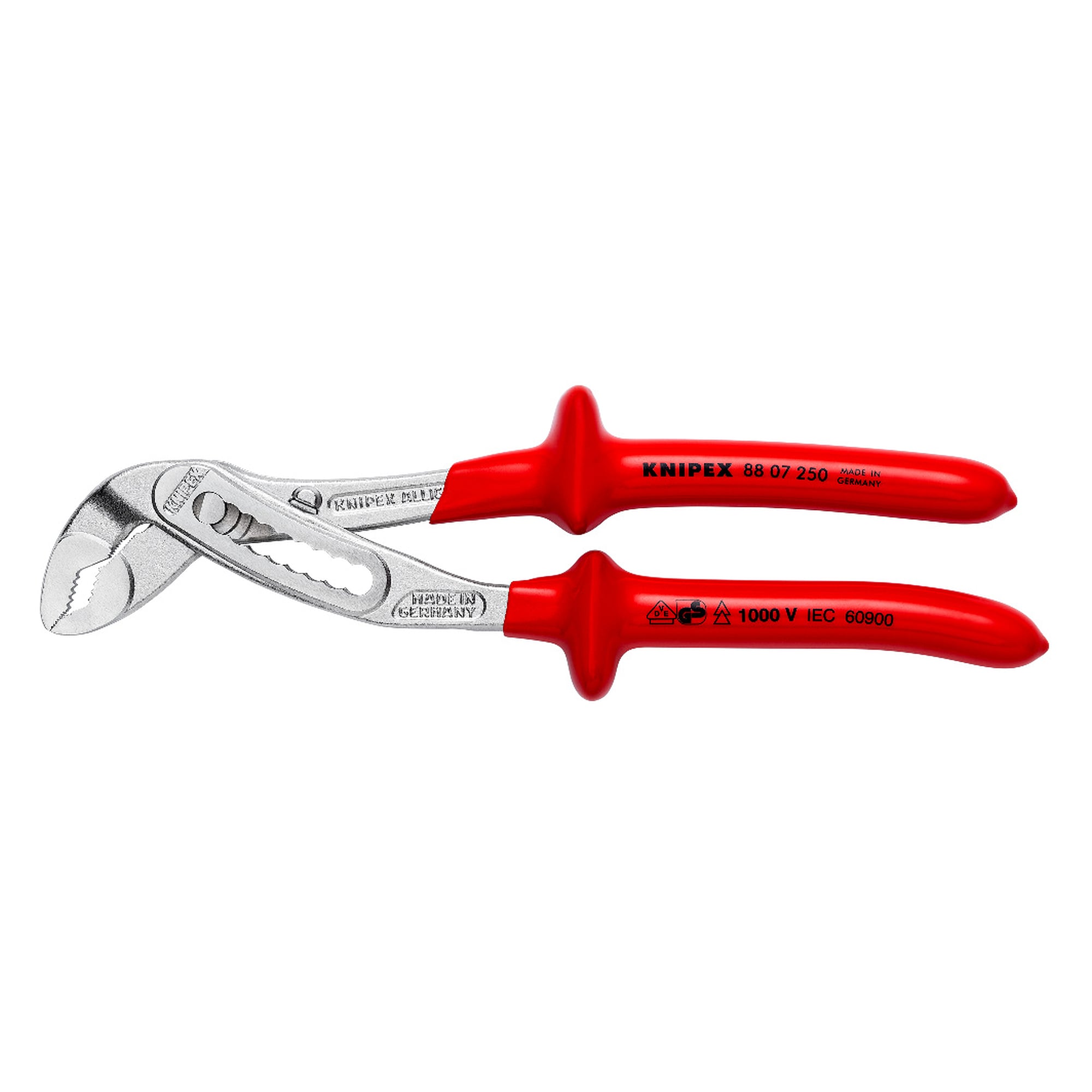

VDE Alligator water pump pliers dip-insulated, pipes up to Ø 50 mm, 250 mm - Knipex 88 07 250
KNIPEX
Original product
Net price (excl. VAT)
€40.65
Item
WL61829
Manufacturer no.
88 07 250
1000 V · IEC 60900
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.88 07 250
EAN4003773019343
ConditionNew
Article
WL61829
Frequently Bought Together
Anyone working on pipes and fittings around electrical installations needs tested insulation on the handle. The Alligator 88 07 250 is dip-insulated and VDE tested to DIN EN 60900 and IEC 60900, and it grips pipes up to Ø 50 mm as well as nuts up to 46 mm across flats.
Benefits
- Dip-insulated handles, VDE tested to the standards for live working up to 1000 V AC.
- Nine notched steps give around 30 % more gripping capacity than conventional water pump pliers of the same length.
- Self-clamping on pipes and nuts, no slipping on the workpiece and effortless working.
- Gripping surfaces with special hardened teeth of approx. 61 HRC, for a lasting secure grip at high wear resistance.
- Box-joint design with double guide for high stability under load.
- Robust construction, insensitive to dirt, plus a pinch guard against crushing injuries.
Technical data
| EAN | 4003773019343 |
|---|---|
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | dip-insulated, VDE tested |
| Weight | 420 g |
| Dimensions | 250 x 82 x 32 mm |
| Adjustment positions | 9 |
| Capacity for pipes (diameter) | Ø 50 mm |
| Capacity for nuts, width across flats | 46 mm |
| VDE tested | yes |
| Standard | DIN ISO 8976, DIN EN 60900, IEC 60900 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use

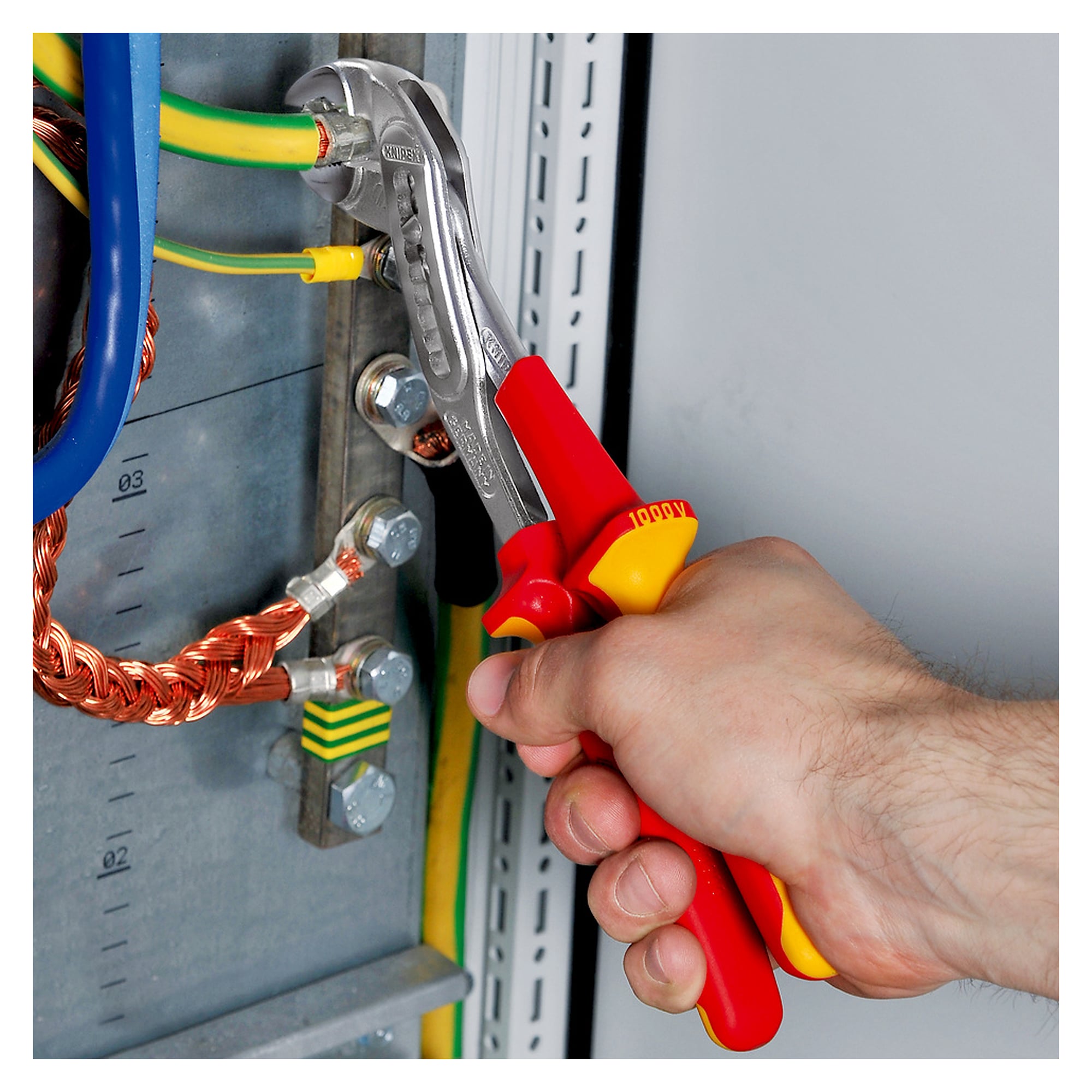

Electrical installation, switchgear and distribution board assembly, maintenance at meter panels and technical plant. Dip insulation is the slim alternative to multi-component grips when the handle has to stay close to the original profile.
Standards and conformity
The pliers are built to DIN ISO 8976, the handle insulation is VDE tested to DIN EN 60900 and IEC 60900. According to the manufacturer they contain no substances of very high concern under REACH, the RoHS directive does not apply.
| Norm | DIN EN IEC 60900, DIN ISO 8976 |
|---|---|
| Certification | IEC 60900 |
| Manufacturer Nr. | 88 07 250 |
| Manufacturer | Knipex |
| EAN | 4003773019343 |
| Weight | 0.420000 |
| Height | 32 mm |
| Width | 82 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 250.000000 |
