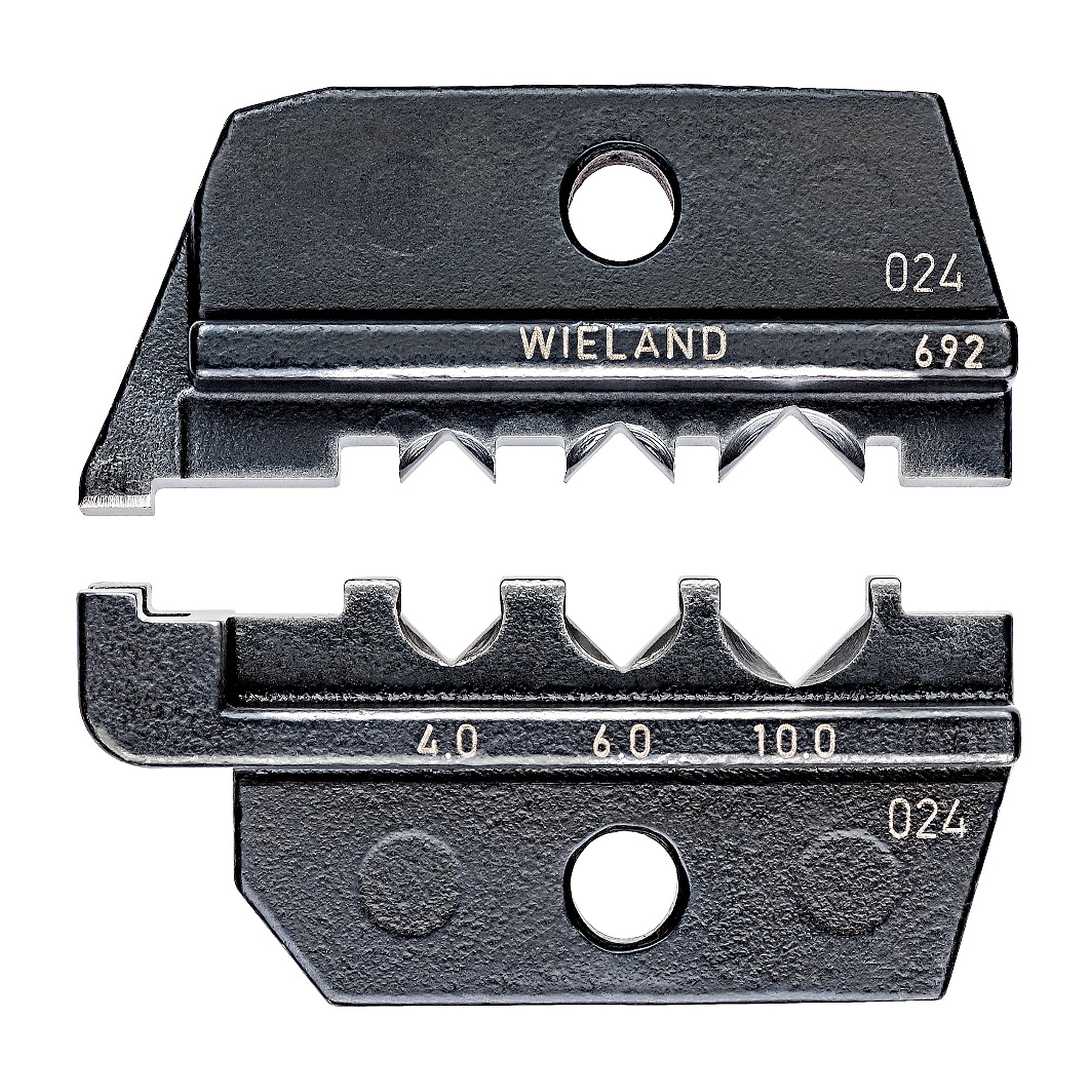

Die set for gesis solar PST 40 solar connectors from Wieland, 4, 6 and 10 mm² - Knipex 97 49 69 2

Larger photovoltaic systems work with cross-sections up to 10 mm². With three nests the 97 49 69 2 die set covers the cross-sections 4, 6 and 10 mm² of the gesis solar PST 40 connectors from Wieland and is fitted into a KNIPEX crimping system plier of the 97 43 xx range.

Benefits

• Three nests for 4, 6 and 10 mm², equal to AWG 12, 10 and 8.
• Matched to the gesis solar PST 40 solar connectors from Wieland.
• The additionally available locator 97 49 69 11 makes it easier to guide the contact during the crimping process.
• Exchangeable die for the 97 43 xx crimping system pliers, one plier body serves several contact systems.
• Size of 32 x 8 mm at 35 g, the die hardly adds weight to the tool case.
• According to the manufacturer free of substances of very high concern under REACH.

Technical data

Areas of use

Building and maintaining photovoltaic systems with connectors of the gesis solar PST 40 range, assembly of string and collector cables with larger cross-sections.

Standards and conformity

The manufacturer does not state a tool standard for this accessory. According to the manufacturer the die contains no substances of very high concern under REACH, the RoHS directive does not apply.
