Exchangeable die for Solarlok HVT-C from Tyco Electronics with four nests for 1.5 to 6 mm², equal to AWG 16 to 10. The additionally available locator 97 49 68 1 makes it easier to guide the contact during crimping. Size 50 x 11 mm at 33 g.

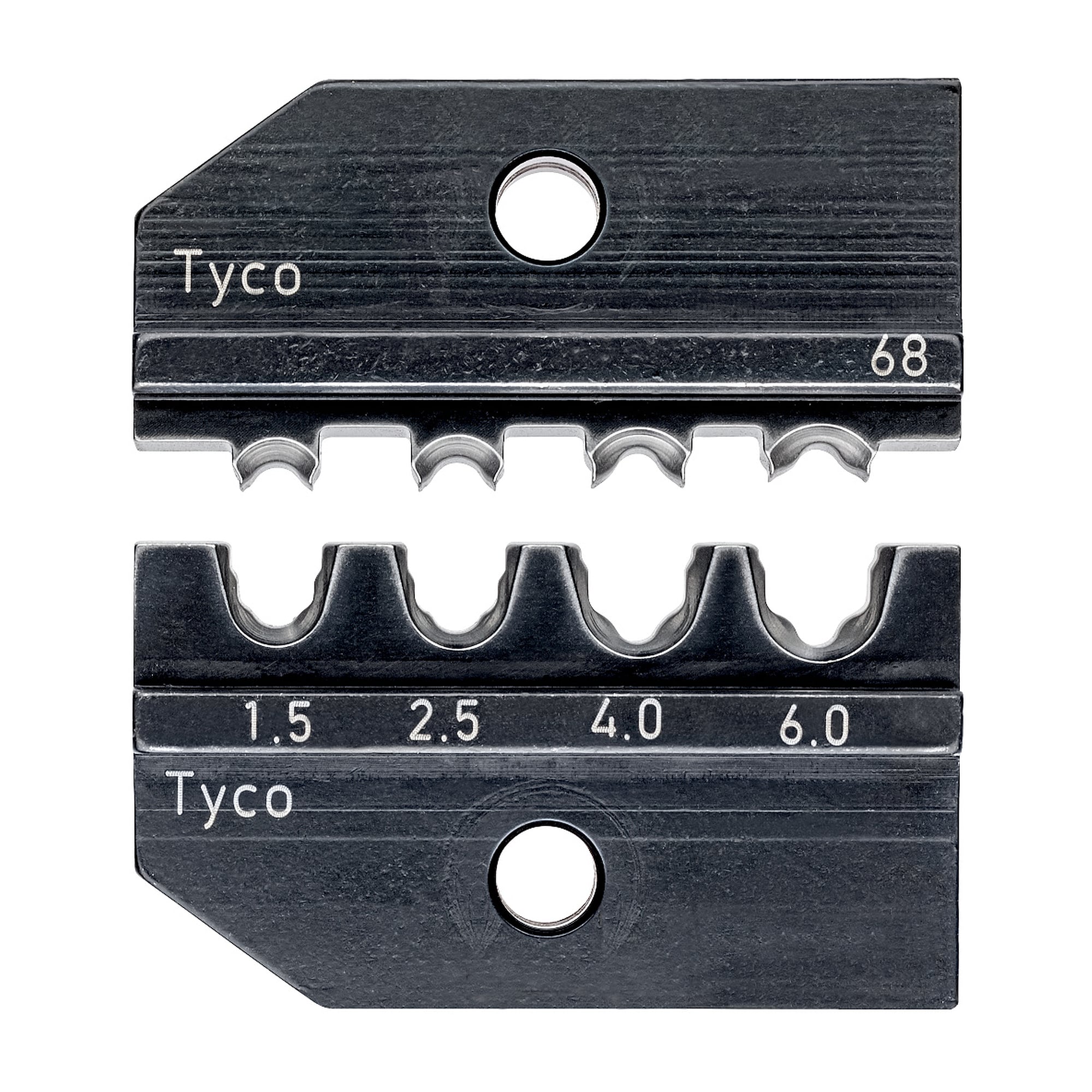

Die set for Solarlok HVT-C from Tyco Electronics, 1.5 to 6 mm², 4 nests - Knipex 97 49 68
KNIPEX
Original product
Net price (excl. VAT)
€199.87
Item
WL61986
Manufacturer no.
97 49 68
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.97 49 68
EAN4003773066712
ConditionNew
Article
WL61986
Frequently Bought Together
Solar connectors of the Solarlok series require one crimp profile per cross-section. With four nests the 97 49 68 die set covers the range from 1.5 to 6.0 mm² and is fitted into a KNIPEX crimping system plier of the 97 43 xx range.
Benefits
- Four nests for 1.5 to 6.0 mm², equal to AWG 16 to 10.
- Matched to Solarlok HVT-C from Tyco Electronics.
- The additionally available locator 97 49 68 1 makes it easier to guide the contact during the crimping process.
- Exchangeable die for the 97 43 xx crimping system pliers, so the plier body stays usable for further contact systems.
- Size of 50 x 11 mm at 33 g, the die travels easily to the site.
- According to the manufacturer free of substances of very high concern under REACH.
Technical data
| EAN | 4003773066712 |
|---|---|
| Weight | 33 g |
| Dimensions | 50 x 11 mm |
| Application | Solarlok® HVT-C from Tyco Electronics |
| Capacity square millimetres | 1.5 - 6 mm² |
| Number of nests | 4 |
| AWG | 16 - 10 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
Building and maintaining photovoltaic systems with Solarlok connectors, assembly of module and string cables.
Standards and conformity
The manufacturer does not state a tool standard for this accessory. According to the manufacturer the die contains no substances of very high concern under REACH, the RoHS directive does not apply.
| Manufacturer Nr. | 97 49 68 |
|---|---|
| Manufacturer | Knipex |
| EAN | 4003773066712 |
| Weight | 0.033000 |
| Width | 11 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 50.000000 |
