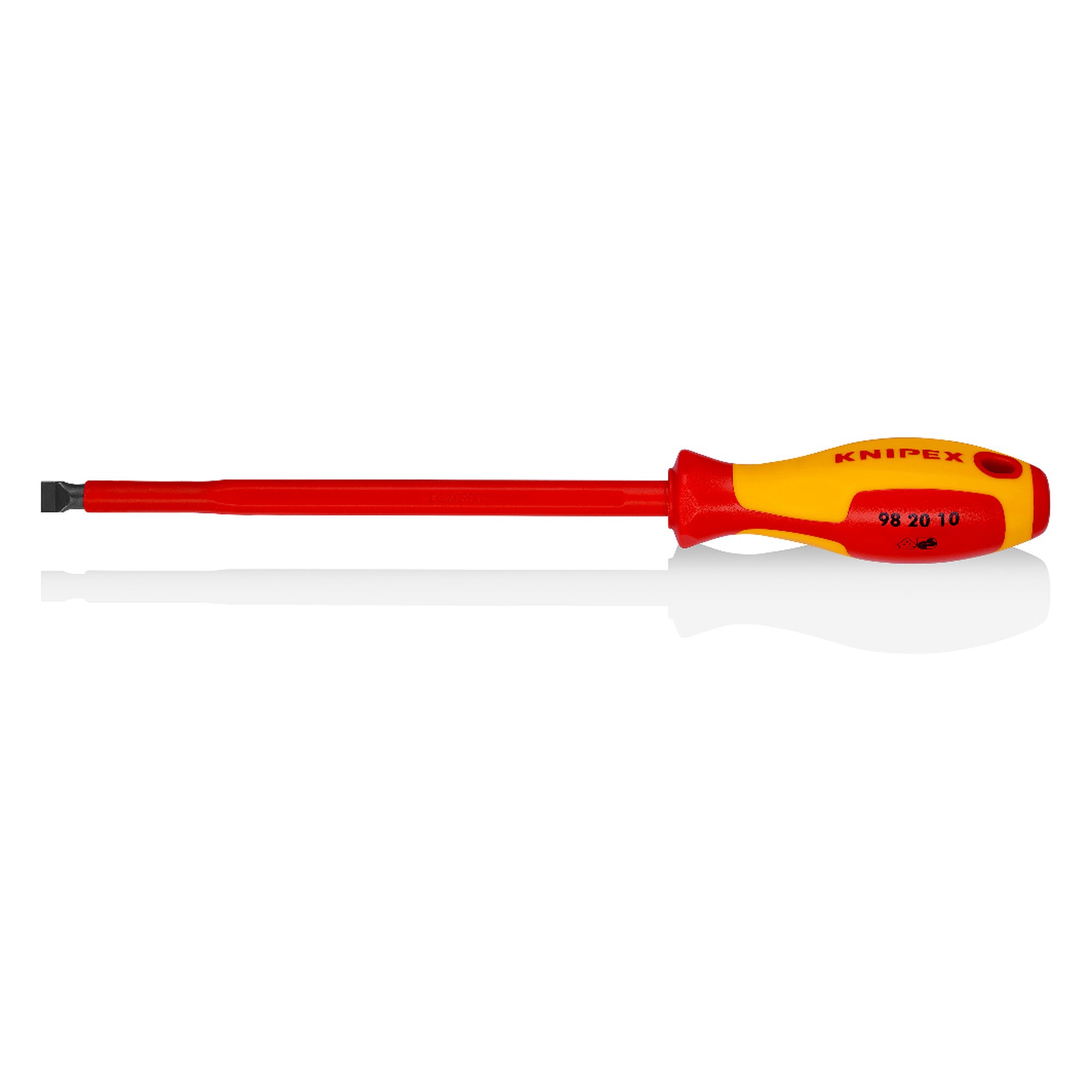

Screwdriver for slotted screws, insulated to IEC 60900, blade tip 10.0 x 1.6 mm, 320 mm - Knipex 98 20 10

A blade that does not fill the screw slot damages both screw and terminal. The insulated 98 20 10 screwdriver has a tip of 10.0 x 1.6 mm with a blade length of 200 mm and is tested for live working up to 1000 V.

Benefits

• Burnished tip of 10.0 x 1.6 mm fills out the screw slot and therefore slips less often.
• Blade length 200 mm, of which 15 mm are uninsulated, for safe access even in deep terminals.
• Ergonomically optimised dual component handle for fatigue reduced work and optimum transmission of force.
• Handle design prevents rolling, the screwdriver stays put on sloping surfaces.
• Handle length 120 mm, 320 mm overall, weight 184 g.
• Insulating multi-component handle, VDE tested to DIN EN 60900 and IEC 60900 for work up to 1000 V.

Areas of use

Electrical installation, control cabinet and control system building, service on distribution boards and devices. The 10.0 x 1.6 mm tip matches terminal screws of this size as well as housing and equipment fixings.

Standards and conformity

The tool is built to DIN EN 60900 and IEC 60900 and is VDE tested, which releases it for live working up to 1000 V. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
