Insulated screwdriver for slotted screws with a 4.0 mm wide and 0.8 mm thick tip. The insulation is VDE tested to DIN EN 60900 and IEC 60900, the blade measures 100 mm with 15 mm uninsulated, at 202 mm overall length and 38 g. The dual component handle transmits force gently on the hand and its shape keeps the tool from rolling off sloped surfaces.

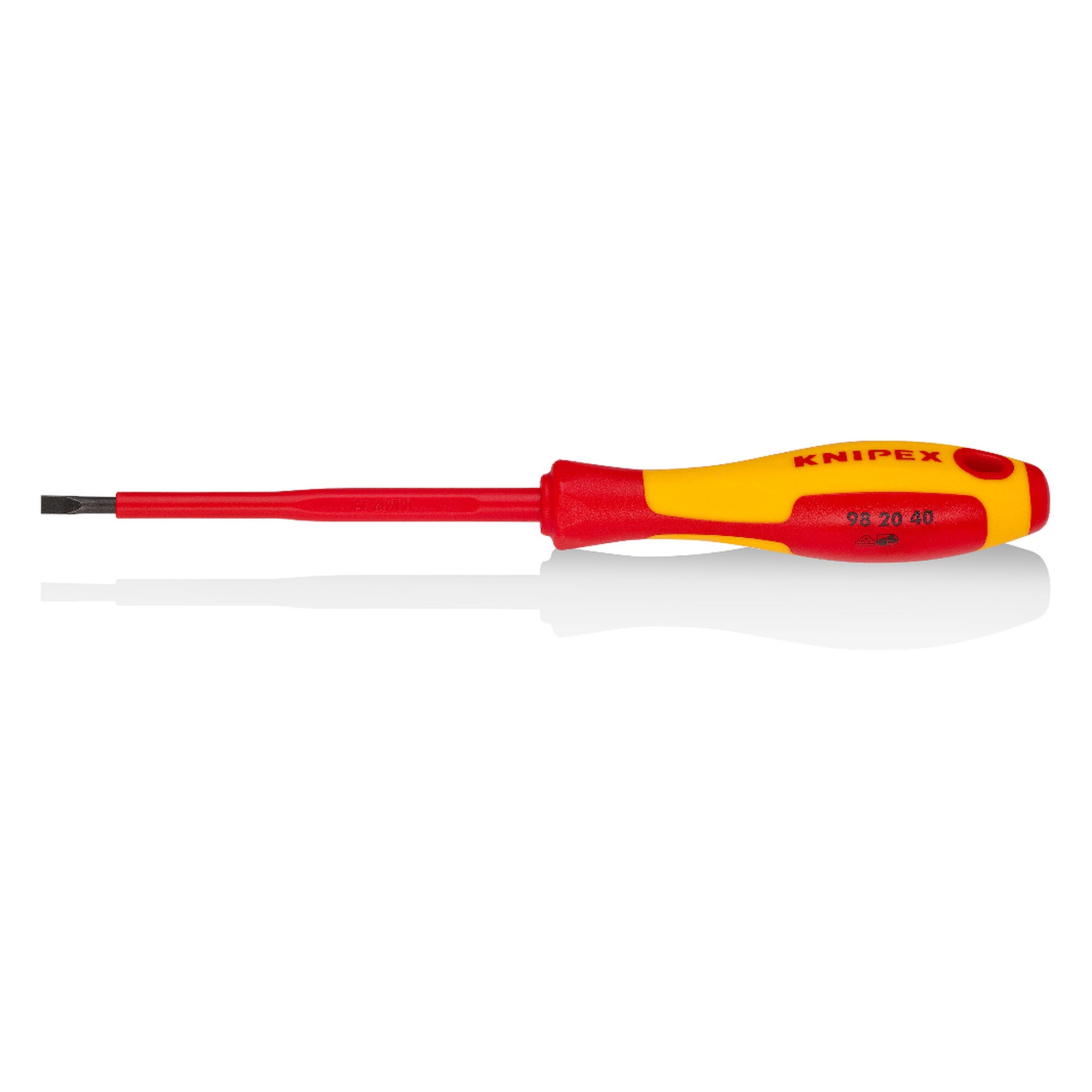

Screwdriver for slotted screws 4.0 x 0.8 mm, insulated 1000 V, 202 mm - Knipex 98 20 40
KNIPEX
Original product
Net price (excl. VAT)
€6.42
Item
WL62235
Manufacturer no.
98 20 40
1000 V · IEC 60900
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.98 20 40
EAN4003773026402
ConditionNew
Article
WL62235
Frequently Bought Together
A blade width of 4.0 mm covers the most common slotted screws in electrical installation. The 98 20 40 combines it with a 100 mm blade, insulation tested to DIN EN 60900 and IEC 60900 for work up to 1000 V and a weight of 38 g.
Benefits
- Black oxide finished tip, 4.0 mm blade width and 0.8 mm blade thickness for a firm fit in the screw slot.
- Insulation to DIN EN 60900 and IEC 60900, VDE tested for work on live parts up to 1000 V.
- Blade length 100 mm with 15 mm uninsulated at the tip, handle length 102 mm.
- Ergonomically optimised dual component handle for fatigue reduced work and optimum transmission of force.
- Handle design prevents the tool from rolling away on sloped surfaces.
Technical data
| EAN | 4003773026402 |
|---|---|
| Tip | black oxide finish |
| Handles | insulating multi-component handle, VDE tested |
| Weight | 38 g |
| Dimensions | 202 x 25 x 24 mm |
| Standard | DIN EN 60900 IEC 60900 |
| REACH compliance | contains no SVHC |
| RoHS compliance | not applicable |
| Blade length | 100 mm |
| Uninsulated blade length | 15 mm |
| Handle length | 102 mm |
| Blade width | 4.0 mm |
| Blade thickness | 0.8 mm |
| VDE tested | yes |
Applications
Universal size for electrical installation, distribution board assembly and maintenance, suitable for terminal screws in switches, sockets and terminal blocks.
Standards and compliance
The insulation complies with DIN EN 60900 and IEC 60900 and is VDE tested, so the tool is approved for live working up to 1000 V. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
| Weight | 0.038000 |
|---|---|
| Manufacturer | Knipex |
| Manufacturer Nr. | 98 20 40 |
| EAN | 4003773026402 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 24 mm |
| Width | 25 mm |
| Norm | DIN EN IEC 60900 |
| Certification | IEC 60900 |
| Overall length [mm] | 202.000000 |
