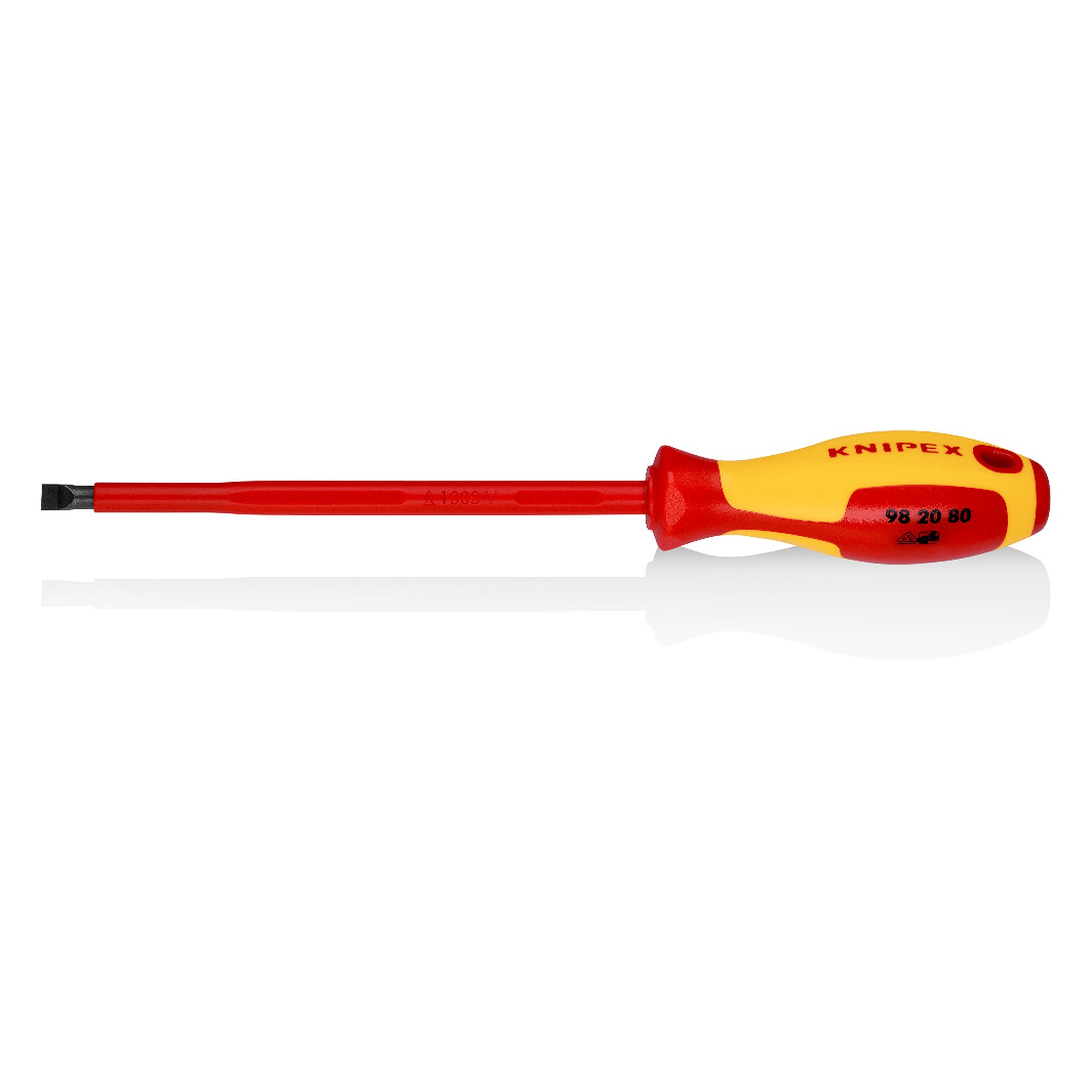

Screwdriver for slotted screws 8.0 x 1.2 mm, insulated 1000 V, 295 mm - Knipex 98 20 80

Large slotted screws call for a wide tip and a strong handle. The 98 20 80 has a 8.0 mm blade width, a 175 mm blade and a 120 mm handle, with insulation tested to DIN EN 60900 and IEC 60900.

Benefits

• Black oxide finished tip, 8.0 mm blade width and 1.2 mm blade thickness for a firm fit in the screw slot.
• Insulation to DIN EN 60900 and IEC 60900, VDE tested for work on live parts up to 1000 V.
• Blade length 175 mm with 15 mm uninsulated at the tip, handle length 120 mm.
• Ergonomically optimised dual component handle for fatigue reduced work and optimum transmission of force.
• Handle design prevents the tool from rolling away on sloped surfaces.

Technical data

Applications

Switchgear, transformer stations, connection terminals for large cross-sections and heavy maintenance where high torque has to reach the screw.

Standards and compliance

The insulation complies with DIN EN 60900 and IEC 60900 and is VDE tested, so the tool is approved for live working up to 1000 V. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
