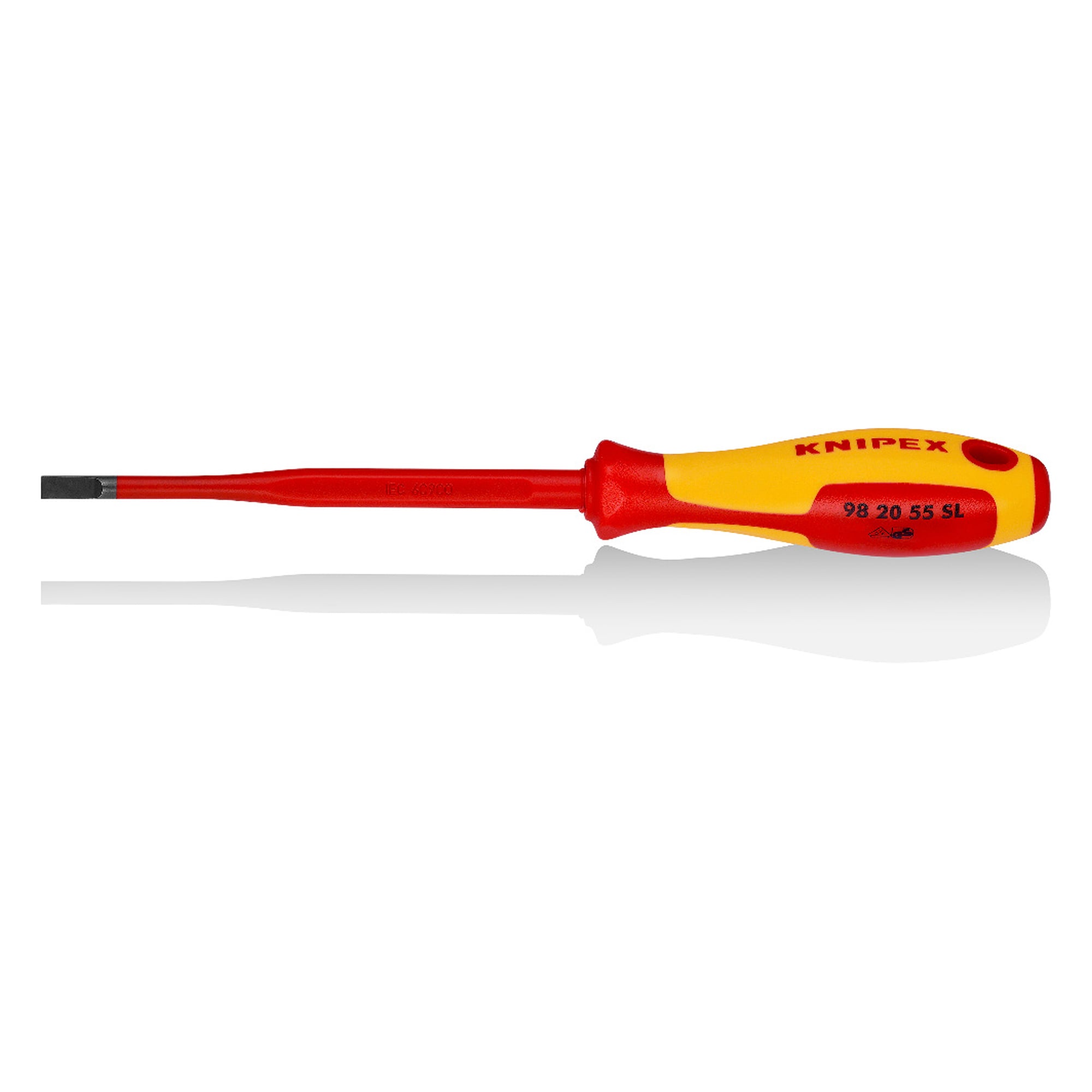

Screwdriver slim for slotted screws 5.5 x 1.0 mm, insulated 1000 V, 232 mm - Knipex 98 20 55 Sl

Terminal blocks with recessed screws leave little room for the shaft. The 98 20 55 SL is extra slim in the front area and reaches recessed spring and screw elements with a 125 mm blade and 5.5 mm blade width.

Benefits

• Black oxide finished tip, 5.5 mm blade width and 1.0 mm blade thickness for a firm fit in the screw slot.
• Reduced extra slim shaft in the front area for recessed spring and screw elements.
• Insulation to DIN EN 60900 and IEC 60900, VDE tested for work on live parts up to 1000 V.
• Blade length 125 mm with 15 mm uninsulated at the tip, handle length 107 mm.
• Ergonomically optimised dual component handle for fatigue reduced work and optimum transmission of force.
• Handle design prevents the tool from rolling away on sloped surfaces.

Technical data

Applications

Distribution boards and terminal boxes with deep-seated screws, cabinet building, machine wiring and maintenance on power terminals.

Standards and compliance

The insulation complies with DIN EN 60900 and IEC 60900 and is VDE tested, so the tool is approved for live working up to 1000 V. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
