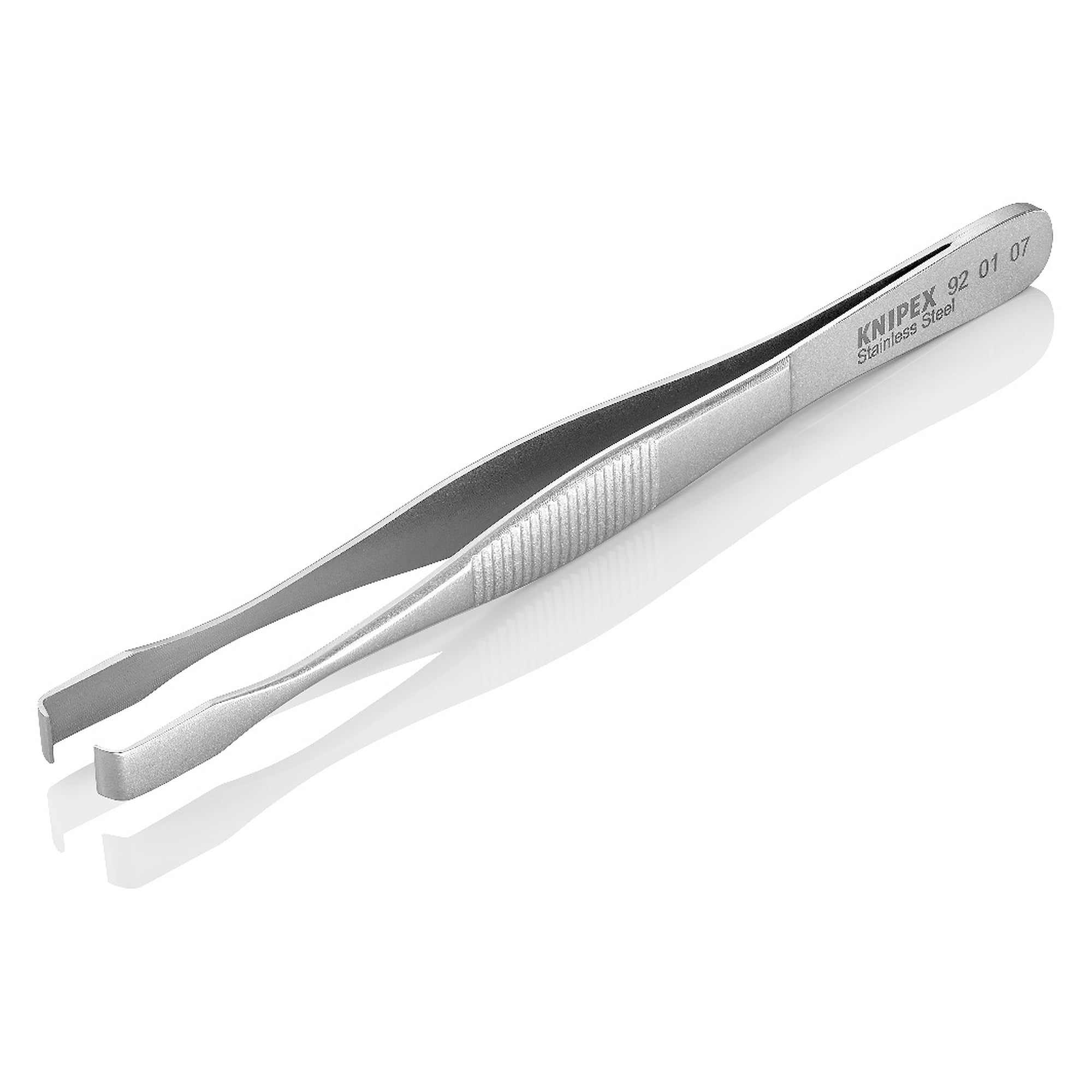

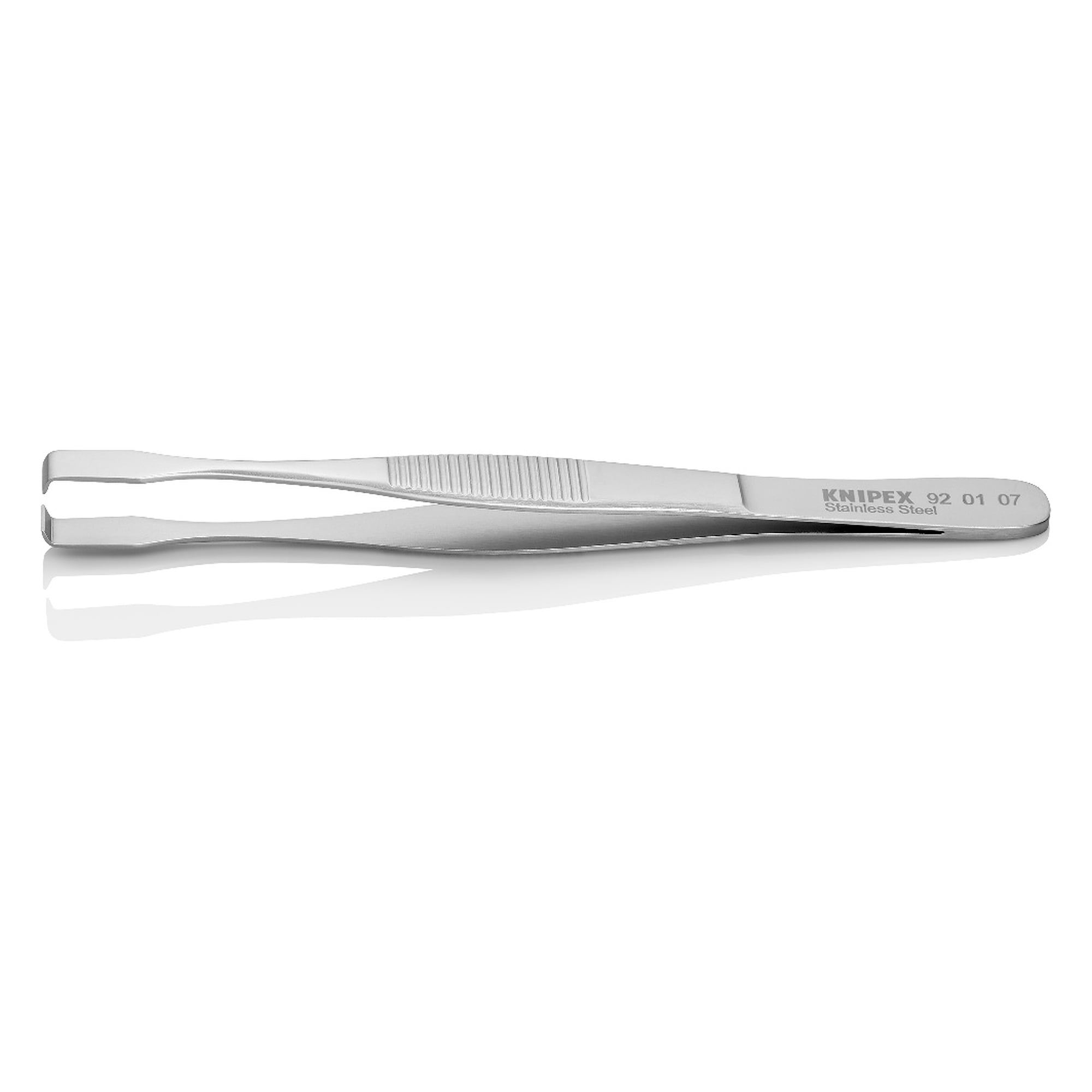

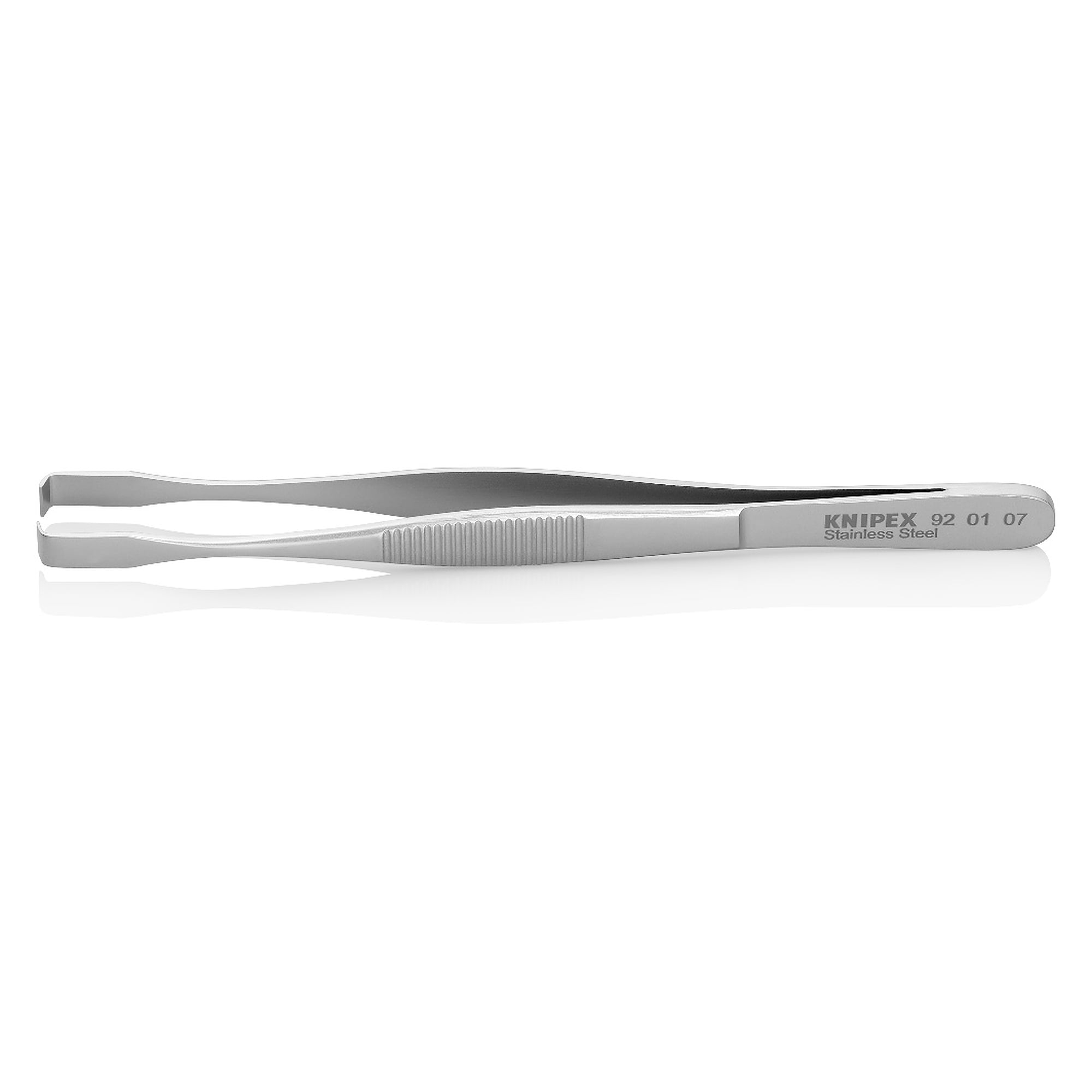

Positioning tweezers angled 90°, stainless steel, for THT and PIH assembly, 143 mm - Knipex 92 01 07

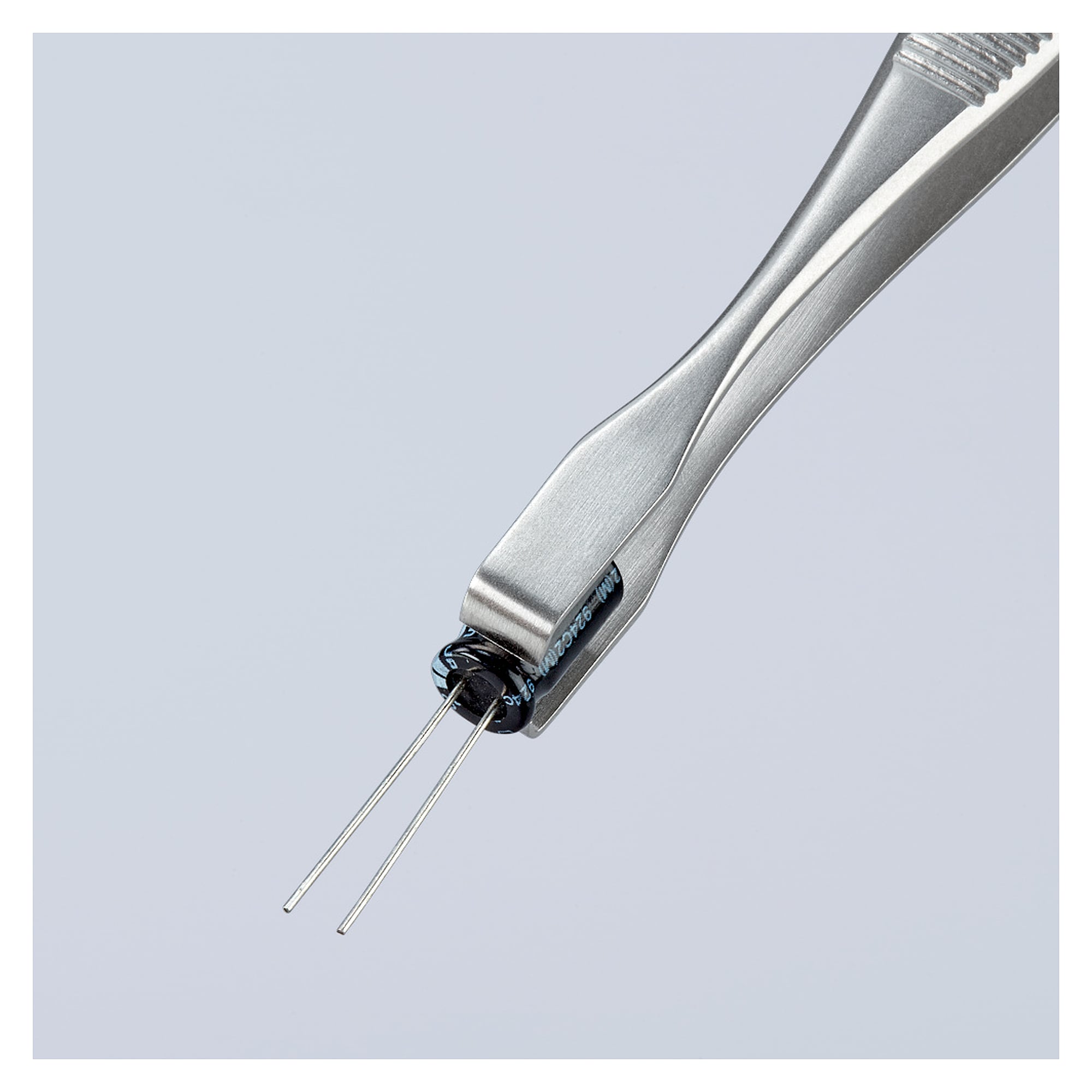

In through-hole and pin-in-hole assembly a small elongated component first has to be held, then inserted and, if something goes wrong, pulled out again without tilting. The 92 01 07 positioning tweezers are angled by 90° for that and grip with dimensionally adapted surfaces of 3.5 mm and 5.8 mm width over a length of 143 mm.

Benefits

• Designed to hold, insert and pull even the smallest elongated components with ease.
• Dimensionally adapted gripping surfaces position or pull sensitive rounded and cuboid components firmly and securely.
• For through-hole technology (THT) and pin-in-hole technology (PIH) assembly.
• The 90° angled design gives vertical access to a board lying flat, the hand stays beside the component.
• Antimagnetic and not magnetisable (80%), which avoids electromagnetic damage to sensitive components.
• Stainless steel with very good acid resistance, grooved handles and a matt surface, 22 g at a length of 143 mm.

Technical data

Areas of use

Electronics production, assembly and rework of printed circuit boards in THT and PIH technology as well as laboratory, test department and small batch assembly. For electrostatic protected areas an ESD tested version should be chosen, this model is conductive but not ESD tested.

Standards and conformity

The manufacturer does not state a standard for this tool. There is neither an ESD test nor a VDE test. According to the manufacturer the tweezers contain no substances of very high concern under REACH and the RoHS directive does not apply.
