SMD precision tweezers angled 45°, tip width 0.5 mm, stainless steel, 115 mm - Knipex 92 01 04

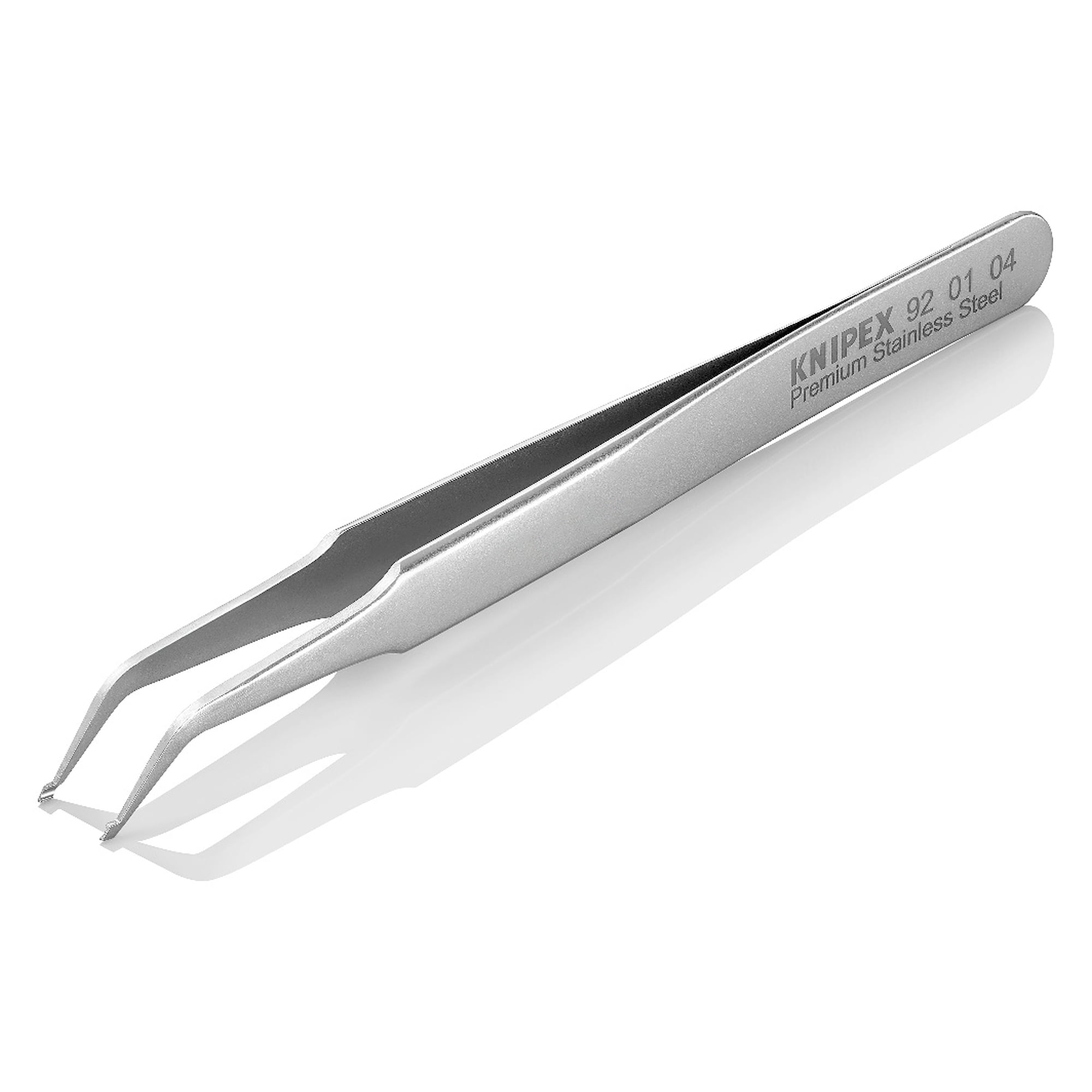

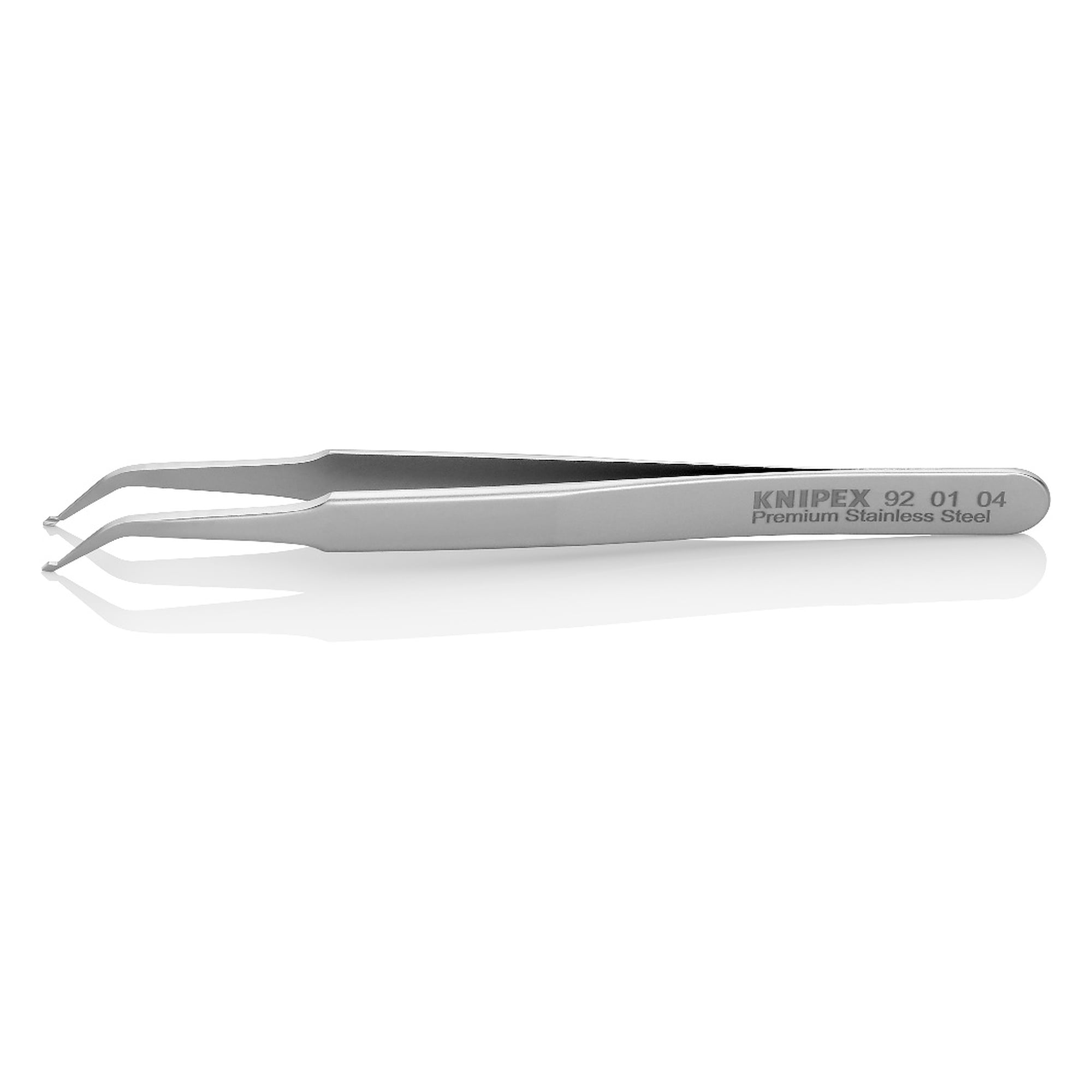

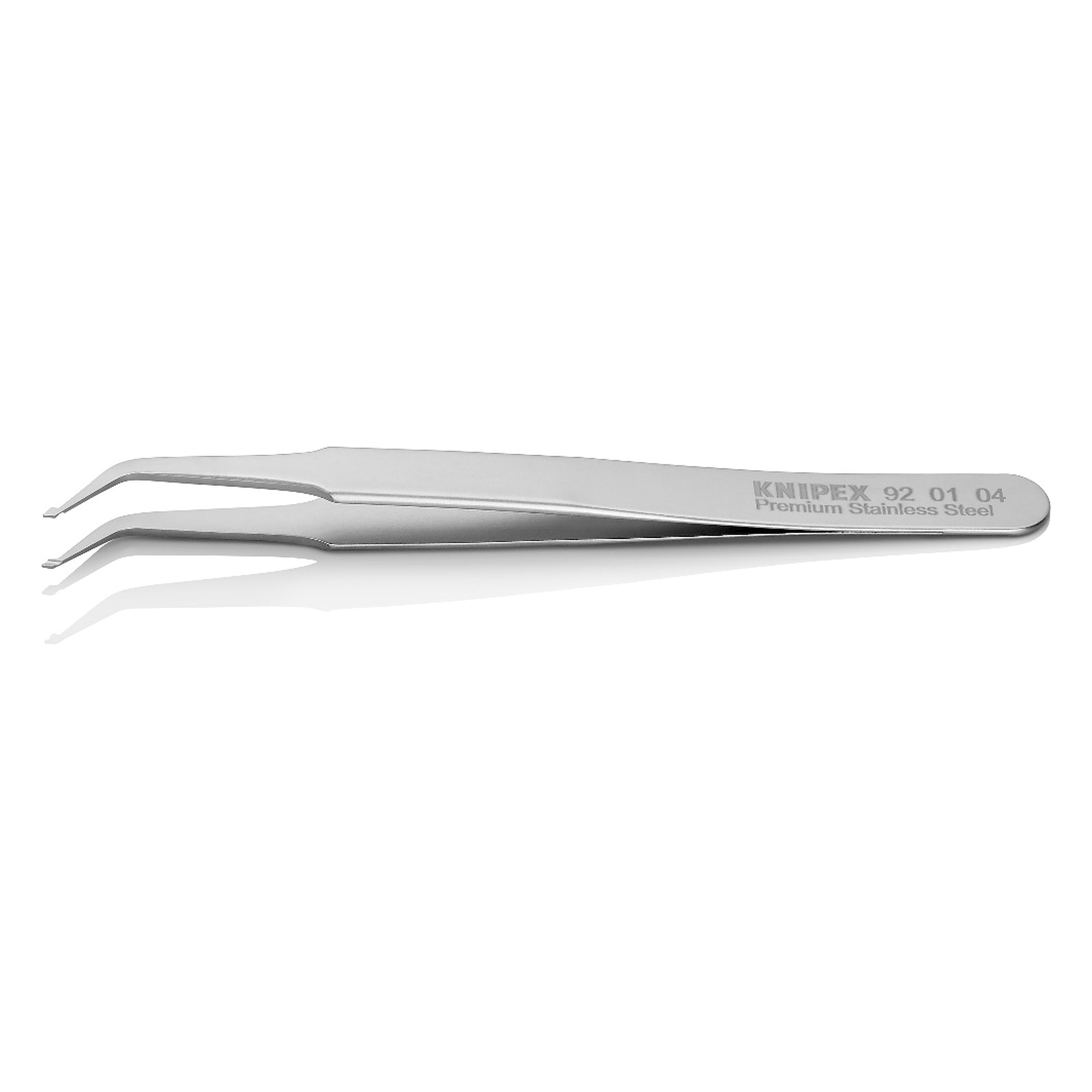

Slightly larger SMD packages need to be held across a surface, not merely touched. The 92 01 04 SMD precision tweezers are angled by 45 degrees, offer a tip width of 0.5 mm over an overall length of 115 mm and keep the solder joint in view.

Benefits

• Fine geometry for work on SMD components that are soldered directly onto the board through solderable connecting surfaces.
• Tip widths of 0.5 mm (A) and 1.5 mm (B), the manufacturer describes the tip shape as designed for positioning small components.

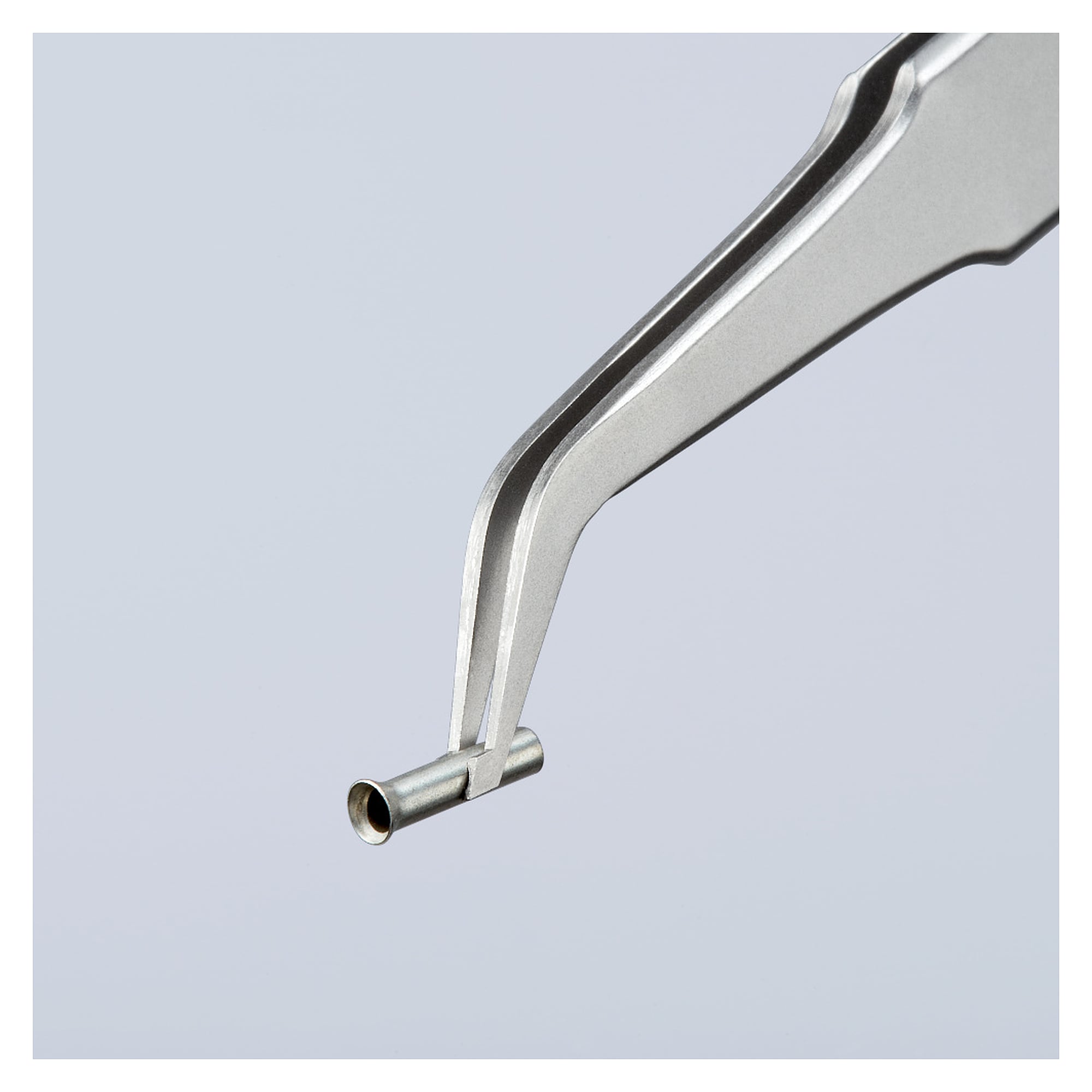

• Tips angled by 45 degrees with a width of 0.5 mm, which also holds somewhat larger SMD packages securely.
• Handcrafted, with polished edges and a matt surface that is scratch-free and non-reflective.
• Stainless steel with high temperature resistance and excellent corrosion resistance to most chemicals, salts and acids.
• Antimagnetic to avoid electromagnetic damage, the manufacturer rates the material as not magnetisable (80 percent).

Areas of use

Assembly work, laboratory processes, clean room environments, circuit board repairs and reworking in the electronics industry. The manufacturer assigns the tool to the electronics sector and also offers it in the set 92 00 03.

Standards and conformity

The manufacturer does not state a tool standard for this product. ESD tested and VDE tested are both marked no, the electrical behaviour is listed as conductive. According to the manufacturer the tweezers contain no substances of very high concern under REACH, and the RoHS directive does not apply.
