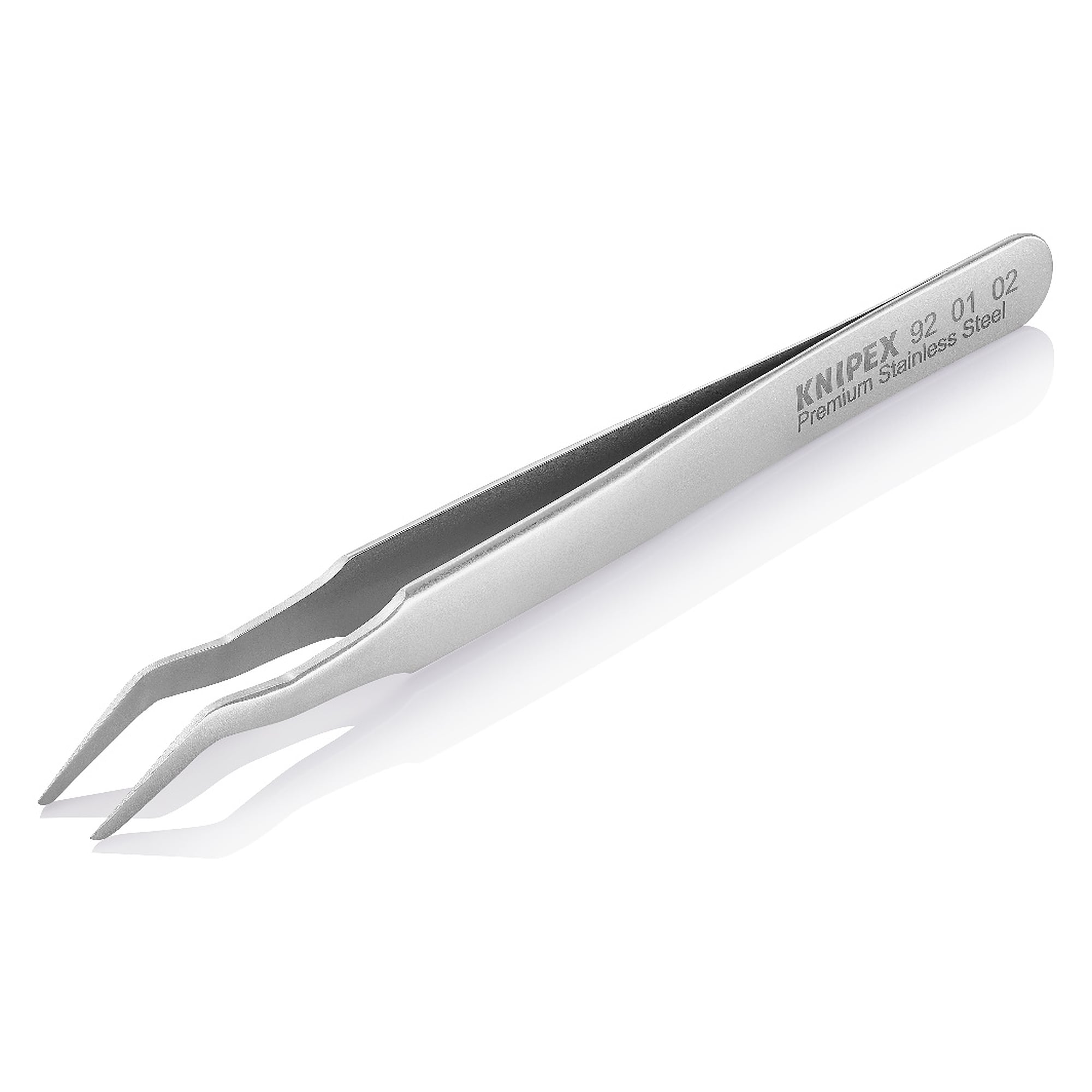

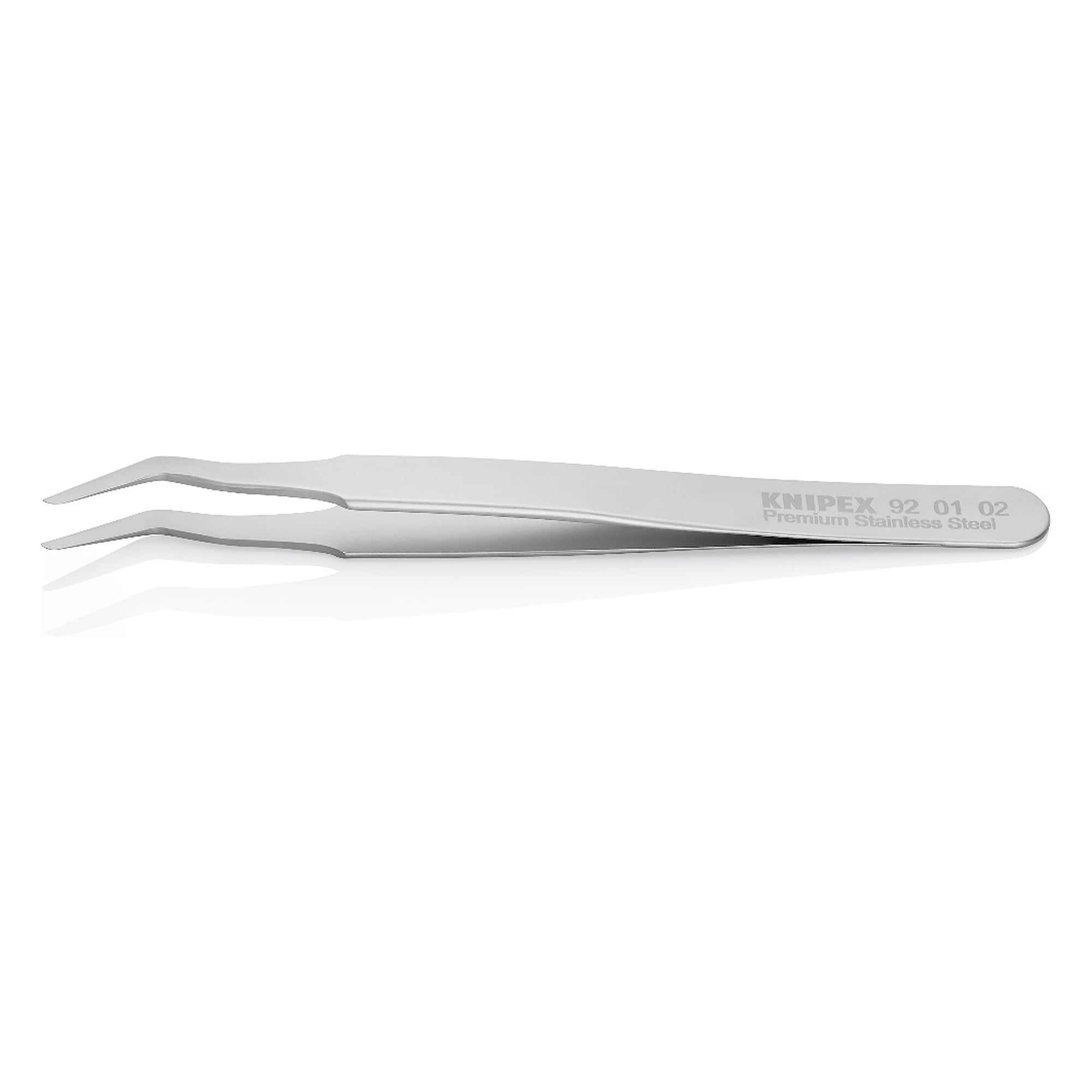

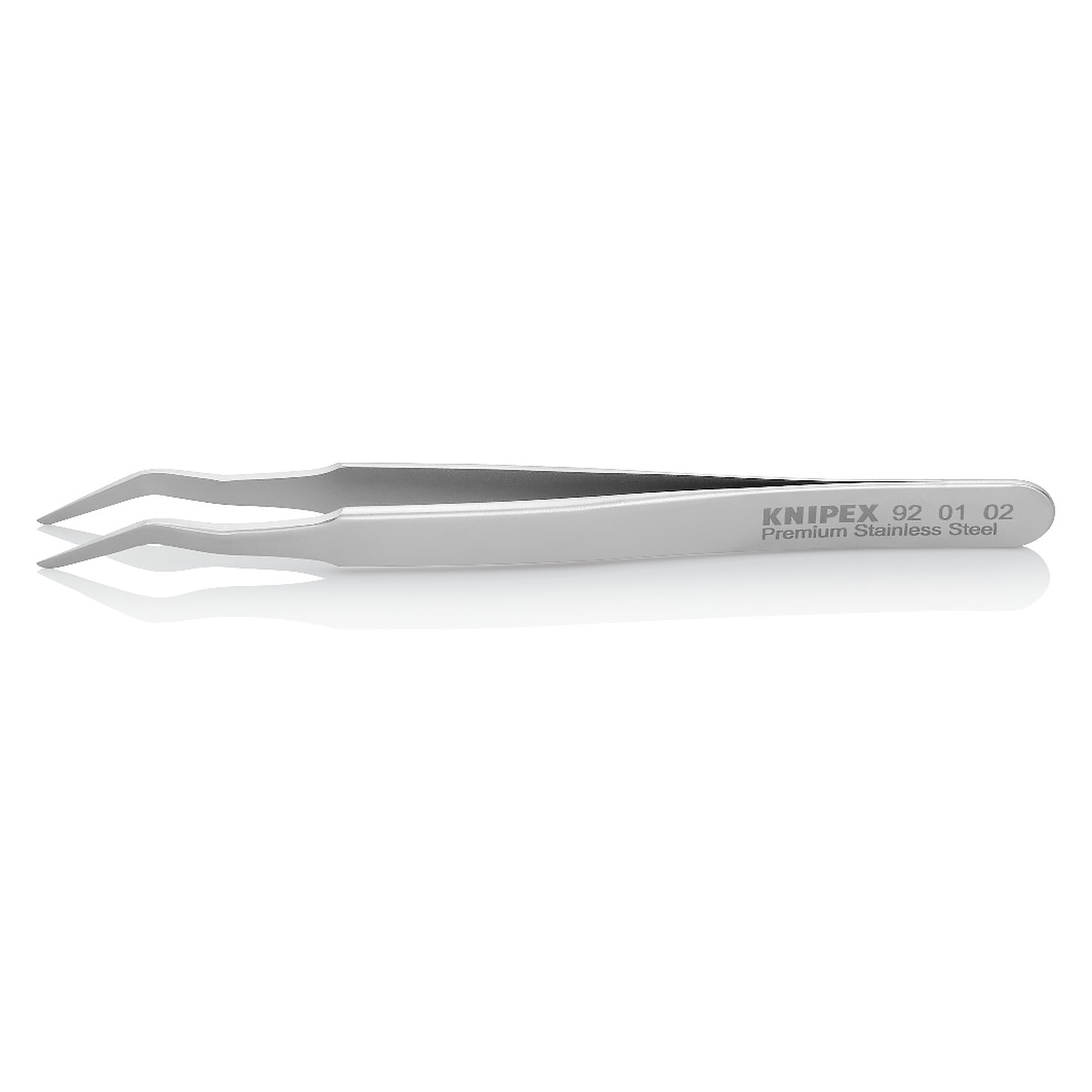

SMD precision tweezers double angled 35°, tip width 0.15 mm, stainless steel, 120 mm - Knipex 92 01 02

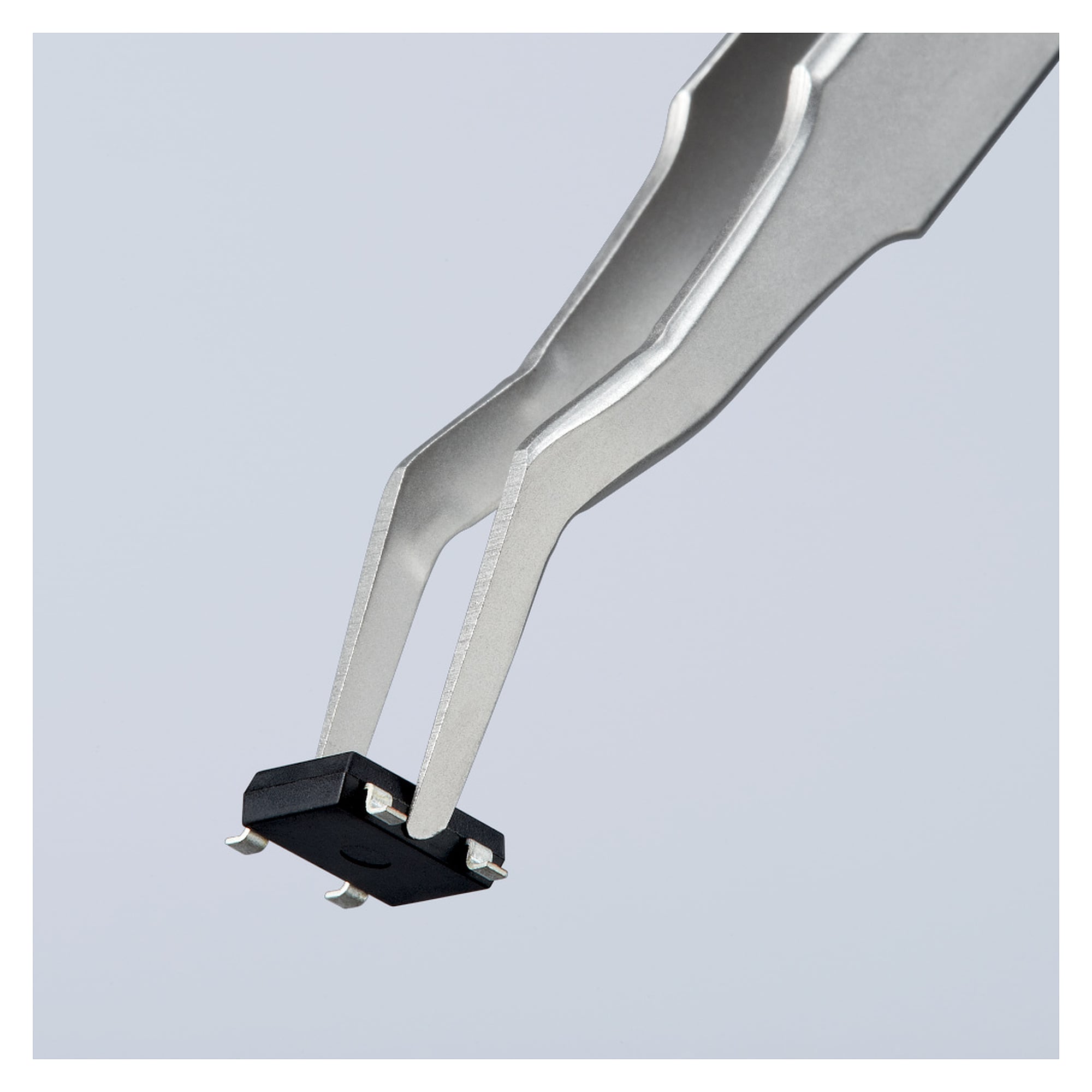

On densely populated boards the hand can only approach a component at a flat angle. The 92 01 02 SMD precision tweezers are double angled by 35 degrees and taper to a tip width of 0.15 mm, which reaches even very small components.

Benefits

• Fine geometry for work on SMD components that are soldered directly onto the board through solderable connecting surfaces.
• Tip widths of 0.15 mm (A) and 1.5 mm (B), the manufacturer describes the tip shape as designed for positioning small components.
• Tips double angled by 35 degrees for a flat working angle above the printed circuit board.
• Handcrafted, with polished edges and a matt surface that is scratch-free and non-reflective.
• Stainless steel with high temperature resistance and excellent corrosion resistance to most chemicals, salts and acids.
• Antimagnetic to avoid electromagnetic damage, the manufacturer rates the material as not magnetisable (80 percent).

Areas of use

Assembly work, laboratory processes, clean room environments, circuit board repairs and reworking in the electronics industry. The manufacturer assigns the tool to the electronics sector and also offers it in the set 92 00 03.

Standards and conformity

The manufacturer does not state a tool standard for this product. ESD tested and VDE tested are both marked no, the electrical behaviour is listed as conductive. According to the manufacturer the tweezers contain no substances of very high concern under REACH, and the RoHS directive does not apply.
