Tweezers for fine mechanics angled 45°, needle point 0.09 mm, premium stainless steel, 120 mm - Knipex 92 31 01

Knipex ✓ Original product Brand new

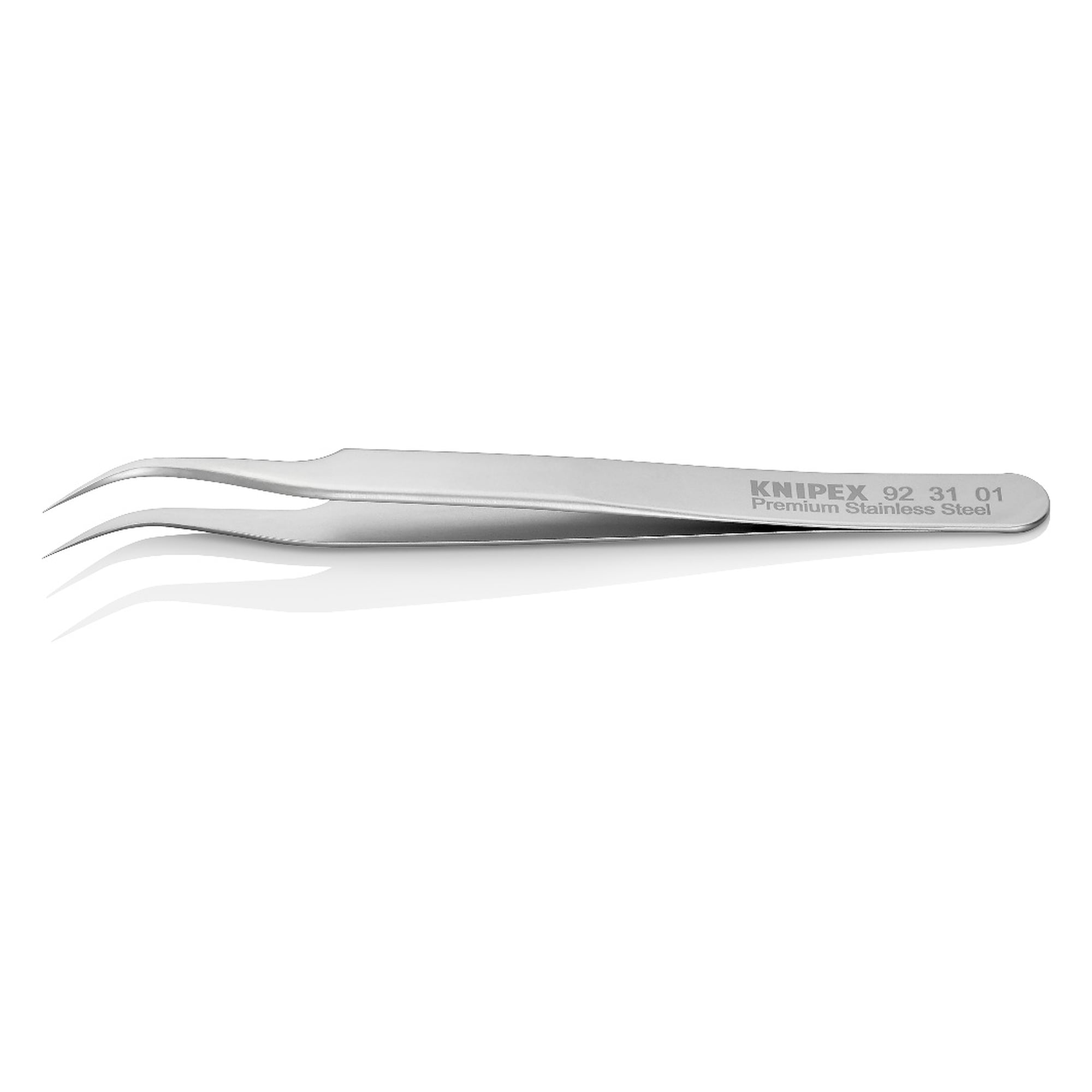

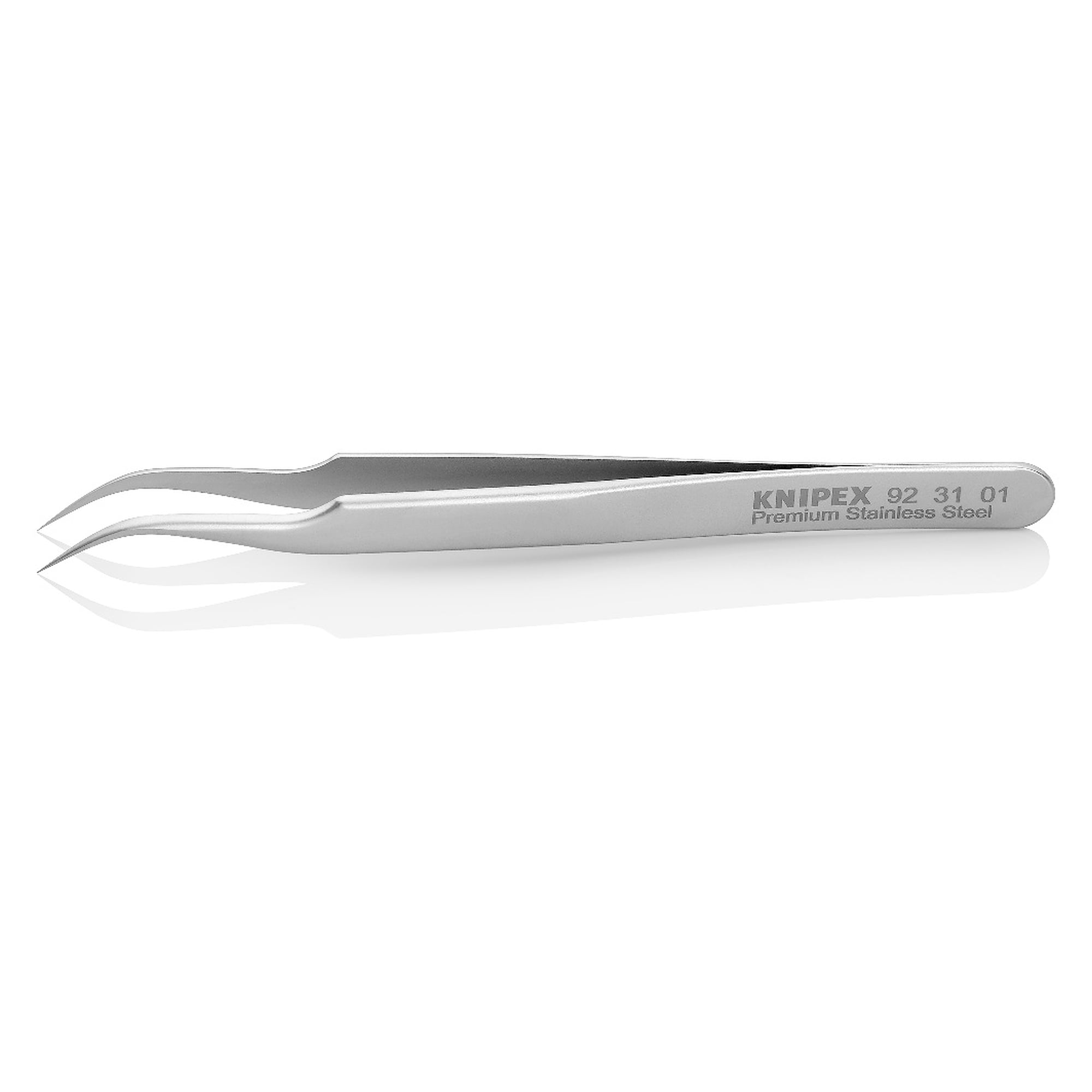

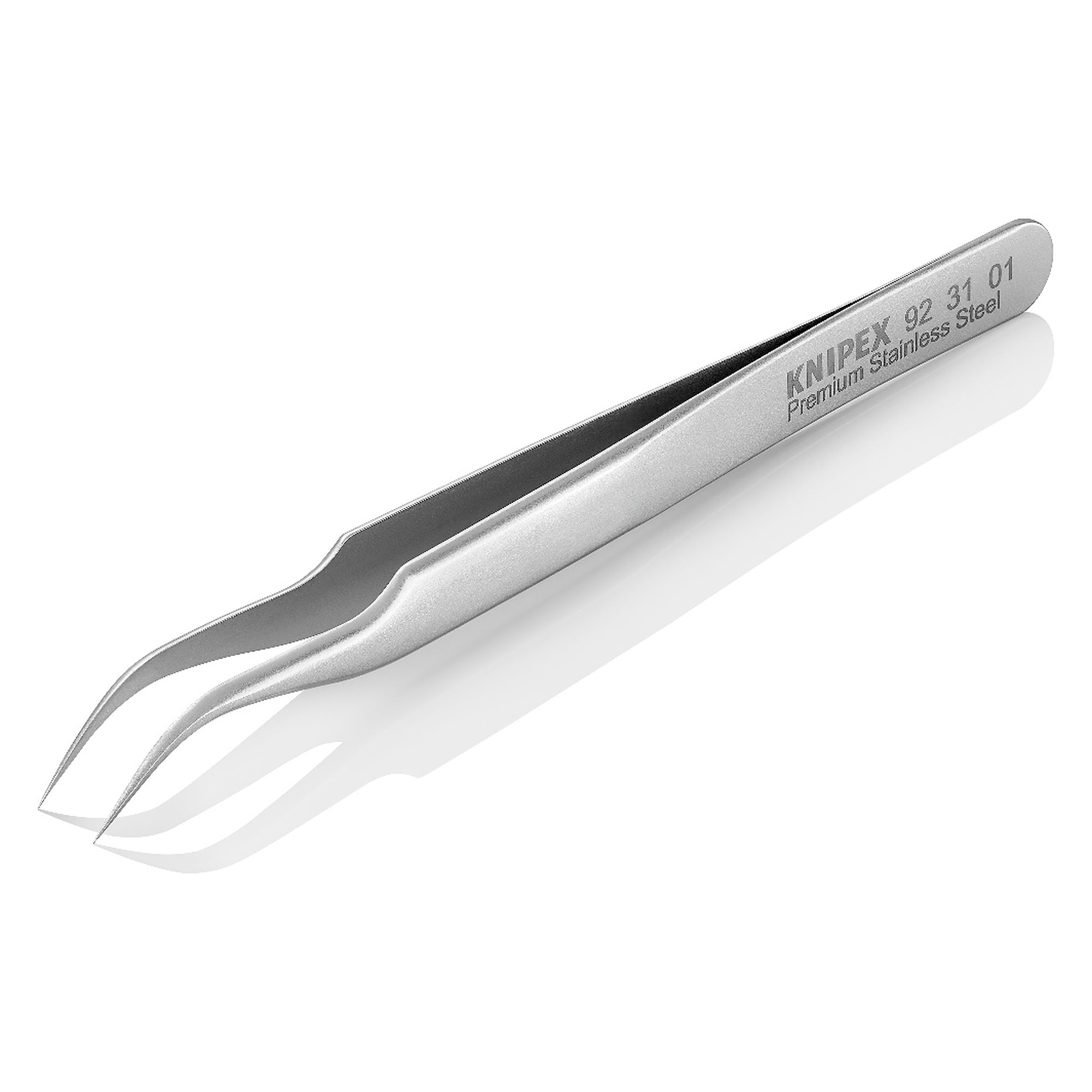

Handcrafted fine mechanics tweezers in premium stainless steel with 45° angled needle points measuring 0.09 mm across. Polished edges and a matt, non-reflective surface make long sessions under the microscope easier. 120 mm long, 14 g.

Net
€33.03
excl. VAT
Item WL62974
Manufacturer no. 92 31 01
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

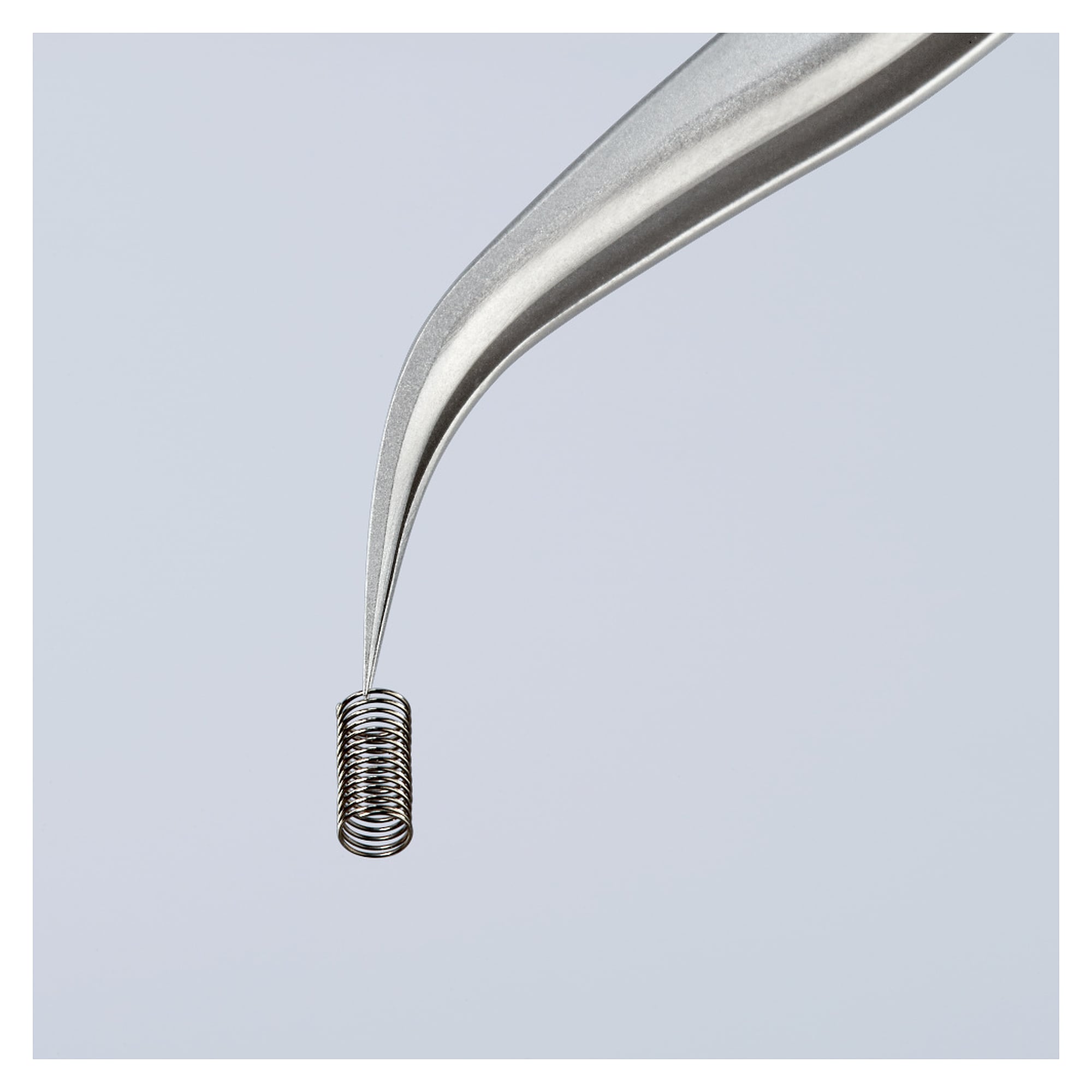

Under a microscope a clear view of the gripping point decides the job. The 45° angled legs of these fine mechanics tweezers keep the hand out of the field of view, while the needle points of 0.09 mm hold even tiny components securely.

Benefits

  • 45° angled design keeps the gripping point visible when working under a magnifier or microscope.
  • Needle points with a tip width of 0.09 mm for particularly demanding precision work.
  • Handcrafted with polished edges and tips guaranteed to be symmetrical and balanced.
  • Premium stainless steel with high temperature resistance and excellent resistance to most chemicals, salts and acids.
  • Matt, scratch-free and non-reflective surface without disturbing glare.
  • Light 14 g over 120 mm of length, also available in the 92 00 02 set.

Areas of use

Electronics industry, watchmakers and jewellers, laboratories with biological and medical applications in moderately aggressive chemical environments as well as microscopic work, precision handling and repairs.

Standards and conformity

The manufacturer names no tool standard for this model. According to the manufacturer the tweezers contain no substances of very high concern under REACH, and the RoHS directive is not applicable.

Technical data

EAN4003773085027
MaterialPremium stainless steel
Gripping surfacessmooth gripping surfaces
HandlesSmooth
Weight14 g
Dimensions120 x 10 x 11 mm
SurfaceMatt
Designangled 45°
Tip width (A)0.09 mm
Tip width (B)0.16 mm
Tip shapeNeedle point
Corrosion resistantyes
Acid resistanceExcellent
ESD testedno
VDE testedno
IndustriesIndustry
MagneticNot magnetisable (80%)
Electrical behaviourConductive
REACH conformitycontains no SVHC
RoHS conformitynot applicable
ManufacturerKnipex
Manufacturer Nr.92 31 01
GPSR manufacturer informationKNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de
Condition of articleNew
Article authenticityOriginal product
Height11 mm
Width10 mm
ColourStainless Steel
Overall length [mm]120
