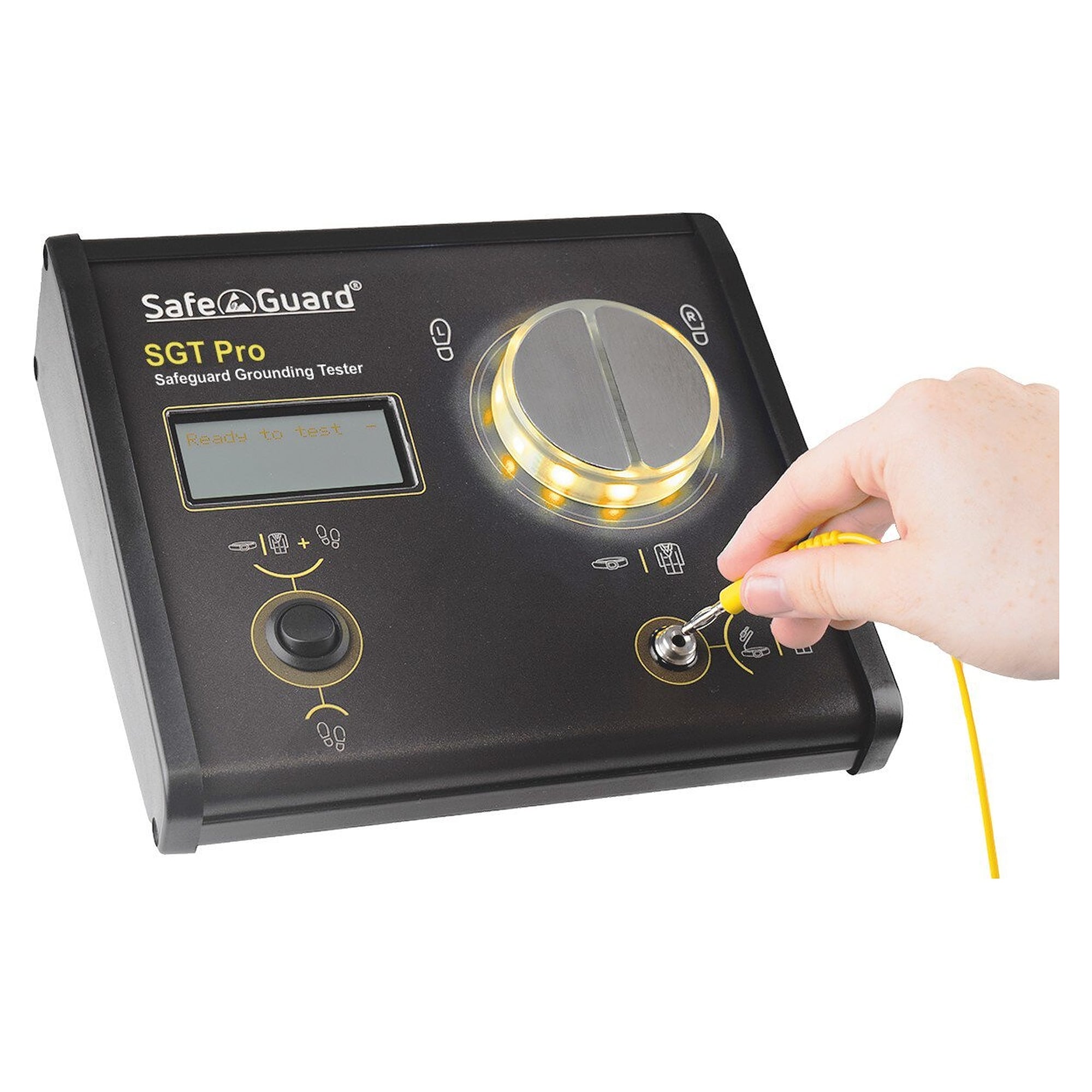

ESD grounding tester SGT Pro with LCD display and double foot electrode - Safeguard SafeGuard-SGT-Pro

Before anyone enters the EPA, their grounding has to be right. The SGT Pro tests footwear and wrist strap or ESD garment at 100 V and, thanks to the double foot electrode, measures the left and right foot against the hand at the same time. The result appears on the LCD display together with LED and tone.

Key benefits

• Two test modes: footwear only or footwear combined with wrist strap/ESD garment.
• Both feet separately: the double foot electrode measures right and left at the same time.

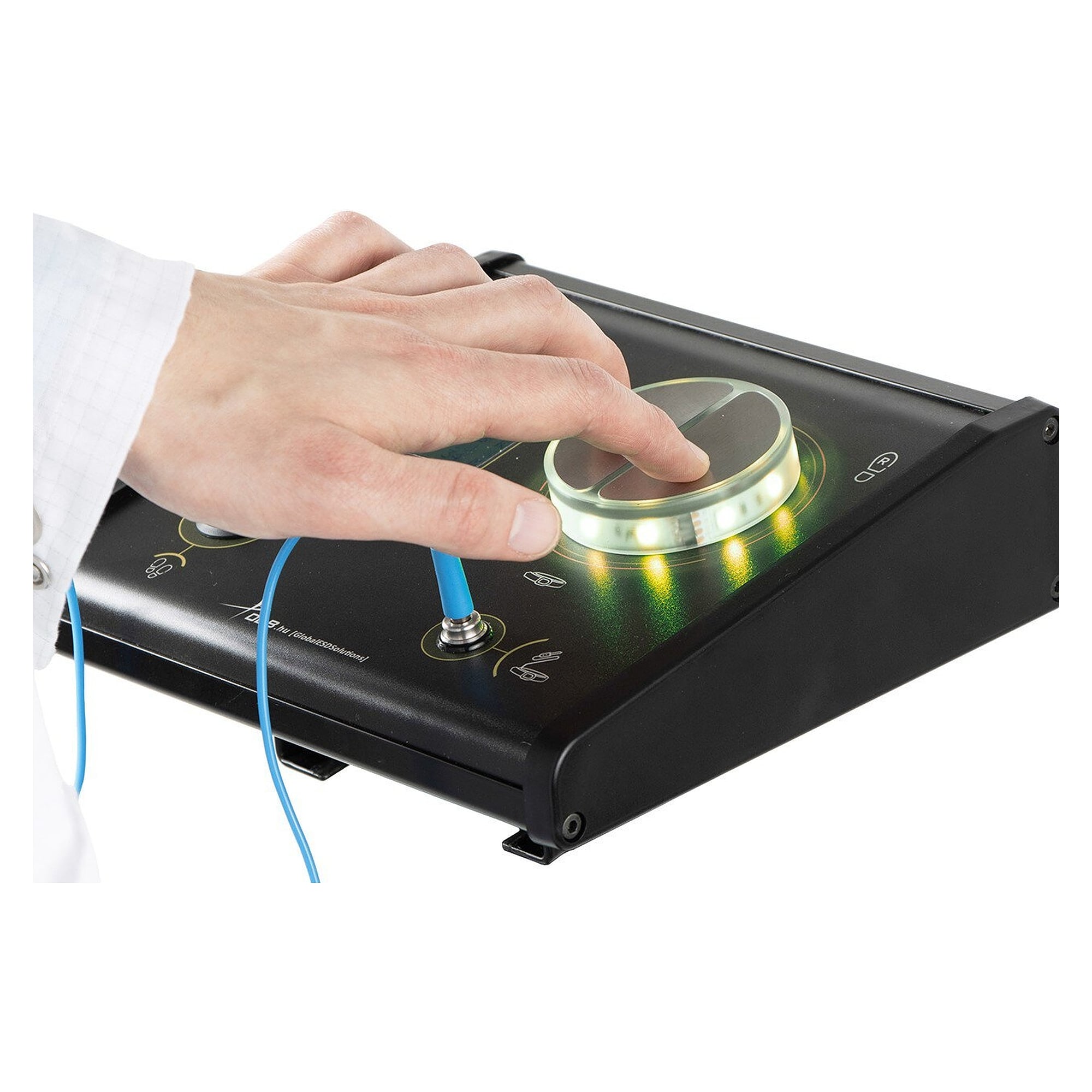

• Metal touch plate and LIGHT BAR indicator for fast throughput at the entrance.
• Access control: pass and fault relays 0.5 A / 60 V for turnstile or swing gate.
• Flexible mounting at the entrance, on a table or on a wall.

Applications

Entrance control of EPAs in electronics manufacturing, laboratories and repair, also with high staff throughput at shift change.

Standards and compliance

Complies with IEC 61340-5-1 and ANSI/ESD S20.20 as well as Directive 2001/95/EC on general product safety.
