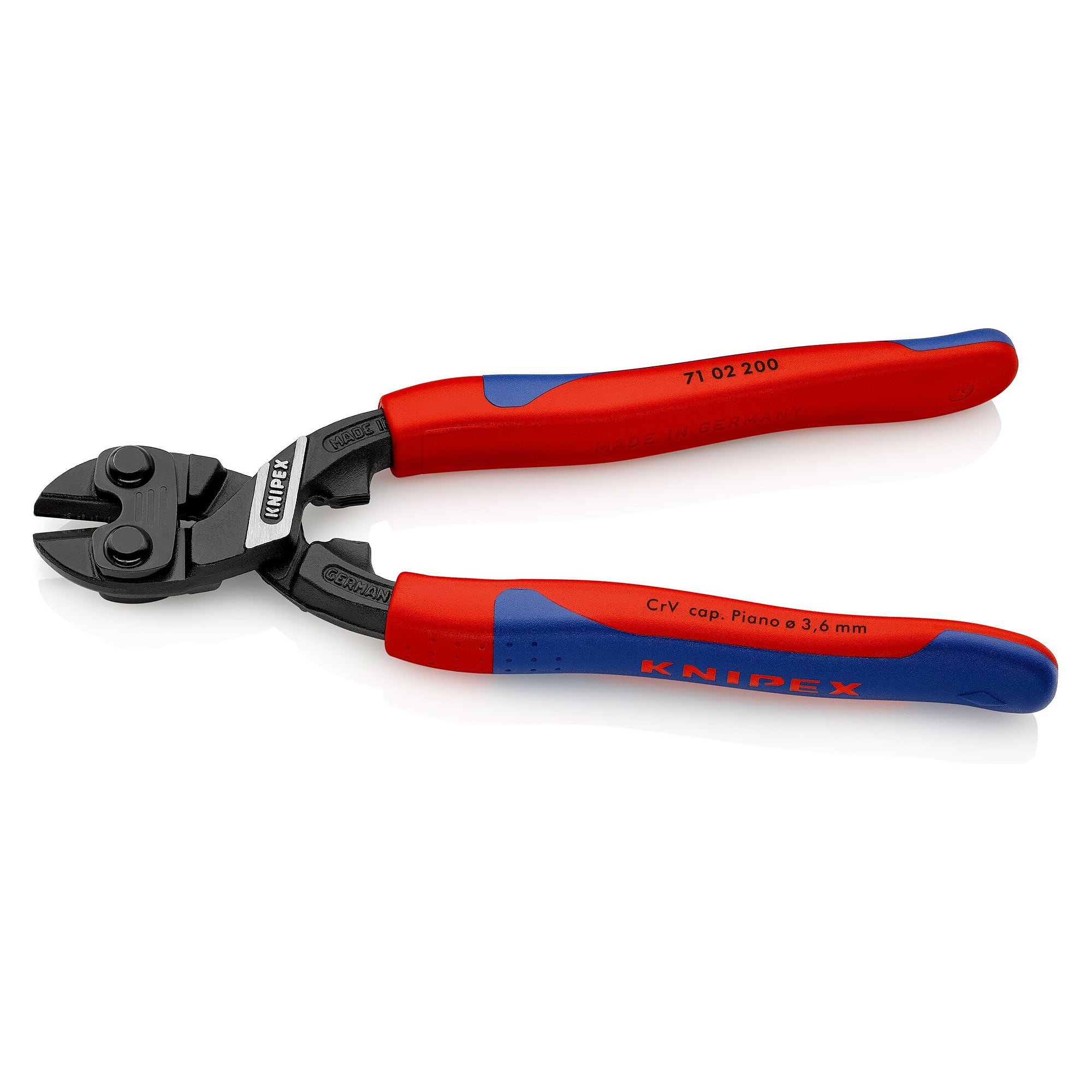

CoBolt compact bolt cutter with slim multi-component sleeves, bolts up to Ø 5.2 mm, 200 mm - Knipex 71 02 200 SB
Compact 200 mm bolt cutter that severs bolts, nails and rivets up to Ø 5.2 mm and also cuts piano wire. The edges are hardened to approx. 62 HRC. Slim sleeves without collar keep it handy in the tool bag.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

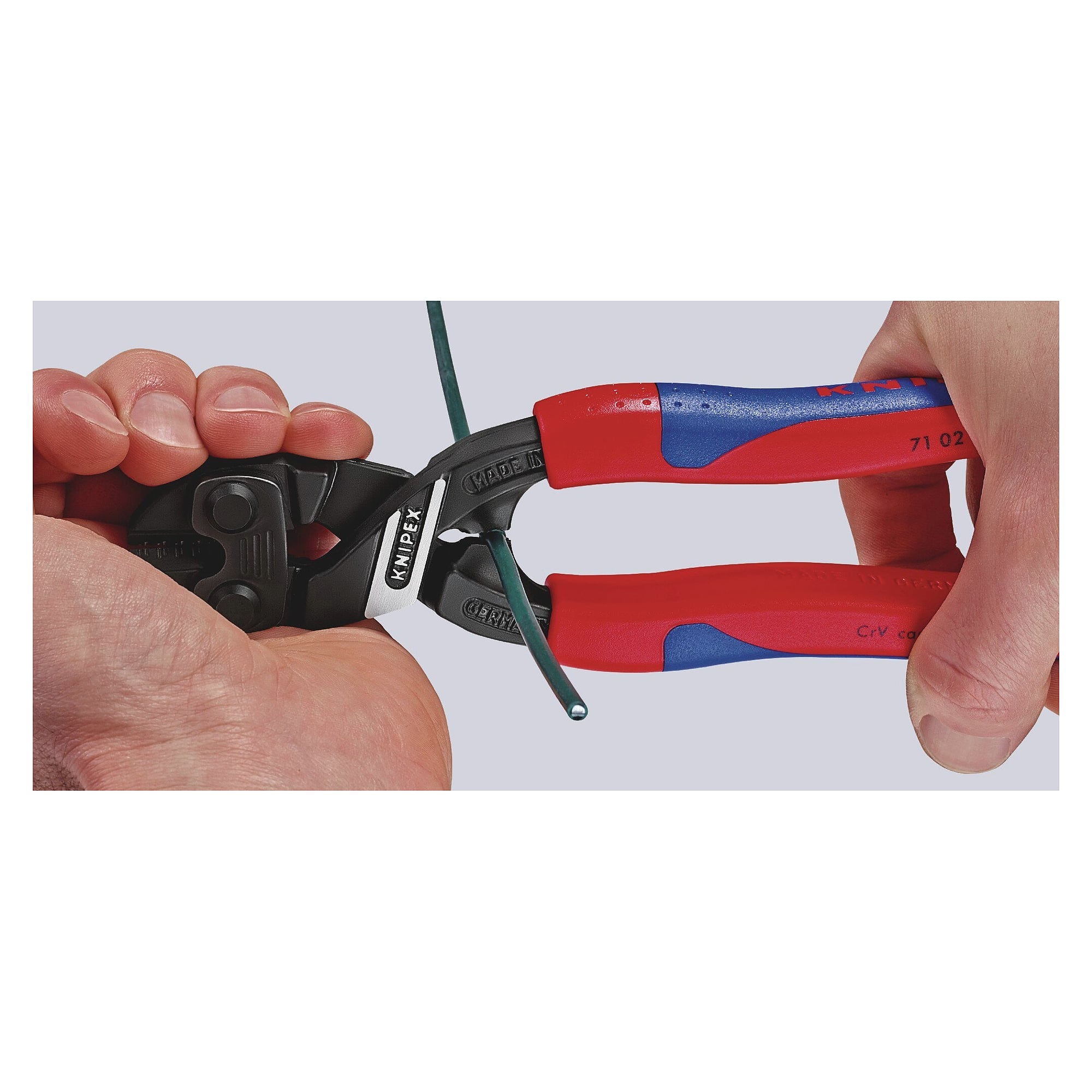

Where a large bolt cutter would normally be fetched from the van, pliers from the tool bag often do the job. The CoBolt 71 02 200 is 200 mm long, cuts bolts and rivets up to Ø 5.2 mm, and its edges are hardened to approx. 62 HRC.
Benefits in use
- Slim multi-component sleeves without collar, with a large contact surface for good pressure distribution in the hand.
- Cuts bolts, nails, rivets and similar parts up to Ø 5.2 mm, plus soft and hard wire and piano wire.
- Edges induction hardened to approx. 62 HRC, micro-structured so the workpiece does not slip out of the jaws.
- Efficient joint design for high cutting performance with little effort.
- Gripping surface below the joint for holding and pulling wires from Ø 1.0 mm.
Applications
Assembly and maintenance, metal and steel construction, plant and facility engineering, shortening bolts, pins, nails, rivets and spring steel wire.
Technical data
| Manufacturer | Knipex |
|---|---|
| Series | CoBolt |
| Pliers type | Compact bolt cutter |
| Tool length | 200 mm |
| Cutting capacity | bolts, nails, rivets up to Ø 5.2 mm |
| Wire types | soft, hard and piano wire |
| Cutting edge | centre cutter |
| Cutting edge hardness | approx. 62 HRC, induction hardened |
| Handle | slim multi-component sleeves without collar |
| Finish | black atramentized |
| VDE tested | no |
| ESD-safe | no |
| Dimensions with packaging (L x W x H) | 344 x 115 x 92 mm |
| Packaging | blister (SB card) |
| Net weight | 394 g |
| Sales unit | 1 piece |
| Weight | 0.394 kg |
| Manufacturer Nr. | 71 02 200 SB |
| HS-Code | 82034000 |
| GPSR manufacturer information | KNIPEX-Werk, Oberkamper Strasse 13, DE-42349 Wuppertal-Cronenberg, www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Scope of delivery
One CoBolt 71 02 200 SB compact bolt cutter on SB card in blister.
