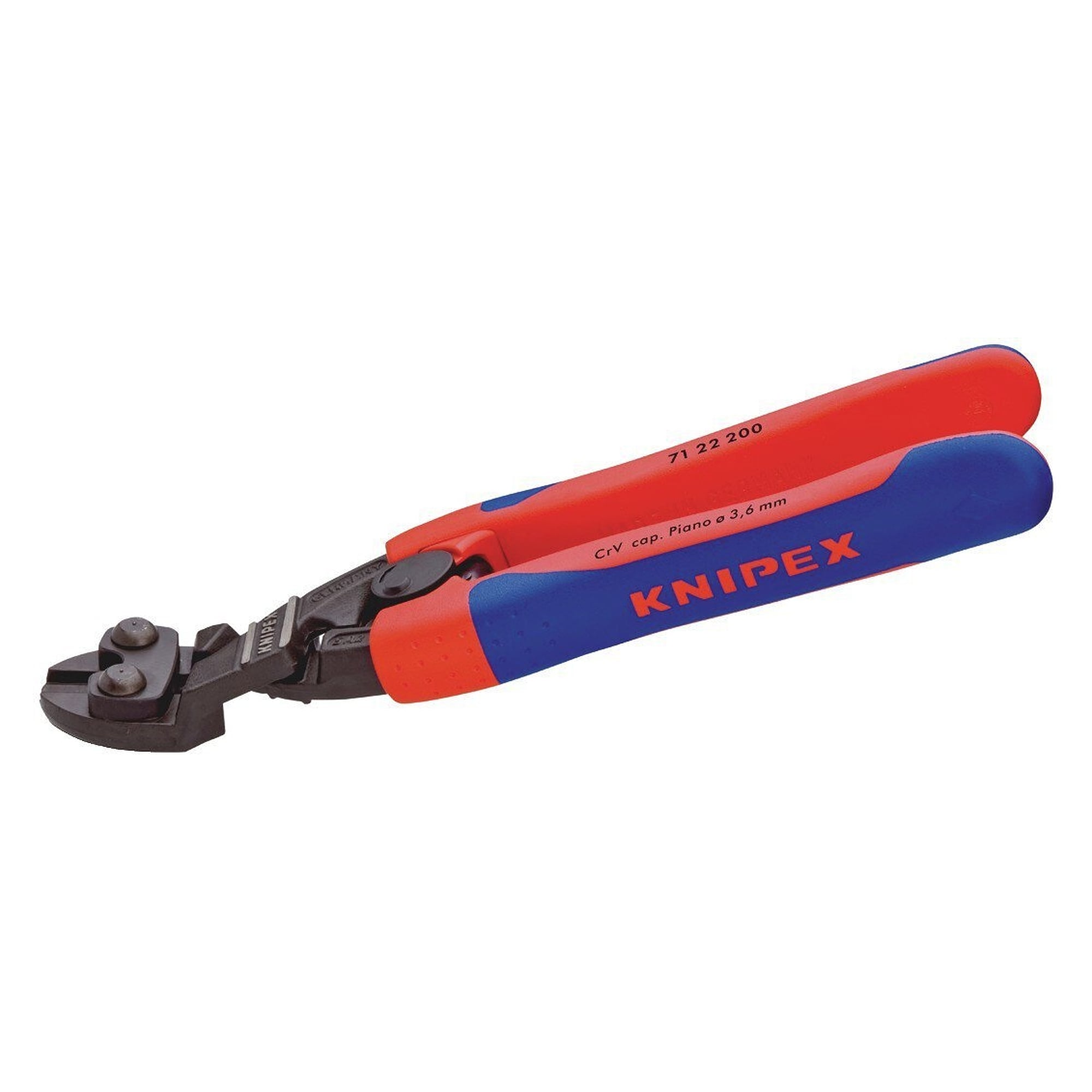

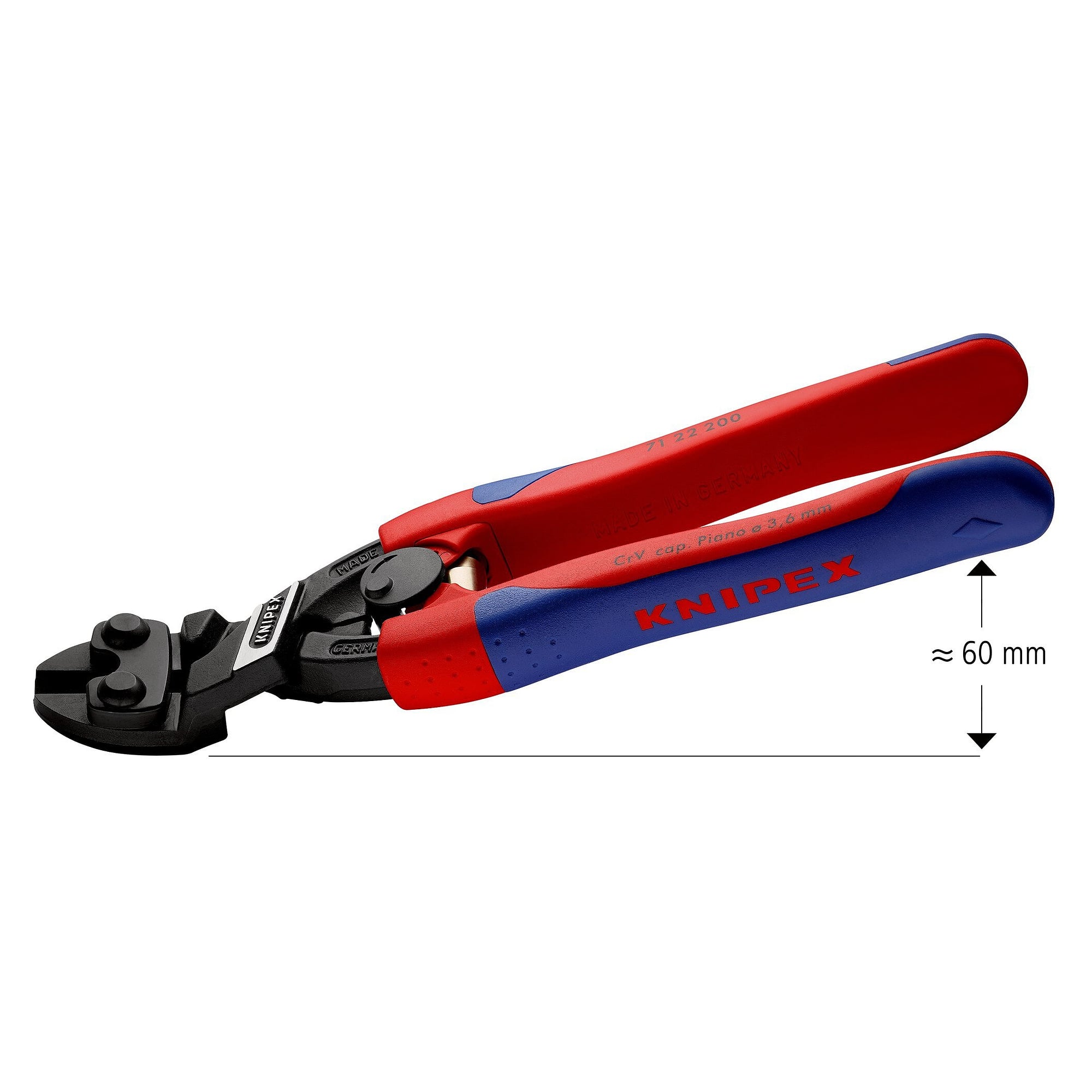

CoBolt compact bolt cutter angled 20° with opening spring, bolts up to Ø 5.2 mm, 200 mm - Knipex 71 22 200 SB
Compact bolt cutter with a 20° angled head for almost flush cuts on bolts, nails and rivets up to Ø 5.2 mm. Edges of approx. 62 HRC also cut piano wire. Opening spring and lock are integrated in the slim handle sleeves.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

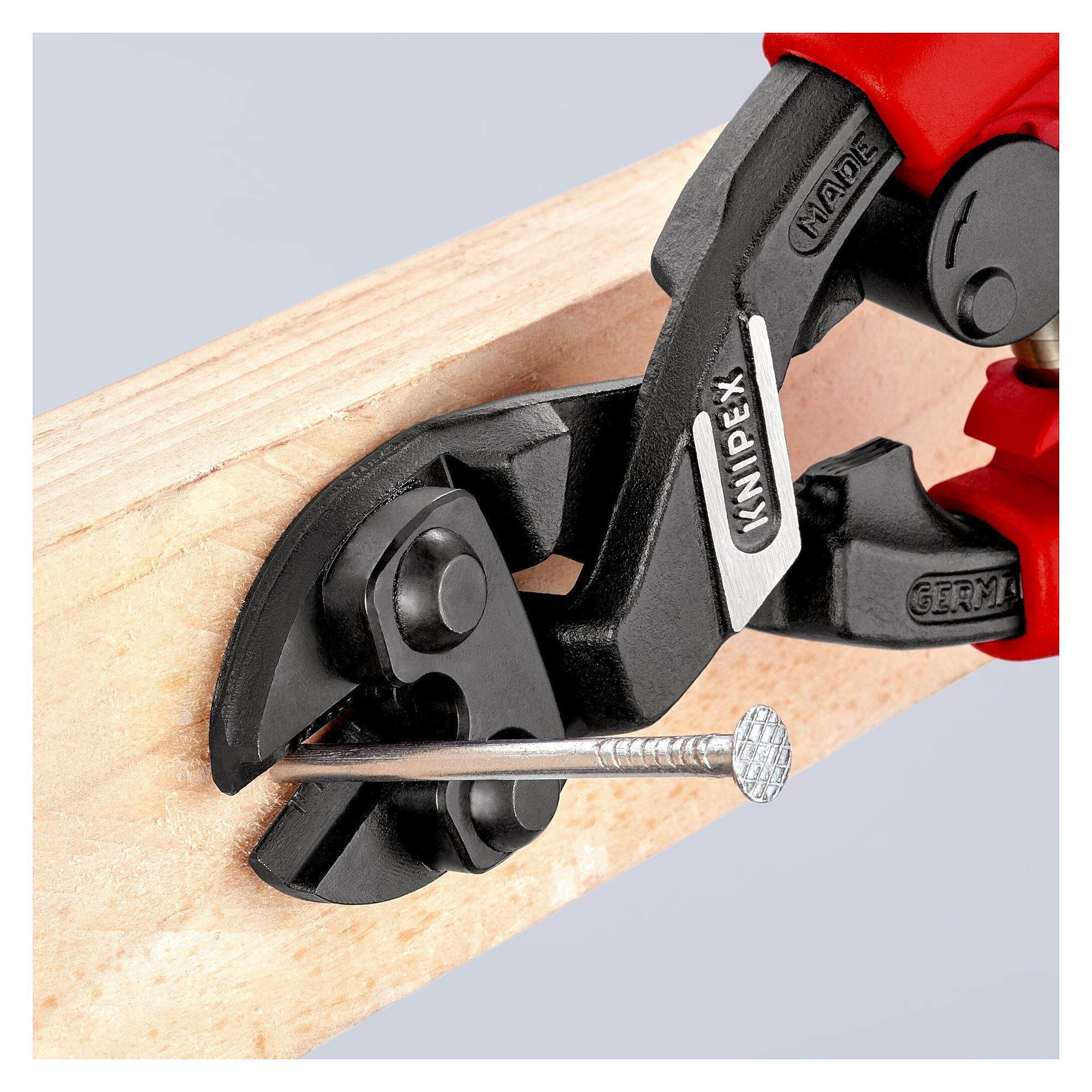

Protruding bolts or rivets need to go flush without damaging the surface underneath. The CoBolt 71 22 200 with its 20° angled head and side cut cuts almost flush and severs parts up to Ø 5.2 mm.
Benefits in use
- 20° angled head with single-sided tab and side cut for almost flush cutting, with clearance for gripping.
- Cuts bolts, nails, rivets and similar parts up to Ø 5.2 mm.
- Precision edges for soft and hard wire as well as piano wire, induction hardened to approx. 62 HRC.
- High cutting performance with less effort due to an efficient joint design.
- Opening spring and lock in the handle sleeves for comfortable work and safe transport.
Applications
Assembly and maintenance, metal and steel construction, electrical and plant engineering, flush shortening of bolts, pins, nails and rivets.
Technical data
| Manufacturer | Knipex |
|---|---|
| Pliers type | Compact bolt cutter |
| Tool length | 200 mm |
| Head | 20° angled, single-sided tab, side cut |
| Cutting capacity | bolts, nails, rivets up to Ø 5.2 mm |
| Wire types | soft, hard and piano wire |
| Cutting edge | bevelled |
| Cutting edge hardness | approx. 62 HRC, induction hardened |
| Handle | slim multi-component sleeves with opening spring and lock |
| Finish | black atramentized |
| VDE tested | no |
| ESD-safe | no |
| Dimensions (L x W x H) | 265 x 84 x 25 mm |
| Dimensions with packaging (L x W x H) | 344 x 115 x 92 mm |
| Packaging | blister (SB card) |
| Net weight | 390 g |
| Sales unit | 1 piece |
| Weight | 0.39 kg |
| Manufacturer Nr. | 71 22 200 SB |
| HS-Code | 82034000 |
| GPSR manufacturer information | KNIPEX-Werk, Oberkamper Strasse 13, DE-42349 Wuppertal-Cronenberg, www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Scope of delivery
One CoBolt 71 22 200 compact bolt cutter on SB card in blister.
