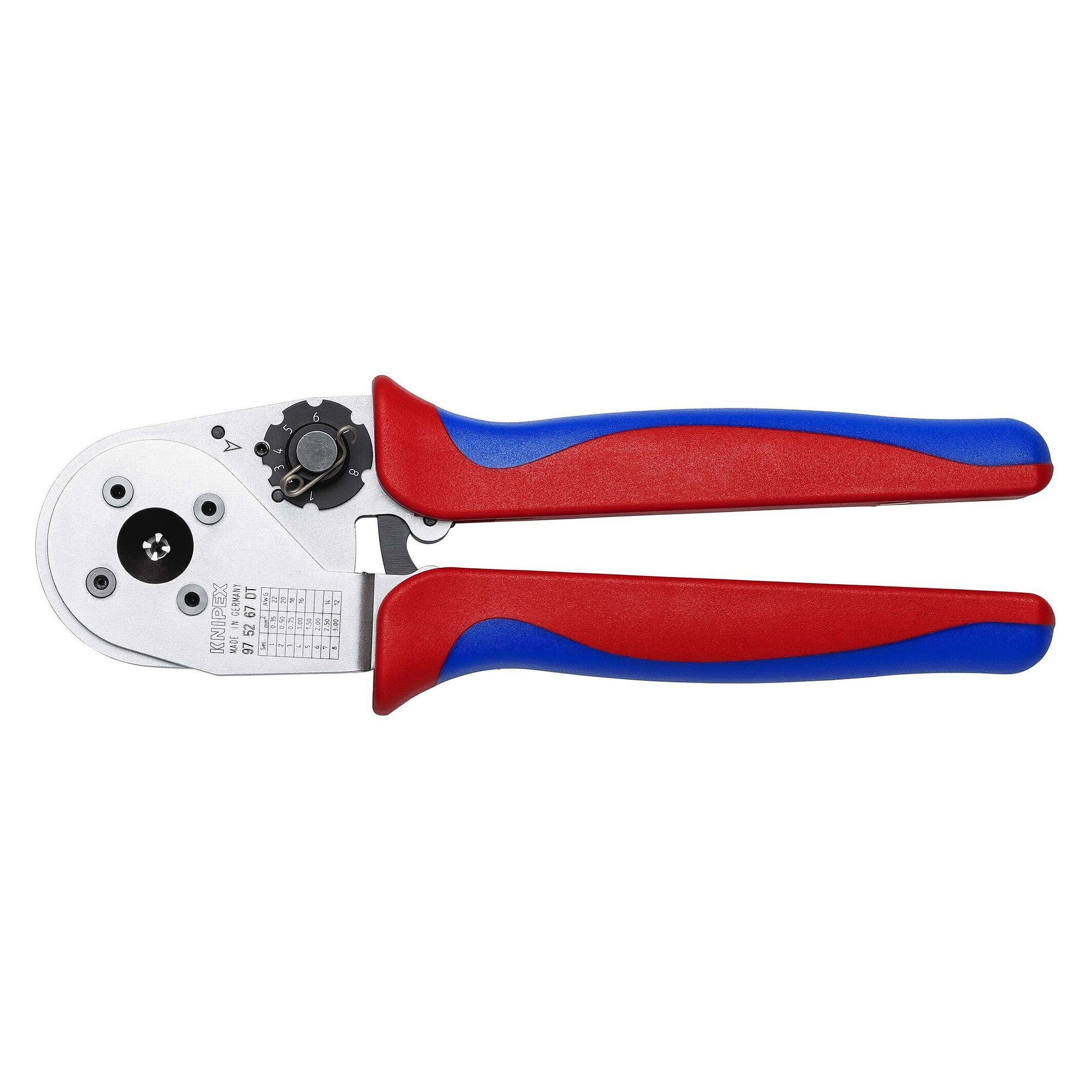

Four-mandrel crimping pliers for DT, DTM and DTP contacts, 0.35 to 3.0 mm², AWG 22 to 12, 230 mm - Knipex 97 52 67 DT

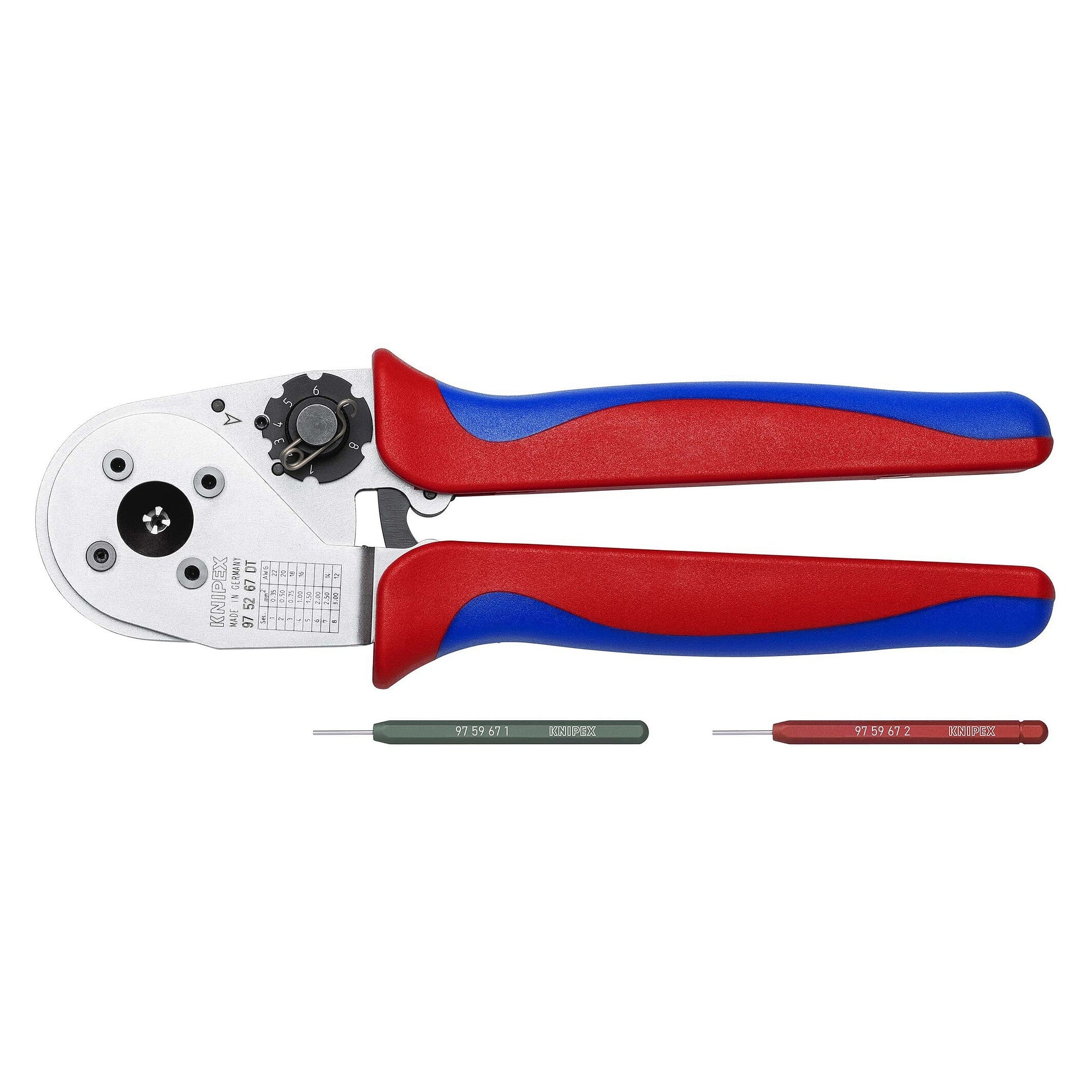

Four-mandrel crimping pliers for turned pin and socket contacts of the DT, DTM and DTP series from 0.35 to 3.0 mm². Four synchronised mandrels produce eight indentations and the ratchet lock ensures consistent crimp quality. Supplied with Go/NoGo gauges for calibration checks.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

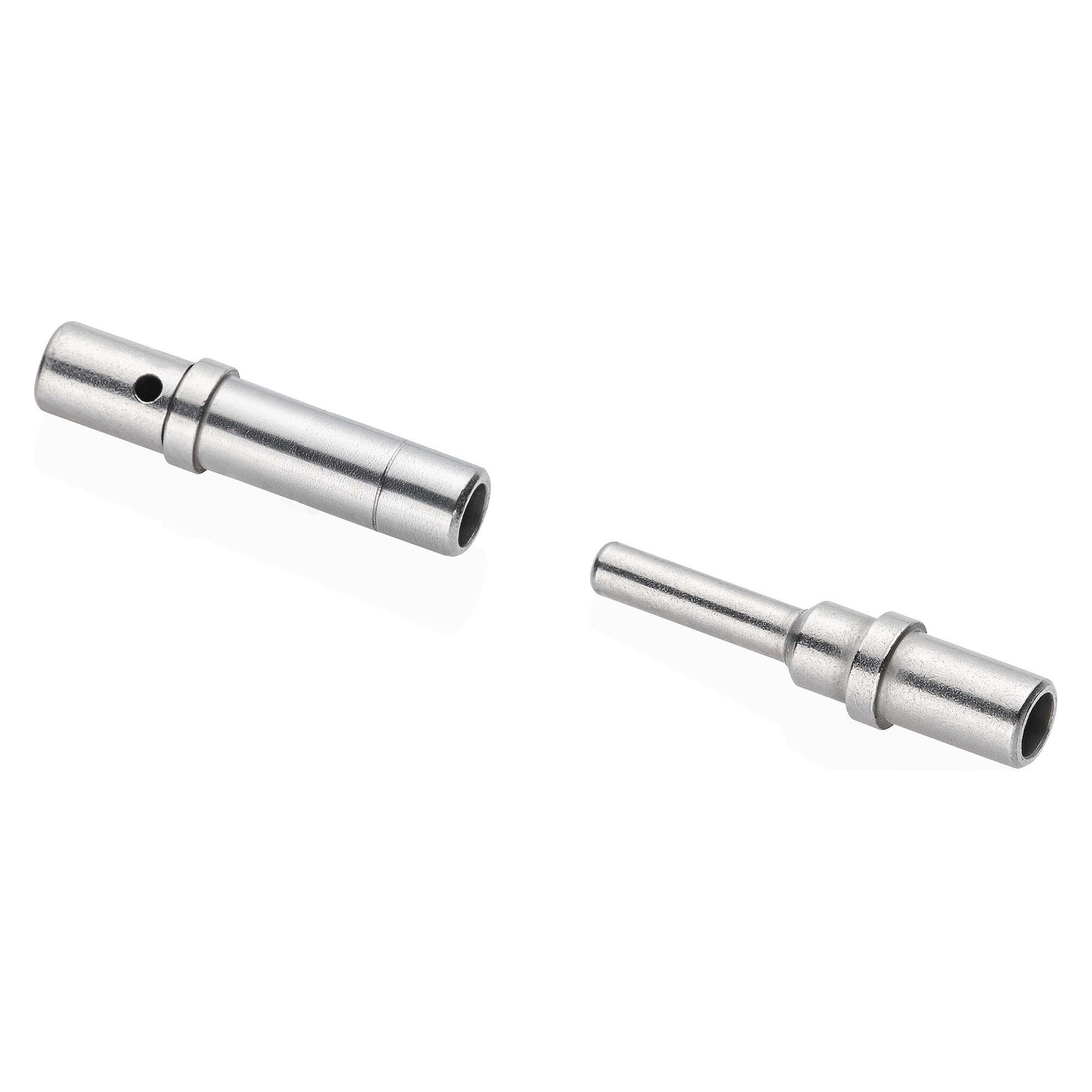

DT, DTM and DTP connectors are standard in vehicle, machine and agricultural engineering. Their turned contacts require a clean four-mandrel crimp. These pliers crimp all sizes from 0.35 to 3.0 mm² (AWG 22 to 12) with eight indentations and can be checked at any time with the supplied Go/NoGo gauges.
Key benefits

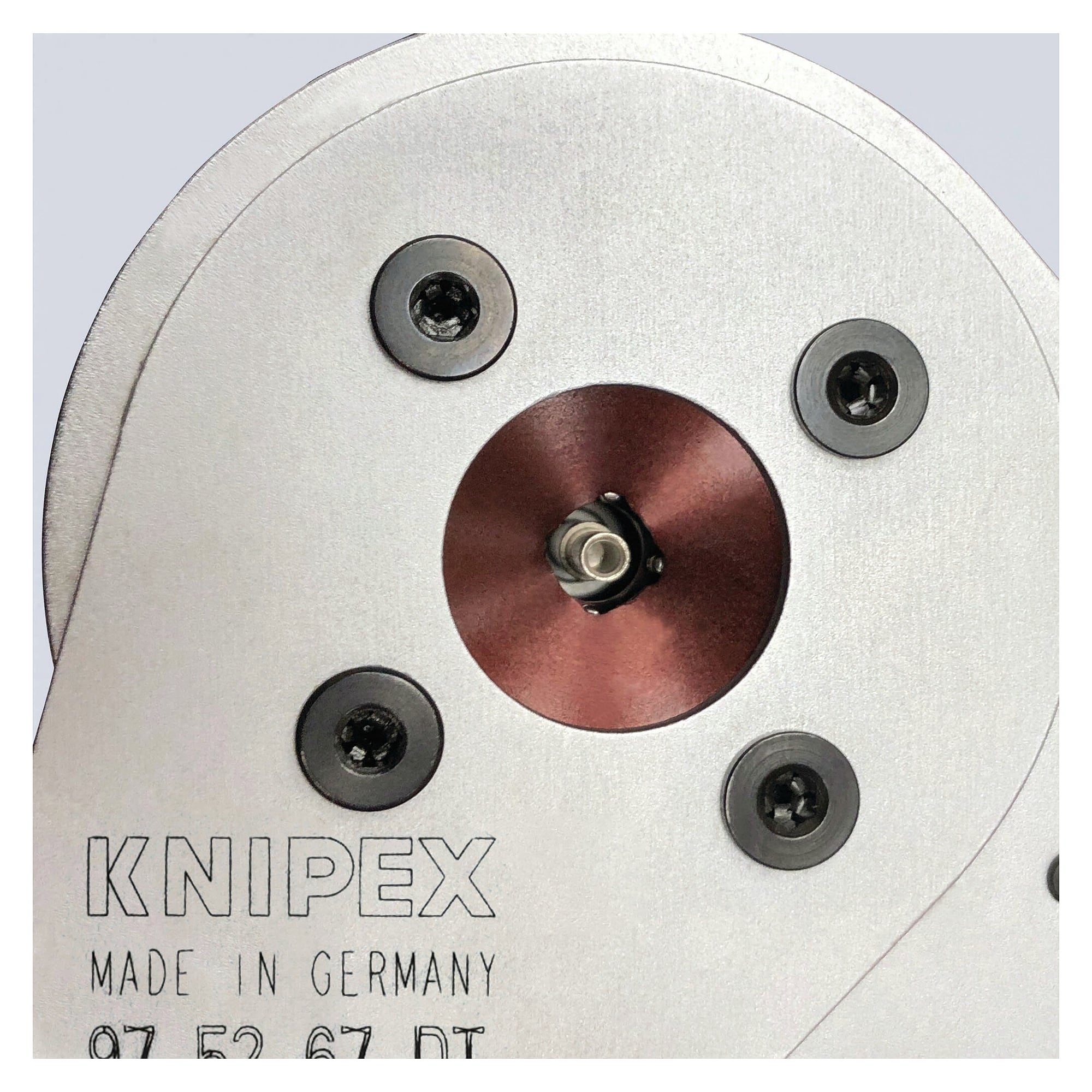

- Four synchronised crimping mandrels, 4/8 indent with eight indentations for uniform crimping
- Ratchet lock, releasable, every crimp cycle is completed fully
- High-precision ground Go/NoGo gauges for checking the calibration

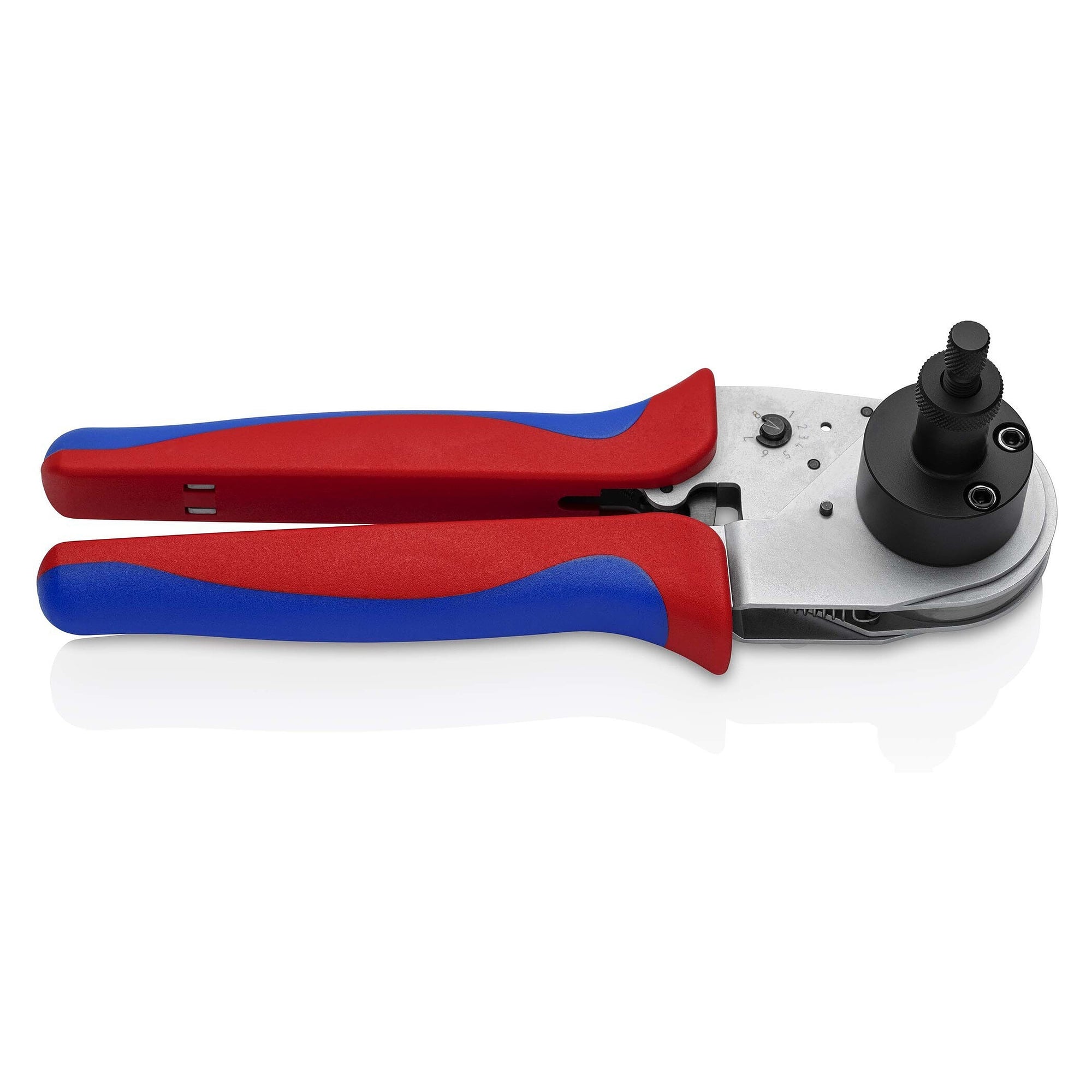

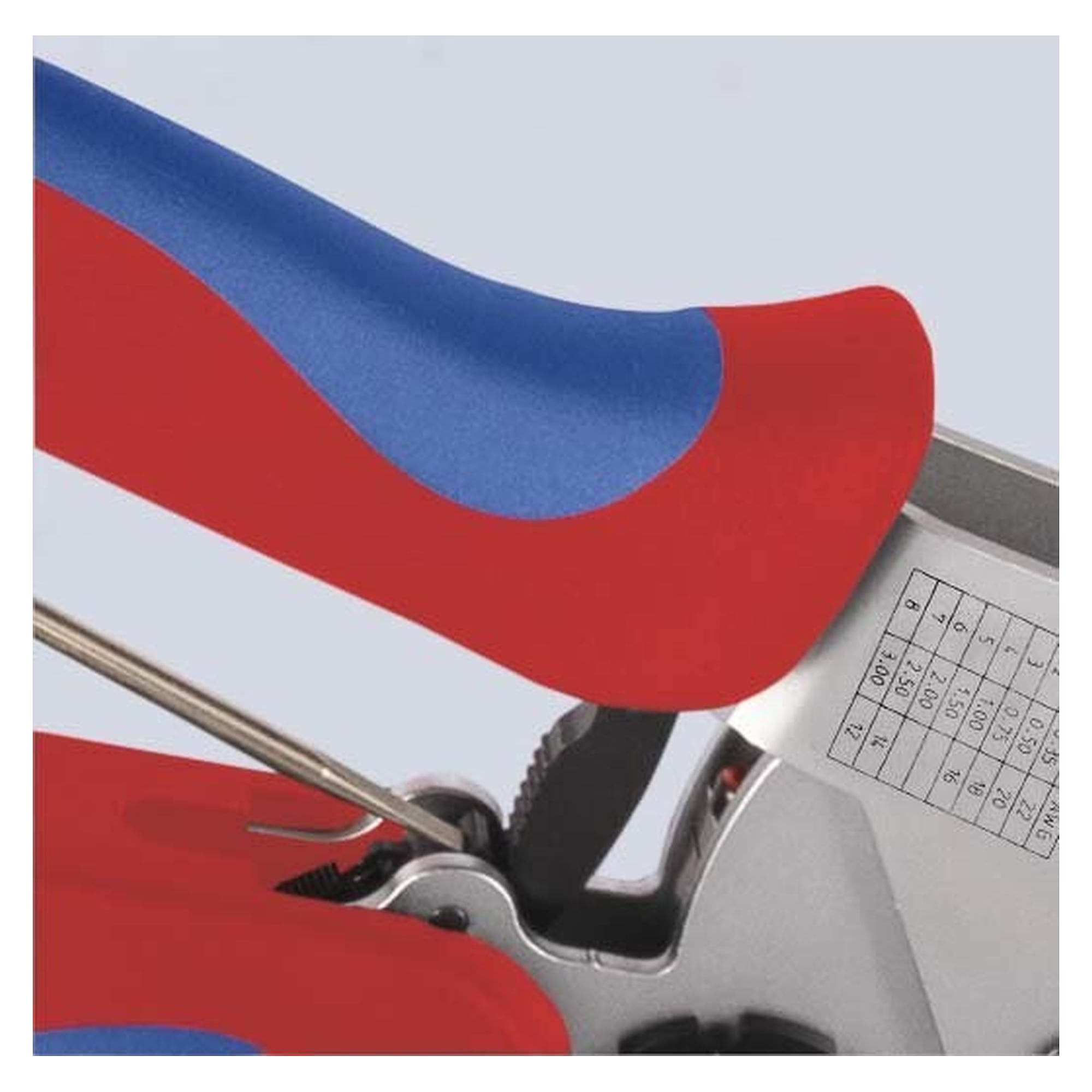

- Universal positioner for all contact lengths, clearly readable selector positions for crimp depth
- Lever transmission, optimised opening width and two-component handles for low-fatigue work
Applications

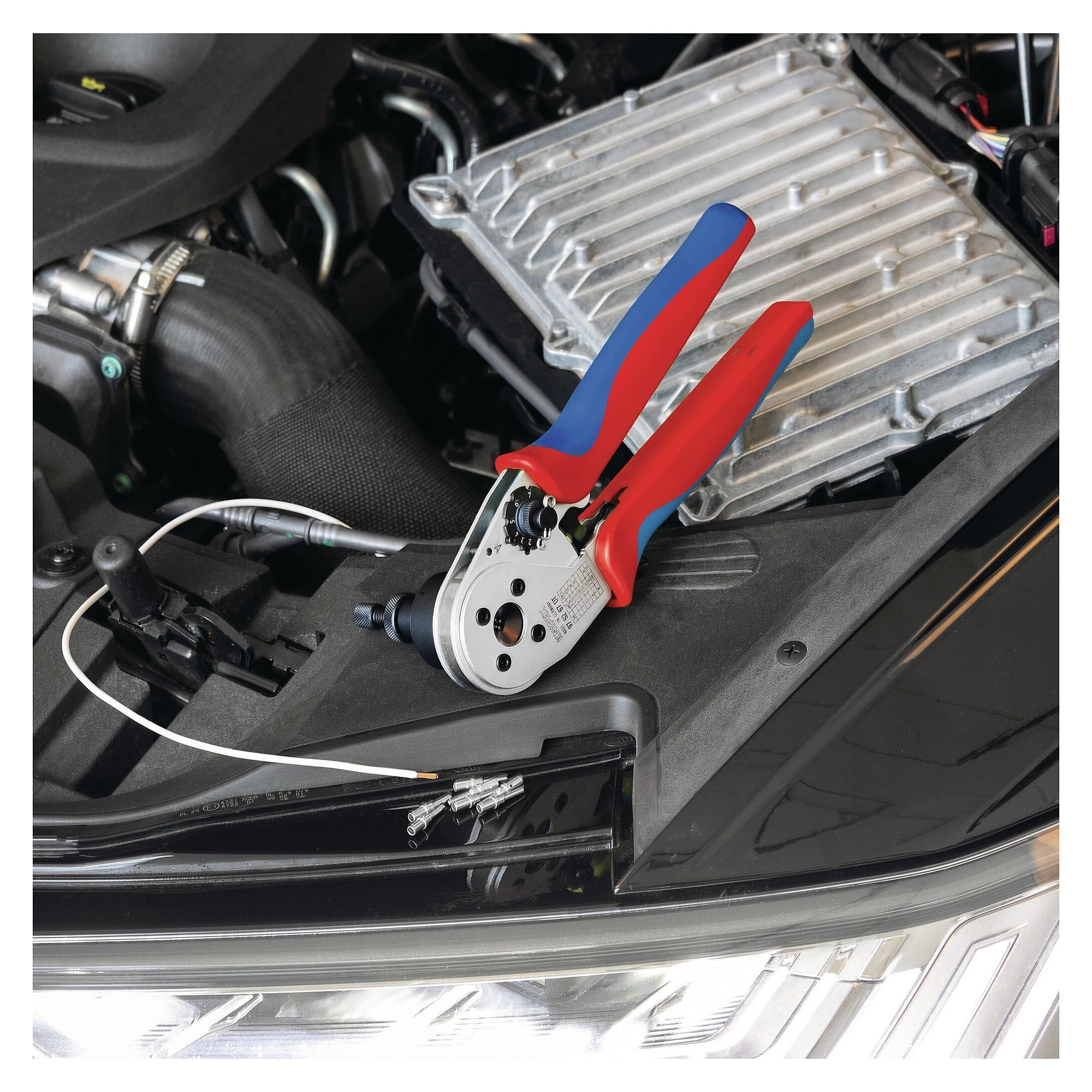

Wire harness production for commercial vehicles, construction, agricultural and special machinery, repair and service of DT, DTM and DTP connectors, prototype and small batch production.
Technical data
| Contact systems | turned pin and socket contacts DT, DTM, DTP |
|---|---|
| Crimping range | 0.35 to 3.0 mm² (AWG 22 to 12) |
| Crimp profile | four-mandrel, 4/8 indent (eight indentations) |
| Pliers type | crimping pliers |
| Tool length | 230 mm |
| Width | 80 mm |
| Height | 70 mm |
| Insulated | no |
| VDE marking of the complete item | no |
| ESD-safe | no |
| Packaging dimensions (L x W x H) | 235 x 85 x 50 mm |
| Net weight | 815 g |
| Sales unit | 1 piece |
| Weight | 0.815 kg |
| Manufacturer | Knipex |
| Manufacturer Nr. | 97 52 67 DT |
| HS-Code | 82032000 |
| GPSR manufacturer information | KNIPEX-Werk, Oberkamper Strasse 13, DE-42349 Wuppertal-Cronenberg, www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
