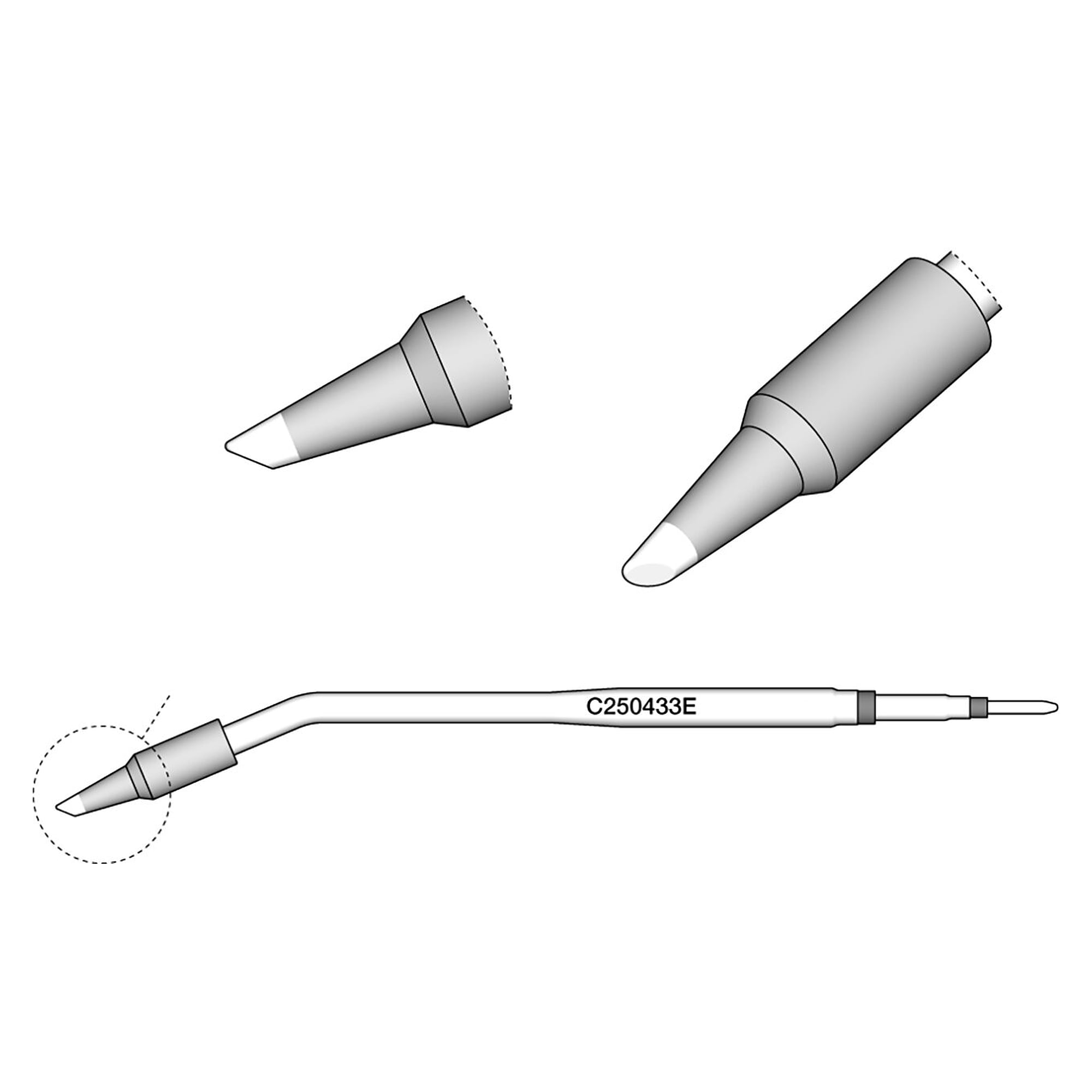

C250 soldering tip cartridge conical bevelled Ø 2 mm for ALE250 iron - JBC C250433E

Repetitive joints in volume production wear tips out fast. The C250433E answers that with a thicker iron layer over the copper core, which the manufacturer rates at five times the life of comparable tips from other brands. The trade off is slightly lower thermal efficiency, and that rarely matters when every joint is the same.

Key benefits

• Reinforced iron layer for heavy and repetitive work, tuned for service life rather than peak heat transfer.
• Conical shape with a 2 mm diameter and a bevelled alignment, so a defined face meets the pad.
• Tip length of 10.8 mm at 2 mm tip thickness, geometry stays comparable across the whole C250 range.
• The anti rotation screw in the tool aligns the cartridge repeatably, so the bevel sits the same way after every change.
• Heat management on the JBC stations lowers the temperature in the stand and protects the tinning between cycles.

Technical data

Applications

Production soldering in electronics manufacturing, rework on through hole components and any job with high tip wear where service life drives the cycle time.

Compatibility and scope of delivery

The matching handpiece listed by the manufacturer is the ALE250. C250 cartridges were developed for the AP250 iron with manual wire feed. One cartridge is supplied per sales unit, the package measures 127 x 31 x 31 mm.

Standards and compliance

The manufacturer data sheet does not list this cartridge as ESD safe. Manufacturer is JBC Soldering SL in Spain.
