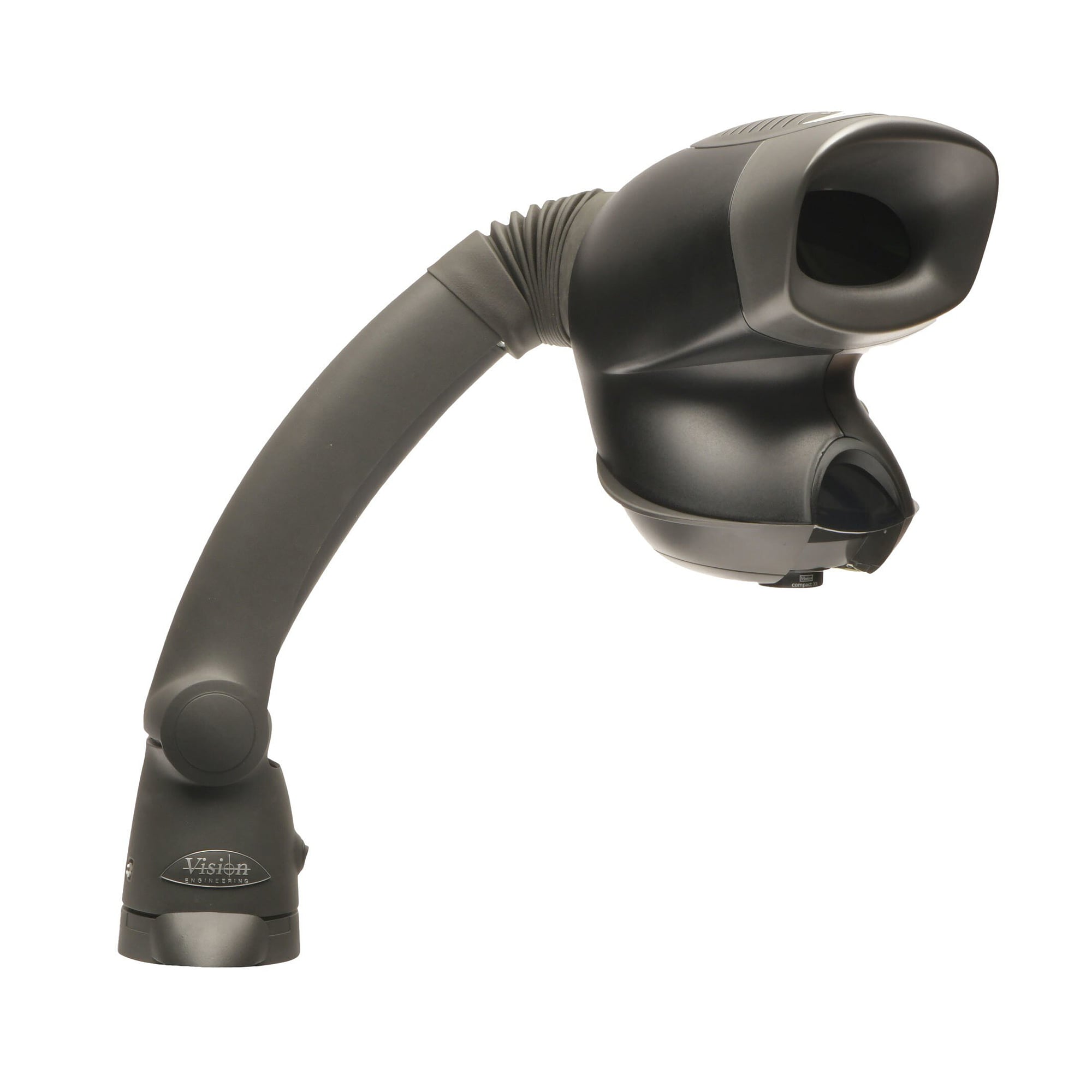

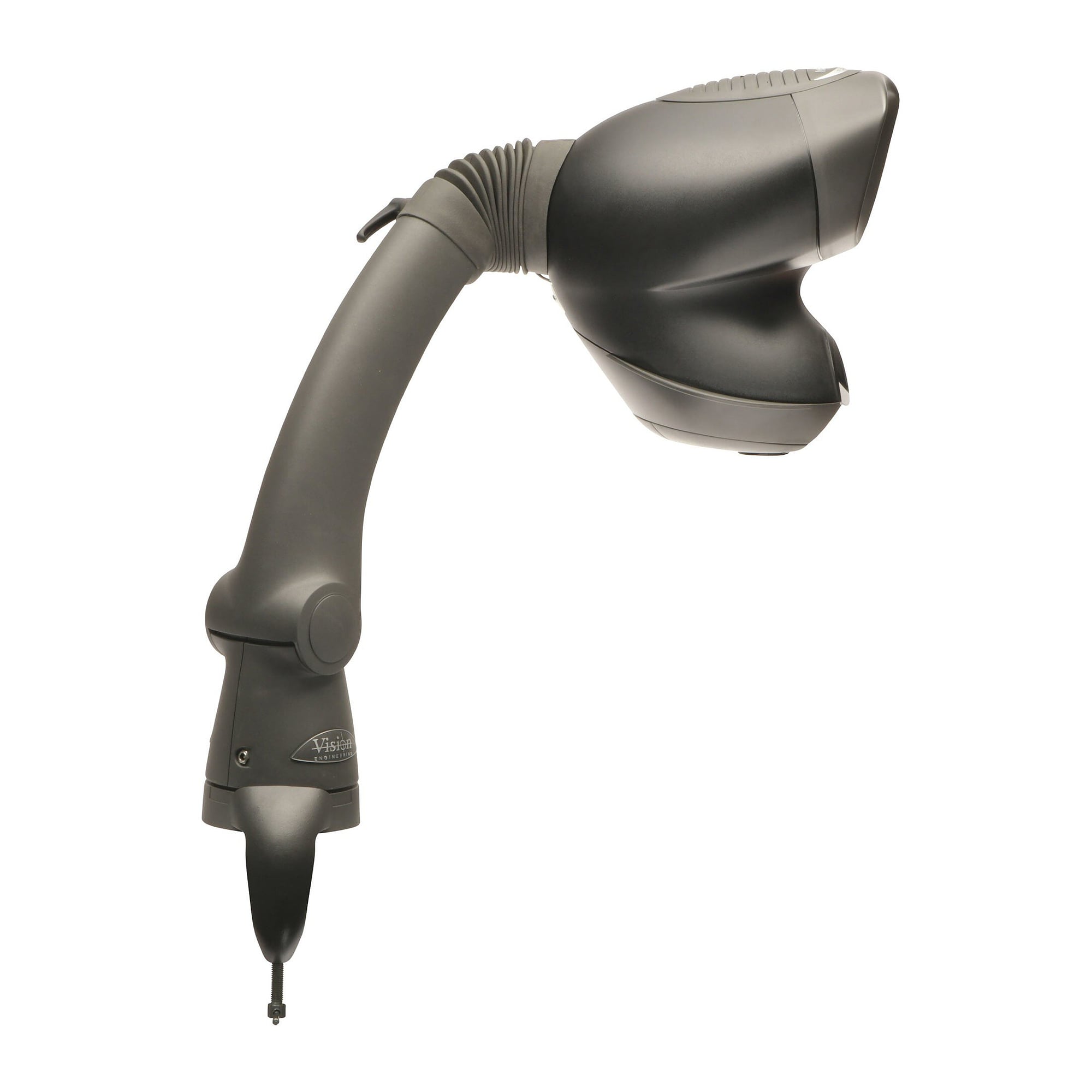

Eyepiece-free stereo microscope kit with universal stand and 4x objective, 96 mm working distance - Vision MOS005

A full shift of inspection, soldering and rework is lost in small amounts, through re-adjusting and through tired eyes. The OPTA projection head works without eyepieces, the upright stereo image floats above the optics, and the 4x objective leaves 96 mm of working distance under the head.

Benefits in use

• Eyepiece-free design keeps the head upright and the eyes away from a cup, so corrective and safety glasses are no obstacle.
• 96 mm working distance with the 4x objective, enough room underneath for tweezers, an iron or a dispensing needle.
• Field of view 27.5 mm, an assembly stays in the picture instead of being nudged along constantly.
• Integrated LED illumination with 20 diodes and around 9,400 lux at about 7000 K, rated for up to 10,000 operating hours.
• Universal stand built as a cantilever, footprint 454 mm in length at 605 mm height, the area under the head stays open.
• Complete kit of projection head, 4x objective and stand set, sales unit 1 piece.

Technical data

Applications

Visual inspection and rework in electronics manufacturing, incoming and final quality control, precision mechanics, tool and mould making, laboratory, training and assembly work carried out at the microscope over longer periods.

Compatibility and scope of delivery

The box holds the OPTA projection head, the 4x objective and the universal stand set. The objective sets magnification, working distance and field of view, and the range offers a 4x and a 6x version. For a column build with an arc or bench base the range lists the parts OEB100, OEB200 and OEB210 plus the focus drive adapter OEB230. A dust cover for the universal stand is available as an accessory. According to the manufacturer documents the LED illumination is fed by a plug-in power supply for 100 to 240 V, listed there separately.

Standards and compliance

The property table lists the unit as not ESD safe. For a workstation to IEC 61340-5-1 the dissipation and grounding of bench mat and stand therefore have to be assessed separately. Weight, EAN and customs tariff number are not stated in the available documents.
