MicroFine tweezer soldering tips, chisel 0.6 x 9 mm, cartridge pair, 800 series - Metcal MFT-8CH9006

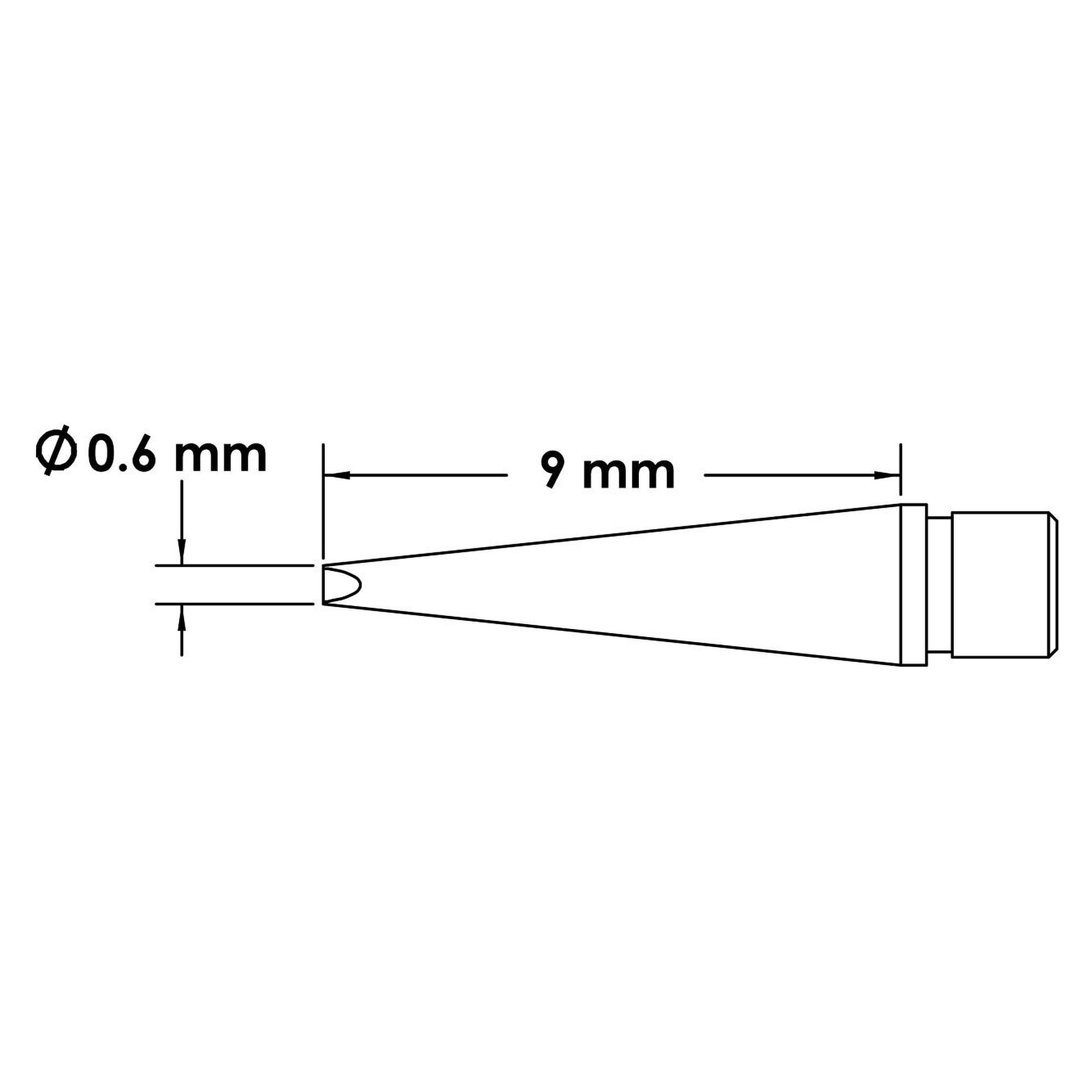

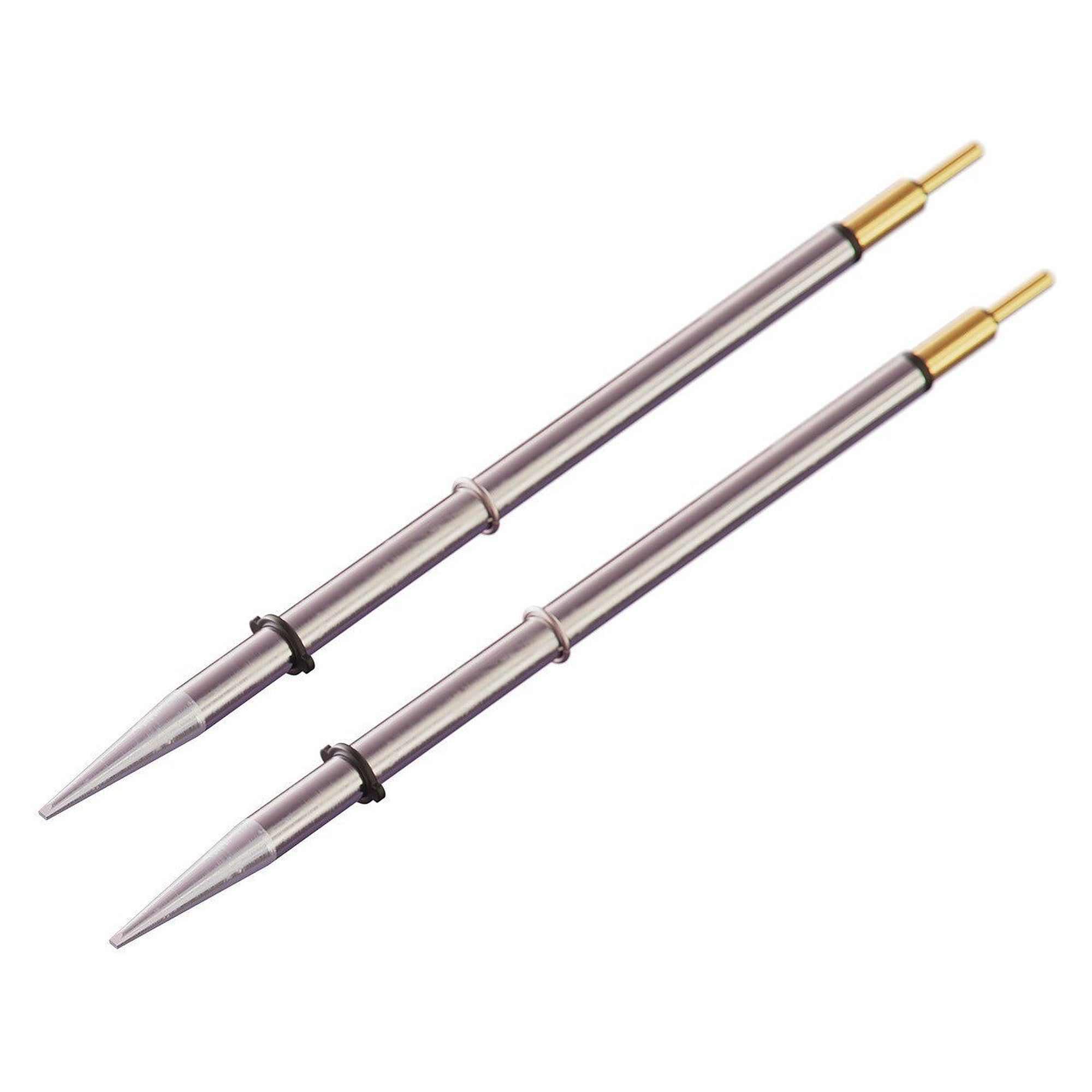

Tiny chip components are heated and lifted in one move with soldering tweezers. The Metcal MFT-8CH9006 is a pair of MicroFine tweezer tip cartridges, chisel, 0.6 mm wide and 9 mm long, running at 468 °C as part of the 800 series.

Key benefits

• Tip size 0.6 x 9 mm, chisel: fine access to the smallest SMD parts under the microscope
• 800 series with fixed temperature of 468 °C, set by the cartridge
• SmartHeat induction heating adjusts power in every soldering cycle and keeps the temperature constant
• Supplied as a pair, both tweezer arms are fitted at once

Applications

Temperature-critical soldering under the microscope: placing and removing small chip resistors and capacitors, repair and rework in electronics production.

Compatibility and scope of delivery

For the MicroFine tweezer handpieces MX-H10-MFT and CV-H10-MFT on Metcal MX and CV systems (MX-500, MX-5200, CV-500, CV-5200). Scope of delivery: 1 pair of MFT-8CH9006 tip cartridges.
